Using 3-way ball valves correctly starts with understanding flow paths, port configuration, and real operating conditions instead of just copying a catalog diagram. From my experience supporting global water treatment and municipal pipeline projects, the systems that run reliably for 10+ years all have one thing in common: the engineer took time up front to match each 3-way valve's function, material, and actuation strategy to the real behavior of the medium in the pipe. [valveman]
A 3-way ball valve is a quarter-turn valve with three ports that can divert, mix, or split flow depending on the internal ball port (L-port or T-port) and handle position. Compared with using multiple 2-way valves, a properly selected 3-way valve simplifies piping, reduces leak points, and cuts automation cost. [electricsolenoidvalves]
In water treatment and municipal networks, 3-way ball valves are widely used for line switching, filter or tank selection, bypass loops, and temperature or flow control circuits. When misapplied (wrong port logic, wrong material, or wrong actuator), they can cause unstable process control, internal erosion, and unplanned shutdowns. [nswvalve]
Understanding internal flow geometry is the first step to using a 3-way ball valve correctly. [linkedin]

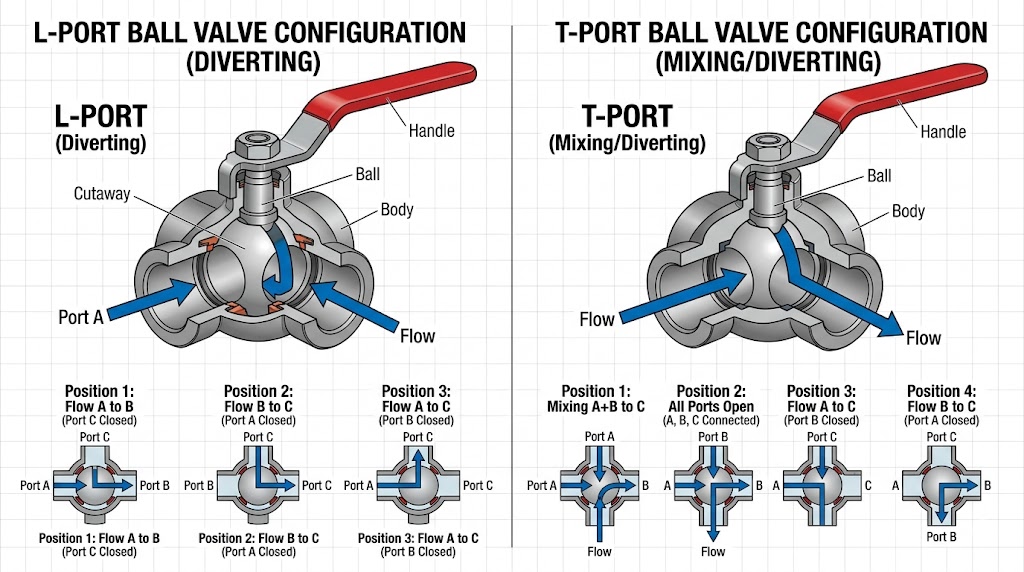

An L-port ball has a 90-degree "L"-shaped bore that connects one common port to one of two other ports at a time. [electricsolenoidvalves]
Typical uses:
- Line switching (one inlet to outlet A or outlet B)
- Equipment changeover (duty/standby pumps or filters)
- Simple bypass around a device (like a heat exchanger or meter)

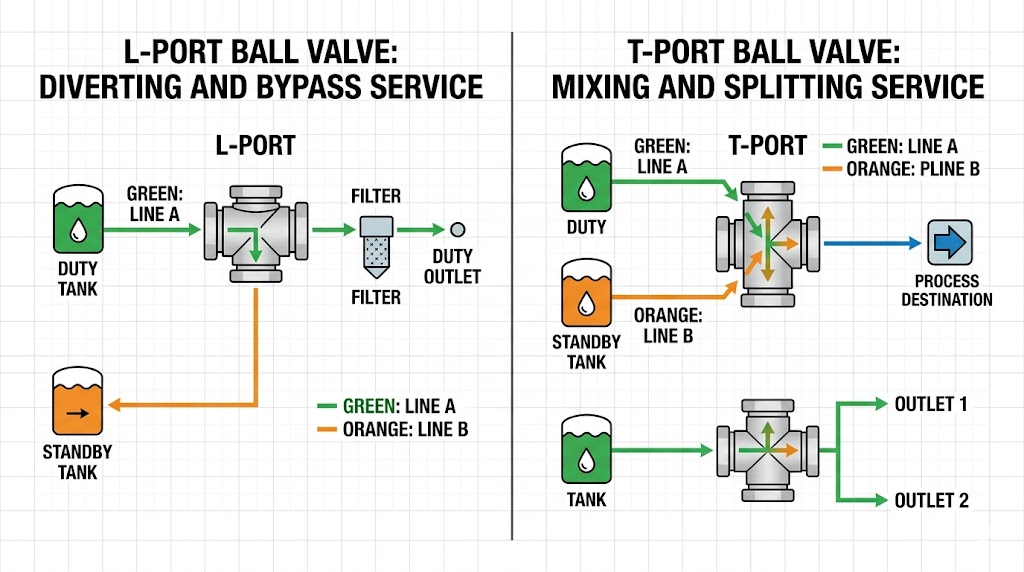

In a water treatment skid, an L-port 3-way ball valve is often placed on the outlet of a pump so you can send flow either to the main process line or to a recirculation loop. If you connect the wrong port as "common," the handle positions will not match the intended flow path, which is one of the most common field mistakes. [iflowmarinevalves]
A T-port ball has a "T"-shaped bore that can connect all three ports or switch among combinations of two ports. [linkedin]
Typical uses:
- Mixing two inlet lines into one outlet (e.g., hot water and cold water for temperature control)
- Splitting one inlet into two outlets that can be partially open at the same time
- Recirculation or load-sharing circuits where both branches may see some flow
In dosing and blending skids, a T-port 3-way valve lets you mix two chemical streams before they enter a main reaction or filtration stage, with a compact footprint. Because T-port valves can create multiple flow combinations, engineers must carefully define the open/closed pattern at each handle or actuator position to avoid unintended cross-connection. [hikelok]
For modern water treatment and municipal pipeline systems, 3-way ball valves are more than just convenient hardware—they are a key control element. [highmpavalve]
- Filter and vessel selection: Choosing between multiple sand filters, activated carbon vessels, or softener tanks.
- Backwash and rinse routing for filters.
- Bypassing a UV disinfection unit or meter for maintenance.
- Switching between raw water sources (well A / well B) or reservoir lines.
- Recirculation around chemical dosing points or storage tanks.
3-way valves are already widely used in industrial water treatment, including RO skids, wastewater equalization tanks, and polishing filter trains. Their compact design helps engineers reduce the number of welds, flanges, and potential leak paths in space-constrained plants. [iflowmarinevalves]
Correct usage starts with correct selection. Below is a practical framework we use when advising global distributors and EPC partners on 3-way ball valves for water treatment and municipal pipelines. [nswvalve]
Before touching any piping layout, clearly define: [valveman]
- Where the fluid enters and where it must exit
- Whether flows must mix or stay strictly separated
- Whether you need simple on/off switching or modulating control
- Whether failure position must be "fail-safe" (e.g., always ensure one line is closed on power loss)
Many misapplications occur because the project team copies a generic 3-way symbol in CAD without documenting function and fail state. [linkedin]
- Choose L-port for diverting and basic bypass where only one outlet is active at a time. [electricsolenoidvalves]
- Choose T-port for mixing or when you need both branches to see flow simultaneously. [electricsolenoidvalves]
- For fine control (temperature or flow), consider 3-way globe-style control valves; for general isolation and low-pressure-drop service, 3-way ball valves are usually preferred. [nswvalve]
In water and wastewater service, corrosion resistance and sealing are critical for lifecycle cost. [highmpavalve]
- Body materials: common choices are carbon steel, stainless steel, and ductile iron; in many water treatment applications, stainless steel or coated ductile iron is preferred for long-term durability. [valveman]
- Ball and stem materials: stainless steel to resist corrosion in chlorinated or slightly aggressive water. [nswvalve]
- Seats and seals: PTFE and reinforced PTFE are common; for abrasive or slurry-like wastewater, consider tougher seat options or metal seated designs. [linkedin]
- Pressure and temperature ratings must cover the maximum operating and upset conditions, including potential water hammer. [valveman]
A well-chosen 3-way valve can still fail early if installed poorly. Field experience and industry guides highlight several recurring issues. [christianplumbing]
- Confirm the flow diagram and mark which port is "common" on the pipe and on the valve.
- Verify that the valve's pressure/temperature rating exceeds the system's design envelope. [nswvalve]
- Check end connections (threaded, flanged, welded) match the existing pipeline. Flanged 3-way valves are generally easier to remove for maintenance than welded styles. [valveman]
1. Isolate and depressurize the line. Always shut off water supply and verify zero pressure before cutting the pipe. [christianplumbing]
2. Support the pipeline so the valve is not bearing unnecessary mechanical loads.
3. Install the valve in the correct orientation according to the flow plan and port markings.
4. Tighten flanges or threaded connections using a star pattern and appropriate torque.
5. After installation, slowly pressurize and cycle the valve to check for leaks and smooth movement. [christianplumbing]
In municipal systems where access is difficult (pits, underground chambers), paying attention to valve orientation and handle clearance during installation can prevent costly rework later. [nswvalve]
Once in service, how operators use the 3-way valve day-to-day strongly affects performance and safety. [iflowmarinevalves]
When a 3-way valve is used to switch flow between two pipelines or pieces of equipment:
- Avoid frequent, rapid cycling if the valve is not designed for high-cycle duty.
- Train operators or configure actuators so they fully reach each position and do not leave the valve between detents where partial cross-connection can occur.
- In critical services (e.g., disinfection lines), interlock actuated valves with the control system to prevent unsafe combinations. [linkedin]
In mixing applications, such as blending two water streams or two chemical feeds:
- Use a T-port design and size the valve considering both minimum and maximum combined flow. [hikelok]
- Combine the 3-way valve with a control loop (temperature, conductivity, or flow) and a suitable actuator for modulating control. [linkedin]
- Ensure downstream piping has enough straight length to allow proper mixing before measurement or process entry. [iflowmarinevalves]
Even in clean water service, regular inspection and basic maintenance extend valve life and reduce leakage risk. [iflowmarinevalves]
- Check for external leakage at body joints, stems, and connections. [nswvalve]
- Cycle the valve periodically to confirm smooth movement and prevent sticking, especially in rarely used bypass or standby lines. [linkedin]
- Monitor for unusual noise or vibration that might indicate cavitation or erosion at high pressure drops. [valveman]
Industry guidance recommends flushing valve internals periodically to remove sediment or debris that can cause wear or clogging, especially in wastewater or raw water applications. For manual and some automated valves, stem threads and drive components benefit from periodic lubrication with a suitable, compatible grease. [iflowmarinevalves]
When seats or soft seals show aging or damage, replacing them promptly prevents leakage and unplanned downtime; in some designs, metal seats and sealing surfaces can be re-lapped or refinished instead of fully replacing the valve. [nswvalve]
Global demand for ball valves, including 3-way configurations, continues to expand with industrial and infrastructure growth. A recent market analysis reported that the global ball valve market is expected to grow at a compound annual growth rate of about 5.1% from 2021 to 2028, driven by energy, chemical processing, and infrastructure investment. [hikelok]
For water treatment and municipal pipe networks, we see three practical trends in real projects: [highmpavalve]
- Increased use of automated 3-way ball valves in packaged water treatment skids.
- Stronger focus on lifecycle cost, favoring corrosion-resistant materials and reliable seat designs.
- Integration of valve diagnostics and position feedback into SCADA systems for better remote monitoring.
These trends mean that choosing robust, application-specific 3-way ball valves at design stage directly impacts long-term operating cost and system uptime. [hikelok]
To make this more concrete, consider a typical surface water treatment plant with dual media filters. Engineers often use 3-way ball valves at the filter inlet and outlet to manage service, backwash, and bypass modes. [iflowmarinevalves]
- In service mode, the inlet 3-way valve directs flow into the filter while the outlet 3-way valve sends filtered water downstream.
- In backwash mode, the valves redirect flow from a clean water source through the filter in reverse.
- In bypass mode, the outlet 3-way valve allows partial or full bypass of the filter while maintenance is performed.
By carefully mapping each port and handle position to these modes, plant operators can switch safely without complex valve manifolds, while minimizing leak paths and operator error. [valveman]
Use this checklist as a quick reference when designing or operating systems with 3-way ball valves: [iflowmarinevalves]
1. Define whether the function is diverting, mixing, or splitting.
2. Select L-port or T-port accordingly and confirm with the valve manufacturer's port diagram.
3. Verify pressure, temperature, and materials meet or exceed service conditions.
4. Mark the common port and all handle positions clearly in the field.
5. Install with proper support and orientation, and leak-test thoroughly.
6. Integrate appropriate actuation and control logic for modulating applications.
7. Implement periodic inspection, cycling, and cleaning to prevent sticking and leakage.
| Aspect | L-Port 3-Way Valve | T-Port 3-Way Valve |
|---|---|---|
| Typical function | Diverting, switching, simple bypass electricsolenoidvalves | Mixing, splitting, more complex routing electricsolenoidvalves |
| Active ports at once | Usually two (one inlet, one outlet) electricsolenoidvalves | Two or three ports can be connected electricsolenoidvalves |
| Best for | Line changeover, duty/standby lines valveman | Temperature blending, dual-feed circuits electricsolenoidvalves |
| Risk if misconfigured | Wrong line receives flow valveman | Unintended cross-connection of streams electricsolenoidvalves |
| Control style | On/off or stepped switching valveman | On/off or modulating with actuator electricsolenoidvalves |
For EPC contractors, distributors, and valve brands serving water treatment and municipal projects, partnering with a manufacturer focused on ball valves and water-related applications reduces engineering risk. [highmpavalve]
An experienced manufacturer can help you:
- Optimize port configuration and seat design for your exact application.
- Standardize 3-way ball valve packages across projects (materials, actuation, and testing).
- Support documentation for international standards and project approvals.
This combination of technical support, application experience, and consistent product quality is often the difference between a project that "just passes FAT" and one that operates reliably for decades. [hikelok]
If you are planning a water treatment plant, municipal pipeline upgrade, or packaged skid, do not leave your 3-way ball valve selection to generic catalog guesses. Engage early with a ball-valve-focused manufacturer to review your P&IDs, define exact flow logic, and select the right L-port or T-port configuration, materials, and actuation strategy for each service. [linkedin]
Yes. 3-way ball valves are already widely used in water treatment for tank selection, bypass loops, and flow switching, thanks to their compact design and reliable sealing. [highmpavalve]
An L-port typically connects one common port to either of two others (for switching or diverting), while a T-port can connect all three or various combinations of two ports for mixing or splitting flows. [electricsolenoidvalves]
Yes, when paired with the right actuator and control element, 3-way valves—especially globe-style control valves—can provide modulating temperature or flow control; ball types often combine low pressure drop with good controllability. [valveman]
Routine inspection, periodic cycling, and internal flushing should be part of regular plant maintenance; seal replacement or refurbishment intervals depend on service severity and operating cycles. [nswvalve]
A single 3-way valve can replace two or more 2-way valves and associated fittings, reducing piping complexity, leak points, and actuation cost, especially in compact skids and tight municipal installations. [electricsolenoidvalves]
