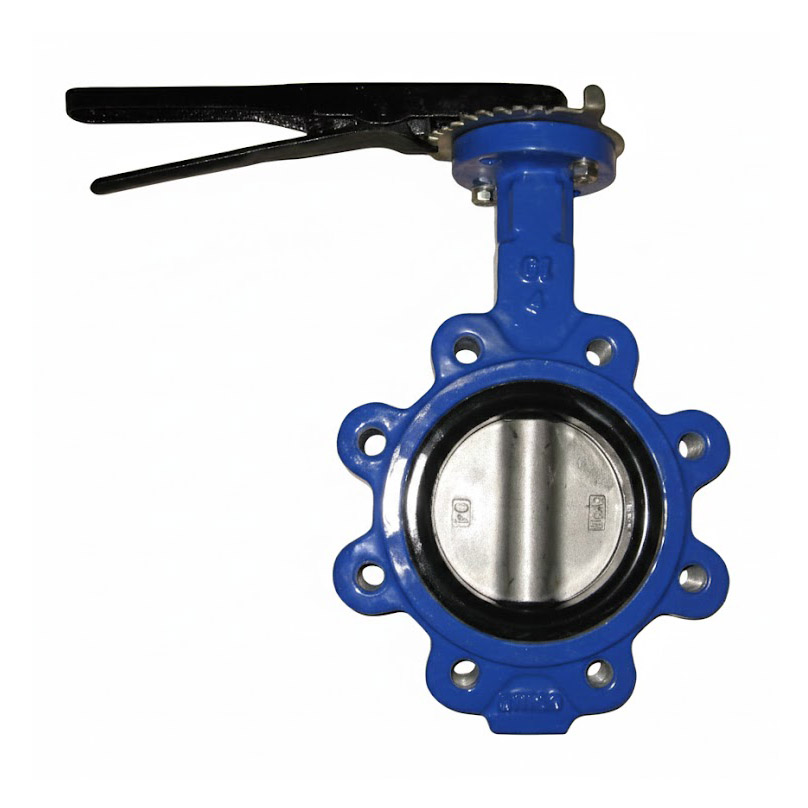

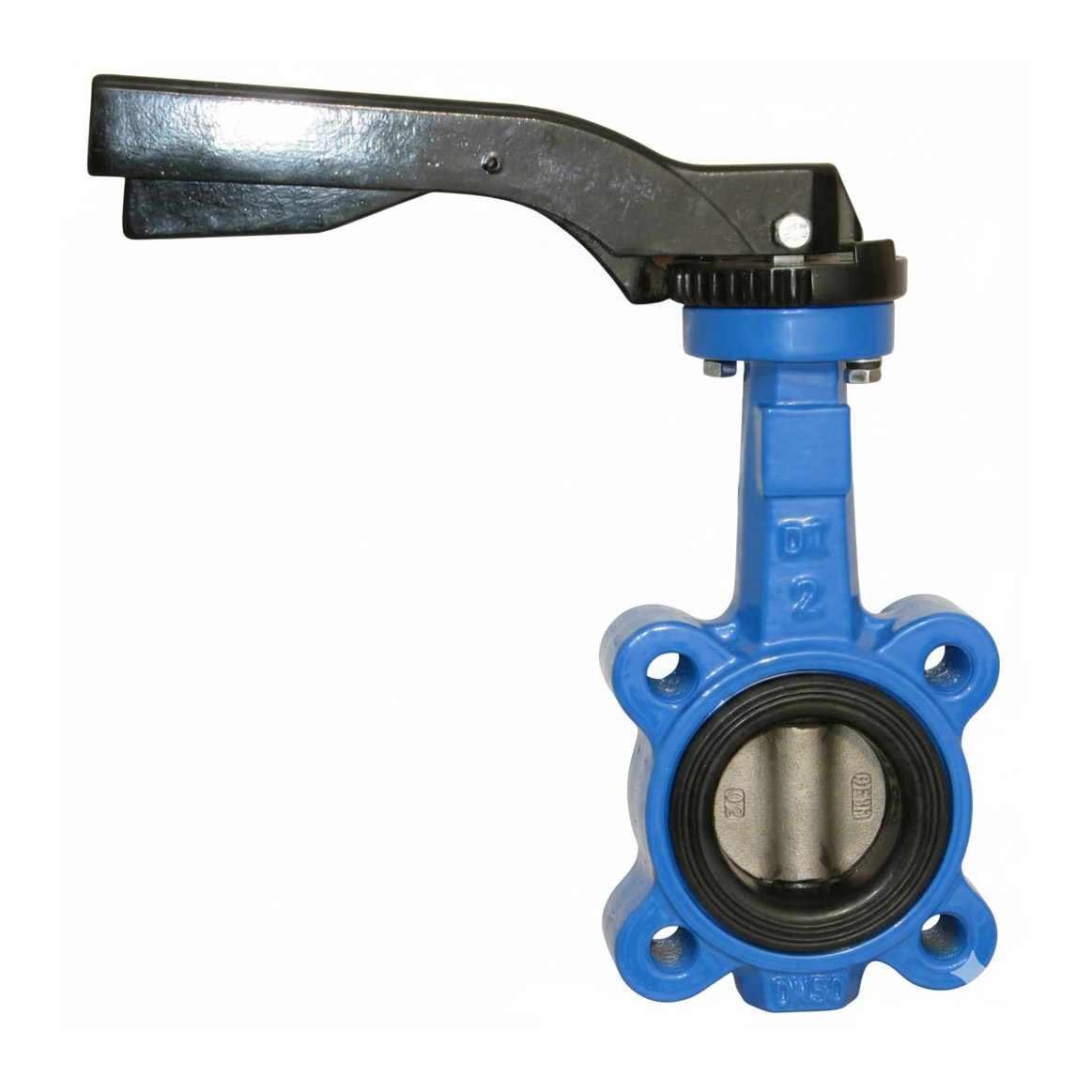

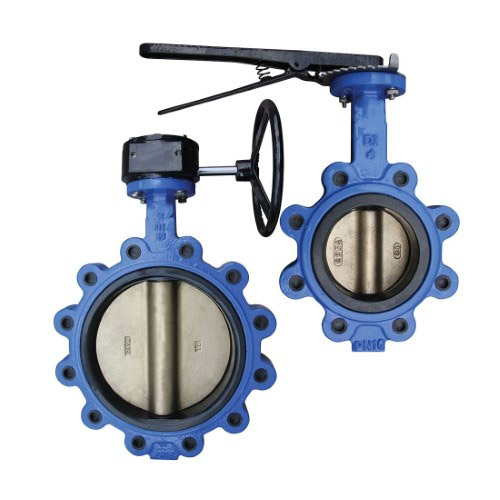

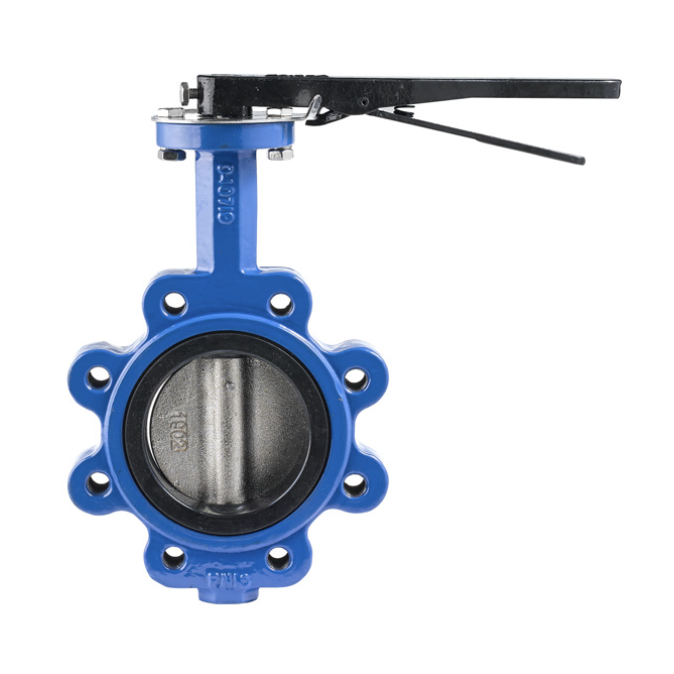

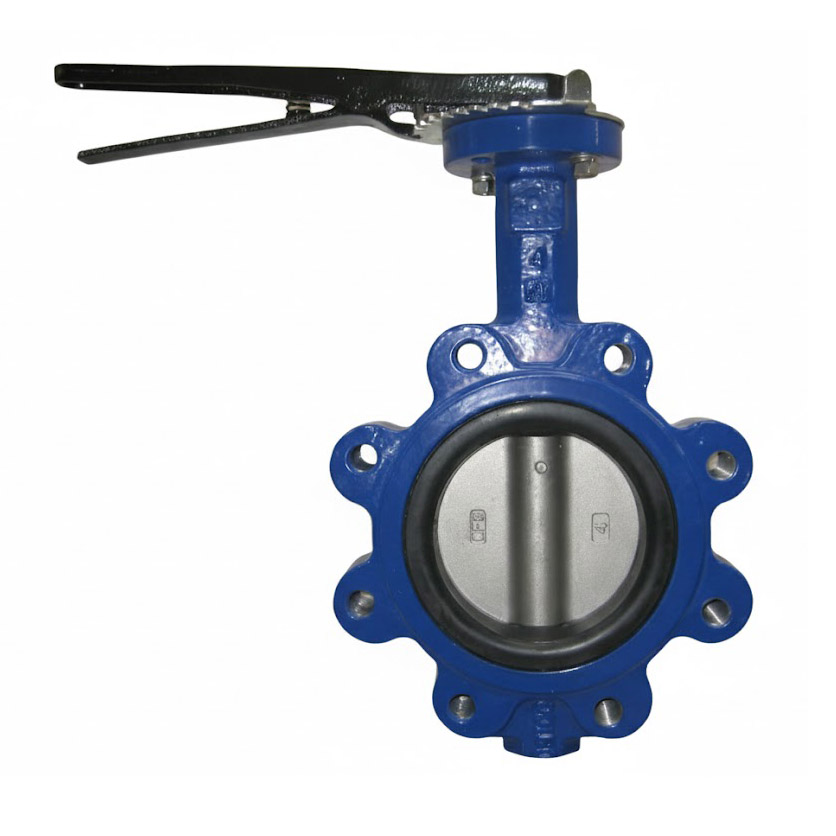

Ductile Iron Lug Butterfly Valve

Ductile Iron Lug Butterfly Valve Manufacturer – Reliable Isolation Solution

The Ductile Iron Lug Butterfly Valve is a robust and versatile flow control valve designed for reliable isolation and throttling applications. Manufactured by WODE Valve, a professional butterfly valve manufacturer in China with over 10 years of export experience, this valve is engineered to deliver stable performance and long-term durability in demanding pipeline systems.
The lug-type design allows the valve to be installed at the end of a pipeline or used in dead-end service, making it especially suitable for maintenance-friendly system layouts. It is widely applied in water supply networks, wastewater treatment plants, HVAC systems, and industrial process lines.


Availability:



Inquire Add to Basket

Ductile Iron Lug Butterfly Valve API 609 Lug Butterfly Valve Pneumatic Lug Type Butterfly Valve Ductile Iron Lug Butterfly Valve Dead-end Service Lug Butterfly Valve Lug Butterfly Valves ASME Class 150 Lug Butterfly Valve Zero Leakage Lug Butterfly Valve Dead-end Service Butterfly Valve

Product Description

Key Features & Benefits

· Strong Structural Design: The ductile iron body provides excellent mechanical strength and impact resistance, ensuring safe operation under PN10 and PN16 pressure conditions.

· Reliable Sealing Performance: Equipped with resilient rubber seats such as EPDM or NBR, the valve ensures tight shut-off and stable sealing over long service periods.

· Lug-Type Connection: Threaded lugs enable easy installation and removal without disturbing the downstream pipeline, improving operational flexibility.

· Smooth Operation: Optimized disc geometry minimizes flow resistance and reduces operating torque, allowing smooth manual or actuated operation.

· Wide Application Range: Suitable for both on/off service and flow regulation in municipal and industrial systems.

Technical Specifications

Feature	Specification
Size Range	DN40 – DN1200 (DN1200+ available upon request)
Pressure Rating	PN10, PN16, Class 125/150
Body Material	CI;DI;Carbon Steel;SS304;SS316;Al-Bronze
Disc Material	CF8;CF8M.DI+Ni;Al-Bronze
Seat Material	EPDM;NBR;Viton;PTFE;Hypalon
Shaft Material	SS420/SS304/SS316/SS431
Operation	Lever/Worm Gear/Pneumatic/Electric Actuator
Face to Face Standard	API609/BS5155/DIN3202/ISO5752
Flange Standard	DIN;BS;UNI;ISO;ANSI;AS;JIS
Mounting Flange	ISO5211
Working Pressure	PN10/PN16/ANSI150/PN25
Application	HVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical/Processing, Power and Utilities, Paper and Pulp, Ship Building

Large diameter butterfly valves up to DN2400 are available for special projects.

Why Choose WODE Gear Operated Butterfly Valves?

WODE Valve focuses on supplying dependable butterfly valve solutions for distributors, OEM partners, and engineering contractors worldwide. Each ductile iron lug butterfly valve is pressure tested before shipment to ensure consistent quality and performance.

We offer:

· OEM / ODM support with customized branding

· Stable production capacity and controlled lead times

· Compliance with international manufacturing standards

· 2-year warranty, providing higher assurance than the standard 1-year warranty offered by many conventional manufacturers

Looking for a Reliable Lug Butterfly Valve Manufacturer?

WODE Valve supplies ductile iron lug butterfly valves for global distributors, OEM partners, and engineering projects. With stable quality control and export-oriented manufacturing experience, we are able to support both standard orders and customized requirements.

What we can support:

· Technical drawings and datasheets

· Free samples for OEM evaluation

· Competitive factory pricing

· Stable lead time and export-grade packing

Contact us today to request a quotation or discuss your project requirements.

Typical Applications

This ductile iron lug butterfly valve is commonly used in:

· Water distribution systems

· Wastewater treatment facilities

· HVAC and building services

· Fire protection systems

· Industrial pipelines and utility networks
