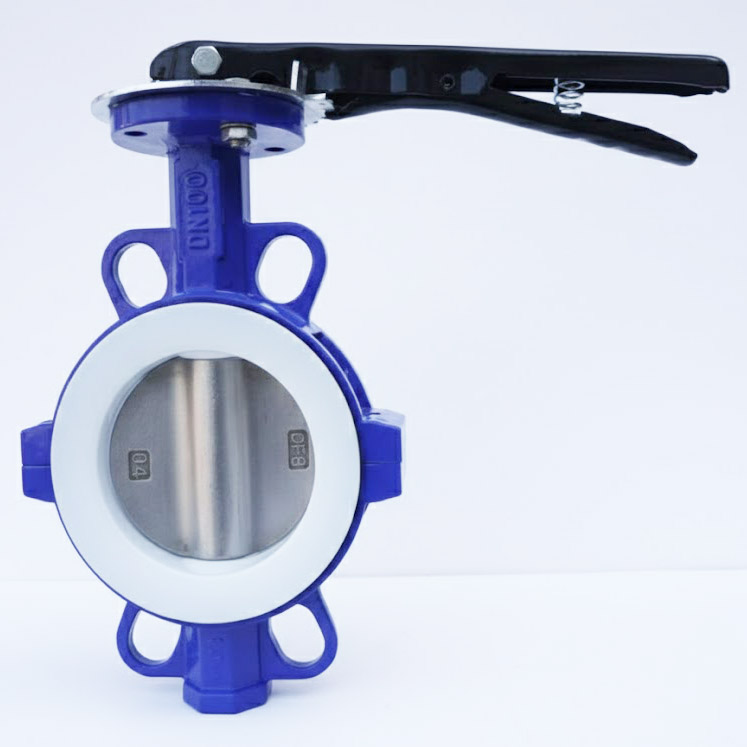

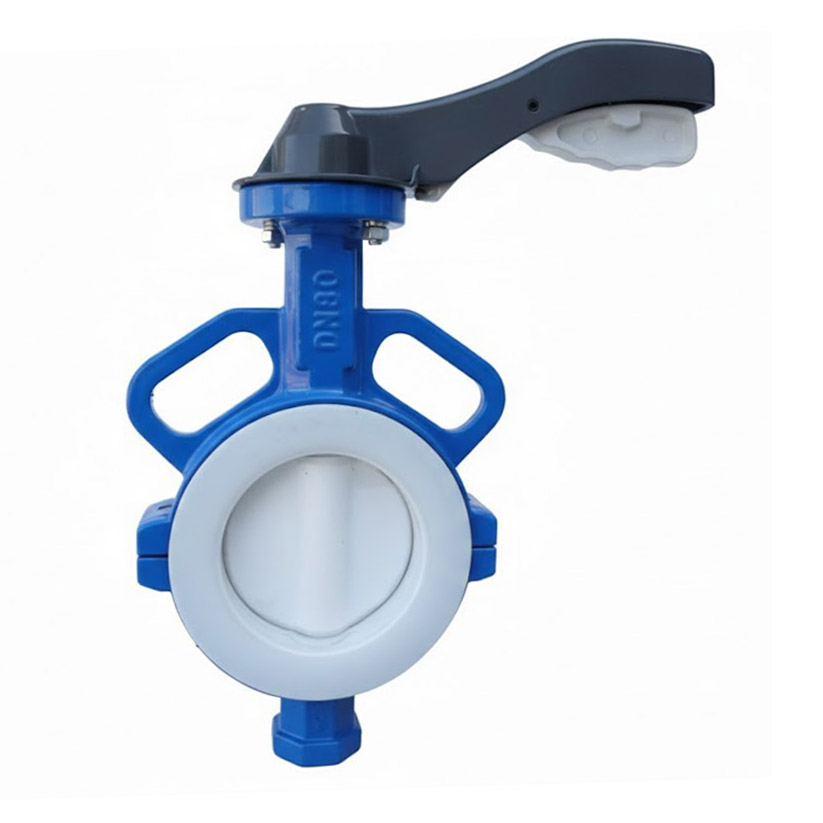

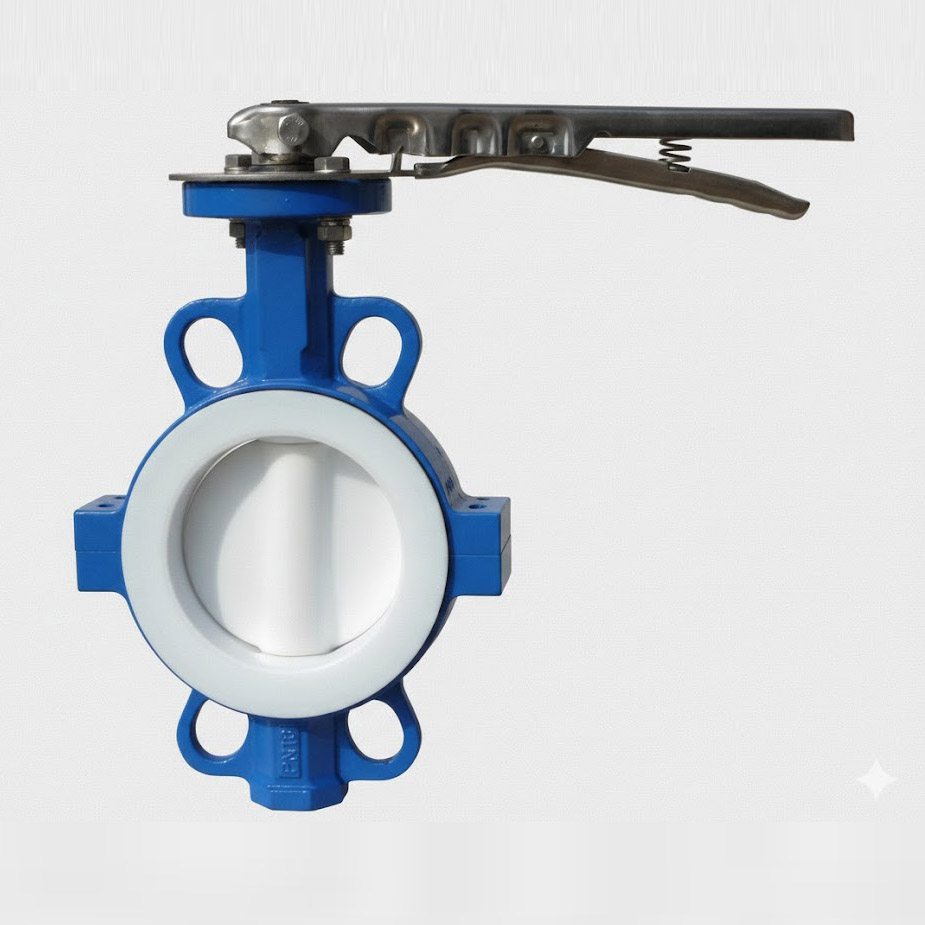

Fully Lined Lug Butterfly Valve

Fully Lined Lug Butterfly Valve Manufacturer – Reliable Solution for Corrosive Media

The Fully Lined Lug Butterfly Valve is specially designed for corrosive and aggressive media applications where superior chemical resistance is required. Manufactured by WODE Valve, this valve features a full lining structure that isolates the valve body from the process fluid, effectively extending service life and improving operational safety.
With a lug-type connection design, this valve allows for dead-end service and easy maintenance, making it a reliable choice for chemical processing, water treatment, and industrial pipeline systems.


Availability:



Inquire Add to Basket

Fully Lined Lug Butterfly Valve PTFE Lined Lug Butterfly Valve Fully Lined Butterfly Valve Chemical Service Lug Butterfly Valve API 609 Lined Lug Butterfly Valve Corrosion Proof Lug Butterfly Valve Lined Lug Butterfly Valve Teflon Lined Lug butterfly Valve Acid Resistant Lug Butterfly Valve High Performance Lined Butterfly Valve

Product Description

Key Features & Advantages

· Full Lining Protection: The fully lined seat and body provide excellent resistance to acids, alkalis, and corrosive fluids.

· Leakage-Free Shut-Off: Precision-molded lining ensures tight sealing performance under rated working pressures.

· Lug-Type Connection: Enables pipeline isolation and downstream maintenance without dismantling the entire system.

· Smooth Flow Path: Reduced flow resistance helps minimize pressure loss and improves system efficiency.

· Long Service Life: The lined structure protects metal components from direct media contact, reducing wear and corrosion.

Technical Specifications

Feature	Specification
Size Range	DN40 – DN1200 (DN1200+ available upon request)
Pressure Rating	PN10, PN16, Class 125/150
Body Material	CI;DI;Carbon Steel;SS304;SS316;Al-Bronze
Disc Material	CF8;CF8M.DI+Ni;Al-Bronze
Seat Material	EPDM;NBR;Viton;PTFE;Hypalon
Shaft Material	SS420/SS304/SS316/SS431

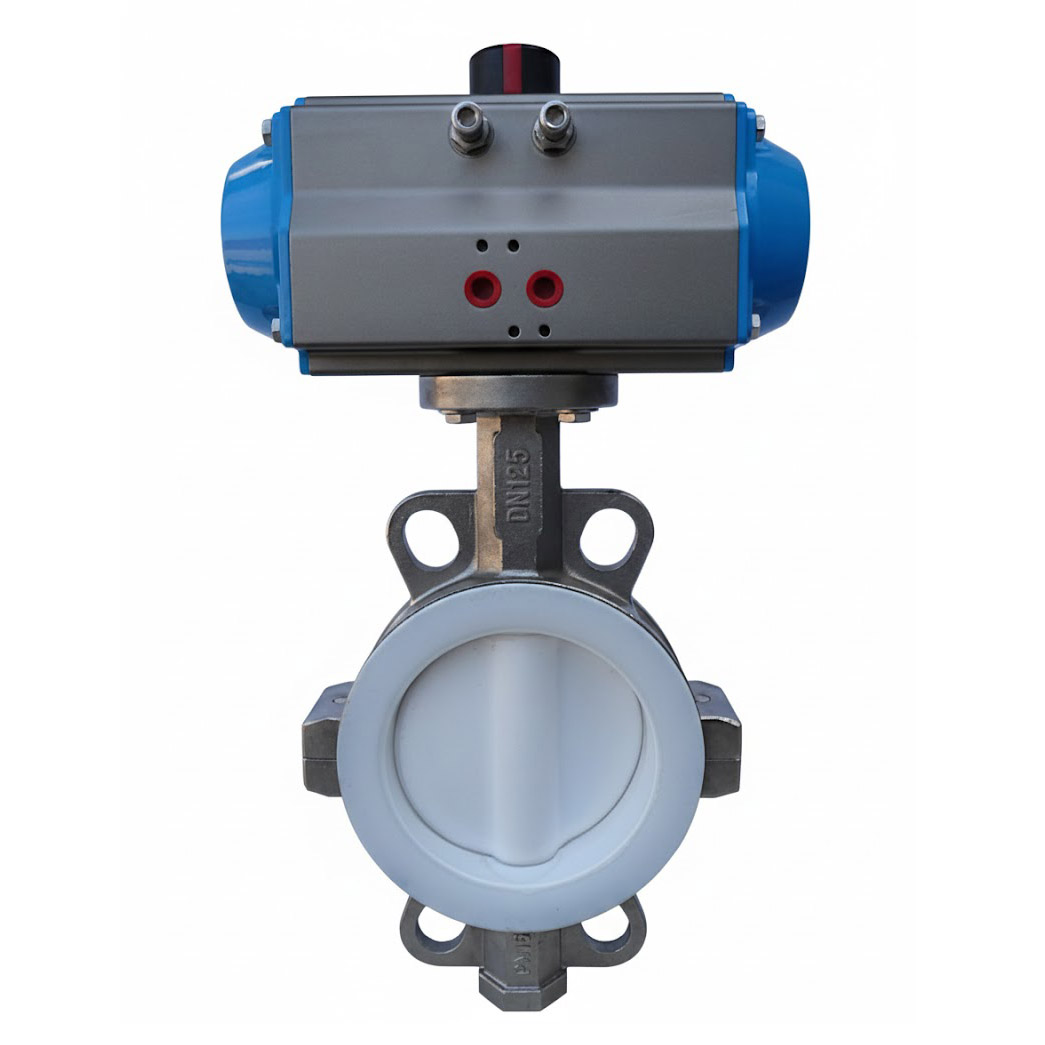

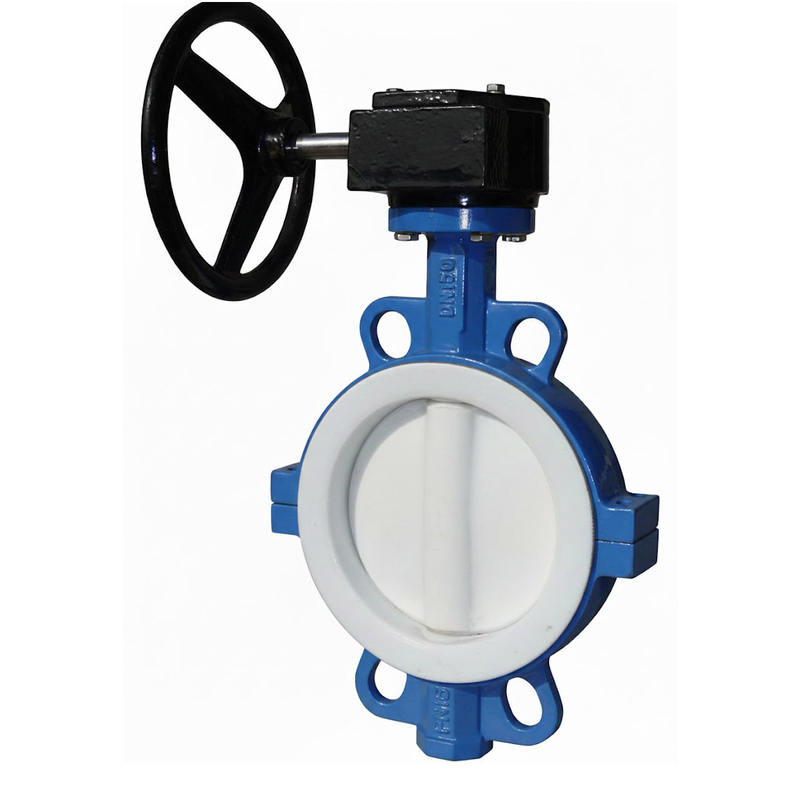

Operation	Lever/Worm Gear/Pneumatic/Electric Actuator
Face to Face Standard	API609/BS5155/DIN3202/ISO5752
Flange Standard	DIN;BS;UNI;ISO;ANSI;AS;JIS
Mounting Flange	ISO5211
Working Pressure	PN10/PN16/ANSI150/PN25
Application	HVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical/Processing, Power and Utilities, Paper and Pulp, Ship Building

Large diameter butterfly valves up to DN2400 are available for special projects.

Why Choose Our Fully Lined Lug Butterfly Valves?

As an experienced butterfly valve manufacturer, WODE Valve focuses on delivering dependable products for demanding industrial environments. Each fully lined lug butterfly valve is inspected and pressure-tested to ensure stable performance and consistent quality for long-term operation.

Looking for a Reliable Fully Lined Lug Butterfly Valve Manufacturer?

WODE Valve supplies fully lined lug butterfly valves to distributors, OEM partners, and engineering contractors worldwide. Our production capability supports both standard specifications and customized lining solutions for special operating conditions.

What we can support:

· Technical drawings and datasheets

· Free samples for OEM evaluation

· Competitive factory pricing

· Stable lead time and export-grade packing

Common Applications

· Chemical processing pipelines

· Water and wastewater treatment plants

· Acid and alkali handling systems

· Industrial fluid control systems

· Power plant auxiliary pipelines
