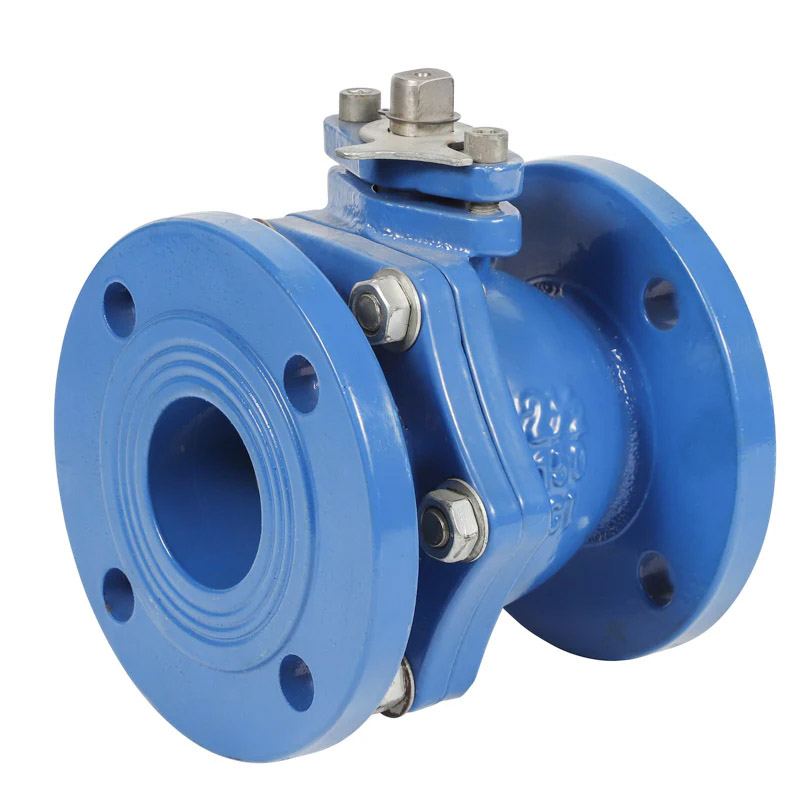

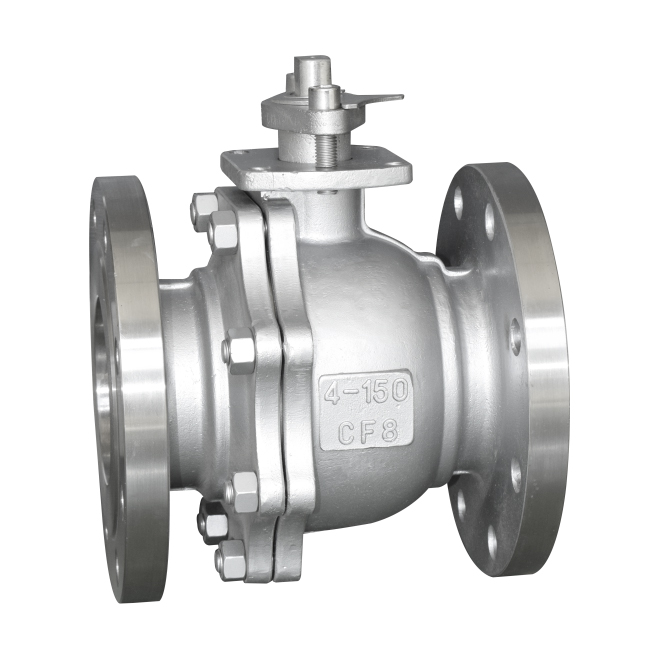

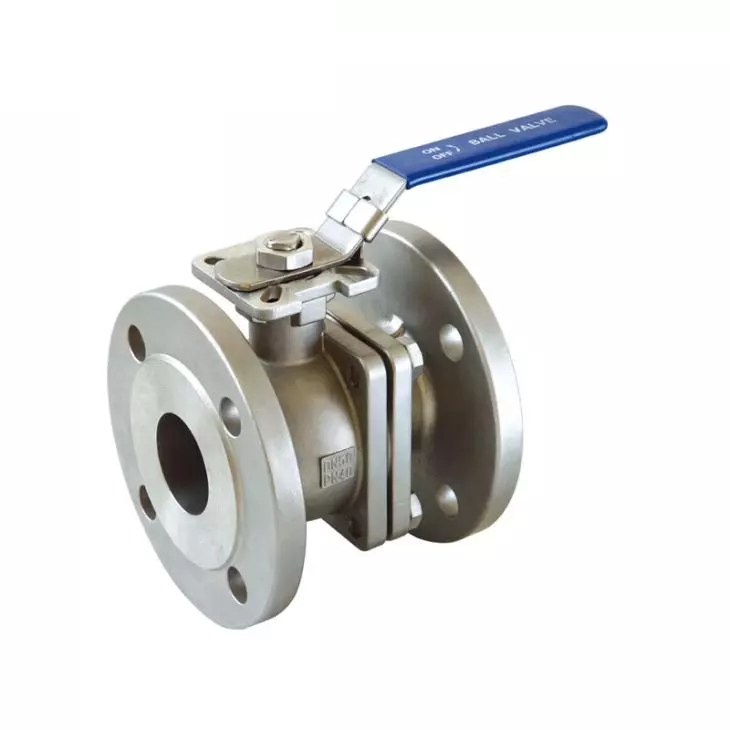

2-Piece Flanged Ball Valve

2-Piece Flanged Ball Valve: Versatile Flow Control for Industrial Efficiency
The 2-Piece Flanged Ball Valve is a cornerstone of modern industrial piping, offering a perfect balance between robust performance and straightforward maintenance. Unlike unibody designs, the two-piece bolted construction allows for easy internal inspection and seal replacement, significantly extending the service life of your infrastructure.
Designed for high-demand environments, this valve features a full-port (full-bore) interior. This ensures the internal passage matches the pipe's inner diameter, providing maximum flow capacity with virtually zero pressure drop or turbulence. Whether you are managing hazardous chemical transport or standard water distribution, this valve delivers the reliable, bubble-tight shut-off your project requires.


Availability:



Inquire Add to Basket

2-Piece Flanged Ball Valve 2-PC Flanged Ball Valve ANSI Floating Ball Valve ASME B16.34 Ball Valve Pneumatic Ball Valve WCB Flanged Ball Valve Ball Valves Stainless Steel 2PC Ball Valve PN16 PN40 Ball Valve Industrial Ball Valve

Product Description

Key High-Performance Features

· Split-Body Serviceability: The bolted two-part design allows for quick disassembly and maintenance without specialized tools, reducing costly system downtime.

· Full Port Efficiency: The unobstructed flow path eliminates flow restrictions, making it ideal for high-viscosity fluids and systems where pressure loss must be minimized.

· Enhanced Safety Standards: Equipped with a blow-out proof stem and anti-static devices as standard, ensuring operator safety and preventing static discharge in volatile environments.

· Fire-Safe Integrity: Many models are certified to API 607 standards, meaning the valve maintains its sealing integrity even during high-temperature fire emergencies.

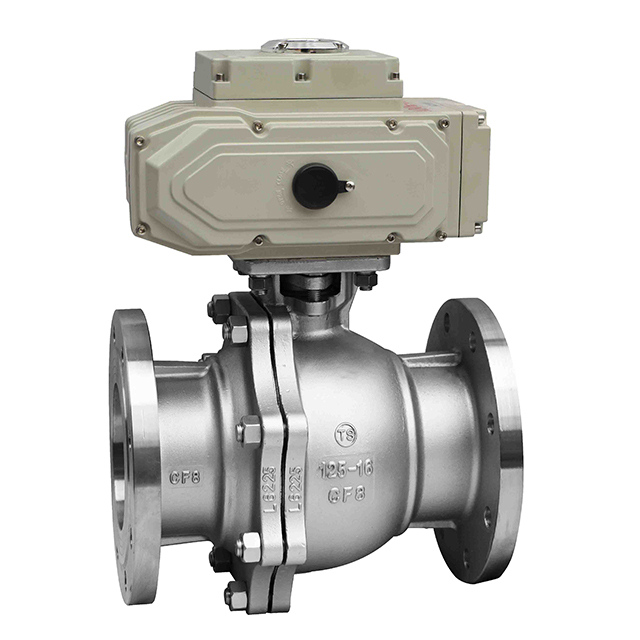

· Automation Ready: Features an ISO 5211 mounting pad, allowing for seamless integration with pneumatic or electric actuators for remote flow control.

· Premium Sealing: Utilizing reinforced PTFE (R-PTFE) or specialized elastomers, our valves achieve zero-leakage performance across a wide range of temperatures.

Detailed Technical Specifications

Feature	Engineering Standards
Size Range	DN15 – DN300 (1/2" to 12")
Pressure Ratings	ANSI Class 150/300, PN16, PN40, JIS 10K/20K
Body Materials	ASTM A351 CF8M (316SS), CF8 (304SS), WCB (Carbon Steel)
Seat Materials	PTFE, R-PTFE, PPL, or Metal-to-Metal for severe service
Stem Design	Blow-out Proof, Anti-static, Live-loaded packing
Face-to-Face	ASME B16.10, DIN 3202 F4/F5
End Connections	Flanged (ASME B16.5, EN1092-1)
Temperature Range	-29°C to 200°C (up to 450°C for metal-seated models)

Why Choose WODE Valve for Your Ball Valve Needs?

As a specialized industrial valve manufacturer, WODE Valve combines precision engineering with large-scale production capabilities:

· Rigorous Testing: Every single valve undergoes API 598 pressure testing (shell and seat) before leaving our facility to guarantee 100% reliability.

· Customization (OEM/ODM): We offer custom material grades (such as Duplex or Monel), specialized paint coatings, and custom branding for global distributors.

· Traceability: Full material certifications (MTRs) and EN 10204 3.1 certificates are provided with every shipment for quality assurance.

· Global Export Expertise: With over a decade of experience, we provide sea-worthy packaging and handle complex international logistics for your engineering projects.

Primary Application Sectors

The versatility of the 2-Piece Flanged Ball Valve makes it suitable for:

· Chemical & Petrochemical: Handling aggressive media and volatile solvents.

· Oil & Gas Upstream: Reliable isolation for wellheads and transmission pipelines.

· Water Treatment: Used in desalination plants and municipal wastewater facilities.

· Power Generation: Control of cooling water and auxiliary steam lines.

· Food & Pharmaceutical: Available in high-polish finishes for sanitary utility lines.
