In this guide, I will walk you through,how to tell if a valve is open or closed for the main valve types used in water treatment and municipal systems, plus how to verify status in automated installations and avoid common mistakes in the field. The focus is practical: what you can see, feel, or read from the system so you can make a safe, confident decision. [tameson]
In water treatment plants and city distribution networks, valve position is not an abstract concept—it directly affects safety, service continuity, and operating cost. [xm-valveactuator]
- Safety: A valve that is believed to be shut but is actually open can lead to uncontrolled discharge, flooding, or chemical exposure. [xm-valveactuator]
- Asset protection: Pumps running against closed valves can overheat, cavitate, or fail prematurely.
- Water quality: Incorrect valve positions in filters, backwash lines, or bypasses can cause cross‑contamination or poor disinfection performance. [onerovalve]
- Downtime and cost: Misreading a valve position often means extended shutdowns and unplanned field work. [eaglefittings]
For these reasons, every operator, contractor, and maintenance technician should have a clear, repeatable method for confirming whether critical valves are truly on or off.
Before diving into each valve type, let's clarify terminology that is crucial for both field work and search intent.
- Valve open / valve closed: Physical position of the closure element (ball, disc, gate, plug) relative to the flow path. [tameson]
- Valve on / valve off: Common language among building users and homeowners, usually equivalent to open/closed, especially for water supply lines.
- Ball valve open vs closed: For manual ball valves, this is typically judged by handle alignment with the pipe. [stvvalves]
- How to tell if a valve is on or off: The core practical question users search for, spanning manual and actuated valves. [eaglefittings]
When we design ball valves for water treatment and municipal use, we engineer the handle and stem interface specifically so that "parallel means open, perpendicular means closed" remains consistent and intuitive across the entire product line. [stvvalves]
For most manual ball valves in water and municipal applications, the handle tells you almost everything you need to know. [valveman]
- Open (On): The lever handle is parallel to the pipe or flow direction.
- Closed (Off): The handle is perpendicular (90 degrees) to the pipe, clearly crossing the line of flow. [eaglefittings]
This relationship exists because the bore of the ball is drilled straight through; when we rotate the ball 90 degrees, the bore either lines up with the pipe (open) or turns sideways to block flow (closed). [tameson]
From a manufacturer's perspective, we always recommend:
- Using handles with clear open/close markings or directional arrows.
- Standardizing orientation in your plant (e.g., "parallel is always open on isolation ball valves").
Most domestic and light‑industrial ball valves use a straight‑through bore, but multi‑port valves in process water systems can behave differently. [tameson]
- 3‑way ball valves (L‑port or T‑port) can divert flow between two or more outlets.
- The handle may not strictly represent "open vs closed" but rather "which path is open".
In these cases:
- Check the flow diagram cast or printed on the valve body or handle.
- Confirm the porting (L or T) in the technical datasheet from the manufacturer.
- During commissioning, mark each handle position with paint or tags for "normal" operating positions.
This step is critical in water treatment skids where 3‑way ball valves switch between filtration and backwash modes.
If you cannot visually confirm the handle position, or if you suspect that the stem has been damaged:
- Gently try to move the handle. If it is between stops, the valve may be partially open.
- If safe and permitted, crack open a downstream drain or sampling point to check if flow is present.
- In non‑hazardous water lines, you can sometimes hear flow through a partially open valve.
In municipal distribution chambers, I recommend combining handle position, flow check, and, where available, SCADA indication for critical isolation ball valves.
Gate and globe valves remain common in legacy municipal systems and larger diameter pipelines.
Traditional guidance is:
- Counter‑clockwise to open, clockwise to close. [valveman]
- The handwheel rotates the stem, lifting or lowering the gate or disc.
Many gate and globe valves used for water service have a rising stem:
- On (open): The stem is visibly extended away from the valve body.
- Off (closed): The stem is retracted closer to the body. [valveman]
A simple field technique is to mark a reference line on the stem when the valve is known to be fully closed, then measure travel as you open it.
In older buried or partially buried chambers, stems and handwheels may be:
- Severely corroded or mechanically damaged.
- Painted over, hiding the stem position.
In rare cases, the open/close direction is reversed from the norm, so always:
- Look for cast‑in "OPEN" / "SHUT" arrows on the yoke or handwheel. [valveman]
- Verify operation under controlled conditions when the line is first commissioned.
For critical trunk mains, many utilities now prefer resilient‑seated gate valves or large‑bore ball valves with clearer position indicators.
Butterfly valves are widely used in water treatment plants, filtration galleries, and large municipal distribution headers.
For smaller sizes with a manual lever:
- Open: Lever aligned with the pipe; disc parallel to flow.
- Closed: Lever perpendicular to the pipe; disc blocking the line. [pvcfittingsonline]
Many levers include:
- A notched plate for intermediate positions.
- A locking mechanism to prevent accidental movement.
When specifying butterfly valves for your plant, choose designs where the lever position clearly communicates disc orientation to operators at a glance.
Larger valves typically use a handwheel and gear operator with a position indicator on top:
- A pointer or dial showing "O" (open) and "C" (closed), with intermediate markings. [pvcfittingsonline]
- Mechanical travel stops to prevent over‑rotation.
From the manufacturer's side, we often advise EPC contractors to place the gear indicator where it is visible from normal operator standing positions—not hidden behind pipework or handrails.

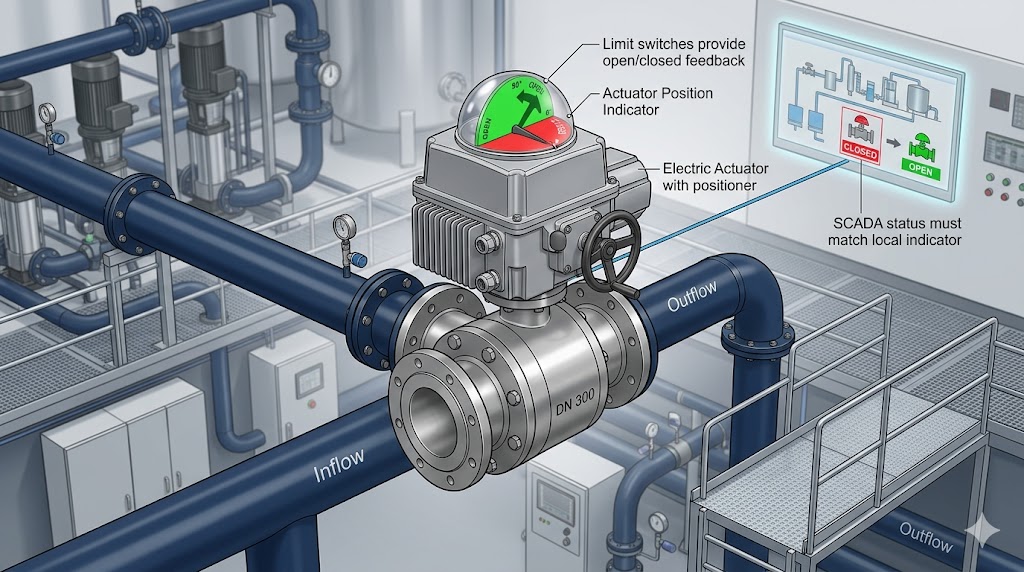

In modern water and wastewater plants, many ball and butterfly valves are operated by electric or pneumatic actuators. [xm-valveactuator]
Most actuators provide:
- A local visual indicator (dome or pointer) labeled OPEN/CLOSED or with angular markings.
- Nameplates indicating the valve tag (e.g., "FV‑102") and basic operating data. [xm-valveactuator]
Because actuators often cover the stem and handle, these indicators become your primary local reference.
In a SCADA environment, you should rely on both field devices and control room feedback:
- Limit switches inside the actuator confirm fully open or fully closed positions and send signals back to the control system. [tameson]
- Position transmitters can provide 0–100% position feedback for modulating service. [tameson]
Best practice in critical applications is to:
- Cross‑check the SCADA status (open/closed/failed) with the local position indicator. [xm-valveactuator]
- Include torque or current monitoring to detect stalled actuators. [xm-valveactuator]
For safety‑critical isolation valves (e.g., chemical dosing lines, high‑pressure mains), many operators specify redundant position sensors and periodic functional testing. [xm-valveactuator]
Industry 4.0 technologies are transforming how we detect whether a valve is on or off.
Leading water utilities and industrial users are deploying:
- IoT‑enabled smart valves that report position, torque, temperature, and vibration in real time. [xm-valveactuator]
- Wireless communication to reach remote valve chambers without laying new control cables. [xm-valveactuator]
- AI‑driven diagnostics that analyze historical actuation patterns and predict sticking or failure before it happens. [xm-valveactuator]
In large treatment complexes, digital twins can simulate how wrong valve positions would affect flows and pressures, helping engineers refine interlocks and alarms before issues occur. [xm-valveactuator]
From a manufacturer's standpoint, the most robust approach combines:
- Clear mechanical indication at the valve (handle/indicator).
- Reliable electrical feedback in the control system.
- Consistent tagging and documentation so operators always know which valve they are looking at. [redsafetyids]
This layered design dramatically reduces the risk that someone will misinterpret whether a valve is actually on or off.
Drawing on typical projects in water treatment and municipal distribution, here are three practical scenarios.
An EPC contractor commissions a sand filter train. A 3‑way ball valve is installed without clear port markings. The handle is parallel to the pipe, so the operator assumes the main line is open—but the bore actually diverts flow to the bypass.
- Result: The filter never sees design flow, and water quality drops.
- Prevention: Use clearly marked ball valves, verify port function during commissioning, and label "FILTER" and "BYPASS" positions on the lever.
A municipal operator opens a chamber with two large gate valves. Both stems are partially extended and heavily corroded; handwheel markings are illegible.
- Risk: Mistaking a partially open valve for fully open, leading to unexpected pressure drops in peak demand.
- Solution: Schedule controlled testing, install new position indicators or replace with large‑bore ball valves that provide unmistakable handle positions.
In a chemical dosing skid, an electric actuator reports "open" in the SCADA system. The operator notices chemical flow is zero.
- Investigation finds a failed coupling between actuator and ball valve stem.
- Lesson: Do not rely solely on electrical status; periodically perform functional tests with flow verification on critical lines. [xm-valveactuator]
These cases illustrate why combining visual, mechanical, and system‑level checks is essential.

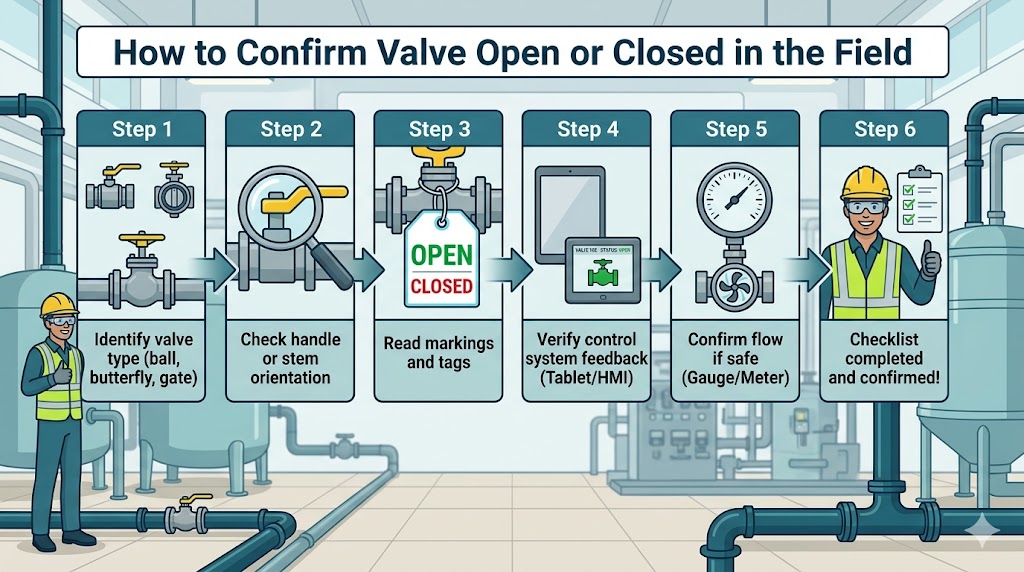

Use this quick checklist when you stand in front of any valve in a water or municipal system.
1. Identify the valve type
Ball, butterfly, gate, globe, or another design.

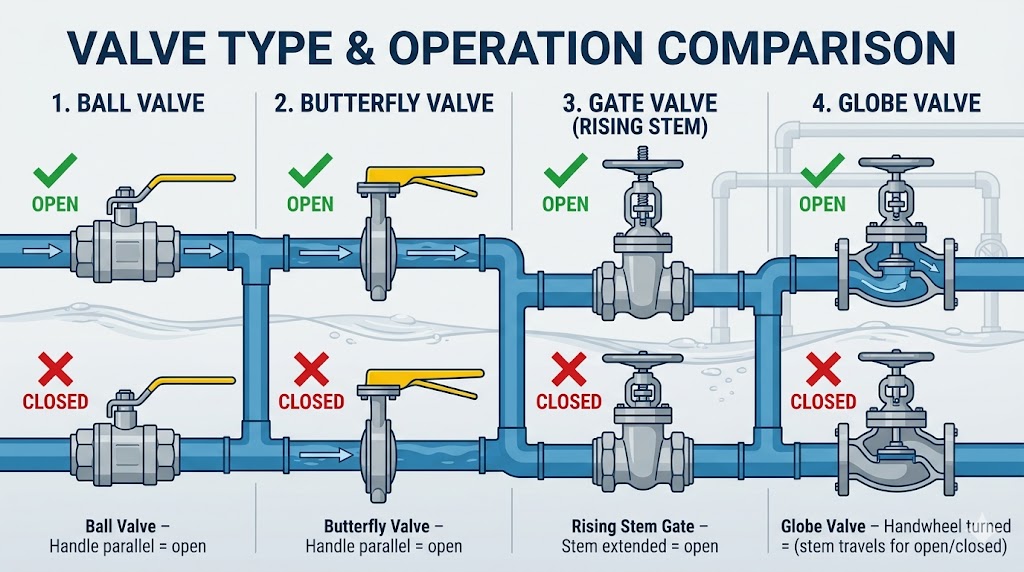

2. Check the handle or indicator orientation
- Ball/butterfly: parallel = open, perpendicular = closed (in most designs). [stvvalves]
- Gate/globe: look at stem extension and handwheel markings. [valveman]
3. Look for markings and arrows
Cast‑in arrows, "OPEN/CLOSE" labels, flow diagrams, or tag plates.
4. Verify with system feedback (if actuated)
Confirm SCADA/PLC status, limit switches, and alarm history. [tameson]
5. Confirm flow if safe
Check pressure gauges, flow meters, or downstream drains where possible. [tameson]
6. Document and tag
If you discover incorrect labels or confusing orientation, correct them and update plant documentation. [redsafetyids]
Following this repeatable process greatly reduces the chance of costly mistakes.
From both our manufacturing experience and industry best practices, these habits make the biggest difference:
- Standardize handle conventions across your facilities (e.g., always "parallel = open" for isolation ball valves).
- Use high‑contrast labels and durable tags that survive humidity, UV, and cleaning chemicals in water plants. [redsafetyids]
- Train new operators with real valves, not just diagrams—let them feel the difference between open, closed, and stuck.
- Implement lockout/tagout for maintenance, especially on chemical and high‑pressure lines. [xm-valveactuator]
- Choose quality valves and actuators with clear indicators and robust position feedback; low‑cost hardware often sacrifices these features. [eaglefittings]
As a ball valve manufacturer, we also recommend periodic operational cycling of seldom‑used isolation valves so you can verify that the indicated position matches reality.
For water treatment and municipal applications, partnering with a specialized ball valve manufacturer brings several advantages:
- Application‑specific design: Valves engineered for water, wastewater, and chemical dosing duty, with materials and coatings tailored to those environments. [onerovalve]
- Clear, operator‑friendly indicators: Handles and accessories designed from the start to minimize confusion about on/off position.
- Engineering support: Guidance on valve selection, actuation, and status monitoring strategies for new plants and retrofit projects.
- Proven reliability: Designs validated in real‑world plants, from small local waterworks to large urban networks. [onerovalve]
When you are specifying valves for an upcoming project, involve your valve manufacturer early so position indication, actuation, and monitoring are treated as core design topics—not as afterthoughts.
If you are planning or upgrading a water treatment facility or municipal pipeline system and want to minimize the risk of misreading valve positions, consider working with a ball valve partner that understands both the mechanical and operational sides of valve status.
Our engineering team can:
- Help you select the right ball valves and actuation options for each line.
- Recommend standardized handle orientations and tagging schemes for your plant.
- Support integration with modern SCADA and smart monitoring technologies.
Reach out to our application engineers to discuss your current project or to review your existing valve installations. A short design review today can prevent costly misunderstandings about whether a valve is truly on or off tomorrow.
In most designs, a ball valve is open when the handle is parallel to the pipe and closed when the handle is perpendicular to the pipe, but always confirm with markings and, if possible, a flow check. [eaglefittings]
Yes, multi‑port (3‑way) ball valves may use the same handle positions to route flow in different directions rather than simply open or closed, so you must follow the flow diagram and manufacturer documentation. [tameson]
Check the local indicator on the actuator, verify SCADA or PLC feedback from limit switches or position transmitters, and, in critical services, confirm actual flow or pressure downstream. [tameson]
Treat the valve as unknown, verify its function under controlled conditions, then install clear, durable tags and update your piping and instrumentation diagrams so future operators are not left guessing. [redsafetyids]
Critical isolation and control valves should be operated and function‑tested on a defined schedule (often aligned with plant maintenance cycles) to ensure that indicated position matches actual performance. [xm-valveactuator]
