Stainless Steel Mesh Y-Strainer

Stainless Steel Mesh Y-Strainer: Premium Corrosion-Resistant Filtration

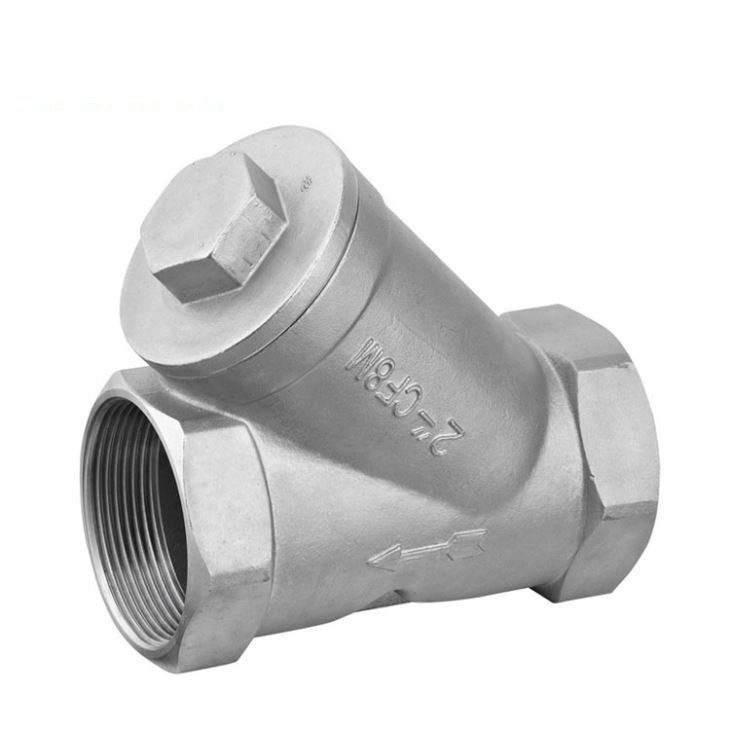

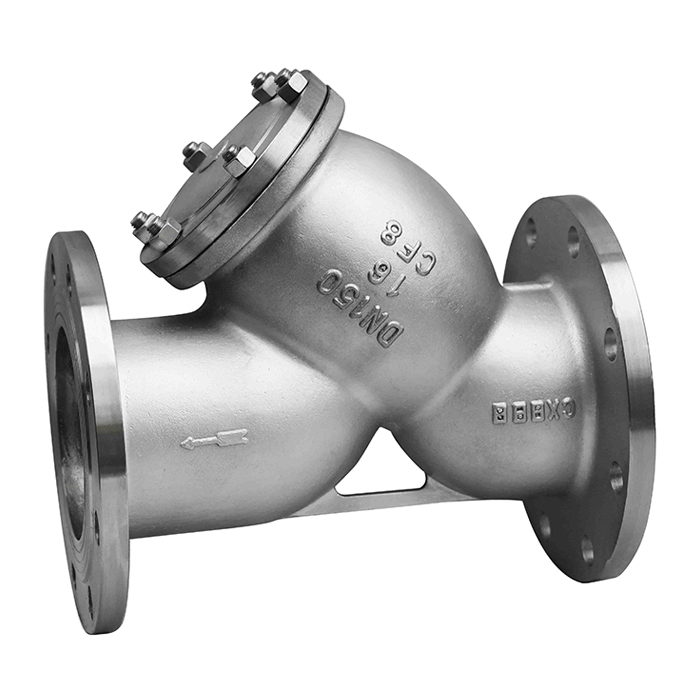

The Stainless Steel Mesh Y-Strainer from WODE Valve is the ultimate solution for high-purity and corrosive industrial environments. While standard iron strainers are limited to basic water service, our stainless steel series is specifically engineered to handle aggressive chemicals, high-pressure steam, and food-grade liquids.
Constructed from investment-cast SS304 or SS316, this strainer ensures that no rust or contamination is introduced into your process media. The high-precision stainless steel mesh screen provides a robust barrier against particulates, protecting your high-value pumps and instrumentation from costly damage and downtime.


Availability:



Inquire Add to Basket

Stainless Steel Mesh Y-Strainer Stainless Steel Y-Strainer SS304/SS316 Mesh Strainer SS Mesh Y-Strainer Corrosion Resistant Y-Strainer SS Y-Strainer Chemical Service Y-Strainer WCB Body SS Mesh Strainer High Grade Y-Strainer

Product Description

Key High-Performance Features

· Maximum Corrosion Resistance: The 316SS option offers superior resistance to pitting and crevice corrosion, making it ideal for marine, pharmaceutical, and chemical applications.

· Reinforced Filtration Mesh: Features a dual-layer screen design with a perforated inner support and a fine outer wire mesh to prevent screen collapse under high differential pressure.

· Sanitary & Clean Integrity: The smooth internal surface finish prevents bacterial growth and media buildup, meeting the stringent requirements of the food and beverage industry.

· High-Pressure Durability: Typically rated for 800 PSI to 1500 PSI (WOG), providing a significant safety margin compared to standard utility strainers.

· Investment Casting Quality: The precision casting process ensures uniform wall thickness and a compact design, reducing the overall weight on your piping supports.

· Heat Tolerance: Capable of continuous operation in extreme temperatures ranging from -29°C to 425°C (with appropriate seal selection).

Technical Specifications

Feature	Engineering Standards
Size Range	1/4" – 4" (Threaded) / DN15 – DN300 (Flanged)
Pressure Rating	800 PSI / 1000 PSI / PN40 / Class 150
Body Material	ASTM A351 CF8 (304SS) / CF8M (316SS)
Screen Material	SS304 / SS316 / Monel
Mesh Options	20 mesh, 40 mesh, 60 mesh, up to 200 mesh
Design Standard	ASME B16.34 / API 598
End Connections	NPT / BSP Threaded, Socket Weld, or Flanged
Gasket Material	PTFE / Viton / Graphite

Why Partner with WODE Valve?

WODE Valve provides specialized filtration solutions that prioritize material purity and engineering precision:

· Positive Material Identification (PMI): We perform PMI testing on every batch to guarantee that the stainless steel grade matches your order exactly.

· Custom Mesh Engineering: Whether you need to filter coarse scale or microscopic fines, we can customize the micron rating of the internal screen.

· Leak-Proof Testing: Every Y-strainer undergoes a shell pressure test to ensure 100% integrity of the casting and gaskets.

· Global Shipping Standards: Our stainless products are cleaned and degreased before being sealed in export-ready packaging to maintain purity during transit.

Primary Application Sectors

· Pharmaceutical Labs: Handling high-purity solvents and deionized water.

· Food & Beverage Processing: Straining particulates from juices, oils, and dairy products.

· Desalination Plants: Resisting the corrosive effects of concentrated brine and seawater.

· Chemical Refineries: Protecting meters from aggressive acids and alkaline solutions.

· Semiconductor Manufacturing: Critical filtration for ultra-pure water (UPW) systems.

Recommended Industrial Options

To ensure the highest filtration efficiency and equipment protection, consider these specialized stainless steel configurations based on your specific process requirements:

· The High-Purity Pharmaceutical Grade: Features an All-SS316L mirror-polished body with a fine 100-mesh screen. This option is ideal for pharmaceutical and biotech labs where preventing bacterial growth and ensuring easy sterilization (CIP/SIP) are the top priorities.

· The Marine & Offshore Specialist: Constructed from Duplex Stainless Steel (2205) or SS316 with a reinforced Monel mesh. This setup provides maximum resistance to pitting and crevice corrosion in seawater cooling systems and offshore platform utilities.

· The High-Pressure Steam Configuration: A Forged Stainless Steel (A182 F316) body rated for Class 600 or higher, equipped with a Spiral Wound Gasket (SWG). It is specifically designed for high-velocity steam lines where thermal shock resistance and absolute seal integrity are mandatory.

· The Food & Beverage Standard: A 304 Stainless Steel body with a quick-release bolted cover and a 40-mesh coarse screen. This is a cost-effective, sanitary solution for straining large particulates from juices, oils, and dairy products while allowing for rapid manual cleaning.

· The Chemical Process Heavy-Duty: Features a Teflon (PTFE) lined stainless steel body for handling extremely aggressive acids that would otherwise attack bare metal. This provides the structural strength of steel with the chemical inertness of high-performance polymers.
