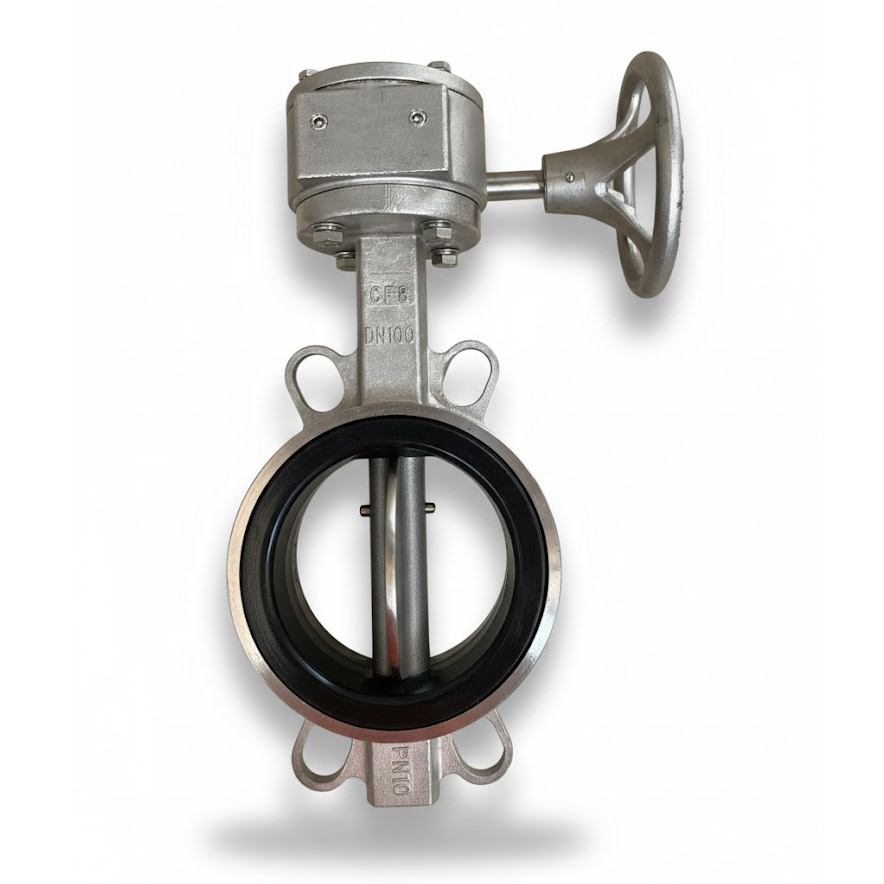

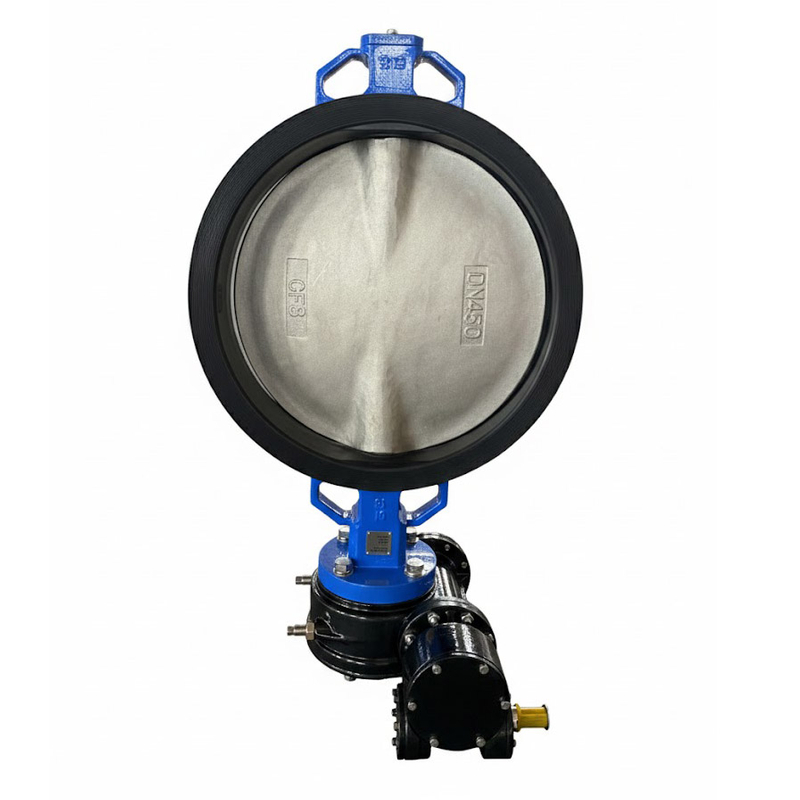

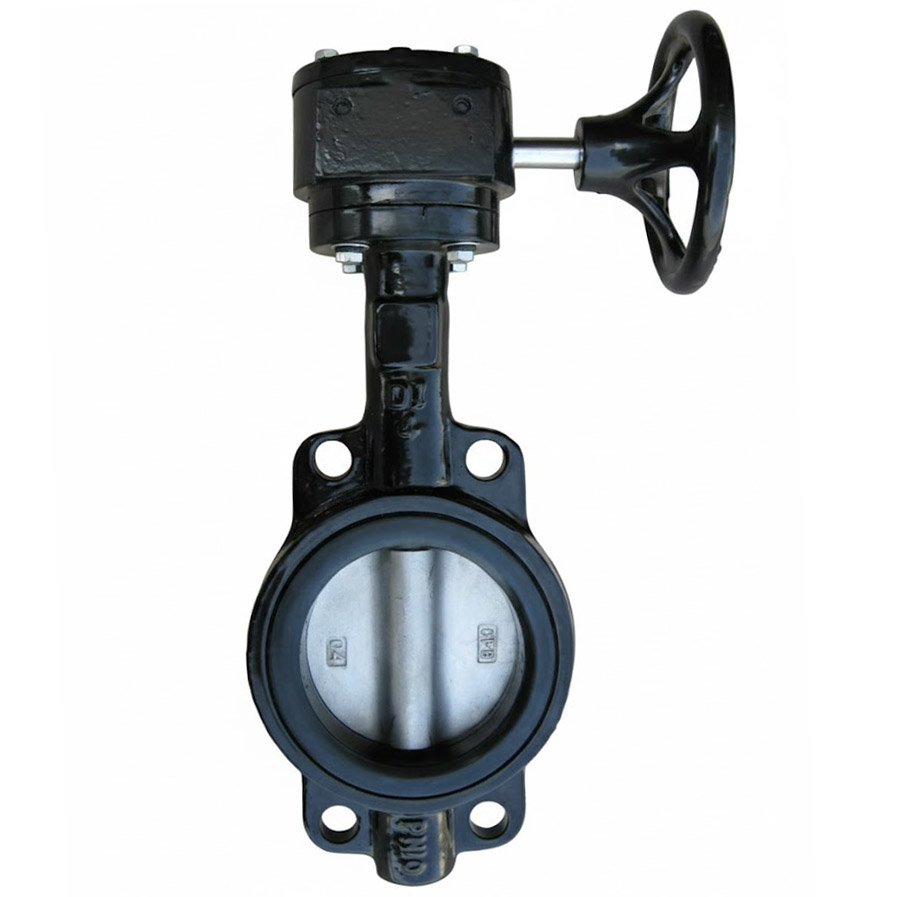

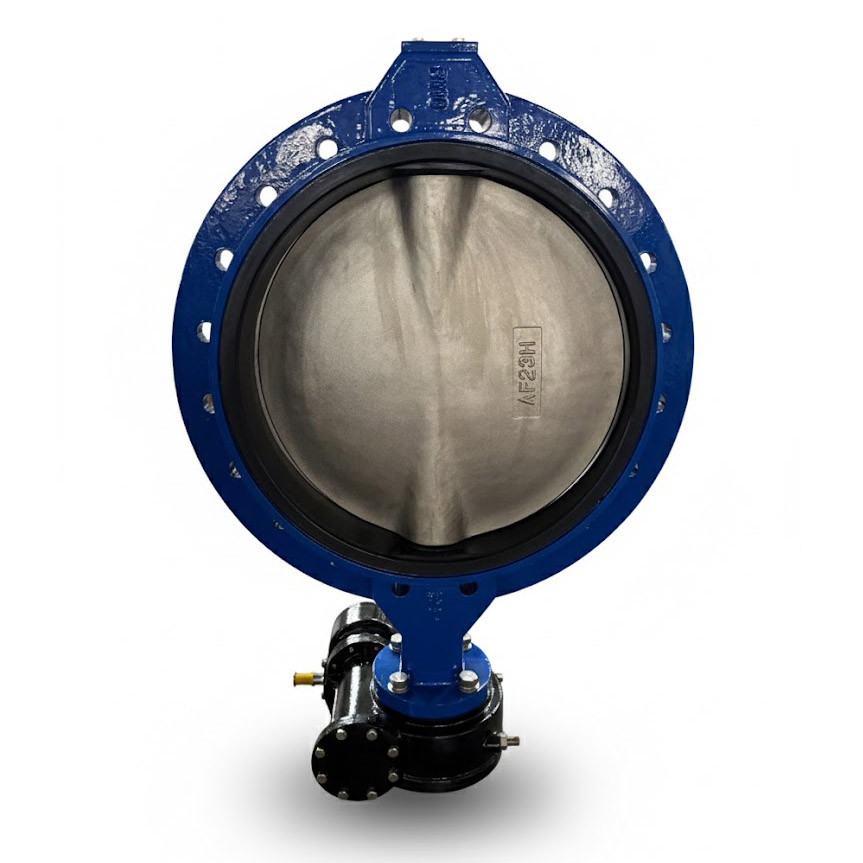

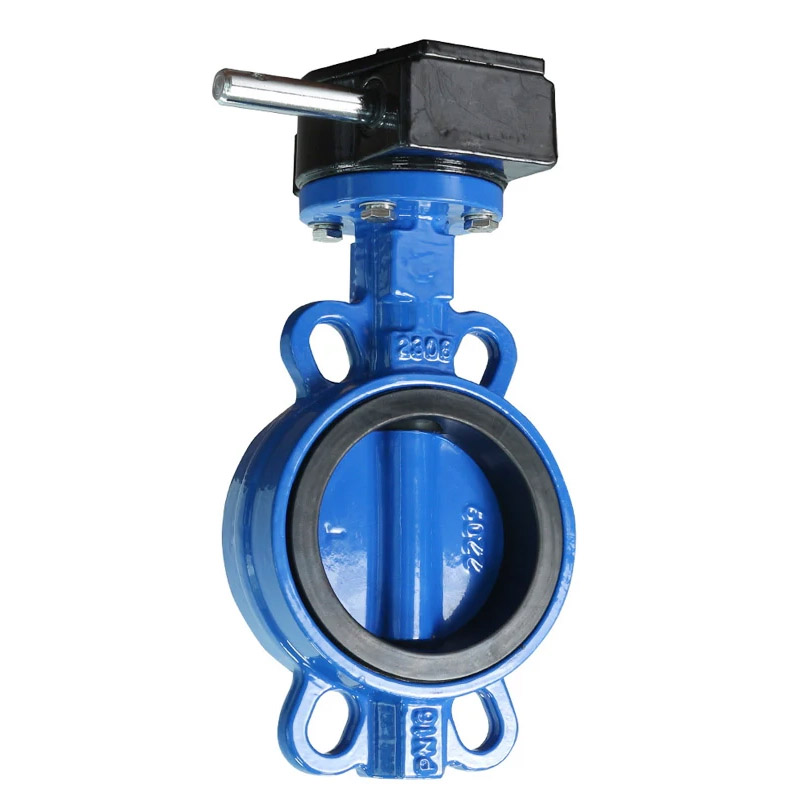

Gear Operated Wafer Butterfly Valve

Gear Operated Wafer Butterfly Valve – Precise Flow Control Solution

The Gear Operated Wafer Butterfly Valve from WODE Valve is designed for precise flow regulation in industrial pipelines. Manufactured in China with over 10 years of export experience, this valve ensures long-lasting performance and reliable sealing for diverse applications.
Equipped with a manual gear operator, it allows controlled, easy-to-adjust valve operation even in larger diameters. The wafer-style body fits standard flanges (DIN, ANSI, JIS), reducing installation space and minimizing system costs while maintaining dependable sealing performance.


Availability:



Inquire Add to Basket

Gear Operated Wafer Butterfly Valve Gear Operated Butterfly Valve Worm Gear Wafer Butterfly Valve Manual Butterfly Valve API 609 Gear Butterfly Valve Ductile Iron Wafer Butterfly Valve Gear Butterfly Valve Price List Heavy Duty Butterfly Valve PN16 Wafer Butterfly Valve

Product Description

Key Features & Benefits

· Precision Operation: Manual gear system provides smooth, controlled valve movement, ideal for larger pipelines.

· Durable Construction: High-quality materials ensure corrosion resistance and long-term reliability.

· Bubble-Tight Sealing: Disc and seat design guarantees zero leakage under PN10 / PN16 conditions.

· Global Compatibility: Wafer design works with ANSI, DIN, and JIS flange standards.

· Blow-out Proof Stem: Safety feature prevents stem ejection under high-pressure conditions.

· 2-Year Warranty: WODE Valve offers a 2-year warranty, ensuring superior reliability compared to standard 1-year coverage from ordinary manufacturers.

Technical Specifications

Feature	Specification
Size Range	DN40 – DN1200 (DN1200+ available upon request)
Pressure Rating	PN10, PN16, Class 125/150
Body Material	CI;DI;Carbon Steel;SS304;SS316;Al-Bronze
Disc Material	CF8;CF8M.DI+Ni;Al-Bronze
Seat Material	EPDM;NBR;Viton;PTFE;Hypalon
Shaft Material	SS420/SS304/SS316/SS431
Operation	Lever/Worm Gear/Pneumatic/Electric Actuator
Face to Face Standard	API609/BS5155/DIN3202/ISO5752
Flange Standard	DIN;BS;UNI;ISO;ANSI;AS;JIS
Mounting Flange	ISO5211
Working Pressure	PN10/PN16/ANSI150/PN25
Application	HVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical/Processing, Power and Utilities, Paper and Pulp, Ship Building

Large diameter butterfly valves up to DN2400 are available for special projects.

Why Choose Our Wafer Butterfly Valves?

WODE Valve prioritizes quality and dependability. Every gear-operated wafer butterfly valve undergoes rigorous pressure and leakage testing to meet the demands of distributors and project contractors.

Our Advantages:

· OEM/ODM Services: Custom logos and colors for distributors.

· Fast Lead Times: Standard sizes available from stock for urgent projects.

· Certified Quality: Manufactured according to international standards.

· Large-Diameter Customization: Special sizes up to DN2400 for municipal and industrial projects.

Looking for a Reliable Gear Operated Wafer Butterfly Valve Manufacturer?

WODE Valve exports gear-operated wafer butterfly valves globally for distributors, OEM partners, and engineering projects.

We Provide:

· Technical drawings & datasheets

· Free samples for OEM evaluation

· Competitive factory pricing

· Stable lead time and export-ready packaging

Contact us today to request a quotation or discuss your project requirements.

Typical Applications

· Water Treatment & Wastewater Systems

· Chemical & Petrochemical Pipelines

· HVAC Installations

· Industrial Pipelines

· Food & Beverage Processing

· Power Plants and Cooling Water Systems
