If you're comparing a gate valve vs ball valve for a water plant upgrade, a new municipal trunk main, or a packaged treatment skid, the right answer is never "which one is better?"—it is always "which one is better for this specific service?" [bestflowvalve]
To make that decision confidently, you need to understand function, sealing, flow behavior, maintenance risk, and total cost of ownership over 10–20 years of operation. [arpcovalves]

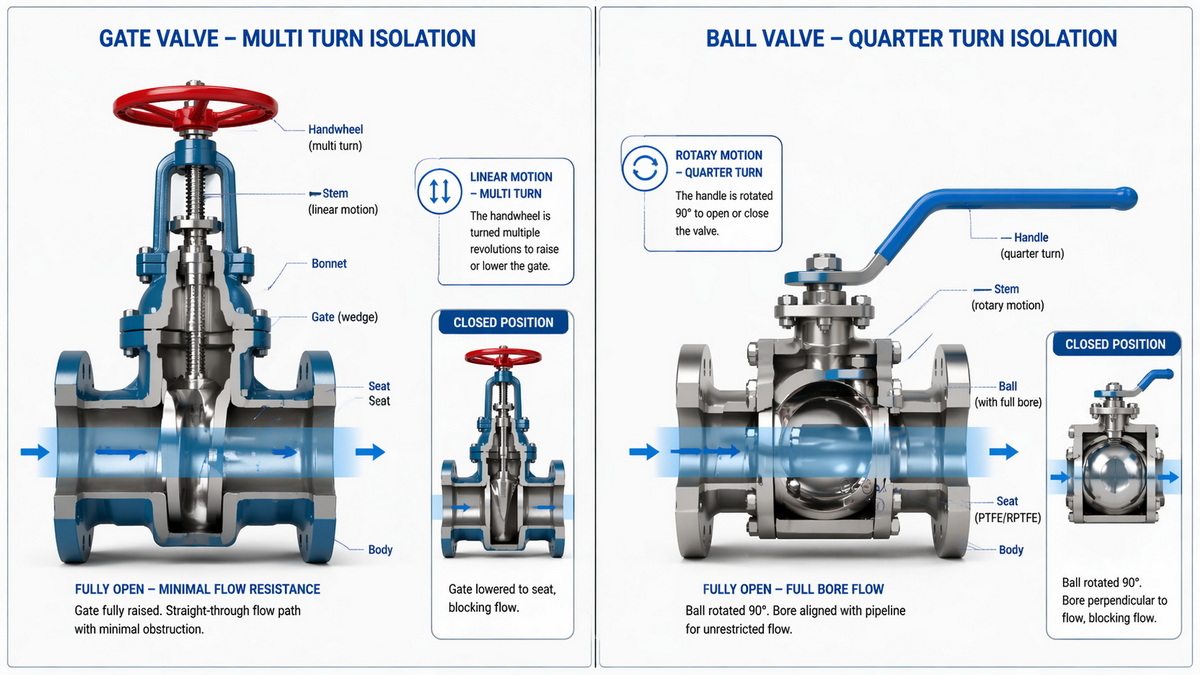

A gate valve is a linear isolation valve that opens or closes flow by raising or lowering a "gate" (disc) between two seats. The gate travels up and down on a stem, which is usually operated by a handwheel or actuator.
Key engineering characteristics:
- Designed for fully open or fully closed service, not for throttling.
- Provides a straight-through flow path with low pressure loss when fully open. [linkedin]
- Typically used on larger diameters and in locations where operation is infrequent, such as isolation on trunk mains or plant headers. [linkedin]
Modern water-industry gate valves are often resilient seated (rubber encapsulated wedge) for tight shut‑off, or metal seated for high-pressure, high-temperature, or abrasive service.
A ball valve is a rotary valve that controls flow by rotating a drilled ball 90 degrees inside the valve body. When the hole in the ball aligns with the pipeline, flow passes; when it is perpendicular, flow is shut off.
Ball valve characteristics: [bestflowvalve]
- Quarter‑turn operation (90°) for very fast open/close.
- Compact, easy to actuate, ideal for frequent cycling.
- Typically offers bubble‑tight sealing in soft‑seated designs, which is why ball valves are widely used for gas and clean liquid shut‑off. [cncontrolvalve]
Ball valves are common on smaller diameters, skid-mounted equipment, chemical dosing lines, and areas where operators need quick, clear visual confirmation of open or closed status. [linkedin]

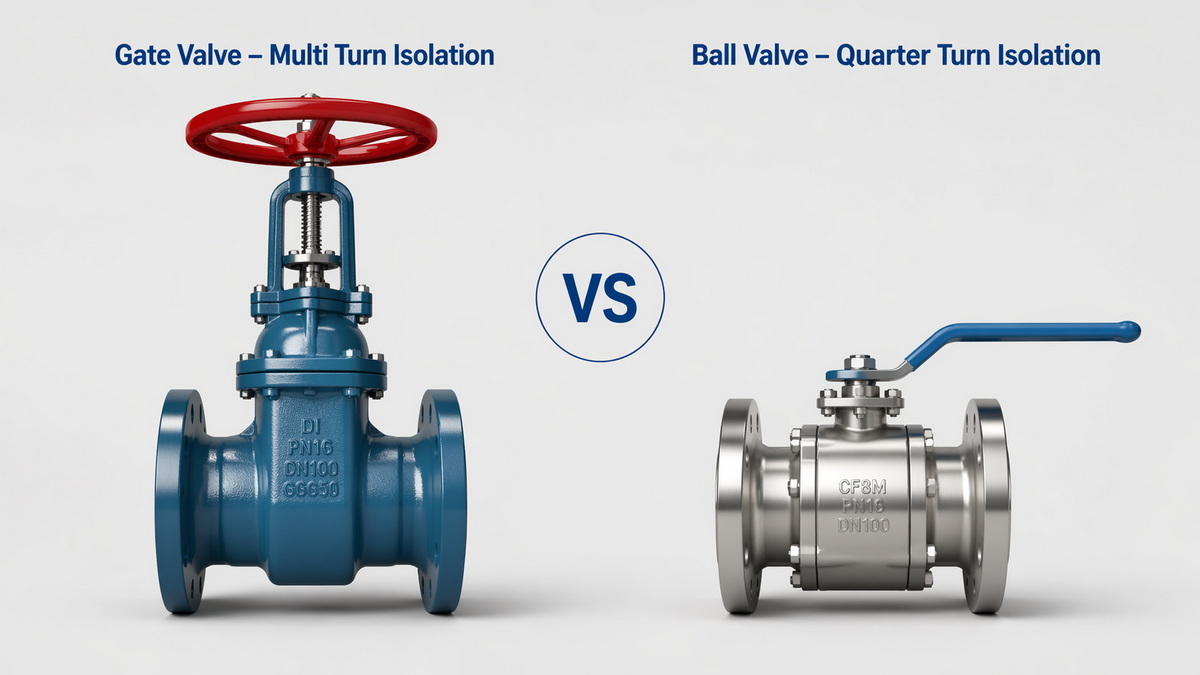

| Aspect | Ball valve | Gate valve |
|---|---|---|
| Operation | Quarter‑turn, fast cycling. (bestflowvalve) | Multi‑turn, slower operation. (geminivalve) |
| Typical use | Frequent operation, smaller lines, skids. (cncontrolvalve) | Infrequent isolation, large mains and headers. (linkedin) |
| Flow path | Very low pressure drop in full‑bore design. (bestflowvalve) | Low pressure drop when fully open. (linkedin) |
| Sealing | Excellent bubble‑tight shut‑off with soft seats. (cncontrolvalve) | Very good shut‑off, especially resilient‑seated types. |
| Size range in water/WWTP | Often preferred < DN 100–150 mm. (linkedin) | Preferred for DN 200 mm and above trunk lines. (linkedin) |
| Maintenance | Fewer turns, easier to automate; seats sensitive to debris. (cncontrolvalve) | Robust in dirty media; can be harder to clean once packed. (geminivalve) |
In clean treated water or chemical dosing lines, a ball valve often provides the best combination of sealing, speed, and compact footprint. On raw water intakes, trunk mains, or plant distribution manifolds, a gate valve usually offers better economics and flow capacity on large diameters. [cncontrolvalve]
Both technologies can be designed for bi‑directional flow, but details matter.
- Gate valves are inherently bi‑directional, sealing against pressure from either side when specified correctly.
- Many industrial ball valves are also bi‑directional, but some are uni‑directional and rely on body markings (flow arrows) indicating the preferred pressure side.
In water and wastewater networks, engineers tend to favor bi‑directional capability at critical isolation points to simplify operations during network reconfiguration. [linkedin]
Choosing between soft seats and metal seats is just as important as choosing valve type.
- Soft‑seated ball valves and resilient‑seated gate valves offer near zero leakage in clean water systems, but can suffer wear in abrasive or dirty service. [cncontrolvalve]
- Metal‑seated valves (both ball and gate) tolerate higher temperatures, higher pressures, and solids, but generally allow a defined, small leakage rate. [wateronline]
For typical municipal water distribution and treatment, resilient‑seated gate valves and soft‑seated ball valves are the workhorses, while metal‑seated options are chosen for special high‑temperature or slurry applications. [arpcovalves]
Common gate valve design options include:
- Wedge gate valves (most common) with an inclined gate and seats, often used in high-pressure and large-diameter pipelines.
- Parallel/knife gate valves, frequently used in wastewater and sludge lines where solids can build up.
- Stem options: rising stem, non‑rising stem, and outside screw and yoke (OS&Y), each chosen based on space, visual indication, and safety requirements.
Gate valves are generally taller than ball valves, something that matters in underground chambers and valve vaults. [bestflowvalve]
Ball valves offer multiple engineering configurations: [bestflowvalve]
- Full‑port vs reduced‑port: full‑port minimizes pressure loss and is favored where pigging or very low headloss is critical.
- Floating ball vs trunnion‑mounted: trunnion designs are used for high pressure and larger sizes to reduce operating torque. [bestflowvalve]
- Two‑way, three‑way, and multi‑port bodies to support mixing, diverting, and bypass duties.
In water treatment skids, three‑way ball valves are often used to simplify bypass and flushing configurations while minimizing fitting count and leakage points. [arpcovalves]
Both gate and ball valves are available in a wide range of materials, but for water treatment and municipal work the most common combinations are: [wateronline]
- Bodies: ductile iron, cast iron, carbon steel, stainless steel, and in some low‑pressure applications, PVC or other plastics.
- Seats/liners: EPDM, NBR, PTFE and advanced thermoplastics, selected based on water quality, disinfectant chemicals, and temperature. [langhe-industry]
Correct material specification must consider corrosion, water chemistry, disinfectants (e.g., chlorine), and external soil conditions to avoid premature failure. [wateronline]
On a recent large-diameter municipal transmission main project, the design team debated ball valve vs gate valve for DN 600 isolation points. Based on flow analysis and lifecycle cost, the specification settled on resilient‑seated gate valves with OS&Y stems. [arpcovalves]
Reasons included: [linkedin]
- Lower flow resistance at high flow rates.
- Proven track record on large diameter buried mains.
- Ease of integrating with standard key-and-box surface operating systems in municipal networks.
In contrast, for compact package water treatment plants and containerized systems, EPC contractors increasingly choose ball valves as the default isolation solution on smaller diameter lines. [arpcovalves]
Key drivers: [cncontrolvalve]
- Quarter‑turn operation for clear open/close status and faster commissioning.
- Compact layout, especially when actuators and instruments share limited panel space.
- Excellent sealing performance on high‑cycle services such as backwash lines or chemical dosing.

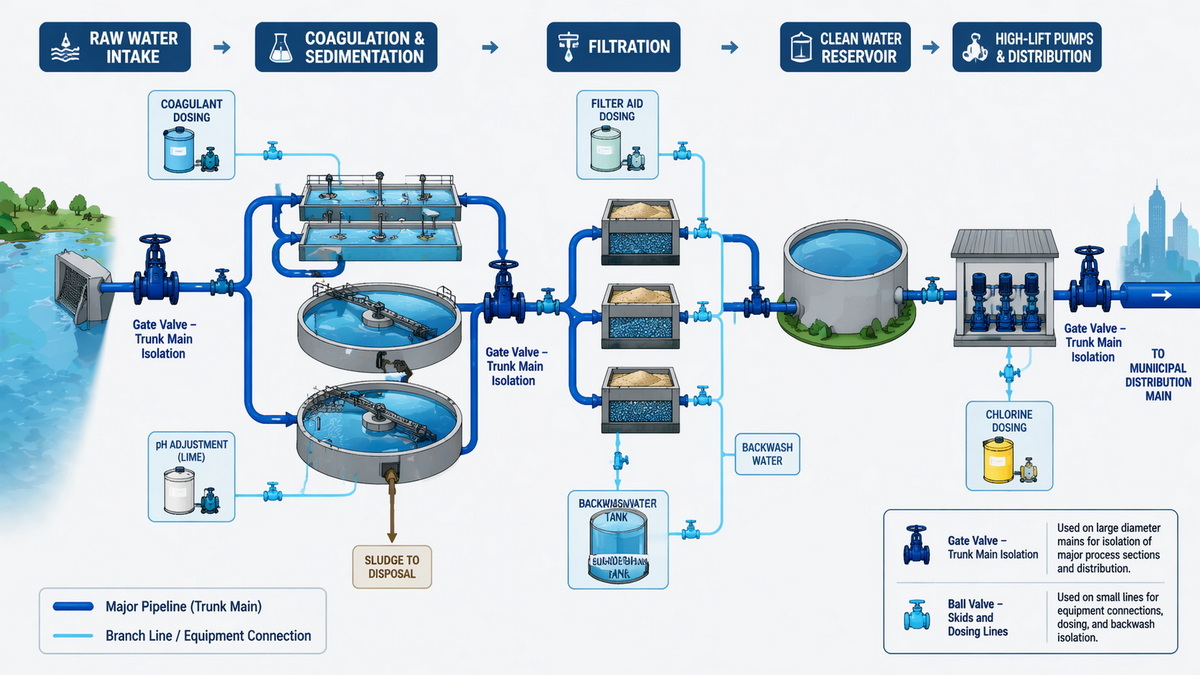

As a manufacturer, we often see projects standardize on gate valves for field pipelines and ball valves for skid and equipment-level isolation, achieving the best of both worlds. [linkedin]
From an engineering and procurement perspective, the selection process should be structured, not intuitive. Below is a simple framework that aligns with best practices from major valve and control suppliers. [valin]
Start with the medium and operating envelope: [wateronline]
1. What is the fluid? (potable water, raw water, wastewater, sludge, chemicals)
2. What are the pressure and temperature ranges?
3. Is the service clean, or does it contain sand, solids, or biological growth?
4. How frequently will the valve operate (per day / per year)?
Next, align valve type with the required function: [valin]
- For on/off isolation with frequent cycling, especially on small and medium sizes, a ball valve is usually preferred.
- For large-diameter isolation with infrequent operation, a gate valve is normally more economical and hydraulically efficient.
- For precise control, consider a globe/needle/control valve instead of using gate or ball valves for throttling. [wateronline]
Consider mechanical and civil constraints: [valin]
- Available space in valve chambers or skids (height vs width).
- Accessibility for future maintenance and actuator removal.
- Need for clear position indication (where OS&Y stems or quarter‑turn levers help operators).
Finally, confirm: [wateronline]
- Seat type (soft vs metal), body and trim materials, and compatibility with water chemistry.
- Compliance with relevant standards (e.g., ISO, EN, AWWA) and local regulatory requirements.
- Integration with actuators, instrumentation, and control systems where required.
When in doubt, project teams often consult experienced valve manufacturers who can validate selections based on hundreds of similar installations worldwide. [punitvalves]
Even the best specified valve will underperform if it is installed or operated incorrectly. Industry maintenance guidance is consistent across sectors: prevention is cheaper than repair. [arpcovalves]
- Ensure correct orientation and confirm flow direction for uni‑directional ball valves prior to installation.
- Maintain proper support for the pipeline to prevent excessive loading on valve bodies and flanges. [arpcovalves]
- Flush the system thoroughly before first operation, particularly for soft‑seated ball valves which are sensitive to debris. [cncontrolvalve]
- Avoid using gate valves for throttling, as partial opening increases seat and gate wear and can cause vibration.
- In automated systems, size actuators correctly to manage breakaway torque on both ball and gate valves, especially after long static periods. [arpcovalves]
- Establish a routine exercise schedule for large isolation valves in trunk mains to prevent sticking. [linkedin]
Valve OEMs and service providers emphasize the value of planned inspection and preventative maintenance schedules. For critical pumping stations and major trunk mains, asset managers increasingly factor valve accessibility and spares availability into their selection criteria from day one. [valin]
Beyond traditional mechanics, several trends are shaping valve selection in modern water and municipal projects.
Utilities are investing in smart actuators and valve condition monitoring to improve resilience and leak detection. Quarter‑turn ball valves and large gate valves alike are being equipped with: [punitvalves]
- Torque and position monitoring.
- Remote control and diagnostics via SCADA.
- Event logging for abnormal operations such as water hammer or rapid cycling. [wateronline]
These capabilities influence choices toward designs that integrate easily with electric actuators, favoring ball valves on skids and standardized gate valves on mains. [linkedin]
Improved coatings, elastomers, and seat materials are increasing survivability in chemically aggressive and abrasive environments. For example: [langhe-industry]
- Enhanced epoxy and polyurethane coatings for buried ductile iron valves.
- Advanced PTFE and elastomers for chemical contact and high-chlorine environments. [langhe-industry]
For owners, this translates into longer inspection intervals, fewer unplanned outages, and more confidence in long-life infrastructure. [punitvalves]
As a specialist manufacturer focused on ball valves and gate valves for water treatment and municipal pipeline applications, our engineering approach mirrors the decision framework described above. [punitvalves]
When working with global distributors, EPC contractors, and international valve brands, we typically: [punitvalves]
- Review the application data sheet (medium, pressure, temperature, size, cycle frequency).
- Propose an optimized mix of gate valves on large-diameter lines and ball valves on equipment and branch lines.
- Customize materials, coatings, and actuation options to meet local standards and client preferences.
Our goal is not simply to supply valves, but to help project teams select the right valve in the right place, reducing lifecycle cost and operational risk across the asset's design life.
If you are planning or upgrading a water treatment plant, pumping station, or municipal pipeline, the safest approach is to base valve selection on real operating conditions—not catalog assumptions. Our engineering team at Tianjin Wode Valve Co., Ltd. can help you review your P&IDs, operating envelopes, and local standards to build a robust valve specification tailored to your project.
Contact us with your line sizes, media, pressures, and preferred standards, and we will recommend an optimized combination of ball valves and gate valves designed for long‑term, low‑maintenance operation in water and municipal environments.
In most cases, gate valves remain the more economical and practical solution for very large diameters due to cost, torque, and flow characteristics, though trunnion‑mounted ball valves are used in some high‑pressure or special applications. [bestflowvalve]
Ball valves often provide excellent bubble‑tight shut‑off in soft‑seated designs, but gate valves with resilient seats also deliver very low leakage and may be more appropriate in dirty or large‑bore services. [cncontrolvalve]
Both are primarily designed for on/off isolation; prolonged throttling can cause erosion and vibration, so for precise control a globe or dedicated control valve is recommended. [wateronline]
Engineers commonly specify compact, soft‑seated ball valves due to their fast operation, excellent sealing, and good compatibility with automation in small‑bore chemical dosing systems. [cncontrolvalve]
Best practice is to exercise critical isolation valves on a regular schedule (for example annually) to prevent sticking and to confirm operability, coordinated with the utility's maintenance plan. [linkedin]
