In the world of municipal water treatment and industrial piping, precision is paramount. For engineers and procurement managers at EPC firms, choosing between a PN10 butterfly valve and a PN16 butterfly valve is not just about matching technical specs—it is about ensuring long-term system integrity, safety, and cost-efficiency.
As manufacturers at Tianjin Wode Valve Co., Ltd., we frequently encounter questions regarding the practical differences between these two pressure ratings. This guide provides a deep dive into the technical distinctions, selection criteria, and expert insights to help you make informed decisions for your next project.
In valve and piping systems, PN stands for *Pressure Nominal* (nominal pressure). It is a numerical designation used for reference purposes, related to the mechanical properties of components in a piping system.
* PN10: Designed to safely withstand a maximum allowable working pressure of 10 bar (approx. 1.0 MPa) under standard operating conditions (typically at or near 20°C).
* PN16: Designed to safely withstand a maximum allowable working pressure of 16 bar (approx. 1.6 MPa) under standard operating conditions.
Crucial Clarification: The PN rating is not the absolute pressure limit under all conditions; it is a design reference. As temperature increases, the pressure-retaining capacity of materials like ductile iron or reinforced rubber typically decreases.

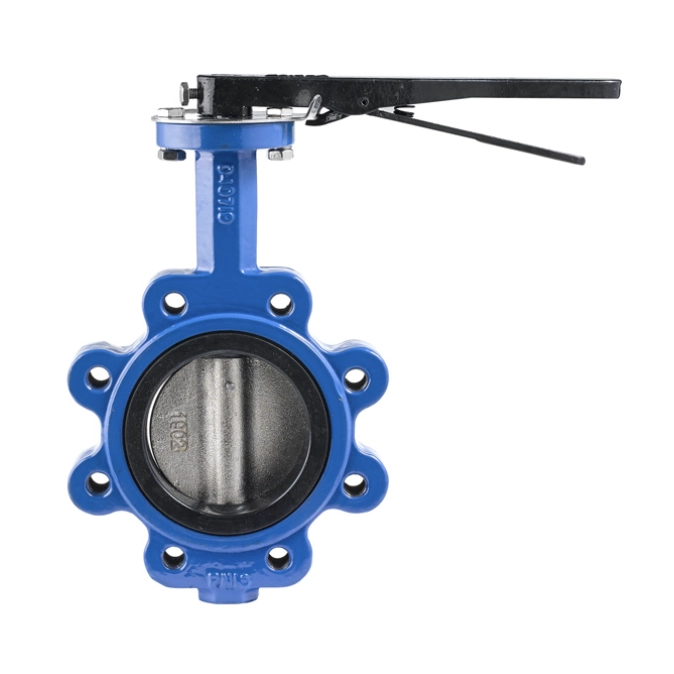

While they may look identical from a distance, PN10 and PN16 valves can differ significantly in design, particularly in larger dimensions.

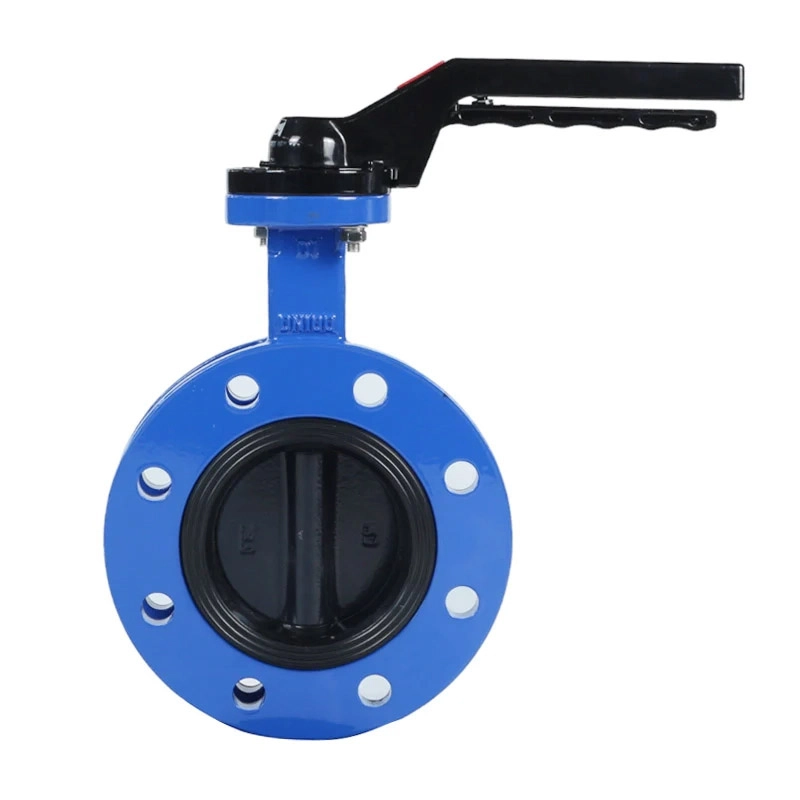

For smaller sizes, especially up to DN150 (6 inches), PN10 and PN16 flanges often share identical dimensions, including bolt hole patterns. This allows for some interchangeability, which can simplify logistics. However, for sizes above DN150, PN16 valves generally require:
- Thicker valve bodies: To accommodate higher internal pressure without deformation.
- Robust reinforcement: Increased structural integrity in the seat and stem areas.
It is common for buyers to wonder, "Why pay more for PN16 if my system pressure is low?"
- Cost Differential: PN16 flanged valves typically cost 15-25% more than their PN10 counterparts. This is due to the increased material usage and more stringent manufacturing requirements for the higher pressure rating.
In professional pipeline engineering, the DN (Nominal Diameter) and PN (Nominal Pressure) are the two most critical parameters. Typically, you must ensure that all components—valves, flanges, and gaskets—are matched. Mixing a PN10 valve in a system designed for PN16 operation is a recipe for premature failure and potential system catastrophe.
Selecting the right valve is about balancing performance, safety, and budget. Here is the expert framework we use at Tianjin Wode Valve when consulting with international EPC contractors.
Never select a valve based solely on the *maximum* operating pressure of your system. A best practice is to add a safety margin of 20-30% to your calculated maximum operating pressure to account for water hammer, pressure surges, or unforeseen transient events.
| System Pressure Range | Recommended Valve Rating |
|---|---|
| Below 8 bar | PN10 |
| 8 bar to 12 bar | PN16 |
| Above 12 bar | PN25 or higher |
Sometimes, engineers opt for a PN16 valve even when the system operates at 8 bar. Why?
- Surge Protection: If the system is prone to high-intensity water hammer, the extra mechanical strength of a PN16 valve provides critical resilience.
- Operational Standardization: Using PN16 components across an entire project simplifies inventory management and maintenance training, even if only part of the system technically *requires* the higher rating.
Water treatment facilities often deal with corrosive media, which adds another layer to valve selection.
- Sealing Integrity: In water treatment, the rubber seat (EPDM or NBR) is the "heart" of the butterfly valve. Ensure the material is certified for the specific water quality (e.g., WRAS or ACS certification) to prevent degradation.
- Corrosion Resistance: For municipal pipelines, ductile iron bodies with high-quality epoxy coatings are the industry standard. Our team at Tianjin Wode Valve emphasizes the importance of these coatings in extending the lifespan of valves in damp, high-humidity environments.
1. Can I use a PN16 valve in a PN10 pipeline?
Generally, yes, provided the physical dimensions (face-to-face, bolt pattern) match. However, the reverse is never true. Never use a PN10 valve in a system designed for PN16 pressure.
2. Why do PN10 and PN16 flanges look the same for smaller sizes?
For small-bore piping (DN150 and below), the design requirements for both pressure classes overlap sufficiently to allow for standardizing flange dimensions, which streamlines manufacturing and installation.
3. Does higher pressure rating mean lower flow performance?
No. The pressure rating refers to the valve's structural ability to contain pressure, not its fluid dynamic performance. A well-designed butterfly valve in either rating should offer low pressure drop and high flow efficiency.
4. How do I know if my system requires PN16?
Consult your project's hydraulic study. If your maximum operating pressure, including surge pressures (water hammer), exceeds 8-9 bar, you should confidently specify PN16.
5. How often should I inspect my butterfly valves?
For municipal water applications, we recommend visual inspections annually and a full functionality test (opening/closing) every two years to ensure no sediment buildup or seat degradation is restricting operation.
Whether you are designing a new municipal water project or upgrading an industrial facility, understanding the difference between PN10 and PN16 butterfly valves is essential for balancing system longevity with cost. While PN10 offers an economical solution for lower-pressure systems, PN16 provides the structural robustness required for more demanding municipal mains and surge-prone environments. At Tianjin Wode Valve Co., Ltd., we are committed to helping our global partners choose the right solution to ensure safety and efficiency in every drop.
