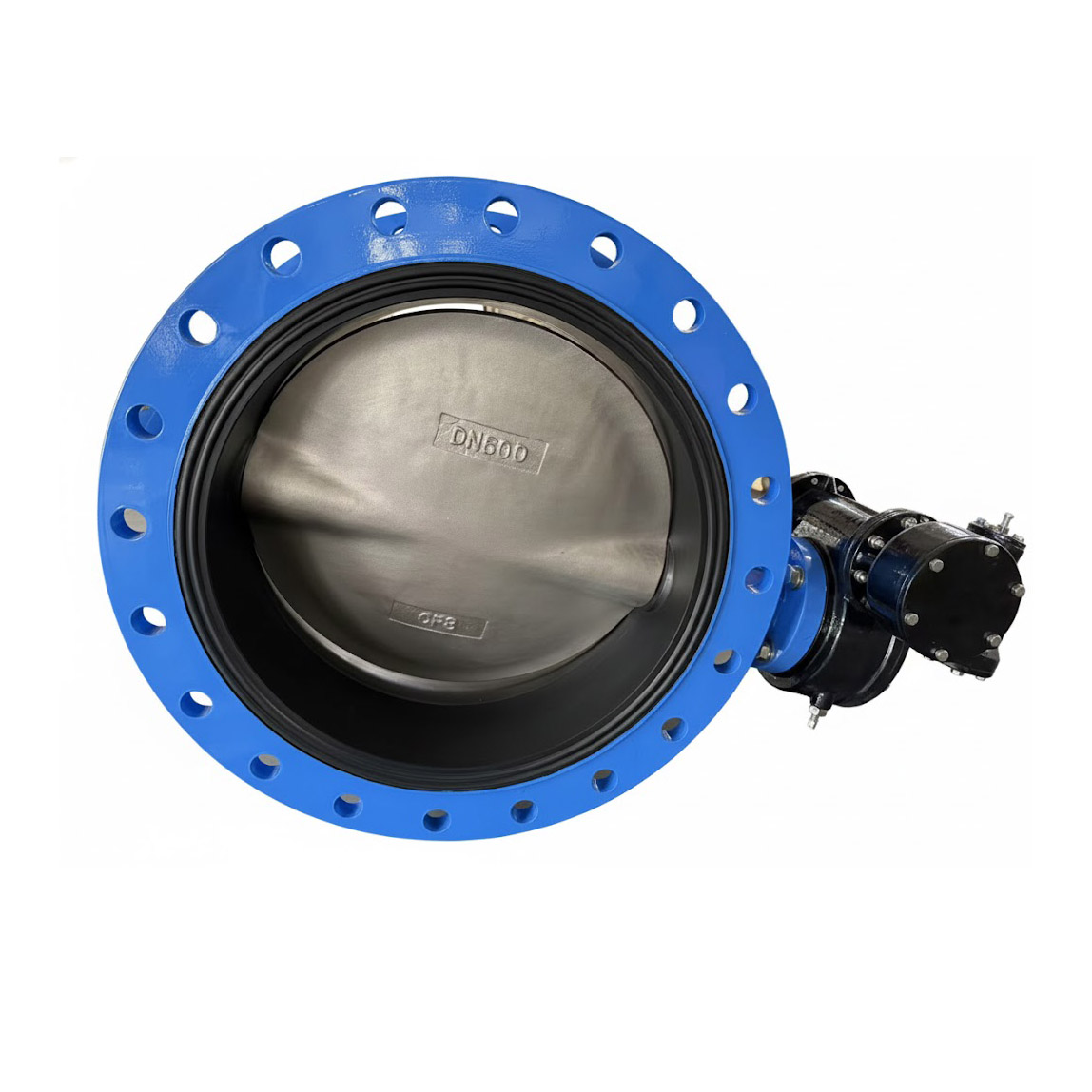

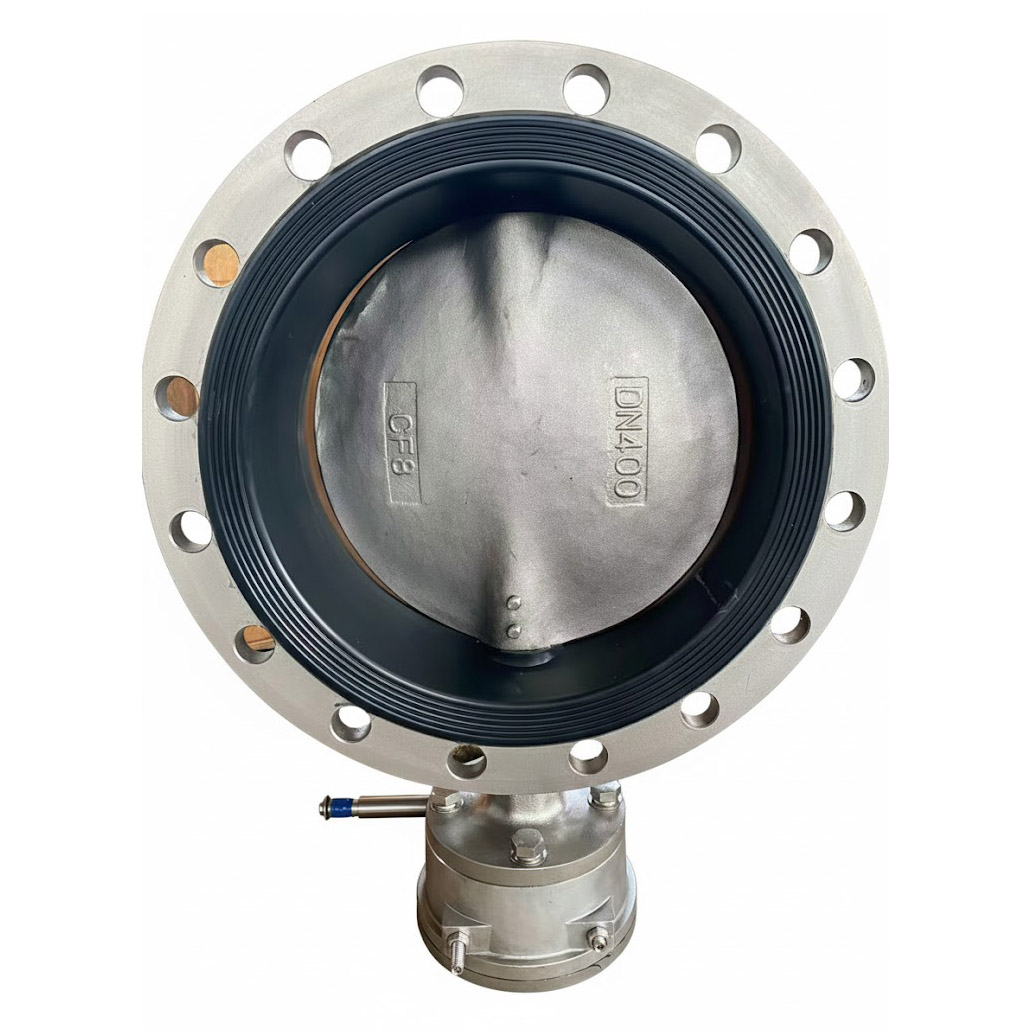

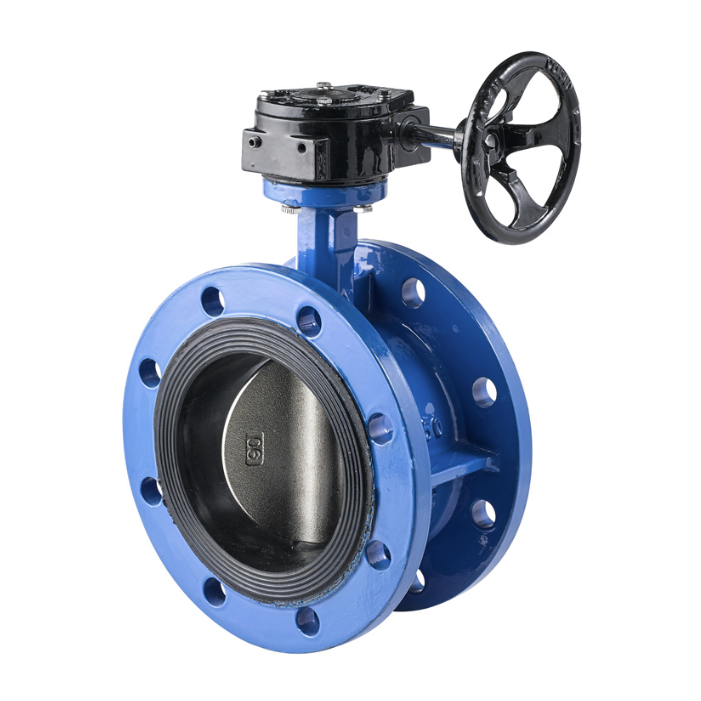

Concentric Flanged Butterfly Valve

Concentric Flanged Butterfly Valve Manufacturer – Reliable and Cost-Effective Flow Control
The Concentric Flanged Butterfly Valve is a widely used solution for general flow control applications, featuring a centric disc and resilient seat design. Manufactured by WODE Valve, this valve offers stable sealing performance and simple operation for standard pressure pipeline systems.
Its flanged connection ensures secure installation, making it a practical choice for water supply, HVAC, and industrial fluid control projects.


Availability:



Inquire Add to Basket

Concentric Flanged Butterfly Valve Double Flanged Butterfly Valve Concentric Flanged Valve API 609 Flanged butterfly Valve Resilient Seated Flanged Valve Pneumatic Butterfly Valve Electric Flanged Butterfly Valve Flanged Valve BS5155 Butterfly Valve EN593 Standard Butterfly Valve

Product Description

Key Features & Advantages

· Concentric Disc Design: Ensures uniform seat contact and consistent sealing performance.

· Resilient Seat Structure: Provides reliable shut-off for water and non-corrosive media.

· Flanged End Connection: Offers strong pipeline support and installation stability.

· Easy Operation: Simple structure allows for smooth manual or actuated operation.

· Cost-Effective Solution: Ideal for standard-duty applications with long service life

Technical Specifications

Feature	Specification
Size Range	DN40 – DN1200 (DN1200+ available upon request)
Pressure Rating	PN10, PN16, Class 125/150
Body Material	CI;DI;Carbon Steel;SS304;SS316;Al-Bronze
Disc Material	CF8;CF8M.DI+Ni;Al-Bronze
Seat Material	EPDM;NBR;Viton;PTFE;Hypalon
Shaft Material	SS420/SS304/SS316/SS431
Operation	Lever/Worm Gear/Pneumatic/Electric Actuator
Face to Face Standard	API609/BS5155/DIN3202/ISO5752
Flange Standard	DIN;BS;UNI;ISO;ANSI;AS;JIS
Mounting Flange	ISO5211
Working Pressure	PN10/PN16/ANSI150/PN25
Application	HVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical/Processing, Power and Utilities, Paper and Pulp, Ship Building

Large diameter butterfly valves up to DN2400 are available for special projects.

Why Choose Our Concentric Flanged Butterfly Valves?

WODE Valve delivers dependable concentric flanged butterfly valves manufactured under strict quality control. Each valve is pressure-tested to ensure consistent performance and long-term reliability for standard industrial and municipal applications.

Looking for a Reliable Concentric Flanged Butterfly Valve Manufacturer?

WODE Valve supplies concentric flanged butterfly valves to distributors, OEM partners, and engineering projects worldwide. Both standard models and customized solutions are available to meet different project requirements.

What we can support:

· Technical drawings and datasheets

· Free samples for OEM evaluation

· Competitive factory pricing

· Stable lead time and export-grade packing

Common Applications

· Water supply and distribution systems

· HVAC and utility pipelines

· Wastewater treatment facilities

· Industrial fluid control systems

· Municipal infrastructure projects
