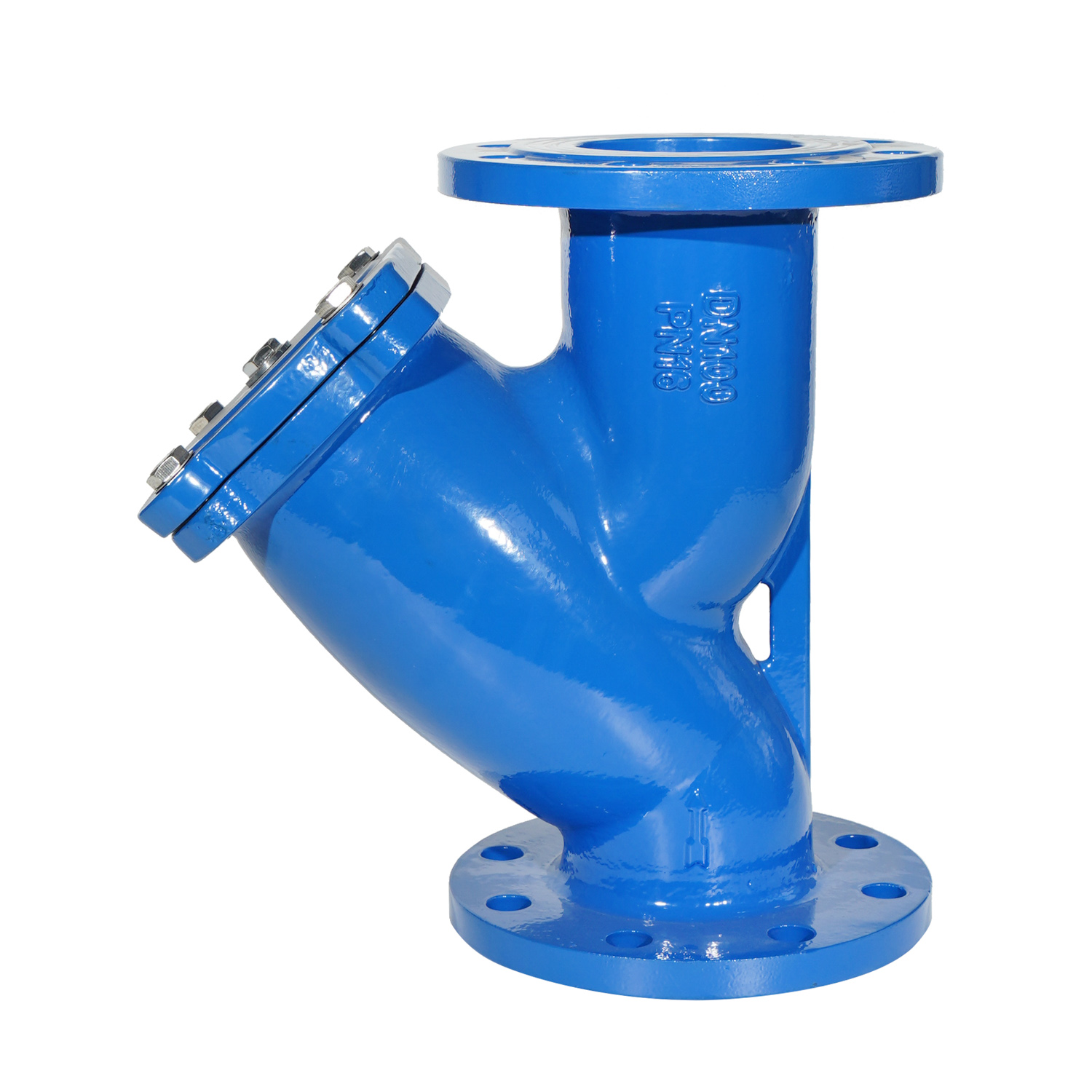

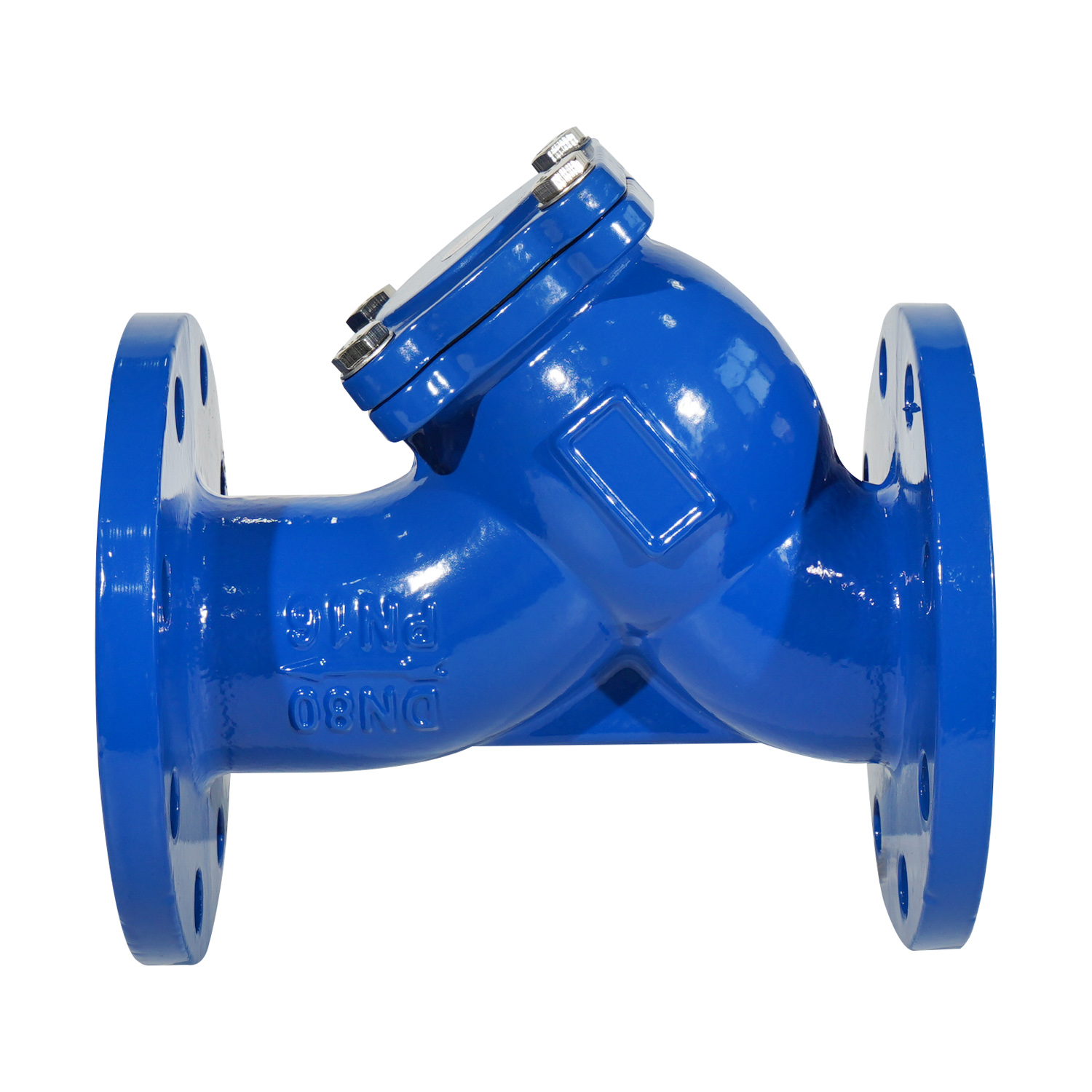

Flanged Y-Strainer PN16

Flanged Y-Strainer PN16: Essential Pipeline Protection
The Flanged Y-Strainer PN16 from WODE Valve is a critical component for protecting downstream equipment such as pumps, control valves, and meters from damage caused by debris. Named for its "Y" shape, this strainer effectively traps dirt, scale, and other foreign particles in its removable stainless steel mesh screen.
Designed for PN16 (16 Bar) pressure systems, our flanged Y-strainers offer low pressure drop and a large straining area. They are the industry standard for water, oil, and gas applications where maintaining fluid purity is essential for system longevity and operational efficiency.


Availability:



Inquire Add to Basket

Flanged Y-Strainer PN16 PN16 Y-Strainer Flanged Y-Strainer Cast Iron Y-Strainer Ductile Iron Y-Strainer Pipeline Y-Strainer Industrial Water Filter Y-Strainer DIN/ANSI Y-Strainer

Product Description

Key High-Performance Features

· Heavy-Duty PN16 Construction: Optimized for 16 Bar working pressure, providing a robust safety margin for municipal and industrial utility lines.

· Low Pressure Drop Design: The internal flow path is engineered to minimize turbulence and flow resistance, reducing energy costs for pumping systems.

· Precision Stainless Steel Screen: Features a high-quality SS304 or SS316 mesh that resists corrosion and is easy to clean or replace.

· Fusion Bonded Epoxy (FBE) Coating: Both internal and external surfaces are coated (minimum 250 microns) to prevent rust and ensure compatibility with potable water.

· Blow-Off Port: The cover is equipped with a plugged drain connection, allowing for the removal of accumulated debris without fully disassembling the valve.

· Versatile Mounting: Can be installed in both

Technical Specifications

Feature	Engineering Standards
Size Range	DN50 – DN600 (2" to 24")
Pressure Rating	PN16 (16 Bar)
Body Material	Ductile Iron (GGG40/50) / Cast Steel / Stainless Steel
Screen Material	Stainless Steel 304 / 316
Screen Mesh	Standard (1.5mm / 3.0mm) or Custom Micro-mesh
Design Standard	DIN 3352 / EN 12162
Face to Face	DIN 3202 F1 / EN 558 Series 1
Flange Standard	EN 1092-2 / DIN 2501

Why Choose WODE Y-Strainers?

WODE Valve ensures that every Y-Strainer meets the highest quality benchmarks for international projects:

· Large Filtration Area: Our strainers feature an oversized screen area to extend the time between cleaning cycles.

· Ductile Iron Integrity: We use high-grade GJS500-7 ductile iron for superior impact resistance and durability compared to standard grey iron.

· Hydrostatic Testing: Each unit is pressure tested to ensure body integrity and flange seal reliability before leaving the factory.

· Custom OEM Support: We offer custom mesh sizes, specialized coatings for aggressive media, and private labeling for global distributors.

Primary Application Sectors

· Water Supply & Treatment: Protecting sensitive filtration and desalination equipment.

· HVAC Systems: Preventing debris from clogging chillers, boilers, and heat exchangers.

· Chemical Processing: Removing solids from process liquid lines.

· Fire Protection: Ensuring that sprinkler heads and nozzles remain clear of obstructions.

· Power Plants: Straining cooling water and auxiliary steam lines.

Recommended Industrial Options

For reliable filtration in your PN16 systems, consider these professional-grade configurations:

· The Standard Utility Choice: A Ductile Iron PN16 Y-Strainer with an EPDM gasket and SS304 screen. This is the most cost-effective and durable option for water distribution and HVAC utility lines.

· The High-Temperature Option: For steam or thermal oil service, a Cast Steel (WCB) body with a graphite gasket is recommended. This setup handles thermal expansion effectively while maintaining pressure integrity.

· The Corrosion-Resistant Choice: In chemical plants or marine environments, a Stainless Steel (CF8M) Y-Strainer ensures that the body itself remains free from pitting and chemical attack over long-term us
