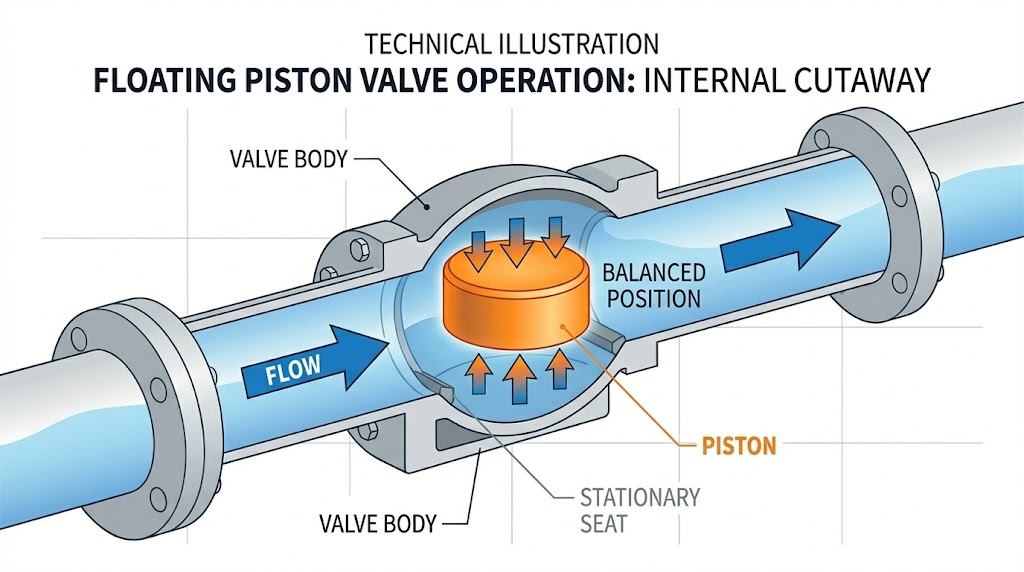

A floating piston valve uses a solid piston that presses against a stationary seat to control and shut off flow inside the valve body. Unlike many automated valves, it operates without a traditional actuator and instead relies on a manual mechanism plus one or two solenoid valves for control. [youtube]
Because the piston is designed to remain axially and radially balanced in the flow stream, it experiences only the force that the operator (or control system) applies, not the fluctuating line pressure. This allows predictable opening and closing behavior even under very high differential pressures. [youtube]
Although the term "floating" can be confusing, it does not mean the piston is loose or uncontrolled. Instead, it refers to how the piston is suspended and pressure-balanced within the medium. [youtube]

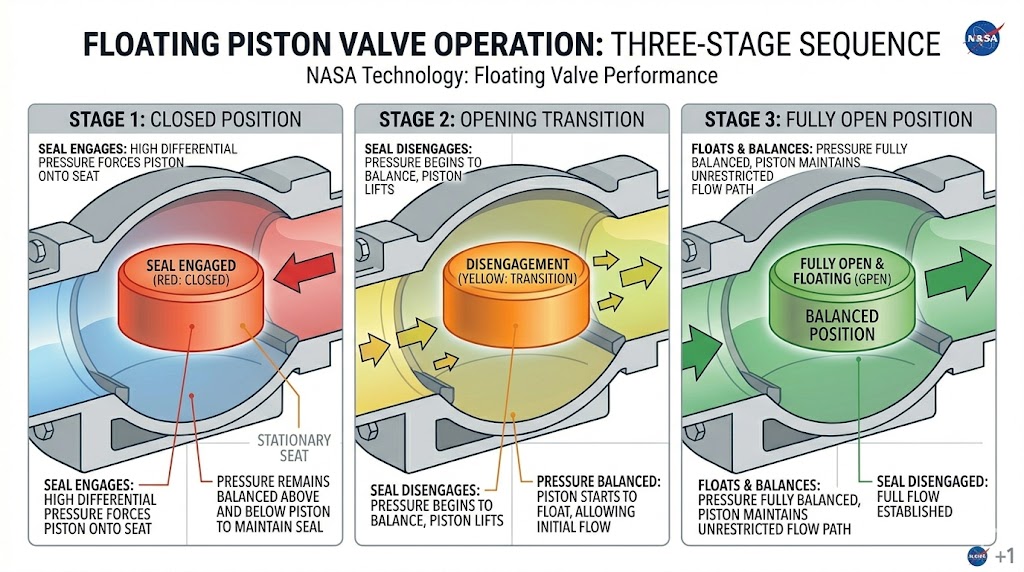

1. Closed position
- The solid piston is pressed tightly against a fixed seat, creating a metal‑to‑metal or soft‑seated seal.
- System pressure acts symmetrically around the piston body, so the net hydraulic force on the piston is very low. [youtube]
2. Opening the valve
- The operator applies a defined force (via stem, handle, or pilot arrangement).
- Because the piston is balanced, the required force stays consistent over a wide pressure range, which is a major advantage compared with conventional globe valves under high ∆P. [youtube]
3. Flow through the valve
- Once open, the flow path remains highly symmetrical, which helps minimize thrust loads and side forces on the piston.
- Reduced side loading protects the internal guides and extends seal life.
4. Closing the valve
- The same applied force returns the piston to the seat.
- Newer designs use adjustable closing force, allowing the installer to fine‑tune shutoff tightness and wear behavior depending on pressure and medium.
A typical floating piston valve consists of roughly five main components, with seals protected deep inside the body. This minimalist design delivers:
- Fewer potential leak paths.
- Less maintenance time and complexity.
- Easier troubleshooting in the field, particularly for remote municipal assets.
The original article mentions several benefits—simplicity, high‑pressure capability, and reliability. From a field engineering standpoint, these advantages translate into very tangible lifecycle gains.
| Performance aspect | Floating piston valve | Conventional globe/ball valves |
|---|---|---|
| Pressure balancing | Piston remains balanced, force depends mainly on operator input youtube | Stem force can increase sharply with ∆P |
| Parts count | Very few moving parts, no large actuator needed | More complex assemblies, multiple seals and bearings |
| Seal protection | Seals recessed and protected from direct flow erosion | Seats and seals often exposed to turbulence and particles |
| High‑pressure operation | Designs can handle up to ~15,000 psi in specialized models | Many standard valves require upsizing or special trims at very high pressures |
| Emissions and leakage | No traditional valve stem, very low fugitive emissions | Stem packing is a common source of fugitive emissions |
| Maintenance intervals | Extended, due to simple design and balanced loads inox-tek.com | More frequent stem and seat maintenance in severe service |
In practice, this means that for severe duty, high‑pressure or high‑cycle applications, floating piston valves often deliver a lower cost of ownership than traditional alternatives, especially where actuator costs are significant. [chemengonline]
The original reference lists several critical industries where piston valves are used, including power, petrochemical, and pharmaceutical manufacturing. These are all environments where reliability and tight shutoff are non‑negotiable.
Common use cases include:
- Power and petrochemical plants handling steam or aggressive media.
- Chemical processing where tight shutoff and cleanability are key.
- Refineries and storage terminals needing reliable tank pressurization.
- Cryogenic fluid systems in industrial gas or aerospace facilities.
- Pharmaceutical and biotech manufacturing lines requiring repeatable flow control.
In many of these services, fast actuation and predictable closing forces matter as much as maximum Cv, especially when protecting downstream equipment.
While floating piston valves originated in high‑end industrial and aerospace contexts, the same design strengths are increasingly attractive in water and wastewater infrastructure. [onerovalve]
In modern water treatment and desalination plants, ball valves and piston‑type valves perform functions such as regulating inlet water, controlling filtration backwash, and isolating chemical dosing lines. For these tasks, operators look for: [onerovalve]
- Stable shutoff under variable pump pressures.
- Low fugitive emissions for chlorination or chemical dosing systems.
- Compact envelopes in crowded galleries and buried chambers. [chemengonline]
Floating piston technology is particularly attractive in:
- High‑pressure feed lines to RO trains in desalination.
- Backwash systems where sudden changes in flow can generate transient thrust loads.
- District metering and pressure control points in municipal pipeline networks.
The original article notes that floating piston valves were used by NASA and that newer models have addressed limitations seen in earlier designs. That evolution is important from a procurement and risk‑management standpoint. [youtube]
Modern floating piston valves typically offer: [youtube]
- Higher maximum pressure ratings, with some designs qualified up to around 15,000 psi for specialized services.
- Compatibility with both soft and hard metal seats, allowing customization for slurry, corrosive, or clean services.
- Adjustable closing force, enabling commissioning engineers to balance sealing performance with seat wear.
- Improved surface treatments and machining tolerances for smoother operation and longer life.
For EPC contractors designing long‑life municipal assets, this means the technology now has a credible track record, along with more flexible configuration options than earlier generations. [inox-tek.com]

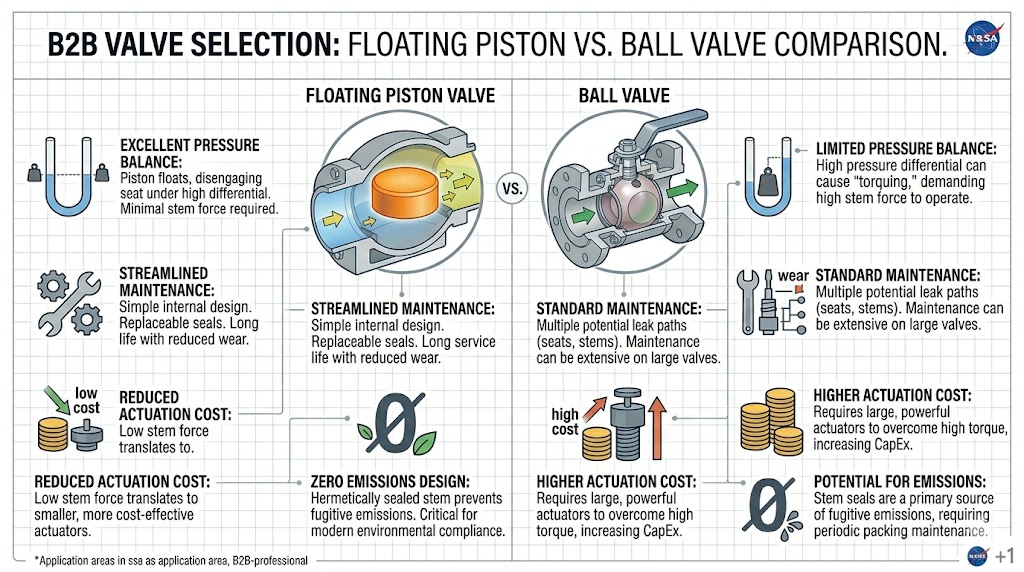

Because many water engineers default to ball valves for shutoff and control, it is useful to see how floating piston valves compare in this segment. [onerovalve]
| Criteria | Floating piston valve | Ball valve |
|---|---|---|
| Primary function | Precision shutoff and stable control at high ∆P youtube | On/off isolation, some throttling in specific trims chemengonline |
| Flow path | More linear characteristics, balanced loading | Full bore, very low pressure drop when fully open chemengonline |
| High‑pressure behavior | Force on operator/control largely independent of line pressure youtube | Torque can increase markedly with pressure and solids |
| Typical water‑sector use | High‑pressure control points, severe duty, chemical lines | General isolation, pump discharge, distribution manifolds onerovalve |
| Actuation requirements | Often manual or compact pilot/solenoid control | Wide actuator options, from manual to large electric/pneumatic |
In many water treatment projects, ball valves remain the best choice for standard isolation duties, while floating piston valves are selected for high‑risk nodes where pressure spikes, media variability, or emission limits justify a more specialized design. [chemengonline]
From a specification perspective, the question is not "Is a floating piston valve better?" but "Where does it provide superior lifecycle value?"
Use a floating piston valve when:
- Your design involves high differential pressures or severe duty cycles.
- Fugitive emissions from a stem packing present compliance risks.
- Access for maintenance is costly (remote pumping stations, buried chambers).
- Flow conditions create asymmetric forces that could damage standard trims.
Stick with a conventional ball or butterfly valve when:
- You primarily need simple on/off isolation with low pressure drops.
- Cycle frequency is low and maintenance access is easy.
- Budget is very tight and service conditions are not severe. [onerovalve]

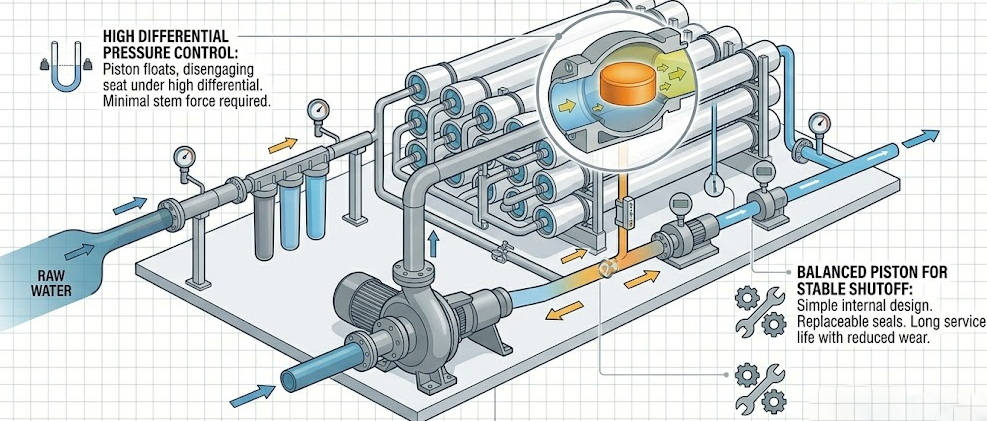

Consider a seawater desalination plant where high‑pressure pumps feed RO membranes. Feed pressures can reach 60–80 bar, with significant transients during start‑up and shutdown. [onerovalve]
A traditional globe or ball valve at this node might experience:
- Large unbalanced forces on the trim.
- High torques and rapid seat wear.
- Risk of cavitation damage under partial opening.
By contrast, a floating piston valve with a balanced piston and adjustable closing force can:
- Maintain predictable, repeatable closing behavior across the operating envelope. [youtube]
- Reduce side loading and extend seal life.
- Support more stable control of ramp‑up and ramp‑down sequences for the RO trains.
This is a typical scenario where EPC teams now evaluate floating piston technology alongside premium ball valves and control valves. [chemengonline]
Maintenance teams often judge a valve not by its datasheet, but by how it behaves after five years in the field.
Because floating piston valves are simple and compact, technicians benefit from:
- Fewer seals and wear components to inspect or replace.
- Reduced need for actuator re‑calibration or replacement.
- Lower likelihood of stem packing leaks, which are a routine issue with many legacy valves.
Combined with the balanced design—which reduces the mechanical stress on guides and seats—this leads to longer service intervals and lower unplanned downtime in critical systems. [inox-tek.com]
Tianjin Wode Valve Co., Ltd. is a specialized valve manufacturer focusing on water treatment and municipal pipeline valve solutions. With more than a decade of export experience, the company has become a stable OEM partner for global distributors and engineering contractors. [wodevalve]
Although our core portfolio includes butterfly valves, check valves, and resilient seated gate valves, the design principles behind floating piston technology—balanced flow paths, robust sealing, and reduced maintenance—are fully aligned with how we engineer valves for long‑life municipal infrastructures. For projects that combine standard water valves with specialized high‑pressure or severe‑duty nodes, our engineering team collaborates with EPCs to ensure the right valve technology is selected for each duty point. [tjwdvalve]
If you are planning or upgrading a water treatment plant, desalination facility, or municipal pipeline, choosing the correct valve technology at each node can dramatically affect lifecycle cost and reliability. [onerovalve]
To evaluate whether a floating piston valve, high‑performance ball valve, or another solution is best for your project, you should:
- Share your pressure, flow, and media data with a valve specialist.
- Clarify your maintenance access constraints and regulatory requirements.
- Request a consolidated valve list optimized for both CAPEX and OPEX.
Tianjin Wode Valve's engineering team supports global distributors, EPC contractors, and OEM brands with tailored valve selections for water and municipal applications—contact us with your latest P&IDs and design parameters to start a technical review. [wodevalve]
A: No. While both can provide throttling and shutoff, a floating piston valve uses a balanced piston against a stationary seat, whereas a globe valve typically uses a plug and seat with less inherent pressure balancing. [youtube]
A: Yes. Although many designs remove the need for a large actuator, they can still be integrated into automated systems using compact solenoids, pilots, or smaller actuators where project requirements demand remote operation. [youtube]
A: They can be, provided the seat and internal materials are selected correctly (for example, hard‑metal seats and suitable coatings) and the valve is applied within the manufacturer's recommended ranges. [inox-tek.com]
A: The absence of a traditional rising stem and external packing significantly reduces fugitive emission paths compared with many conventional valves, which is important in chemical and hydrocarbon services.
A: In most cases, they are used at critical high‑pressure or severe‑service points, while conventional butterfly, gate, and ball valves handle the majority of general isolation and low‑risk duties. [chemengonline]
