When you design or maintain water treatment or municipal pipeline systems, the ball valve is one of the most important shut‑off components you rely on every single day. In this guide, I'll walk through how ball valves really work from an engineer's and manufacturer's perspective, and share hard‑won lessons from real projects in the field. [tameson]
At its core, a ball valve is a quarter‑turn shut‑off valve that uses a spherical ball with a central hole (bore) to start or stop flow. When the hole lines up with the pipeline, fluid flows; when it rotates 90°, the solid side of the ball blocks the passage and creates a tight seal. [tanghaivalve]
In practice, this means:
- Turn the handle a quarter turn to open or close. [en.wikipedia]
- Handle parallel to the pipe = valve open. [tameson]
- Handle perpendicular to the pipe = valve closed. [en.wikipedia]
In water plants and municipal networks, this simple motion allows operators to isolate sections in seconds, even in emergencies. [onerovalve]
From a design and operations standpoint, the working principle is straightforward but highly engineered.

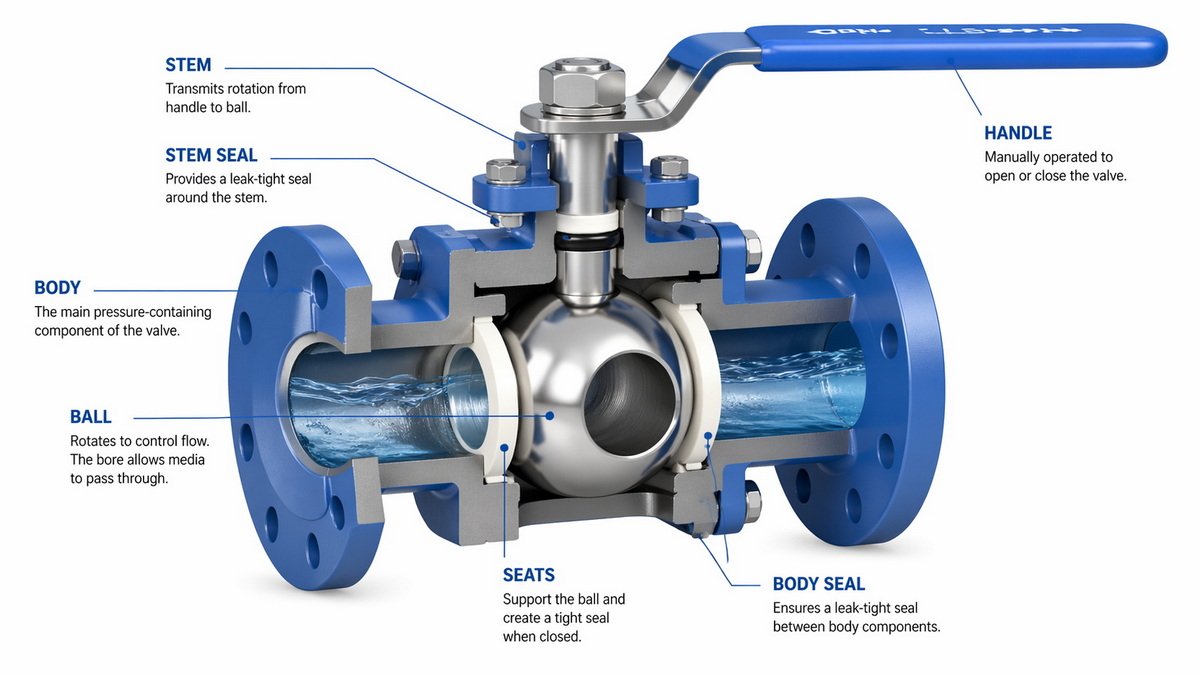

A typical ball valve assembly includes: [dvsvalve]
- Valve body – pressure‑bearing shell that houses all components.
- Ball (with bore) – precision‑machined sphere with a through‑hole.
- Seats – usually soft materials (PTFE or elastomers) that the ball presses against to seal. [tameson]
- Stem – connects the ball to the handle, gearbox, or actuator.
- Seals and packing – ensure tightness around the stem and body joints.
- Operator – lever, gear, pneumatic, electric, or hydraulic actuator. [tanghaivalve]

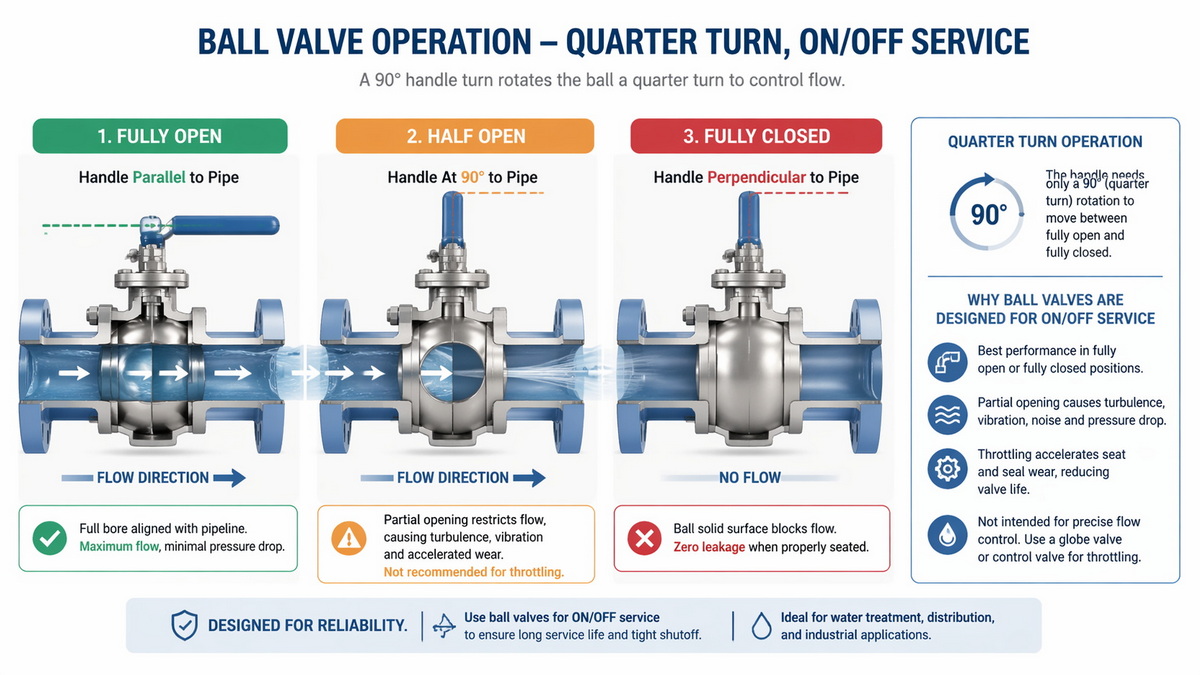

1. Open position
- The ball's bore is aligned with the pipeline axis. [dvsvalve]
- Flow passes through the valve with minimal resistance, especially in full‑port designs. [tameson]
2. Closing (rotating 90°)
- The operator turns the stem, rotating the ball a quarter turn. [tanghaivalve]
- The ball's solid side moves into the flow path. [en.wikipedia]
- Seats are designed so that line pressure helps press the ball against the downstream seat, ensuring tight shut‑off. [tameson]
3. Closed position
- The bore is perpendicular to flow, blocking the passage. [dvsvalve]
- For well‑designed water service ball valves, the result is bubble‑tight isolation with very low operating torque. [onerovalve]
This simple 90° motion is what makes ball valves so attractive for automation, remote control and emergency isolation in water treatment and municipal pipeline systems. [onerovalve]
The original article correctly outlined three major structural types, but from a project perspective you need to understand where each type makes sense. [en.wikipedia]

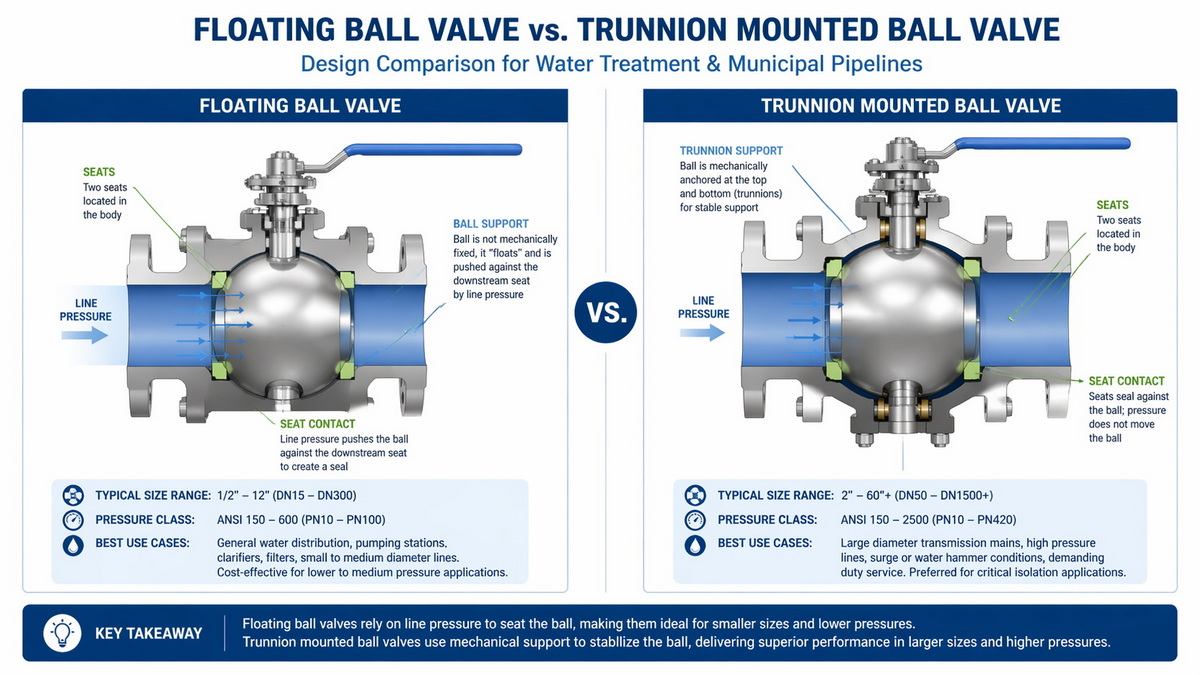

A trunnion‑mounted ball valve uses mechanical supports at the top and bottom of the ball, called trunnions. [tanghaivalve]
- The ball is supported by trunnions; line pressure is absorbed by the trunnions and seats. [dvsvalve]
- Operating torque is lower, even at high pressure and large diameters. [tanghaivalve]
- Ideal for:
- High‑pressure transmission mains
- Large‑diameter raw water lines
- Desalination and industrial water where actuation is mandatory [onerovalve]
From our own project experience, trunnion‑mounted ball valves are often the safest choice once you move into DN300 and above on high‑pressure lines, especially with frequent operations.
In a floating ball valve, the ball is only supported by the stem; it is free to move slightly downstream. [tameson]
- Line pressure pushes the ball against the downstream seat, forming the seal. [en.wikipedia]
- Design is simpler and typically more cost‑effective.
- Best suited for:
- Small and medium diameters
- Clean water and treated water lines
- General isolation applications with moderate pressure [onerovalve]
For water treatment skid packages and compact municipal chambers, floating ball valves are often the most economical and reliable choice.
A rising ball valve combines a tilt‑and‑turn motion. [tameson]
- The ball tilts away from the seat during opening to reduce seat rubbing. [tameson]
- When closing, the ball wedges firmly into the seat for tight shut‑off. [tameson]
- This design is aimed at reducing wear on the seat, which can be critical in applications where standard ball valves suffer premature seal failure. [tameson]
In highly abrasive or high cycling conditions, rising ball valves can significantly extend service life compared with conventional floating designs. [tameson]
From an operator's and EPC contractor's perspective, ball valves deliver a combination of benefits that few other valve types can match. [onerovalve]
- Quick quarter‑turn operation – ideal for emergency isolation and automated control. [dvsvalve]
- Tight sealing performance – excellent shut‑off, with minimal leakage in properly selected designs. [en.wikipedia]
- Compact and low‑maintenance design – no lubrication required in most cases. [tameson]
- Low pressure loss – especially with full‑port designs that match pipe bore. [tameson]
- Wide material options – carbon steel, stainless steel, and bronze/brass for drinking water, with dezincification‑resistant options where needed. [ize-industries]
- Not ideal for throttling
Ball valves are generally poor for precise throttling, as partially open operation can cause uneven seat wear and erosion. [flow-valve]
- Seat damage under high velocity
If used at high differential pressure in a half‑open position, seat erosion accelerates. [flow-valve]
For this reason, in most water projects we recommend: ball valves for on/off and dedicated control valves for continuous throttling.

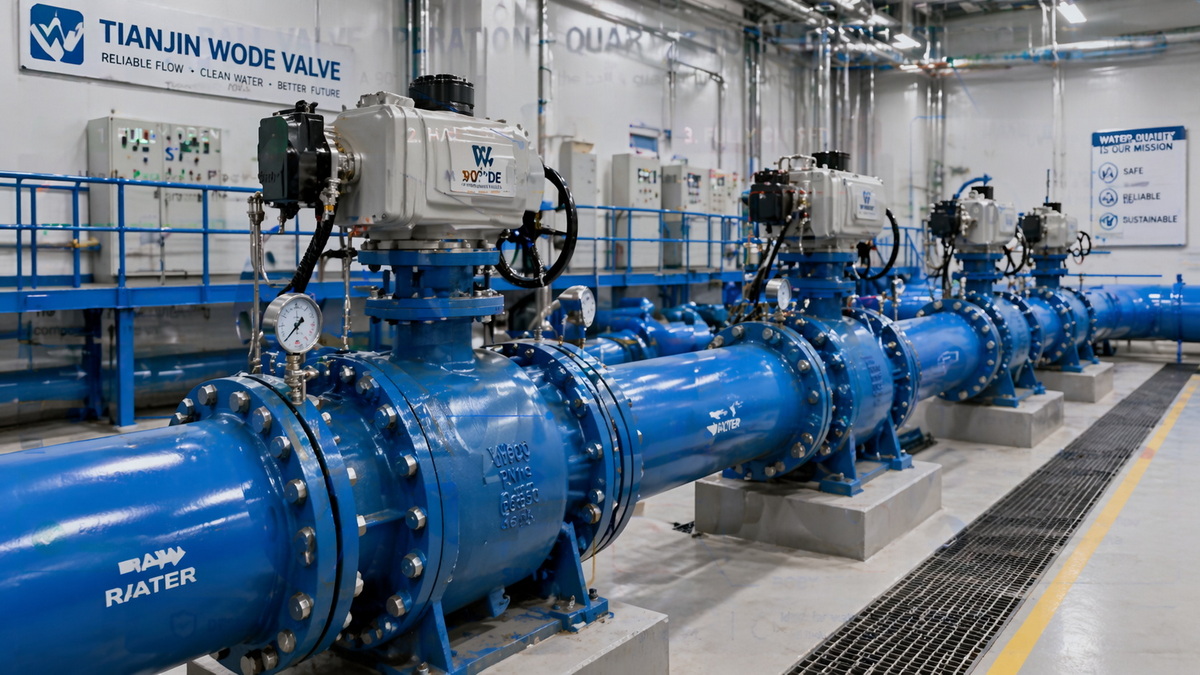

In modern water and wastewater treatment plants, ball valves are used in several critical locations. [tameson]
Typical use cases include:
- Inlet isolation – shutting off raw water or treated water lines feeding filters, membranes, or tanks. [onerovalve]
- Filter backwash and drain lines – quick open/close to control backwash sequences. [onerovalve]
- Chemical dosing lines – isolating dosing pumps for coagulants, disinfectants, or pH control. [onerovalve]
- Instrument isolation – protecting flow meters, analyzers, and sampling points.
In desalination plants and industrial water reuse systems, ball valves are often automated to integrate with SCADA for remote control and sequencing. [onerovalve]
Municipal networks present a different challenge: long distances, buried installations, and limited access.
In transmission and distribution mains, engineers rely on:
- Large‑diameter trunnion‑mounted ball valves in valve chambers to isolate main sections. [dvsvalve]
- Actuated ball valves in booster pump stations and pressure‑reducing stations for system control. [onerovalve]
- Corrosion‑resistant materials and coatings to withstand buried or flooded environments. [onerovalve]
For municipalities, the combination of quick operation, reliable isolation, and low torque often makes ball valves the preferred choice over gate valves in high‑pressure or critical locations. [en.wikipedia]
Tianjin Wode Valve Co., Ltd. is a professional valve manufacturer focusing on water treatment and municipal pipeline valve solutions for global distributors, EPC contractors, and international valve brands. [tjwdvalve]
From our decade‑plus of export and OEM experience, several principles shape how we design and supply ball valves for these projects: [wodevalve]
- Application‑first selection – matching floating vs trunnion vs rising designs to pressure, medium, and operation frequency. [wodevalve]
- Water‑focused material choices – prioritizing clean water compatibility, dezincification resistance where required, and coatings suitable for buried or submerged chambers. [ize-industries]
- OEM and branding support – stable quality, consistent performance, and documentation that align with international brands' specifications. [wodevalve]
For many of our partners, the biggest value is not just the valve itself but the engineering support behind each project, ensuring that the selected ball valve will perform reliably over its full life cycle.
When I work with distributors or EPC engineers on a new water project, we usually walk through a simple but systematic checklist.
- Medium: raw water, treated water, seawater, wastewater, chemicals.
- Function: isolation only, occasional throttling, emergency shut‑off.
- Location: plant room, buried chamber, above‑ground pipeline, skid package.
- Nominal pressure class and surge conditions.
- Operating temperature range.
- Pipe diameter and connection type (flanged, threaded, welded). [tameson]
- Floating ball – small–medium sizes, standard pressures, general isolation.
- Trunnion‑mounted – large sizes, higher pressures, frequent operation or automation. [tanghaivalve]
- Rising ball – when reducing seat wear is a design priority. [tameson]
- Body materials tuned to water quality (e.g., stainless in aggressive or desalination environments). [tameson]
- Seat materials suited to pressure, temperature, and chemical compatibility.
- Manual lever for small sizes and infrequent operation.
- Gearbox for larger valves or higher torque.
- Pneumatic, electric, or hydraulic actuators for automated plants and remote stations. [tanghaivalve]
A clear, structured selection process greatly reduces the risk of over‑ or under‑specifying ball valves and helps prevent failures in service.
Even a high‑quality ball valve can fail prematurely if misapplied or poorly maintained.
Frequent issues we see in the field include:
- Seat erosion from throttling – running ball valves half‑open under high velocity quickly damages seats. [flow-valve]
- Deposits and scaling – in untreated or hard water, deposits can cause sticking and increased torque.
- Corrosion from wrong materials – using non‑resistant alloys in aggressive water or chemical environments. [ize-industries]
Best practices to minimize these problems:
- Use ball valves primarily as on/off devices.
- Implement periodic cycling and inspection, especially on normally open emergency valves.
- Match materials and coatings to the actual water chemistry and environment. [ize-industries]
| Valve type | Main feature (field view) | Typical water applications |
|---|---|---|
| Floating ball | Simple, economical, pressure pushes ball into seat tameson | Small/medium lines, general isolation in plants tameson |
| Trunnion‑mounted | Supported ball, lower torque at higher pressure tameson | Large mains, high‑pressure lines, automated systems onerovalve |
| Rising ball | Tilt‑and‑turn, reduced seat rubbing for longer life tameson | High cycling, abrasive or demanding services tameson |
A genuinely expert guide should also be clear about where ball valves are not ideal.
Avoid specifying ball valves when:
- The valve must operate continuously in a throttling position for flow control.
- Very fine flow regulation is required; a dedicated control valve or globe valve is better. [flow-valve]
- Solids‑laden media with severe abrasion would immediately attack soft seats.
In these cases, combining ball valves for isolation with other valve types for control usually provides the best balance of cost, safety, and reliability.
If you are:
- A global valve distributor building your own brand range.
- An EPC contractor responsible for turnkey water treatment or municipal pipeline projects.
- An international valve brand seeking a stable OEM partner.
Tianjin Wode Valve can support you with:
- Engineering assistance in valve selection and specification for ball valves and complementary valve types.
- Customization of materials, coatings, and actuation packages tailored to local standards and project requirements. [wodevalve]
- Consistent production, testing, and documentation to support long‑term business relationships. [wodevalve]
You can integrate ball valves into a complete package that also includes butterfly valves, check valves, and other water valves from a single, water‑focused manufacturer. [tjwdvalve]
If you are planning or executing a water treatment or municipal pipeline project and need reliable ball valveswith proven performance, you can:
- Send us your P&IDs, valve lists, or specifications for a quick technical review.
- Discuss OEM and private label ball valve solutions tailored to your brand.
- Request a consultation on how to standardize ball valve types across your projects to reduce total cost and simplify maintenance.
Tianjin Wode Valve's engineering and export teams are ready to help you choose and configure the right ball valves for long‑term, stable operation in your specific systems. [wodevalve]
Ball valves can be used for occasional, coarse throttling, but they are not ideal for continuous or precise flow control because partially open operation accelerates seat wear and erosion. [flow-valve]
In floating ball valves the ball is supported only by the stem and is pushed into the downstream seat by line pressure, while trunnion‑mounted designs use mechanical supports top and bottom to stabilize the ball and reduce operating torque at high pressure or large sizes. [dvsvalve]
They provide fast quarter‑turn operation, reliable tight shut‑off, compact dimensions, low maintenance, and can be easily automated, making them ideal for isolation and sequencing in water treatment and desalination systems. [tameson]
For drinking water, corrosion‑resistant metals and seals approved for potable water should be used, and dezincification‑resistant alloys or stainless steels are often selected depending on water chemistry and regulations. [ize-industries]
Select a trunnion‑mounted ball valve when dealing with high pressures, large diameters, frequent operation, or automation requirements, as this design offers lower torque and better stability under demanding conditions. [dvsvalve]
