For more than 15 years in municipal water and wastewater projects, I've repeatedly had to answer one practical question on site: should we specify a globe valve or a ball valve for this line? The wrong decision can mean unnecessary head loss, higher pumping costs, or maintenance shutdowns that no utility operator wants to explain to the public. [valveman]
As a ball valve manufacturer (Tianjin Wode Valve Co., Ltd.) working directly with global distributors, EPC contractors, and international valve brands, our engineering team regularly troubleshoots real installations and sees how each valve type performs beyond the datasheet. This guide distills those field lessons into a clear comparison, with a special focus on water treatment plants and municipal pipeline systems. [digitalapplied]
By the end of this article, you will be able to quickly determine:
- When a globe valve is the better choice for precise throttling or control loops. [processautomation.anasia]
- When a ball valve offers lower life-cycle cost thanks to very low pressure loss and near-zero leakage shut‑off. [tameson]
- How to match valve type, size, and material to typical water and wastewater scenarios, from clarifier outlets to district water mains. [sedelon]
For busy project managers and design engineers, you can also jump straight to the decision checklist near the end. [tiecas]

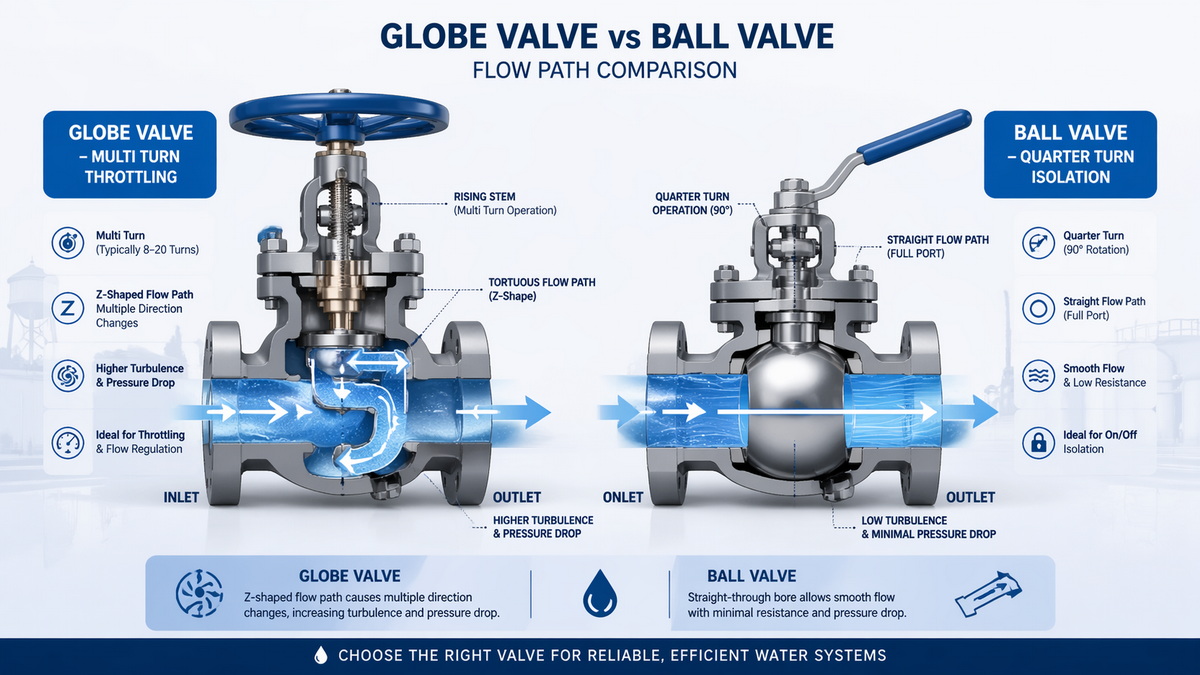

- Globe valve: Media enters the valve body, changes direction, passes through a restricted seat, and then changes direction again in a characteristic "Z-shaped" flow path. This geometry creates higher flow resistance and a relatively high pressure loss coefficient (often in the range ζ ≈ 4–6). [bestflowvalve]
- Ball valve: Media flows through a drilled ball; when fully open, the flow path is nearly straight, especially in full-port designs, which translates into significantly lower pressure loss and turbulence. [bestflowvalve]
In simple terms, globe valves shape the flow, while ball valves stay out of the way of the flow. [bestflowvalve]
- Globe valves use a rising stem and disc; fully opening or closing the valve requires multiple turns of a handwheel or a longer stroke on an actuator. [valveman]
- Ball valves operate with a quarter-turn (90°), which is ideal for fast actuation, emergency shut‑off, and automated systems using electric or pneumatic actuators. [processautomation.anasia]
In emergency isolation on a water main or a treatment unit, operators consistently prefer quarter‑turn isolation because it is fast, intuitive, and easier to automate. [valveman]
- Shut‑off capability
- Ball valves generally provide tighter shut‑off, especially when using soft seats; this is crucial for isolating pumps, chemical dosing skids, and critical branch lines. [sedelon]
- Globe valves can be specified for shut‑off, but in practice they are more often used where throttling is required and zero-leak isolation is less critical. [tameson]
- Throttling and control
- Globe valves excel in precise flow control, especially in modulating service, control loops, and situations where you need stable Cv over a limited stroke. [processautomation.anasia]
- Conventional ball valves are best as on/off devices; specialized V‑port or trunnion‑mounted designs can handle control duties, but they must be carefully specified. [sedelon]

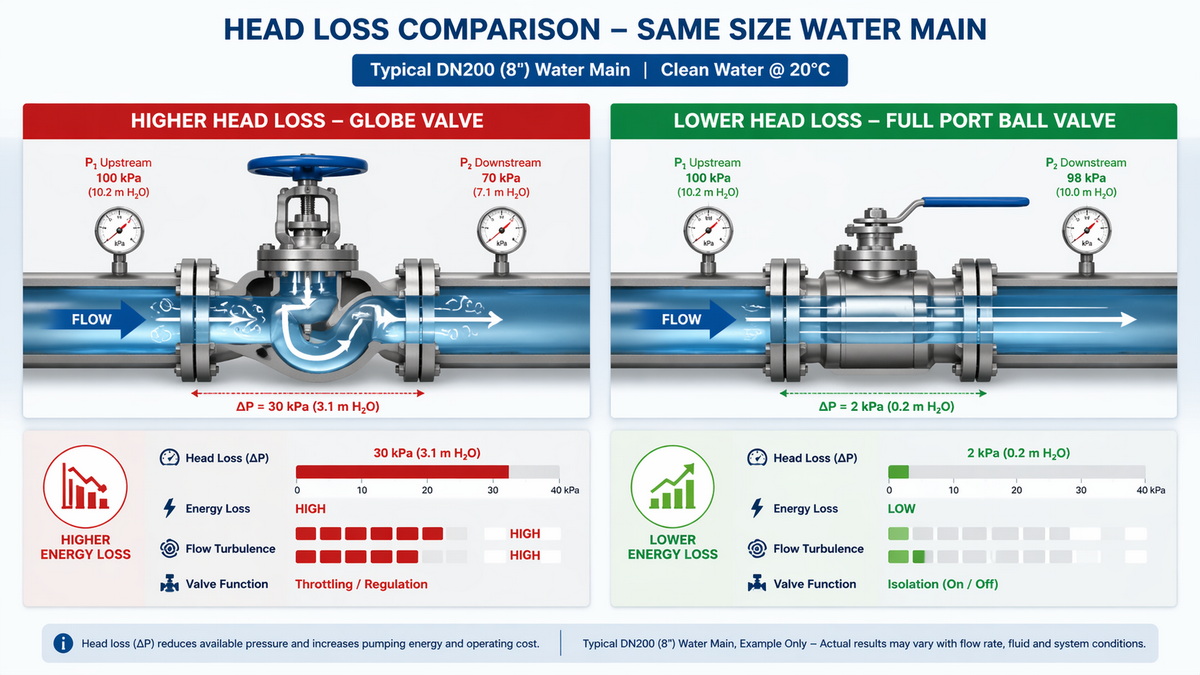

- Pressure drop and energy use
- Globe valves have higher head loss because of their tortuous flow path, which can increase pump energy consumption over the life of the installation. [bestflowvalve]
- Ball valves typically have lower head loss and higher flow coefficients, particularly full‑port designs, which reduce the energy penalty on pumping systems. [tameson]
Below is a concise, water-industry–oriented comparison.
Performance Snapshot: Globe Valve vs Ball Valve in Water & Municipal Systems
| Criterion | Globe valve | Ball valve |
|---|---|---|
| Primary role | Throttling/control in process lines (tameson) | On/off isolation with tight shut‑off (tameson) |
| Flow resistance | Higher, higher head loss (bestflowvalve) | Lower, minimal pressure drop (bestflowvalve) |
| Control accuracy | Very good, linear/modified EQ characteristics (tameson) | Limited with standard design, better with V‑port (tameson) |
| Actuation | Multi‑turn, slower response (bestflowvalve) | Quarter‑turn, fast actuation (tameson) |
| Space requirement | Larger installation envelope (bestflowvalve) | More compact design (bestflowvalve) |
| Cost (similar size) | Generally higher due to complexity (tameson) | Generally lower, especially smaller sizes (tameson) |
| Maintenance | More parts, more potential wear points (bestflowvalve) | Fewer moving parts, simple maintenance (tameson) |
| Typical water use | Control valves, control loops, pressure regulation (processautomation.anasia) | Isolation valves, pump discharge, mains, by‑pass lines (tameson) |

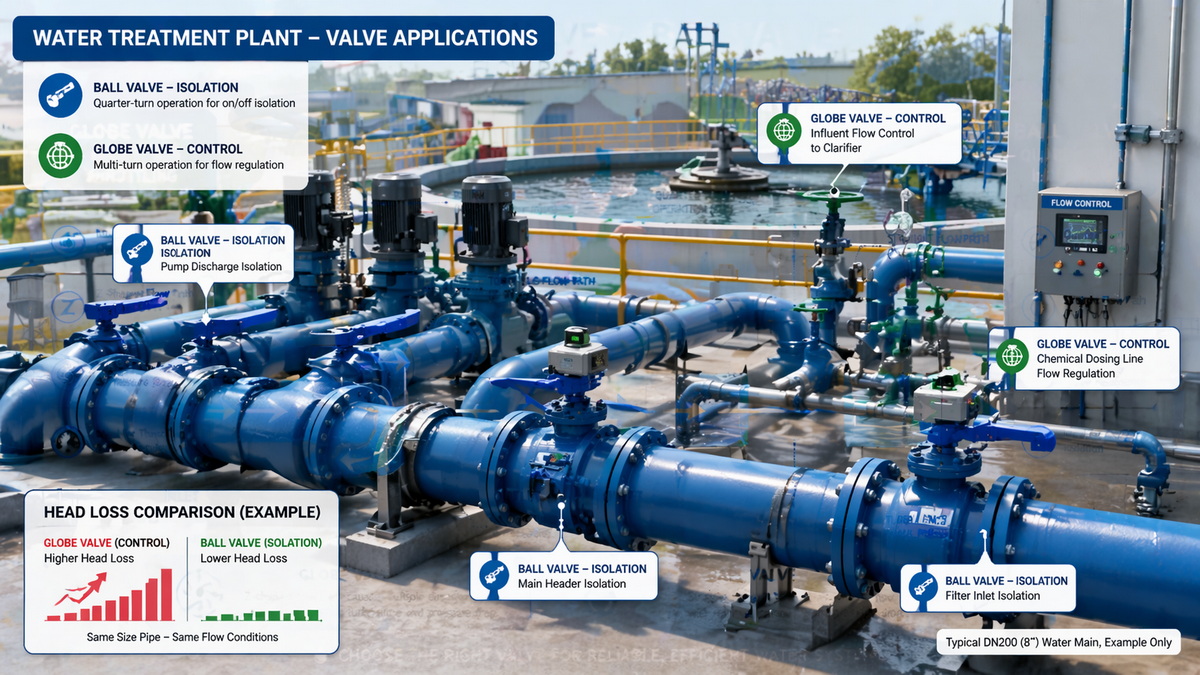

In our projects supporting EPC contractors on surface water and wastewater treatment plants, we see consistent patterns: [valveman]
- Ball valves are widely used on:
- Filter inlet/outlet isolation
- Pump suction and discharge lines
- Chemical dosing skids and meter bypasses
- Backwash headers and air scour lines
- Globe valves are preferred on:
- Flow control to clarifiers and sedimentation tanks
- Recirculation lines where constant, fine control is needed
- Bypass and pressure control applications where a specific differential pressure must be maintained
In one recent retrofit project, simply replacing aging globe isolation valves on a high-lift pump discharge header with full‑port ball valves reduced measured head loss across each valve by more than 60%, allowing operators to lower pump speed and energy consumption while maintaining the same flow. [bestflowvalve]
On transmission mains and district networks, the priorities shift to reliability, rapid isolation, and minimized head loss. [sedelon]
- Ball valves are typically the first choice for:
- Trunk mains and transmission pipelines where pressure loss must be minimized
- Sectionalizing valves for district metered areas (DMAs)
- Isolation around PRV stations and booster stations
- Globe valves appear mainly in specialized pressure control stations or older legacy installations where they were historically used for regulation. [geminivalve]
From the perspective of a municipal O&M team, the quarter‑turn operation of ball valves also reduces human error under emergency conditions—swapping a multi‑turn wheel for a clear 90° handle or actuator indicator. [processautomation.anasia]
- Globe valves require more vertical space due to the rising stem and elongated body. This complicates installation in compact treatment galleries and valve chambers. [tameson]
- Ball valves have a more compact envelope and can often be installed closer to adjacent fittings or walls, which is particularly valuable in underground pits and retrofits where space is fixed. [valveman]
For EPC contractors working with tight valve chambers, this difference can be the deciding factor in valve selection.
- Initial cost: Ball valves are typically less expensive than globe valves of the same size and pressure class because of their simpler structure. [tameson]
- Operating cost: Lower pressure losses with ball valves translate into lower pump energy over time, especially on large-diameter, high-flow lines. [bestflowvalve]
- Maintenance cost: Fewer moving parts and simpler construction generally mean less frequent maintenance for ball valves, especially in clean water service. [sedelon]
For most water and municipal pipeline projects, the combined effect of lower purchase price, lower head loss, and straightforward maintenance makes ball valves the more economical choice when throttling is not required. [valveman]
Regardless of valve type, engineering teams must match materials and standards to the medium and operating conditions. [delcofluid]
Typical choices for water and municipal applications include:
- Body materials:
- Ductile iron for large-diameter buried valves and treatment plant lines
- Carbon steel or stainless steel for high-pressure or aggressive environments
- Ball and trim (ball valves):
- Stainless steel or chrome-plated steel for corrosion resistance
- Full-bore or reduced‑bore depending on pressure drop requirements
- Disc and seat (globe valves):
- Stainless or alloy trim with resilient or metal-to-metal seating as required
- Seat materials:
- Soft seats (e.g., PTFE, elastomers) for zero‑leak shut‑off in clean water
- Metal seats for higher temperature or abrasive service
Valves are typically specified to meet relevant standards such as common ISO/EN or ANSI/API classes and pressure ratings suitable for potable water, wastewater, and reclaimed water services. [delcofluid]
Based on hundreds of specifications and after‑sales feedback, our engineering team sees ball valves as the default choice for isolation in water treatment and municipal pipelines, with globe valves reserved for specific control functions. [processautomation.anasia]
Key reasons include:
1. Energy efficiency: The low head loss of full-port ball valves directly reduces long-term pumping energy, which is now a major operational cost driver for utilities. [bestflowvalve]
2. Operational reliability: Quarter‑turn operation simplifies automation and reduces the chance of valves being left partially open or closed. [processautomation.anasia]
3. Tight shut‑off: Soft-seated ball valves offer reliable zero‑leakage performance for critical isolation points, which is vital for safe maintenance and process integrity. [sedelon]
4. Compact layout: Ball valves are easier to integrate into compact plant skids and confined chambers, helping EPC teams optimize civil works. [tameson]
In short, unless your primary requirement is fine flow control, a properly selected ball valve will usually provide a better balance of performance, cost, and operability for water sector projects. [valveman]

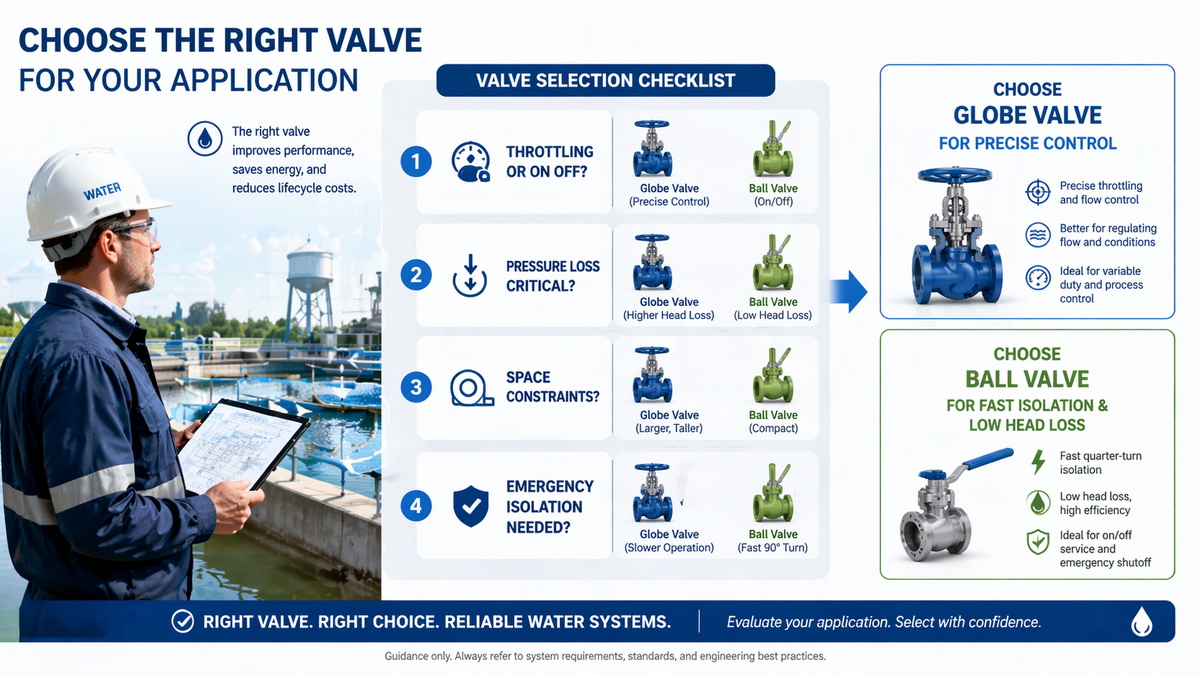

When deciding between a globe valve and a ball valve for your next water or municipal pipeline project, run through this quick checklist:
1. Is the main purpose throttling or precise flow control?
- Yes → Start by evaluating globe valves (or specialized control ball valves).
- No → Move to step 2.
2. Is minimizing pressure loss and energy use a priority?
- Yes → Prefer full-port ball valves on high-flow, high-energy lines.
- No → Either type can be acceptable; compare cost and layout constraints.
3. Do you need fast, fail-safe isolation or automation?
- Yes → Quarter‑turn ball valves are usually the better fit for emergency shut‑off and automated sequences.
4. Is installation space limited (underground chambers, compact skids)?
- Yes → Ball valves' compact footprint offers clear advantages.
5. What are the medium and solids content?
- Clean water → Standard soft-seated ball valves perform very well.
- Dirty or abrasive media → Consider material and seating design carefully for either valve type.
6. What does the operator prefer?
- If local teams are trained and equipped for quarter‑turn valves, it often makes sense to standardize on ball valves for isolation and reserve globe valves for clearly defined control points.
For global distributors, EPC contractors, and international brands cooperating with a specialized ball valve manufacturer like Tianjin Wode Valve Co., Ltd., the following practices help ensure long-term success: [blog.thomasnet]
- Build standard valve lists that clearly separate isolation and control duties and define where globe valves are truly required.
- Use specification templates that highlight pressure drop targets, required shut‑off class, and available installation space so the correct valve type is chosen early in design.
- In water treatment tenders, always ask for full-port ball valves when energy or head loss is a concern, and define acceptable materials and coating systems for your environment.
- Document real field performance (leakage rates, operating torque, maintenance interval) and feed that back into future specifications—this helps align design assumptions with actual operating experience.
By focusing on these practical steps, project stakeholders reduce redesign cycles, avoid change orders, and deliver more reliable water infrastructure to end users. [toddhockenberry]
If you are planning or upgrading a water treatment plant, wastewater facility, or municipal pipeline, choosing the right valve type early in design can significantly reduce lifecycle costs and operational risk. [processautomation.anasia]
As a dedicated ball valve manufacturer for water treatment and municipal pipeline applications, Tianjin Wode Valve Co., Ltd. can help you: [valveman]
- Review your P&IDs and identify where ball valves will deliver the most energy and reliability benefits.
- Propose specification-compliant ball valve solutions for your target standards and pressure classes.
- Support you with documentation, testing data, and project-specific technical advice.
Contact our engineering team to review your current specifications or upcoming tender, and we will help you define a robust, energy-efficient valve strategy for your project. [tiecas]
Choose a globe valve when you need precise throttling or continuous modulating control, such as flow regulation to clarifiers or pressure control loops, where stable intermediate positions are critical. [geminivalve]
Standard ball valves are primarily designed for on/off service and not ideal for continuous throttling; if you must use a ball valve for control, consider V‑port or specially designed control ball valves and follow the manufacturer's Cv and cavitation guidelines. [sedelon]
The exact savings depend on flow, pipe diameter, and operating hours, but because globe valves have significantly higher pressure loss coefficients than ball valves, replacing them on major pump discharge lines can reduce head loss enough to allow lower pump speeds or smaller pumps, translating into tangible energy savings over the life of the plant. [bestflowvalve]
Quarter‑turn, soft-seated ball valves are commonly preferred for emergency isolation because they offer fast operation, clear open/closed indication, and tight shut‑off, which are all critical when isolating sections of a municipal network quickly. [sedelon]
Define the medium, pressure class, temperature range, required shut‑off performance, end connections, coating systems, and actuation method; then specify full-port designs where head loss matters and align materials (e.g., ductile iron bodies with suitable lining or stainless-trimmed balls) with your corrosion and standards requirements. [delcofluid]
