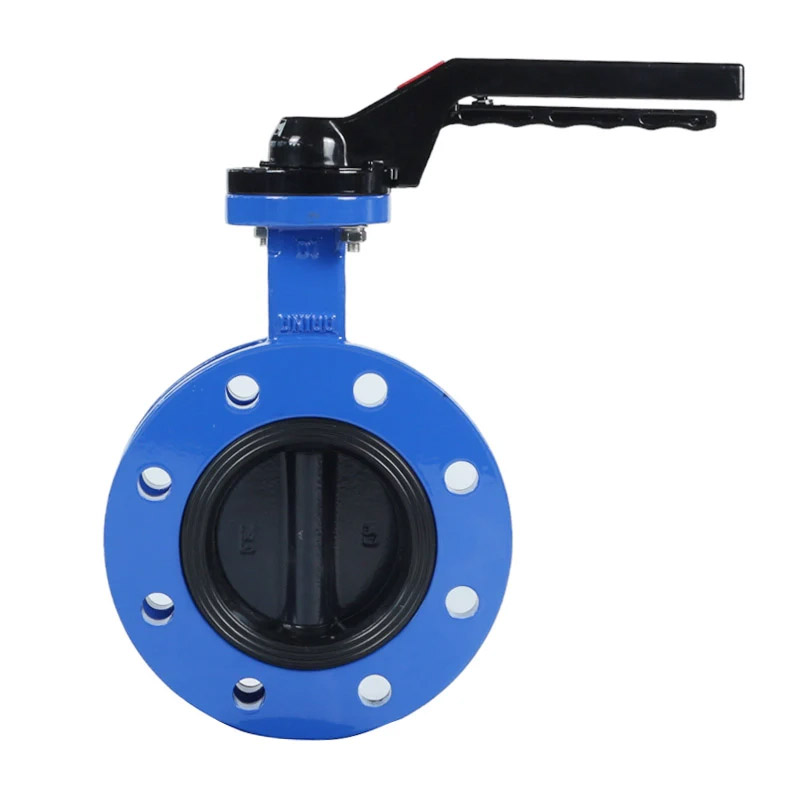

U-Section Flanged Butterfly Valve

U-Section Flanged Butterfly Valve Manufacturer – Enhanced Body Strength for Industrial Pipelines
The U-Section Flanged Butterfly Valve features a reinforced U-shaped body structure designed to improve mechanical strength and installation stability. Manufactured by WODE Valve, this valve is engineered for applications where rigid support and precise alignment are required in flanged pipeline systems.
Its robust construction helps reduce deformation under operating pressure, ensuring consistent sealing performance and long-term reliability.


Availability:



Inquire Add to Basket

U-Section Flanged Butterfly Valve U Type Butterfly Valve U Type Flanged Butterfly Valve Water Works Butterfly Valve API 609 U Type Butterfly Valve Large Diameter Butterfly Valve Ductile Iron U type Butterfly Valve U Type Butterfly Valves U Butterfly Valve PN10/PN16 U Butterfly Valve

Product Description

Key Features & Advantages

· U-Section Body Design: Enhances structural rigidity and improves stress distribution across the valve body.

· Flanged End Connection: Ensures secure installation and accurate pipeline alignment.

· Stable Sealing Performance: Maintains reliable shut-off under continuous operating conditions.

· Smooth Flow Characteristics: Optimized internal geometry minimizes pressure loss.

· Long-Term Durability: Suitable for frequent operation in industrial and municipal systems.

Technical Specifications

Feature	Specification
Size Range	DN40 – DN1200 (DN1200+ available upon request)
Pressure Rating	PN10, PN16, Class 125/150
Body Material	CI;DI;Carbon Steel;SS304;SS316;Al-Bronze
Disc Material	CF8;CF8M.DI+Ni;Al-Bronze
Seat Material	EPDM;NBR;Viton;PTFE;Hypalon
Shaft Material	SS420/SS304/SS316/SS431
Operation	Lever/Worm Gear/Pneumatic/Electric Actuator
Face to Face Standard	API609/BS5155/DIN3202/ISO5752
Flange Standard	DIN;BS;UNI;ISO;ANSI;AS;JIS
Mounting Flange	ISO5211
Working Pressure	PN10/PN16/ANSI150/PN25
Application	HVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical/Processing, Power and Utilities, Paper and Pulp, Ship Building

Large diameter butterfly valves up to DN2400 are available for special projects.

Why Choose Our U-Section Flanged Butterfly Valves?

WODE Valve applies strict manufacturing standards and comprehensive testing procedures to ensure each U-section flanged butterfly valve meets project performance requirements. Our experience in large-diameter and customized valves supports a wide range of industrial applications.

Looking for a Reliable U-Section Flanged Butterfly Valve Manufacturer?

WODE Valve supplies U-section flanged butterfly valves for distributors, OEM partners, and engineering contractors worldwide. Customized materials and configurations are available for specific working conditions.

What we can support:

· Technical drawings and datasheets

· Free samples for OEM evaluation

· Competitive factory pricing

· Stable lead time and export-grade packing

Common Applications

· Municipal water transmission pipelines

· Industrial process systems

· HVAC and utility networks

· Wastewater treatment plants

· Power and cooling water systems
