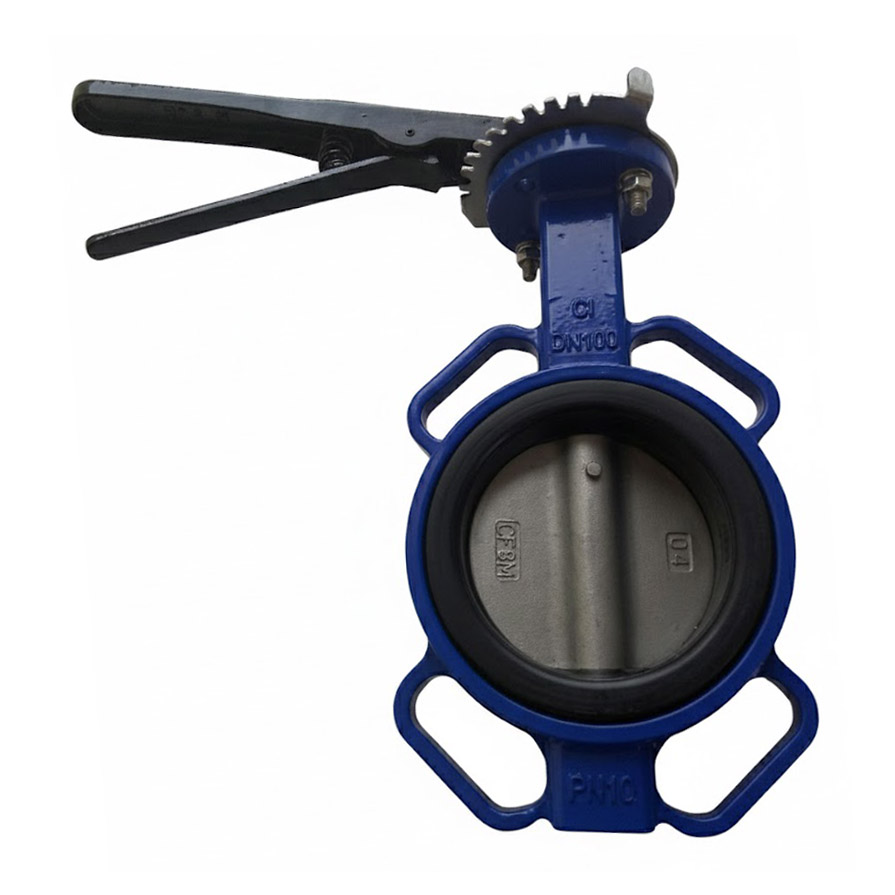

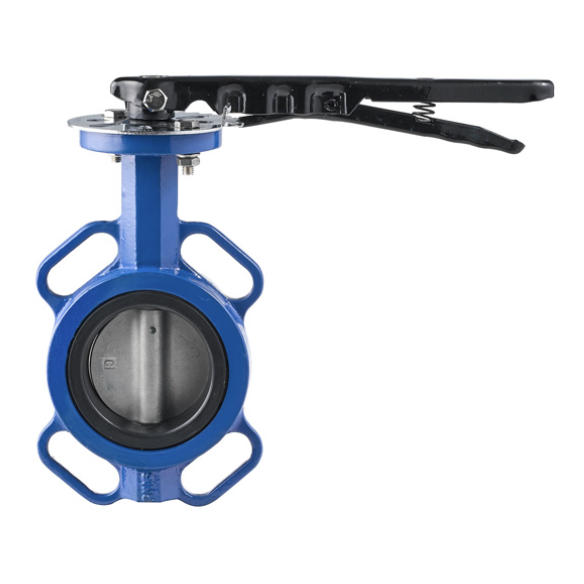

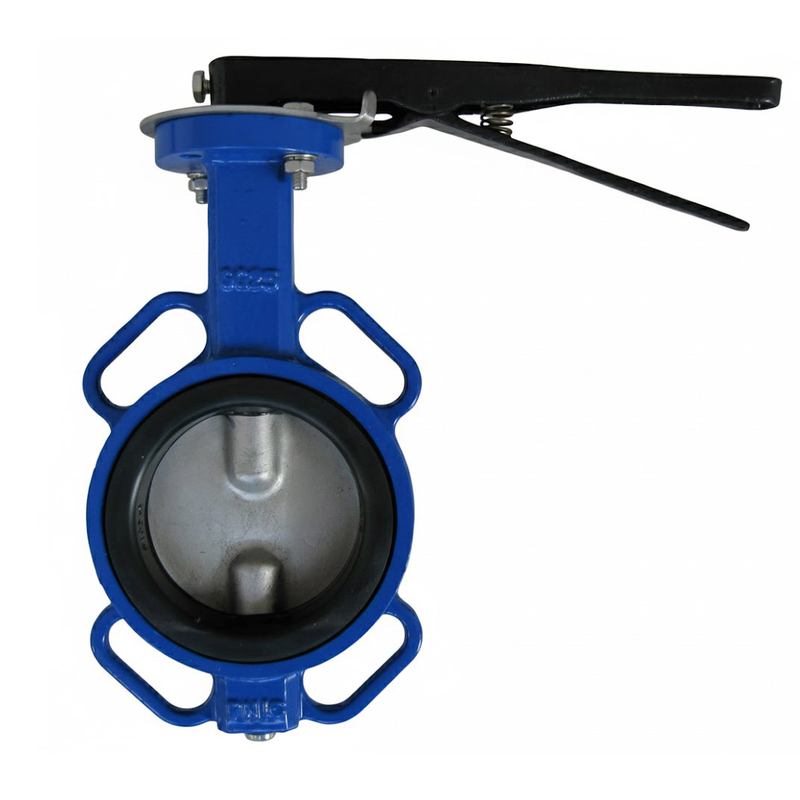

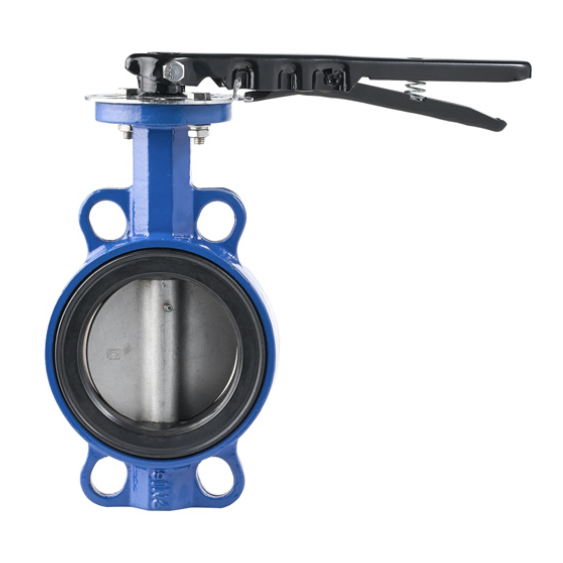

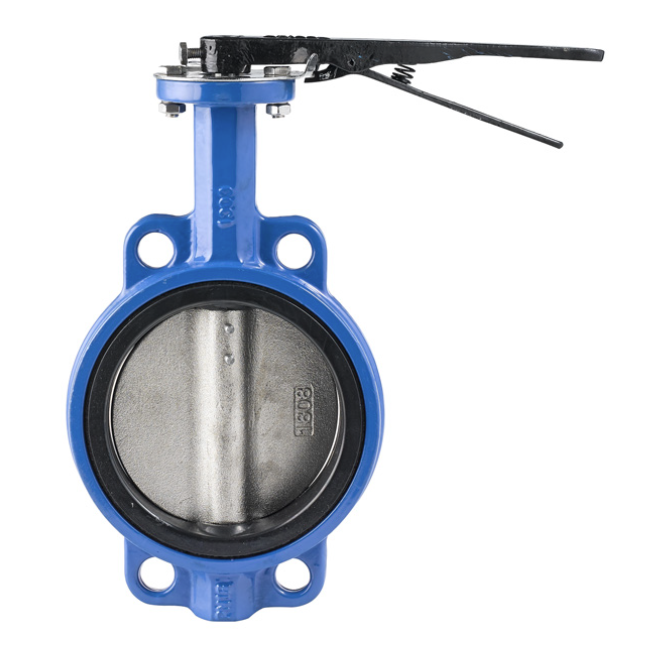

Stainless Steel Disc Wafer Butterfly Valve

Stainless Steel Disc Wafer Butterfly Valve – Durable and Reliable Flow Control

The Stainless Steel Disc Wafer Butterfly Valve from WODE Valve is designed for superior performance in industrial and municipal pipelines. Manufactured in China with over 10 years of export experience, this valve ensures long service life and reliable sealing under demanding conditions.
Featuring a compact wafer design, it fits between standard flanges (DIN, ANSI, JIS), saving installation space and reducing system costs. The stainless steel disc provides excellent corrosion resistance and mechanical strength, making it suitable for a wide range of media.


Availability:



Inquire Add to Basket

Stainless Steel Disc Wafer Butterfly Valve SS316 Disc Butterfly Valve CF8M Wafer Butterfly Valve SS304 Disc Butterfly Valve API 609 SS Butterfly Valve Corrosion Resistant Butterfly Valve SS Disc Butterfly Valve High Grade Wafer Butterfly Valve WCB Body SS Disc Butterfly Valve ASME B16.34 Butterfly Valve

Product Description

Key Features & Benefits

· Corrosion-Resistant Disc: Stainless steel construction ensures durability in harsh environments.

· Bubble-Tight Sealing: Disc and seat provide leak-free performance under PN10 / PN16 working pressure.

· Low Operating Torque: Smooth disc design allows easy manual or actuator operation.

· Global Compatibility: Wafer design fits ANSI, DIN, and JIS flange standards.

· Blow-out Proof Stem: Safety feature prevents stem ejection under high-pressure conditions.

· 2-Year Warranty: WODE Valve provides a 2-year warranty, offering greater reliability than standard 1-year coverage.

Technical Specifications

Feature	Specification
Size Range	DN40 – DN1200 (DN1200+ available upon request)
Pressure Rating	PN10, PN16, Class 125/150
Body Material	CI;DI;Carbon Steel;SS304;SS316;Al-Bronze
Disc Material	CF8;CF8M.DI+Ni;Al-Bronze
Seat Material	EPDM;NBR;Viton;PTFE;Hypalon
Shaft Material	SS420/SS304/SS316/SS431
Operation	Lever/Worm Gear/Pneumatic/Electric Actuator
Face to Face Standard	API609/BS5155/DIN3202/ISO5752
Flange Standard	DIN;BS;UNI;ISO;ANSI;AS;JIS
Mounting Flange	ISO5211
Working Pressure	PN10/PN16/ANSI150/PN25
Application	HVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical/Processing, Power and Utilities, Paper and Pulp, Ship Building

Large diameter butterfly valves up to DN2400 are available for special projects.

Why Choose WODE Stainless Steel Disc Butterfly Valves?

Every valve undergoes strict pressure and leakage testing to ensure reliable performance for distributors and contractors.

Our Advantages:

· OEM/ODM Services: Custom logos and colors for distributors.

· Fast Lead Times: Standard sizes available from stock for urgent projects.

· Certified Quality: Manufactured according to international standards.

· Large-Diameter Customization: Special sizes up to DN2400 for municipal and industrial projects.

Looking for a Reliable Stainless Steel Disc Wafer Butterfly Valve Supplier?

WODE Valve exports these valves worldwide for distributors, OEM partners, and engineering projects.

We Provide:

· Technical drawings & datasheets

· Free samples for OEM evaluation

· Competitive factory pricing

· Stable lead time and export-ready packaging

Contact us today to request a quotation or discuss your project requirements.

Typical Applications

· Water Treatment & Wastewater Systems

· Chemical & Petrochemical Pipelines

· HVAC Installations

· Industrial Pipelines

· Food & Beverage Processing

· Power Plants and Cooling Water Systems
