In water treatment plants and municipal networks, check valves are often treated as simple "one-way doors," installed late in the design phase and forgotten—until something goes wrong. As a manufacturer specializing in check valves for global water and municipal projects, we see the same pattern in failed systems: misunderstood cracking pressure, underestimated pressure drop, and poor installation practice. [wodevalve]
This article walks through the real-world impact of check valves on water pressure, pressure drop, and water hammer, using practical examples and design rules you can apply immediately to water treatment plants, booster stations, and city water networks. [flomatic]

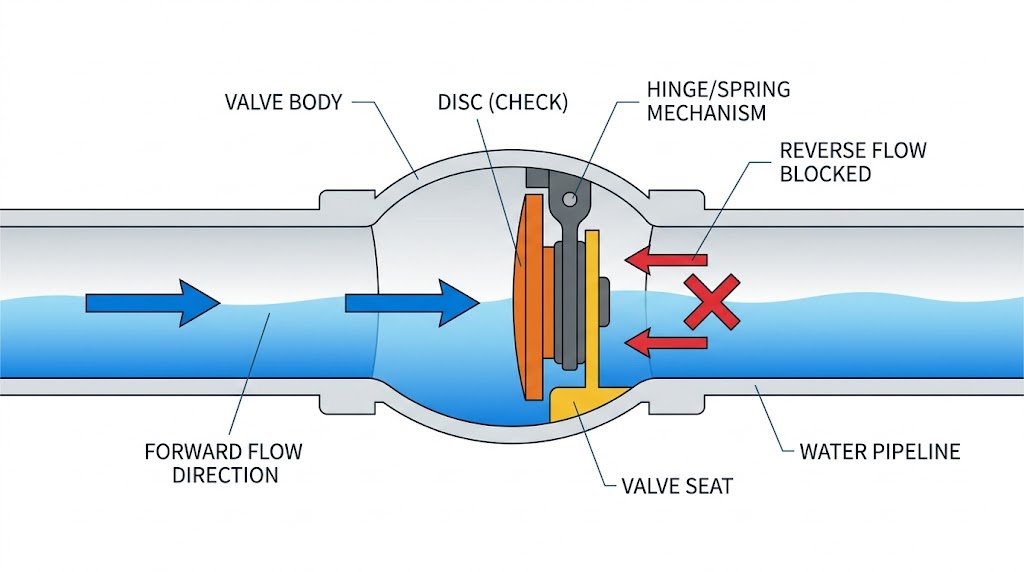

A check valve (or "one-way valve") is an automatically operated valve that allows fluid to flow in only one direction and prevents reverse flow. Inside the body, a movable element—flap, disc, ball, piston, or plate—opens when upstream pressure exceeds a defined cracking pressure and closes when flow reverses or pressure drops below this threshold. [linkedin]
From a pressure perspective, a check valve does three things along the pipeline:
- Introduces a pressure drop during forward flow, because the internals restrict the passage area. [valveman]
- Defines the minimum pressure needed to start and sustain flow (cracking pressure and reseat pressure). [didtekvalve]
- Influences transient pressure surges (water hammer) when it opens or closes too fast or too slow. [dezurik]
In critical water systems—raw-water intake, filtration, distribution mains, and high-rise building supply—these three effects determine whether you get stable pressure or chronic complaints, pump failures, and noise. [flomatic]
Water pressure is the force driving water through a pipeline, while flow rate is the volume of water moving per unit time. With the same source pressure, a larger-diameter pipe usually provides lower velocity and lower friction losses, while a smaller pipe increases velocity and friction loss—but the actual pressure you read at a point depends on the entire system: pipe friction, elevation, fittings, and valves. [tameson]
Check valves become one of those critical "local resistances" that consume pressure. When water passes through a check valve, the narrowing of the flow path and the interaction with the disc or flap produce a measurable pressure drop, which increases as you push more flow through the same valve. [valveman]
In practice, three parameters drive the pressure drop across a check valve in water service: [didtekvalve]
1. Specific gravity of the fluid – Heavier fluids create higher pressure drops at the same velocity and valve size.
2. Flow rate of the media – Higher flow means higher velocity and higher pressure loss across the valve.
3. Flow coefficient (Cv) of the valve – A higher Cv means the valve passes more flow for a given pressure drop (i.e., lower loss).
Engineers often underestimate the impact of Cv selection; choosing a valve with an appropriate Cv for the design flow can be the difference between a minor 0.3 bar loss and an unacceptable 1+ bar loss at peak demand. [valveman]
Not all check valves behave the same way inside a water system. From our project experience, the type you choose has a direct effect on pressure drop, stability, and maintenance needs. [tjwdvalve]
Swing and tilting disc check valves use a disc or flap mounted on a hinge, which swings open with forward flow and closes by gravity or reverse flow. [didtekvalve]
Typical characteristics in water systems:
- Low cracking pressure, suitable for low-pressure lines and gravity-fed mains. [didtekvalve]
- Relatively low pressure drop at moderate flow, especially in full-bore designs. [didtekvalve]
- Less suitable for vertical upward flow unless specifically designed for that orientation. [didtekvalve]
In municipal pipelines with long horizontal runs and gentle pressure profiles, a well-designed swing or tilting disc valve often delivers excellent energy efficiency with acceptable surge behavior. [dezurik]
Spring-loaded check valves and wafer dual-plate check valves use one or more springs to push the disc or plates back to the closed position. [tameson]
Their pressure behavior:
- Higher cracking pressure than gravity types, because the spring force must be overcome. [linkedin]
- More consistent pressure drop across a range of flows, useful in variable-flow systems. [tameson]
- Better suited for vertical installations and tight spaces, as wafer designs are compact. [tameson]
In high-rise buildings, booster pump stations, and compact filtration skids, these valves often strike a good balance between backflow protection, pressure control, and fast closing to reduce reverse flow. [flomatic]
Foot valves are check valves installed at the pump suction or the foot of a suction line, usually with a strainer. They prevent backflow and pump de-priming in intake lines, which indirectly stabilizes suction pressure and protects pumps from running dry. [flomatic]
Ball check valves and Y-type check valves (sometimes combined) are often used where debris or solids are present, as the ball or disc can tolerate some particulate without sticking. While they may introduce slightly higher pressure losses than streamlined wafer designs, they often reduce lifecycle pressure issues caused by clogging and partial closure. [tameson]
Check Valve Pressure Drop Comparison Chart
Cracking pressure is the upstream pressure at which a check valve first opens enough to allow a measurable flow. In water systems with low static pressure—such as gravity-fed rural networks or long-distance raw-water lines—this parameter can make or break system performance. [linkedin]
From an engineering standpoint:
- Too high cracking pressure means pumps must work harder, or gravity flow might never start as expected. [linkedin]
- Too low cracking pressure may result in chattering at very low flows, causing noise, vibration, and wear. [valvemagazine]
Some modern restrictor-type check valves use multi-spring assemblies that let engineers tune the cracking pressure to match system conditions, improving both energy efficiency and surge performance in dynamic water systems. [dezurik]
Even well-selected check valves can create serious pressure problems if installation, medium, or maintenance are ignored. [valvemagazine]
In water treatment and municipal networks, suspended solids, sand, rust, and scale gradually deposit on the moving parts and seat of the check valve. This build-up prevents full closure and allows reverse flow, essentially defeating the backflow protection and causing pressure instability in both directions. [didtekvalve]
Typical consequences include:
- Backflow into pump discharge lines and filters. [didtekvalve]
- Loss of residual pressure in distribution mains. [flomatic]
- Frequent pump short-cycling as pressure drops unexpectedly. [flomatic]
If the valve body and seat materials do not match the water chemistry, corrosion or degradation can lead to leakage and catastrophic failure. For example, standard carbon steel valves in saline or brackish water corrode rapidly, whereas polymer or stainless-steel check valves offer better resistance. [didtekvalve]
From a pressure standpoint, internal corrosion roughens surfaces and restricts the flow path, increasing pressure loss and turbulence long before the valve is visibly "broken." [didtekvalve]
Oversized check valves may never fully open at typical operating flows, meaning the disc hangs in the flow path and creates a larger-than-necessary pressure drop, instability, and potential chattering. If the valve closes too slowly, reverse flow builds, then stops abruptly, producing water hammer—a pressure surge capable of damaging pumps, fittings, and even the pipe itself. [valvemagazine]

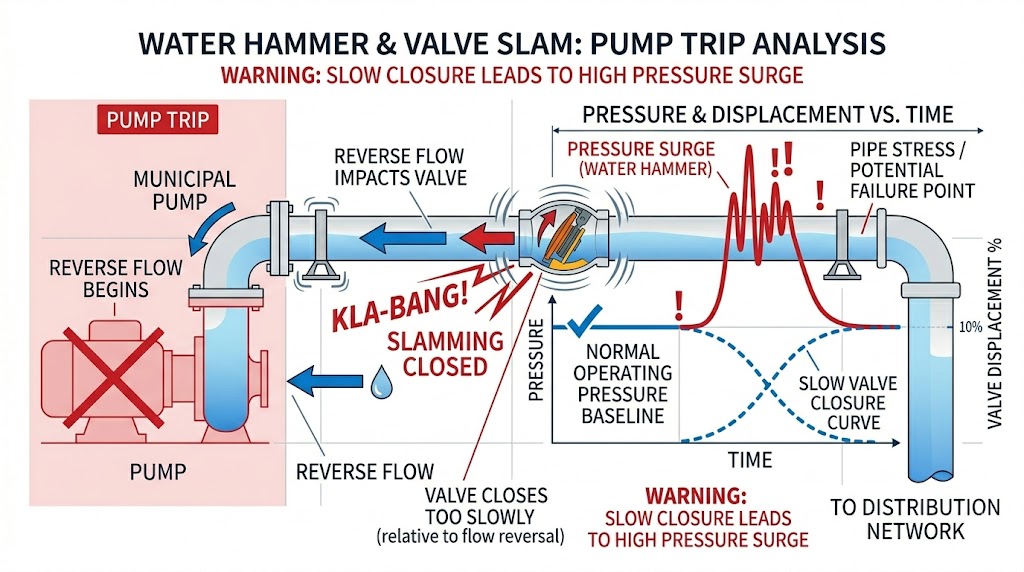

Water hammer events are usually triggered by:
- Sudden pump trips or power failures. [dezurik]
- Rapid closure of downstream isolation valves. [valvemagazine]
- Check valves installed too close to pumps or elbows, where turbulence and flow reversal are severe. [dezurik]
Industry standards and field experience provide clear guidelines for positioning and supporting check valves to minimize pressure issues. [valvemagazine]

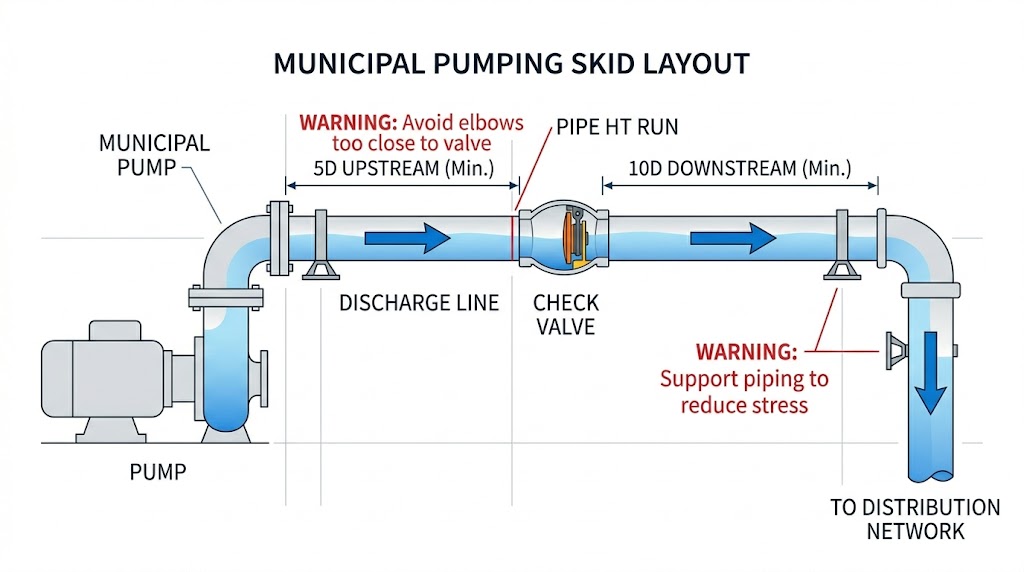

The Manufacturers Standardization Society (MSS SP‑92) recommends installing check valves with sufficient straight pipe upstream and downstream to ensure more uniform flow: at least 10 pipe diameters downstream from tees, fittings, increasers, or pumps, and 5 pipe diameters from elbows. This reduces turbulence, disc flutter, and premature wear, and stabilizes both pressure and valve behavior. [dezurik]
Gravity-supported swing check valves are best used in horizontal lines or in vertical flow upwards only when the design supports that orientation. For vertical installations or tight pump rooms, compact spring-loaded wafer or dual-plate check valves often provide more reliable closure and predictable pressure drop. [tameson]
In submersible pump wells, best practice is to use multiple check valves at different elevations along the drop pipe. For example, one check valve is built into the pump discharge, a second is installed no more than about 25 ft (7–8 m) above the pumping level, and additional valves are installed every 200 ft (about 60 m) in deep wells, sometimes with an extra check valve at the surface. This staged layout shares the pressure load and limits reverse column separation, improving pressure stability and prolonging equipment life. [flomatic]
From the manufacturer's side, we see a simple pattern: systems with scheduled inspection and cleaning have far fewer pressure complaints and much longer valve life. [valvemagazine]
Here is a practical maintenance checklist:
1. Routine inspection – Listen for unusual noise or vibration and check for visible leaks or rapid pressure fluctuations at gauges. [didtekvalve]
2. Cleaning and flushing – Periodically flush lines and, where feasible, remove and clean valves in high-solids sections of the system. [didtekvalve]
3. Filter installation – Add strainers or filters upstream of critical check valves to reduce build-up and seat damage. [didtekvalve]
4. Material verification – Confirm that valve body, disc, and seat materials match updated water quality or chemical dosing regimes. [didtekvalve]
5. Replacement strategy – Replace valves that show chronic reverse flow, severe wear, or repeated water hammer incidents rather than continually repairing them. [didtekvalve]
When signs such as persistent reverse flow, severe water hammer, or internal wear appear, replacing the valve with a more suitable type—correct size, better material, tailored cracking pressure—often restores stable pressure conditions and protects the rest of the system. [dezurik]
From our engineering work with distributors, EPC contractors, and global valve brands, an effective check valve design process for water pressure control typically includes: [wodevalve]
- Define the operating envelope – Minimum, normal, and peak flows; minimum and maximum pressures; elevation changes; pump curves. [tameson]
- Match valve type to duty – Swing or tilting disc for low-pressure horizontal mains; spring-loaded or dual-plate wafers for compact, high-rise or pump discharge applications; foot valves at intakes. [flomatic]
- Calculate pressure drop at design flow using manufacturer Cv data, ensuring that the cumulative pressure loss of valves, fittings, and pipe friction still meets downstream pressure targets. [valveman]
- Evaluate transients – Consider pump starts/stops, valve closures, and power failures; choose fast-closing or damped check valves where water hammer risk is high. [valvemagazine]
- Plan for future changes – Allow margin for future flow increases or water quality changes when selecting materials and Cv. [didtekvalve]
This structured approach significantly reduces the risk of underperforming systems, emergency repairs, and costly redesigns. [dezurik]
In one typical municipal booster station, operators reported low pressure at peak demand and loud banging on pump shutdown. After review, engineers discovered:
- Oversized swing check valves installed very close to the pumps. [valvemagazine]
- Turbulent flow due to elbows and reducers directly upstream of the valves. [dezurik]
- No additional check valves in the elevated sections of the network, allowing long reverse flow columns. [flomatic]
The solution involved relocating the check valves to respect straight-pipe guidelines, replacing them with spring-assisted wafer checks sized for normal flow, and adding an additional valve in the elevated header. Pressure stabilized, water hammer was drastically reduced, and pump trip incidents dropped, demonstrating how targeted check valve changes can resolve system-wide pressure issues. [valvemagazine]
Water systems are becoming more complex, with variable-speed pumps, advanced dosing, and smart metering. In this environment, "generic" check valve choices often lead to hidden pressure losses and transient problems. [aquatechtrade]
Working directly with a check valve manufacturer focused on water and municipal applications gives you access to:
- Project-specific advice on valve type, Cv, and cracking pressure. [tjwdvalve]
- Material recommendations for different water qualities and treatment chemicals. [didtekvalve]
- Installation and layout guidance that aligns with MSS and pump manufacturer recommendations. [flomatic]
For EPC firms, distributors, and water utilities, this collaboration usually results in more stable pressure profiles, fewer water hammer events, and lower total cost of ownership across the network. [dezurik]
If you are planning or troubleshooting a water treatment plant, municipal pipeline, or booster station, the next step is to review your check valve choices before you commit. Validate valve type, Cv, cracking pressure, and installation layout against your pressure targets, and involve a specialized manufacturer early in the process to avoid costly redesigns later. [valveman]
Tianjin Wode Valve Co., Ltd. works with global distributors, EPC contractors, and international valve brands to provide check valves engineered for stable water pressure and long-term reliability in water and municipal applications. Reach out with your pipeline data, and we can help you select or customize check valves that maintain pressure, protect your pumps, and keep your end users satisfied. [wodevalve]
Check valves always introduce some pressure drop, but with correct sizing and a suitable Cv, the loss can be kept low and often becomes negligible compared with pipe friction in large systems. [valveman]
Full-bore swing or tilting disc check valves typically offer the lowest pressure drop at moderate flows, while high‑Cv wafer check valves can also perform very efficiently when correctly sized. [valveman]
Use correctly sized valves, respect straight-pipe installation guidelines, and consider spring-assisted or damped valves designed for fast yet controlled closure near pumps and in high-risk sections. [flomatic]
Inspection frequency depends on water quality and operating conditions, but in most municipal or treatment plants, annual inspection plus condition-based cleaning for critical lines is a practical baseline. [flomatic]
Gather your design flows and pressures, pipe sizes and materials, elevation profile, pump curves, water quality data, and existing valve types and locations to enable accurate sizing and selection. [tameson]
