In modern water supply and wastewater systems, reliable shut-off performance is essential for maintaining pipeline safety and operational efficiency.
Among many valve types, the resilient seated gate valve has become one of the most widely used isolation valves in municipal water projects, industrial water systems, and building pipelines.
Compared with traditional metal seated gate valves, resilient seated designs provide superior sealing performance and require less maintenance over long-term operation.

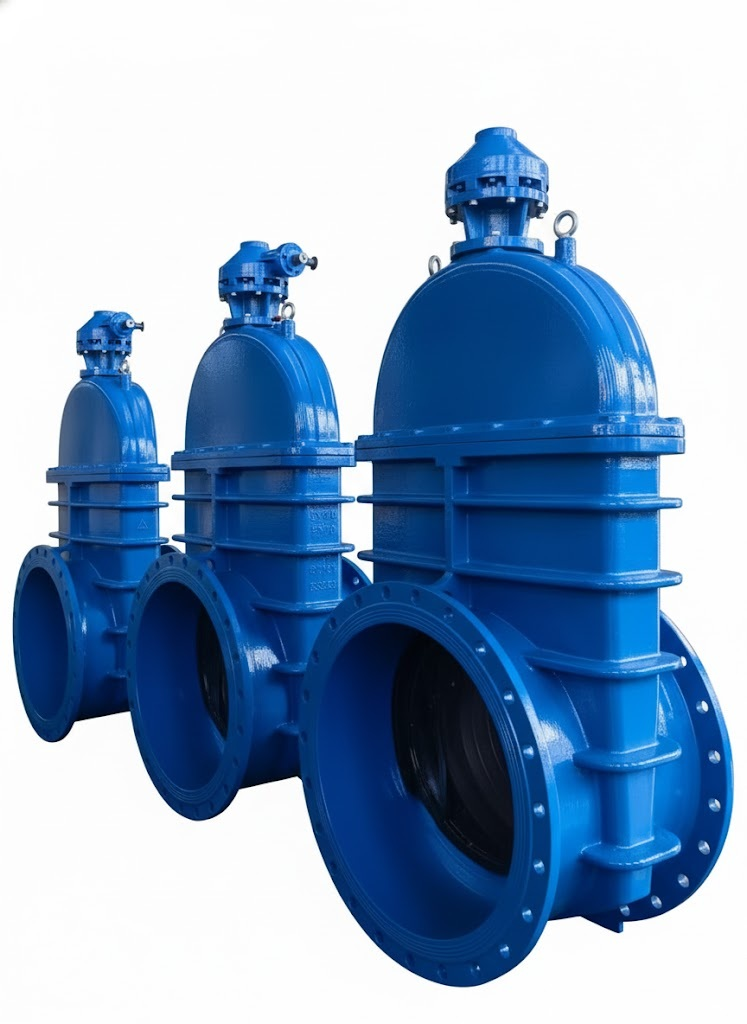

A resilient seated gate valve is a type of isolation valve designed with a rubber-encapsulated wedge that creates a tight seal against the valve body seat.
Unlike traditional metal-to-metal sealing valves, the resilient seat ensures a bubble-tight seal even when minor debris or surface irregularities exist inside the pipeline.
Typical components include:
Ductile iron valve body
Fully encapsulated rubber wedge
Stainless steel stem
EPDM or NBR rubber sealing surface
Corrosion-resistant coating (usually epoxy)
This structure makes the valve particularly suitable for clean water, wastewater, and neutral liquids.
The rubber-coated wedge provides elastic deformation when closing, ensuring reliable sealing even under lower pressure conditions.
This design helps prevent internal leakage that can occur in traditional metal seated valves due to wear or debris.
Because the rubber seat absorbs minor alignment differences between the wedge and body seat, the valve typically requires lower closing torque.
This feature allows easy operation with:
Handwheel actuators
Electric actuators
Gear operators for large sizes
In water supply systems, corrosion resistance is critical.
Most resilient seated gate valves are manufactured with:
Ductile iron body
Fusion bonded epoxy coating
Stainless steel stem
These materials significantly improve durability in long-term water service environments.
When the valve is fully open, the wedge moves completely out of the flow path.
This results in:
Minimal pressure drop
Unrestricted flow
Reduced risk of debris accumulation
For municipal pipeline systems, this is an important advantage.
Resilient seated gate valves are widely used in:
Municipal Water Supply Systems
Used as isolation valves in distribution pipelines.
Wastewater Treatment Plants
Installed in pump stations and process pipelines.
Fire Protection Systems
Commonly used in underground fire water networks.
Industrial Water Pipelines
Suitable for cooling water and general service applications.
Although resilient seated gate valves are widely used, several factors should be carefully considered during selection.
Different rubber materials perform differently depending on temperature and media.
Common options include:
EPDM – suitable for drinking water and hot water
NBR – suitable for oil-containing fluids
Selecting the correct rubber material is essential for long-term reliability.
In water systems, internal corrosion protection is extremely important.
High-quality valves usually apply fusion bonded epoxy coating with controlled thickness to ensure long service life.
Many modern designs use a fully protected stainless steel stem combined with multiple O-ring seals.
This structure prevents leakage from the stem packing area and allows maintenance without removing the valve from the pipeline.
For large diameter resilient seated gate valves, manufacturing precision becomes more critical.
Key factors include:
Rubber vulcanization uniformity
Wedge alignment accuracy
Coating thickness control
Pressure testing procedures
In professional OEM production, strict quality inspection ensures each valve meets required sealing standards before shipment.
Resilient seated gate valves have become the preferred solution for many water supply systems due to their reliable sealing, corrosion resistance, and ease of operation.
When properly designed and manufactured, these valves provide long service life with minimal maintenance.
For municipal infrastructure and industrial water networks, selecting a high-quality resilient seated gate valve is essential to ensure stable pipeline operation.
