In automated fluid systems, performance depends on more than the actuator or the valve alone. Pneumatic actuators valve types and directional control valves must work together to deliver reliable motion, stable switching, and safe operation in industrial environments. [valveandmeter]
This guide explains the main pneumatic actuator categories, the most common directional control valve types, and the key selection factors engineers should consider when specifying components for real-world applications. [slb]
Directional control valves are the decision-makers in a pneumatic circuit. They start, stop, and redirect compressed air so that cylinders and rotary actuators can extend, retract, rotate, clamp, lift, or release a load. [valveandmeter]
In practice, that means a valve must do three things well: control direction, maintain predictable timing, and match the actuator's operating behavior. If the valve is undersized, poorly selected, or mismatched to the actuator, the result is slower response, excess wear, unstable motion, or wasted air consumption. [mantec]
For OEM buyers and maintenance teams, understanding the basic valve types is one of the fastest ways to improve uptime and reduce troubleshooting time. [toprankmarketing]
Pneumatic actuators generally fall into three groups: linear, rotary, and specialty motion devices. [valveandmeter]
Linear actuators convert compressed air into straight-line motion. They are commonly used for pushing, pulling, lifting, clamping, and indexing operations. Typical examples include single-acting cylinders, double-acting cylinders, rodless cylinders, and diaphragm-style actuators. [valveandmeter]
These actuators are widely used in factory automation because they are compact, fast, and easy to integrate into production lines. In many plants, they are selected for repetitive actions where a simple motion profile is enough. [valveandmeter]
Rotary actuators transform air pressure into rotating or oscillating motion. Common designs include rack-and-pinion, vane, and Scotch yoke actuators. [valveandmeter]
They are often used to operate quarter-turn valves, reposition parts, or provide controlled rotation in packaging, processing, and assembly systems. Among these, rack-and-pinion units are valued for consistent torque, while Scotch yoke designs are often used when higher breakaway torque is required. [valveandmeter]
Specialty pneumatic actuators are designed for more complex motion tasks. These may include guided actuators, grippers, escapement mechanisms, and rotary index tables. [valveandmeter]
They are usually specified where a standard cylinder cannot deliver the required movement, repeatability, or space-saving performance. This category is important in modern automation because it supports more compact and customized machine design. [valveandmeter]
Directional control valves are usually classified by the number of ports, the number of positions, and the actuation method. The most common types are 3/2, 5/2, and 5/3 valves. [valveandmeter]
| Valve type | Ports / positions | Best suited for | Key function |
|---|---|---|---|
| 3/2 valve | 3 ports, 2 positions | Single-acting cylinders | Supplies air, then vents it (valveandmeter) |
| 5/2 valve | 5 ports, 2 positions | Double-acting cylinders and rotary actuators | Alternates air between two working ports (valveandmeter) |
| 5/3 valve | 5 ports, 3 positions | Double-acting actuators that need a neutral state | Holds, vents, or pressurizes the actuator in the center position (valveandmeter) |
A 3/2 valve has three ports and two switching positions. It is commonly used with single-acting cylinders, where compressed air moves the actuator in one direction and a spring or gravity returns it to the original position. [valveandmeter]
This type is a strong choice for simple on/off tasks, especially when the motion only needs one powered direction. It is also popular in compact pneumatic systems where simplicity and cost control matter. [valveandmeter]
A 5/2 valve has five ports and two positions. It is the standard choice for double-acting cylinders and many rotary actuators because it can supply air to either side of the actuator while exhausting the opposite side. [valveandmeter]
In industrial automation, the 5/2 valve is often chosen for extend/retract sequences, repeatable cycling, and reliable motion control. It is one of the most widely used building blocks in pneumatic machine design. [valveandmeter]
A 5/3 valve has five ports and three positions. The center position can be configured as closed center, exhaust center, or pressure center depending on the application. [valveandmeter]
This is the best option when a system needs a neutral state, a mid-stroke stop, or controlled holding behavior. In many cases, the 5/3 valve is selected when process safety or load stability is more important than simple motion. [valveandmeter]
Directional control valves are also categorized by how they shift between positions. The most common actuation methods are solenoid, air pilot, manual, and mechanical. [valveandmeter]
- Solenoid-operated valves are controlled by electric signals and are widely used in automated systems. [valveandmeter]
- Air-operated valves use compressed air signals and are often preferred where electrical actuation is less suitable. [valveandmeter]
- Manual valves use a push button, lever, or foot pedal and are useful for maintenance, setup, or low-frequency operation. [valveandmeter]
- Mechanical valves are triggered by machine movement, cams, rollers, or plungers. [valveandmeter]
The right actuation method depends on the control architecture, safety requirements, and level of automation. In a plant setting, this decision can affect wiring complexity, response speed, and maintenance planning.
Choosing the right pneumatic actuator valve type is not only a technical decision. It is also a reliability and cost-of-ownership decision. [mantec]

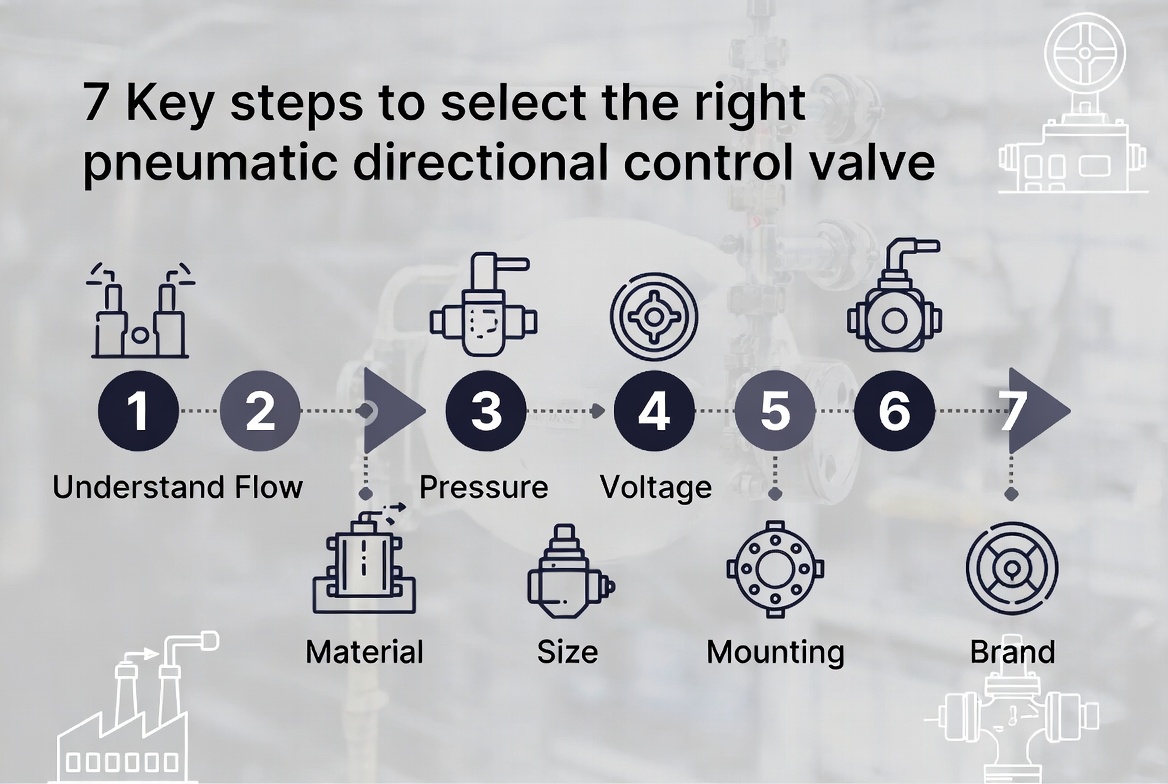

Use this checklist when specifying a valve:
1. Identify the actuator type: single-acting, double-acting, rotary, or specialty. [valveandmeter]
2. Define the motion requirement: extend only, extend and retract, or neutral hold. [valveandmeter]
3. Confirm the required port and position count: 3/2, 5/2, or 5/3. [valveandmeter]
4. Choose the actuation method: solenoid, pilot, manual, or mechanical. [valveandmeter]
5. Verify the operating medium, pressure range, and duty cycle.
6. Check whether the application needs fail-safe behavior, center exhaust, or locked holding.
7. Review installation constraints, service access, and maintenance frequency. [toprankmarketing]
This approach helps reduce overspecification and avoids the common mistake of selecting a valve only by catalog size or price.
Pneumatic valves are used across many industries because compressed air is clean, fast, and easy to automate. Common use cases include packaging equipment, assembly lines, material handling systems, sorting devices, clamps, lifts, and process machinery. [valveandmeter]
A 3/2 valve may be enough for a simple single-acting clamp. A 5/2 valve is usually better for a double-acting cylinder that must cycle continuously. A 5/3 valve becomes useful when the actuator must pause safely in a center position. [valveandmeter]
In field service, this distinction matters because the wrong valve type can create unnecessary wear or unstable motion. In OEM design, it matters even more because the valve choice affects system architecture, energy use, and long-term serviceability. [mantec]
From an engineering and service perspective, the best pneumatic valve is not always the most advanced one. It is the one that matches the application, stays stable under real operating conditions, and is easy to maintain over time. [toprankmarketing]
A good maintenance program should include regular inspection of seals, coil performance, contamination control, and response timing. Compressed air quality is especially important, because moisture, dirt, and oil carryover can shorten valve life and cause erratic switching.
For distributors and plant buyers, this is where supplier quality matters. Strong documentation, clear technical data, and responsive after-sales support are often as important as the valve body itself. [toprankmarketing]
