Hayward's TC Series True Union Ball Check Valve is a solid design for thermoplastic systems, but many engineers, distributors, and EPC contractors now expect deeper guidance on valve selection, life-cycle performance, and serviceability in real-world water and municipal projects. This article reframes the TC Series within a broader, application-focused perspective and shows where specialized valve manufacturers like Tianjin Wode Valve Co., Ltd. add value to modern water infrastructure. [blog.saleslayer]
A ball check valve is a one‑way valve that uses a spherical closure element (the ball) to allow flow in one direction and automatically block reverse flow. When upstream pressure pushes the ball off its seat, fluid passes; when pressure drops or reverses, the ball returns to the seat and seals, protecting pumps, pipelines, and downstream equipment from backflow. [electricsolenoidvalves]

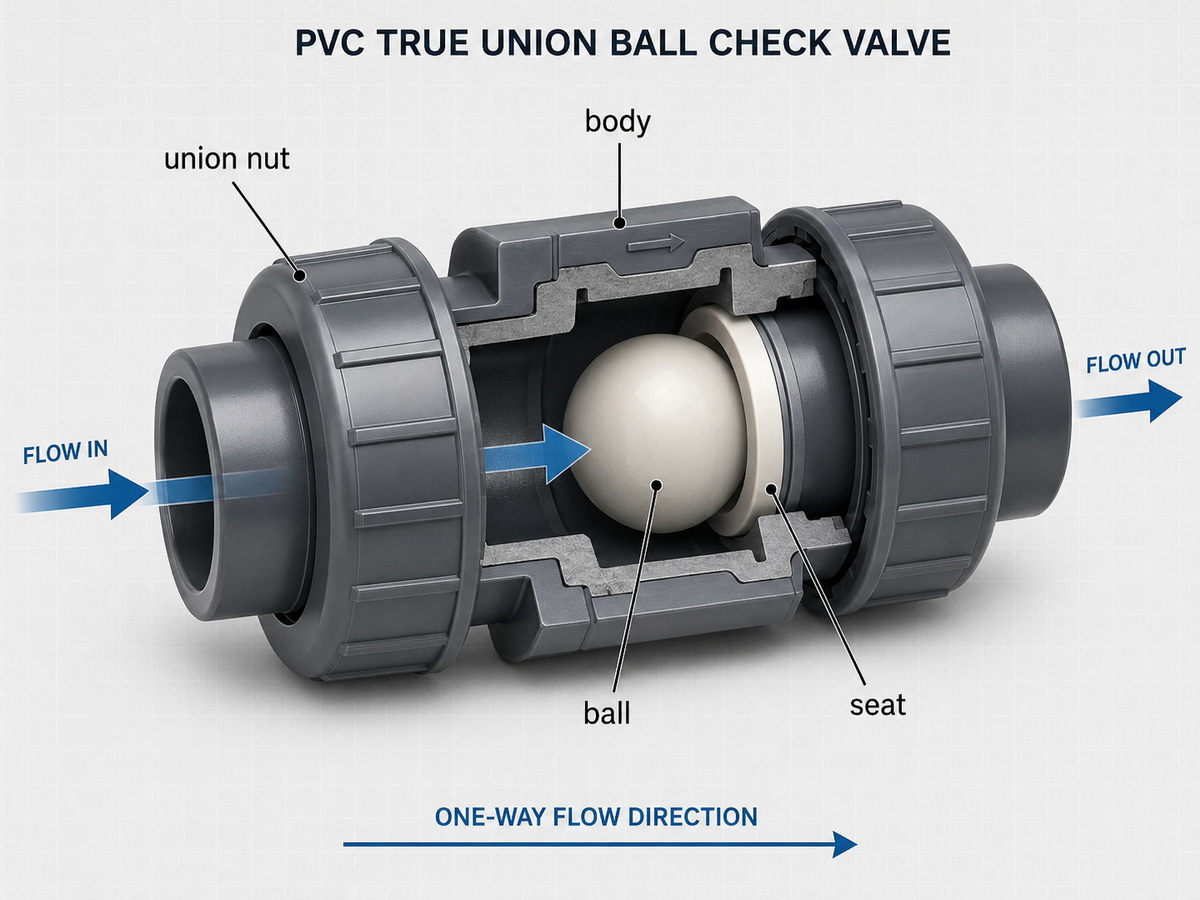

A true union ball check valve integrates that basic check function into a body with union connections on both ends, allowing the entire valve "carrier" to be removed from the line without cutting pipe. This union design is especially valuable in PVC and other thermoplastic systems, where installers want both corrosion resistance and easy maintenance in confined or critical service locations. [haywardflowcontrol]
The original article highlights the TC Series as one of Hayward's premier thermoplastic ball check valves, designed with CAD tools and manufactured in PVC, CPVC, and polypropylene (PP). These materials deliver corrosion resistance, non‑toxicity, and immunity to rust, making them suitable for many water treatment, chemical handling, and industrial fluid systems. [haywardflowcontrol]
The TC Series uses a free‑floating ball that does not repeatedly seat in the exact same position, helping distribute wear on the seat and extend service life. It can be installed horizontally or vertically, giving installers flexibility in tight equipment rooms and complex piping layouts.
Engineers evaluating a check valve need more than marketing claims; they need clear, comparable technical data. Below is a structured summary of the TC Series configuration options based on the original content and manufacturer data. [nopio]
| Variant | Body & Ball Material | Seat/O‑ring Material | Connection Options | Size Range | Pressure Rating* |
|---|---|---|---|---|---|
| TC‑CPVC | CPVC | EPDM | Socket or Threaded | 0.5 in – 4 in | 150 psi at 70 °F (water) |
| TC‑PVC | PVC | EPDM | Socket or Threaded | 0.5 in – 4 in | 150 psi at 70 °F (water) |
| TC‑PP | Polypropylene (PP) | EPDM | Socket or Threaded | 0.5 in – 4 in | 150 psi at 70 °F (water) |
Non‑shock water service. [haywardflowcontrol]
This basic specification set tells us that the TC Series is positioned as an industrial‑grade thermoplastic check valve for general service water applications where 150 psi, ambient‑temperature performance is sufficient. From a practical perspective, it fits many commercial pool, light industrial, and water conditioning systems, but may not cover higher temperature or high‑cycle severe‑duty cases without additional validation. [valveman]
From the perspective of a valve manufacturer serving global water and municipal projects, true union ball check valves occupy a very specific niche between compact, low‑cost inline checks and heavy‑duty metal swing or dual‑plate designs. They are especially useful when piping systems must stay corrosion‑free, lightweight, and easy to service. [electricsolenoidvalves]
Common applications include:

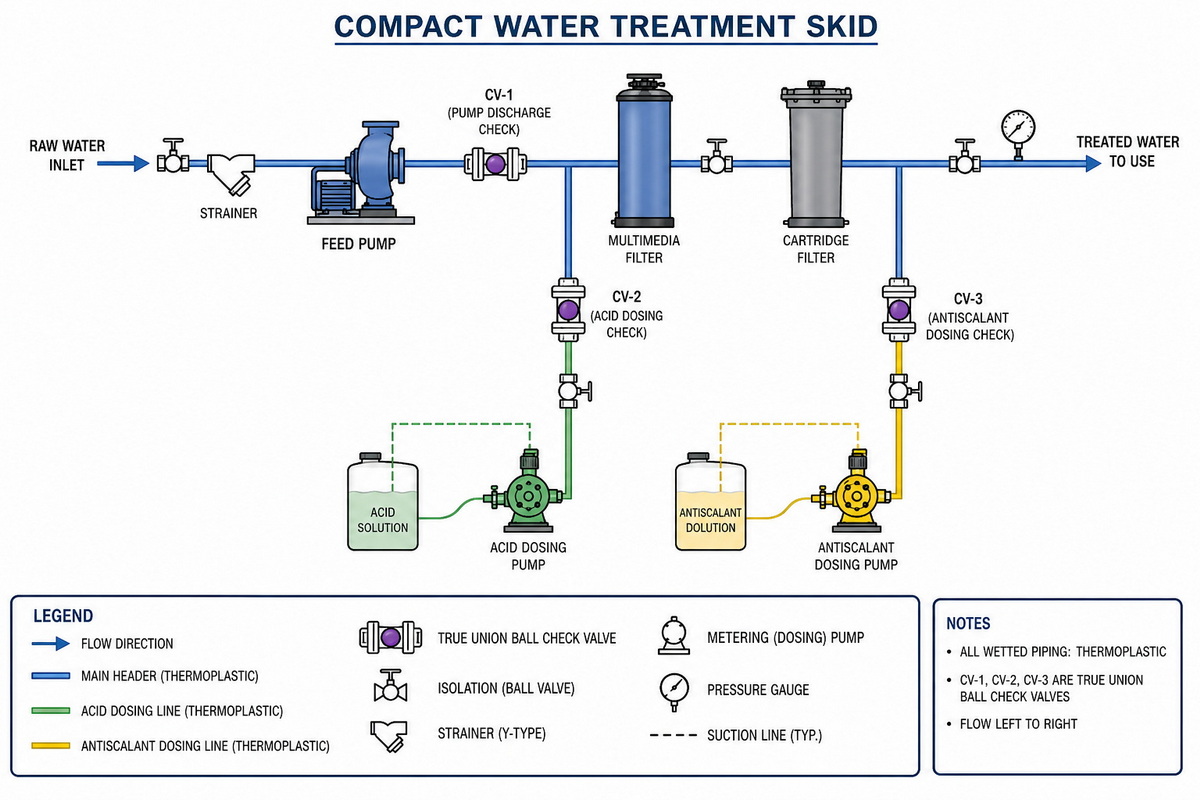

- Commercial and municipal water treatment skids where PVC or CPVC headers carry chlorinated water, polymer solutions, or filter backwash streams. [valveman]
- Pump suction and discharge lines in small booster stations and packaged plants, protecting pumps from reverse rotation while keeping maintenance simple. [superlokworld]
- Swimming pools and aquatics systems, where thermoplastic piping is standard and operators need to replace or inspect valves quickly without hot work. [haywardflowcontrol]
- Municipal by‑pass and sampling lines, where compact form factor and non‑metallic materials help mitigate corrosion and weight constraints. [nopio]
In these use cases, the union‑end design is the real differentiator: maintenance technicians can remove the valve body, inspect the ball and seat, and reinstall it in minutes, reducing downtime and crew exposure in confined spaces. [haywardflowcontrol]
Over years of working with installers and municipal operators, several best practices have emerged when specifying and installing union‑end ball check valves in thermoplastic systems. [siteimprove]
Installation tips
1. Observe flow direction
Always identify and align the valve's marked flow direction; even though ball checks are symmetric in appearance, internal geometry may favor one flow orientation for optimal sealing. [superlokworld]
2. Support thermoplastic piping
PVC, CPVC, and PP piping can deflect under load; use proper hangers near the valve to avoid misalignment and stress on union threads. [siteimprove]
3. Use compatible solvent cement or thread sealant
Match cement to material (e.g., PVC cement for PVC bodies) and avoid aggressive sealants that could stress‑crack thermoplastics. [siteimprove]
4. Allow curing before pressure testing
Follow manufacturer guidelines for cure times; premature pressurization is a common cause of early leaks in thermoplastic installations. [siteimprove]
Maintenance tips
- Schedule periodic inspection of ball and seat surfaces in lines handling solids, slurry, or scale‑forming media; union ends make this inspection quick. [valveman]
- In municipal systems, log opening and closing behavior after major transients (pump trips, power outages) to detect wear or debris that might prevent tight shutoff. [electricsolenoidvalves]
- Replace EPDM seals proactively in chlorinated or chemically aggressive environments if signs of swelling or embrittlement appear. [electricsolenoidvalves]
From an engineering standpoint, the Hayward TC Series delivers a balanced mix of durability, chemical resistance, and maintainability for mid‑pressure water and chemical systems. Its free‑floating ball and union‑end body design are proven concepts that simplify both installation and service. [haywardflowcontrol]
However, there are practical limitations engineers should consider:
- Temperature envelope: The 150 psi at 70 °F rating underscores that this design is primarily for ambient‑temperature water; elevated temperatures or steam conditions demand careful derating or alternate materials. [haywardflowcontrol]
- Severe‑duty cycles: High‑frequency cycling, abrasive slurries, or severe transient events may require specialized ball check or swing check designs with reinforced seats and metal bodies. [nopio]
- Standardization: For large utilities and EPC projects, standardizing on a single family of check valves across diameters, pressures, and materials can simplify spare parts and training, which may favor manufacturers with broader portfolios. [nopio]
Recognizing both strengths and constraints allows specifiers to position the TC Series where it delivers maximum value without being overextended beyond its design intent. [valveman]
Tianjin Wode Valve Co., Ltd. operates as an OEM/ODM partner for check valves and ball valves dedicated to water treatment and municipal pipeline applications, serving distributors, EPC contractors, and international brands. In practice, that means going beyond a single catalog item—such as the TC Series—to help clients build complete, interoperable valve packages optimized for their networks. [blog.saleslayer]
Key ways a specialized manufacturer adds value include:
- Application‑specific selection: Matching check valve type (ball, swing, double‑door, axial) and material (ductile iron, stainless steel, thermoplastic) to pump curves, system transients, and water quality. [electricsolenoidvalves]
- Project‑level customization: Providing tailored end connections, coatings, and accessories to meet regional standards and local installation preferences. [blog.saleslayer]
- Lifecycle support: Assisting with commissioning, inspection intervals, and replacement strategies to align with utility maintenance programs and EPC warranty obligations. [nopio]
For multi‑site water and wastewater programs, this holistic approach can significantly reduce total cost of ownership compared with treating each valve as an isolated purchase. [siteimprove]

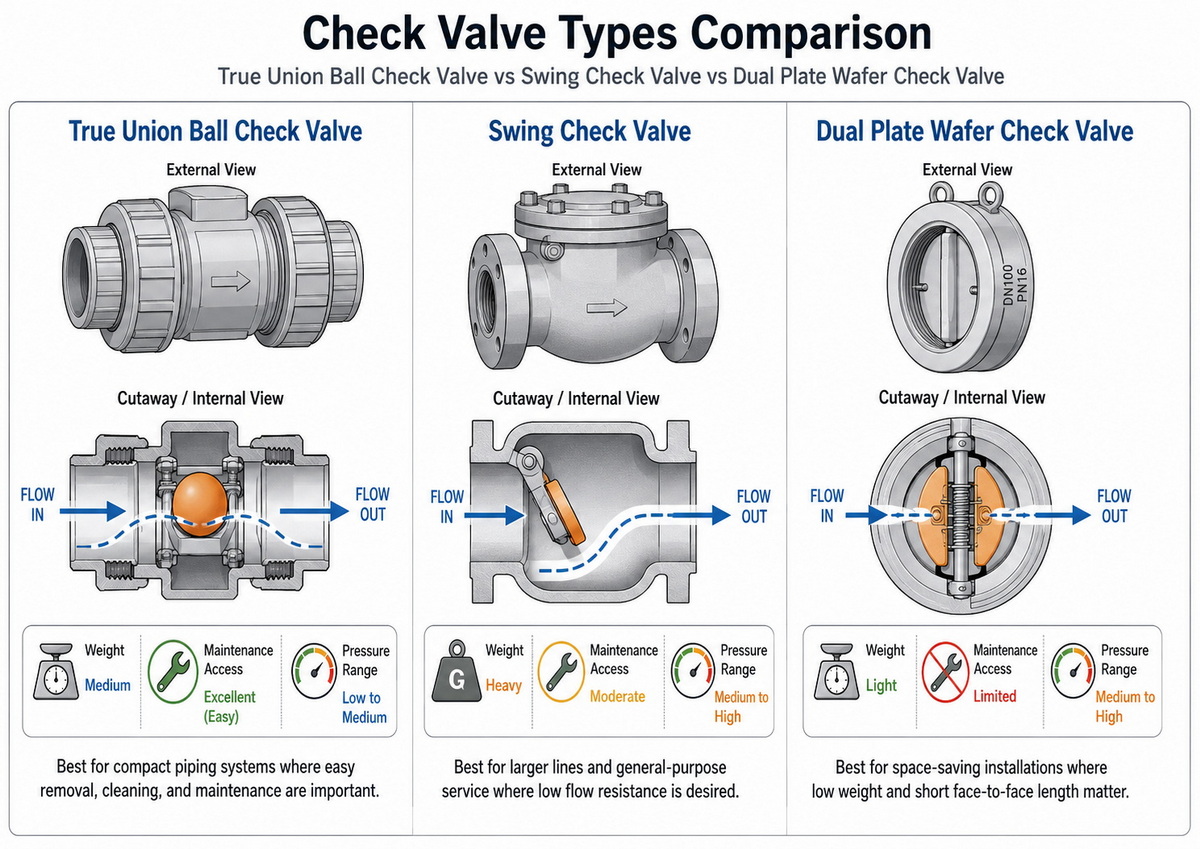

To help specifiers make informed choices, it is useful to compare true union ball check valves with other common check designs used in water and municipal systems. [superlokworld]
| Check Valve Type | Typical Materials | Main Advantages | Typical Limitations |
|---|---|---|---|
| True union ball check | PVC, CPVC, PP | Easy removal, corrosion resistance, light weight | Limited pressure/temperature range |
| Swing check | Ductile iron, steel | Widely available, robust for larger diameters | Heavier, can slam on closure |
| Dual‑plate (wafer) check | Stainless, carbon steel | Compact face‑to‑face, lower pressure drop | Requires precise gasket/bolt alignment |
| Axial (silent) check | Steel, alloy steels | Fast response, reduced water hammer | Higher initial cost, more complex internals |
In many small‑diameter, thermoplastic systems, true union ball checks strike an optimal balance between cost, corrosion resistance, and maintainability. In large‑diameter trunk mains or high‑pressure pumping stations, swing or axial checks often remain the preferred choice. [valveman]
Consider a mid‑sized municipal water plant retrofitting its chlorination contact chamber bypass line from galvanized steel to PVC/CPVC to reduce corrosion and improve safety. Engineers must choose check valves that maintain reliable backflow protection while fitting within existing space and support constraints. [electricsolenoidvalves]
In this scenario, selecting true union ball check valves offers several advantages:
- The thermoplastic body resists chlorine‑induced corrosion far better than carbon steel. [valveman]
- Union ends allow technicians to remove the valve body for inspection or replacement without cutting pipe or using hot work permits in confined spaces. [haywardflowcontrol]
- The compact form factor and light weight simplify mounting within prefabricated skid frames where access is limited. [nopio]
In practice, plant operators reported shorter maintenance windows and improved leak performance compared with legacy metal checks, especially when combined with updated support and alignment practices recommended by the manufacturer. [siteimprove]
Beyond any single valve model, water utilities and EPC contractors must evaluate supplier competence and reliability to align with modern E‑E‑A‑T principles—experience, expertise, authoritativeness, and trustworthiness. Drawing on industry best practices, here are criteria to use when prequalifying a check valve supplier: [semrush]
1. Application experience
- Documented reference projects in water treatment, desalination, and municipal distribution.
- Capability to advise on valve selection for different media (raw water, treated water, sludge, chemicals).
2. Engineering and testing capability
- Access to CAD, finite‑element analysis, and flow testing to validate designs. [blog.saleslayer]
- Routine pressure, leakage, and durability testing aligned with international standards (e.g., ISO, API, EN where applicable).
3. Quality and traceability
- Certified quality systems, material traceability, and clear documentation for each shipment. [blog.saleslayer]
- Ability to support project documentation requirements for EPC contracts and international brands.
4. Support and responsiveness
- Technical support for sizing, installation, and troubleshooting across time zones. [nopio]
- Willingness to collaborate on custom configurations, OEM branding, and long‑term framework agreements. [blog.saleslayer]
Manufacturers like Tianjin Wode Valve Co., Ltd. position themselves on these dimensions to help global distributors and EPCs de‑risk projects and align with modern procurement expectations. [blog.saleslayer]
For distributors, EPC contractors, and international valve brands, choosing the right check valve is only part of the equation; partnering with a manufacturer that understands water treatment and municipal pipeline realities is equally important. If you are planning a new project or retrofitting existing infrastructure, consider engaging a specialist like Tianjin Wode Valve Co., Ltd. to: [blog.saleslayer]
- Review your current valve specifications and identify opportunities to improve reliability and maintainability.
- Standardize check and ball valve packages across multiple projects and regions.
- Develop OEM‑branded or project‑specific solutions that align with your technical and commercial requirements.
By working with a dedicated check and ball valve manufacturer, you can reduce lifecycle risk, streamline procurement, and deliver more resilient water infrastructure for your customers and communities. [nopio]
The main advantage is the ability to remove the valve body from the line without cutting pipe, thanks to union ends, while still providing reliable one‑way flow control. This simplifies maintenance and reduces downtime in thermoplastic piping systems. [valveman]
Yes, the TC Series can be installed in both horizontal and vertical orientations, provided it is aligned with the manufacturer's flow direction recommendations. Proper support and orientation help ensure consistent sealing and long‑term performance. [valveman]
Thermoplastic valves like the TC Series are typically rated for 150 psi at 70 °F for water service, and their allowable pressure decreases at higher temperatures. For high‑temperature or steam service, metal check valves designed for those conditions are usually more appropriate. [haywardflowcontrol]
Inspection intervals depend on media, operating cycles, and plant maintenance policies, but many operators inspect thermoplastic check valves at least annually in critical lines. In systems with solids, scaling, or aggressive chemicals, more frequent inspections may be warranted. [electricsolenoidvalves]
Look for documented experience in water and wastewater applications, strong engineering and testing capabilities, certified quality systems, and responsive technical support. These indicators align with Google's E‑E‑A‑T principles and help ensure both technical reliability and trustworthy partnership. [stellarcontent]
