In the complex world of industrial piping, selecting the right flow control component is critical. For engineers, EPC contractors, and facility managers in water treatment and municipal applications, the resilient seated butterfly valve often stands out as the optimal choice. It balances cost-effectiveness, performance, and durability. But what exactly defines this valve, and how does its unique design ensure reliable operation?
As a manufacturer with years of experience at Tianjin Wode Valve Co., Ltd., we have seen firsthand how understanding the "why" and "how" behind this valve can streamline project procurement and enhance long-term maintenance strategies.

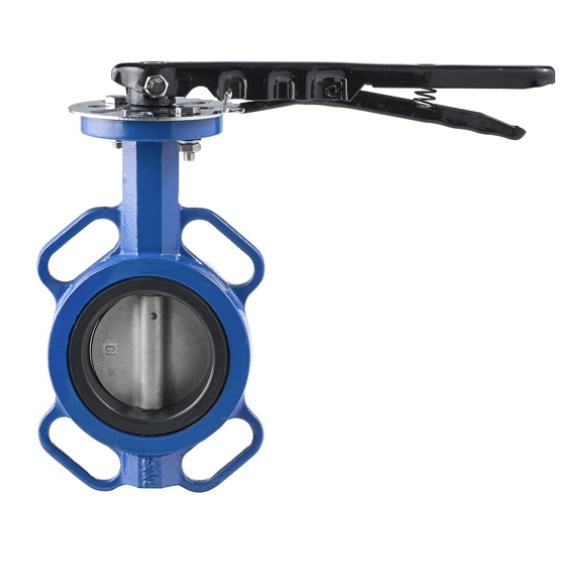

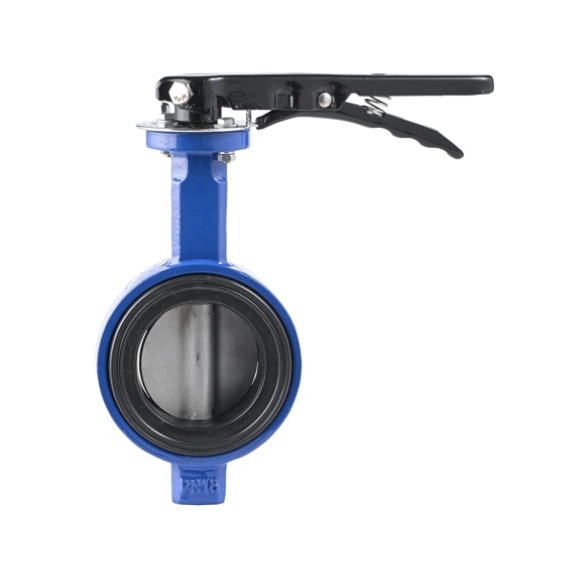

A resilient seated butterfly valve is a quarter-turn valve characterized by its use of a soft, flexible seat—typically made of rubber or elastomeric material—to create a bubble-tight seal between the valve disc and the valve body [xintaivalves], [tgvalve].
Unlike metal-seated valves, which rely on precise metal-to-metal contact, this design utilizes the elasticity of the seat material. When the valve closes, the disc is forced into the soft seat, creating an interference fit that conforms to the shape of the disc, ensuring absolute closure and preventing leakage [psi-team], [slb].
- Valve Body: Often made of ductile iron, providing a rugged, cost-effective structure [msecinc].
- Disc: The component that pivots to allow or block flow, usually designed with a high-precision profile to ensure a smooth seal [americanstainlessandsupply].
- Resilient Seat: The core sealing element, often made from EPDM, Buna-N, or Viton, depending on the fluid compatibility requirements [haywardpipe].
- Stem: Connects the actuator to the disc, enabling precise control [xhval].
The operational principle of a resilient seated butterfly valve is elegant in its simplicity. Because it is a quarter-turn valve, it moves from fully open to fully closed in a 90-degree rotation of the stem [tanghaivalve].
1. Open Position: The disc is positioned parallel to the flow, minimizing resistance and maximizing throughput.
2. Closing Process: As the handle, gear, or actuator is turned, the stem rotates the disc toward the seated position.
3. Sealing: The edge of the disc compresses against the resilient seat. The seat deforms slightly to accommodate the disc, compensating for any minor irregularities to ensure a bubble-tight seal [americanstainlessandsupply], [maxairtech].
This "soft-sealing" mechanism is the primary reason why these valves are favored in low-to-moderate pressure applications, particularly where absolute shut-off is non-negotiable [tgvalve], [milwaukeevalve].
At Tianjin Wode Valve Co., Ltd., we frequently advise clients in the water treatment sector that the selection of a valve should be driven by the specific demands of the system. Here is why the resilient seated butterfly valve is often the "gold standard" for municipal projects:
| Feature | Advantage | Benefit to Municipal Systems |
|---|---|---|
| Weight & Size | Compact and lightweight design tanghaivalve | Lower installation costs and easier handling in tight piping layouts. |
| Sealing Capability | Bubble-tight shut-off maxairtech | Essential for preventing water loss and ensuring effective isolation. |
| Cost-Efficiency | Economical material and manufacturing tanghaivalve | Ideal for large-scale municipal infrastructure with tight budgets. |
| Maintenance | Simplified design mcwanepi | Easier to service and lower long-term ownership costs. |
To maximize the value of your infrastructure investment, it is crucial to look beyond just the "what" and consider the "how to specify."
Not all resilient seats are created equal. Depending on your application, you may choose between:
- Booted or Dovetail Style: The seat completely encapsulates the body, protecting it from the media [craneengineering].
- Molded Style: Bonded directly to the body, offering a very stable seat geometry [craneengineering].
- Cartridge Style: Easily replaceable, which can be beneficial in certain maintenance-intensive environments [craneengineering].
While EPDM is standard for water applications, always verify the chemical compatibility of the seat material with any additives in your water treatment process. Using an incompatible seat will lead to premature swelling, degradation, and valve failure.
To extend the life of your valve:
- Avoid Slamming: Ensure the actuator is equipped to prevent water hammer.
- Regular Cycling: Even if a valve stays in one position for long periods, cycle it periodically to prevent scale buildup.
- Proper Alignment: Misalignment during installation puts unnecessary stress on the seat, leading to early failure.
The resilient seated butterfly valve is a fundamental yet sophisticated tool in modern piping systems. By understanding its design—centered on the interference fit between the disc and the elastomeric seat—engineers can better appreciate why it provides superior sealing and cost-efficiency. When correctly specified for water treatment and municipal applications, it offers unmatched reliability.
At Tianjin Wode Valve Co., Ltd., we are committed to providing high-quality valve solutions that empower our clients to build safer, more efficient infrastructure. Contact our engineering team today to discuss your specific flow control challenges and receive a tailored recommendation.
1. Can a resilient seated butterfly valve be used for steam or high-temperature applications?
Generally, no. Resilient seats are made of polymers like rubber, which degrade at high temperatures. High-performance or metal-seated valves are required for those environments [milwaukeevalve].
2. What is the main difference between a resilient seated and a high-performance butterfly valve?
The main difference is the sealing mechanism. Resilient valves use a soft seat for a tight seal in lower-pressure environments, while high-performance valves often use metal or PTFE seats with an offset disc design for higher pressures and temperatures [milwaukeevalve], [maxairtech].
3. Is this valve suitable for slurry or abrasive media?
It depends on the application. While the soft seat provides a good seal, abrasive media can damage the seat surface. Always consult with the manufacturer regarding the specific media profile.
4. How often should a resilient seated butterfly valve be maintained?
Maintenance frequency depends on the duty cycle and media. However, regular inspection of the actuator and periodic cycling of the valve are recommended to ensure optimal performance [mcwanepi].
5. What is the typical service life of a resilient seat?
With proper installation and within the rated pressure/temperature limits, a quality resilient seat can last for many years in clean water municipal applications.
