Every reliable plumbing system depends on choosing the right valve for the right application. As a valve manufacturer specializing in water treatment and municipal pipelines for over two decades, I've witnessed firsthand how proper valve selection prevents costly failures, extends system life, and ensures safe water delivery to millions of users. [hearkenflow]
Valves serve as the control points in any plumbing infrastructure, regulating flow, preventing backflow contamination, and enabling safe maintenance without full system shutdowns. In water treatment facilities and municipal distribution networks, we routinely specify valves that must perform flawlessly for 20-30 years under continuous pressure, temperature fluctuations, and varying water chemistry conditions. [quickcreator]
Critical functions valves provide:
- Flow isolation – Shutting off water to specific zones during repairs without disrupting service to other areas
- Pressure management – Preventing dangerous pressure spikes that damage pipes and fixtures
- Backflow prevention – Protecting potable water from contamination through reverse flow [iccsafe]
- Flow regulation – Controlling water velocity and volume to optimize system efficiency
- Emergency protection – Automatically releasing excess pressure before catastrophic failures occur
Poor valve selection creates measurable consequences: a gate valve used for throttling applications wears out within months instead of decades, while an undersized pressure relief valve may fail to protect equipment during peak demand. [tameson]
Ball valves dominate modern plumbing installations because they deliver reliable shut-off with minimal maintenance over decades of service. The design is elegantly simple: a spherical ball with a through-hole rotates 90 degrees to align with (open) or block (closed) the flow path. [homedepot]
In water treatment plants, we specify full-port ball valves for main distribution lines because they maintain the same internal diameter as the connecting pipe, eliminating pressure drop and turbulence. For residential and light commercial installations, reduced-port designs cost less and perform adequately where some flow restriction is acceptable. [flowflex]
Multi-port ball valves – available in 3-way and 4-way configurations – allow a single valve to redirect flow between multiple pipes, eliminating the need for complex piping arrangements. We routinely use these in chemical dosing systems where operators switch between different treatment chemicals. [flowflex]
Material choice determines valve life span in specific water conditions: [quickcreator]
- Brass bodies – Standard for municipal water under 180°F (82°C); cost-effective and corrosion-resistant
- Stainless steel (316/304) – Required for brackish water, desalination plants, and high-chlorine environments
- PVC and CPVC – Lightweight, economical choices for cold water and low-pressure irrigation systems
- Ductile iron – Preferred for large-diameter municipal mains (6-48 inches) due to strength-to-cost ratio
Seat materials matter equally. PTFE (Teflon) seats handle both hot and cold water with minimal friction, while RPTFE (reinforced PTFE) adds glass fiber for higher pressure ratings. In aggressive water chemistry, we upgrade to PEEK or metal seats that resist chemical attack. [wodevalve]
Ball valves perform best in applications requiring: [tameson]
- Frequent operation – Quarter-turn actuation causes minimal wear; suitable for daily cycling
- Tight shut-off – Soft seats create bubble-tight seals, critical for preventing water waste
- Quick emergency closure – Rapid shut-off limits damage during pipe bursts or leaks
- Compact installation – Short face-to-face dimensions fit tight spaces where gate valves won't
Caution: Rapid closure in high-velocity systems causes water hammer – destructive pressure waves that crack pipes and damage equipment. We always install slow-closing actuators or water hammer arrestors in high-flow applications. [homedepot]
Gate valves raise or lower an internal wedge-shaped gate perpendicular to flow, providing unrestricted flow when fully open. This straight-through flow path creates minimal pressure drop, making gate valves ideal for large municipal water mains where every PSI of pressure matters. [quickcreator]
Resilient-seated gate valves feature rubber-encapsulated gates or seats that create watertight seals even in systems with debris or sediment. Municipal water utilities install these in distribution networks because they seal reliably despite the sand and mineral particles present in treated water. [hearkenflow]
Metal-seated wedge gate valves handle higher temperatures and pressures but require cleaner fluids. We specify these for industrial water treatment facilities where operating conditions exceed 200°F (93°C) or 600 PSI. [quickcreator]
Knife gate valves, with thin, sharp-edged blades, slice through slurries and wastewater containing solids. Wastewater treatment plants use these extensively because they won't clog like other valve types. [tameson]
Gate valves should operate only in fully open or fully closed positions. Throttling – leaving the valve partially open – causes several problems: [homedepot]
- Erosion damage – High-velocity water cutting across the partially exposed gate erodes metal within months
- Vibration and noise – Turbulent flow creates destructive vibrations that fatigue piping connections
- Seat damage – Particles trapped between gate and seat prevent proper sealing
Multi-turn operation requires more time than quarter-turn ball valves, making gate valves unsuitable for emergency shut-off applications. A 6-inch gate valve typically requires 20-40 handwheel rotations to move from fully open to fully closed. [tameson]
Despite being replaced by ball valves in many applications, gate valves still excel in: [flowflex]
- Large-diameter mains (12-48 inches) – Lower cost per inch than ball valves at large sizes
- High-pressure systems – Cast or forged steel bodies handle 600-2500 PSI ratings
- Minimal pressure drop – Full-bore flow path preserves system pressure
- Slurry handling – Easier to clean and maintain than ball valve cavities [tameson]

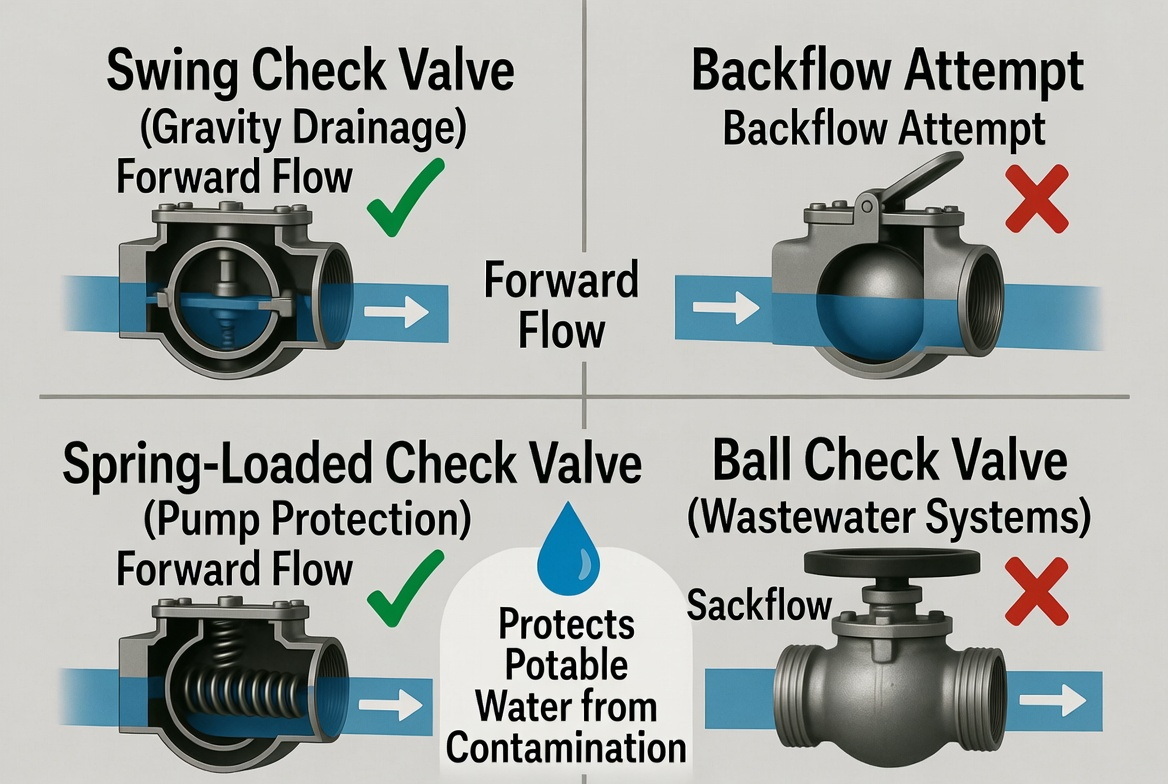

Check valves allow flow in only one direction, automatically closing when flow stops or reverses. This prevents contaminated water from flowing backward into potable water supplies – a critical health protection measure required by plumbing codes worldwide. [iccsafe]
Swing check valves use a hinged disc that swings open with forward flow and closes with reverse flow or gravity. These create minimal pressure drop and suit low-velocity applications like gravity drainage systems. However, slam-closure when flow reverses can cause water hammer in high-velocity systems. [quickcreator]
Spring-loaded check valves use spring force to close the disc, providing faster closure and reduced water hammer compared to swing checks. We install these downstream of pumps where rapid closure prevents reverse rotation and mechanical damage. [quickcreator]
Ball check valves employ a spherical ball that lifts off its seat with forward flow. The ball's self-cleaning action makes these ideal for wastewater and slurry applications where debris would foul other designs. [quickcreator]
Dual check valves – two check mechanisms in series – provide redundant backflow protection for water meters and residential services. Regulations in many jurisdictions mandate dual checks on all services larger than 25mm to protect municipal water supplies from contamination. [sydneywater.com]
Proper check valve selection requires analyzing: [quickcreator]
- Cracking pressure – Minimum upstream pressure required to open the valve; critical for low-pressure systems
- Fluid velocity – High velocities require spring-assist or piston types to prevent chattering
- Water hammer potential – Slow-closing designs or dampeners needed in high-velocity applications
- Solids content – Ball or piston types resist clogging better than disc designs
Globe valves regulate flow by raising or lowering a plug perpendicular to the flow path. Unlike ball or gate valves designed for on/off service, globe valves excel at throttling – maintaining partially open positions to control flow rate. [hearkenflow]
The perpendicular plug movement creates a variable flow area that changes smoothly as the valve opens. This provides linear flow characteristics ideal for automated control systems. In water treatment plants, we use globe valves extensively for: [quickcreator]
- Chemical feed control – Precise metering of coagulants, chlorine, and pH adjusters
- Pressure reduction – Controlled throttling to step down pressure between zones
- Pump recirculation – Maintaining minimum flow to prevent pump damage during low-demand periods
Tee-pattern globe valves have inline connections with the plug moving perpendicular to flow. These create significant pressure drop but provide excellent throttling control. [quickcreator]
Angle globe valves combine a 90-degree elbow with throttling control, reducing piping complexity and pressure drop compared to tee patterns. [quickcreator]
Y-pattern globe valves position the stem at 45 degrees to flow, creating less turbulence and pressure drop than tee patterns while maintaining good flow control. [quickcreator]
Globe valves create higher pressure drop than gate or ball valves even when fully open, due to the tortuous flow path. This makes them unsuitable for main distribution lines where pressure preservation is critical. [quickcreator]
The perpendicular plug motion and partial-open operation create more wear than isolation valves. We specify hardened trim materials (stellite, ceramic) for high-differential-pressure throttling service to extend valve life. [quickcreator]
Pressure relief valves automatically open when system pressure reaches a preset limit, venting excess pressure to prevent catastrophic failures. Building codes mandate these on water heaters, boilers, and any closed system where thermal expansion or malfunction could create dangerous over-pressure conditions. [quickcreator]
Relief valves use spring force to hold a disc against a seat. When system pressure overcomes spring force, the disc lifts, releasing fluid until pressure drops below the setpoint. The valve then reseats automatically. [quickcreator]
Temperature and pressure (T&P) relief valves – standard on water heaters – respond to either excessive temperature (typically 210°F/99°C) or pressure (typically 150 PSI). If the thermostat fails, allowing water to boil, the T&P valve prevents tank rupture by venting steam. [quickcreator]
Undersized relief valves fail to discharge capacity fast enough, allowing dangerous pressure buildup. Proper sizing requires calculating: [quickcreator]
- Maximum system pressure – Set relief pressure 10-25% above normal operating pressure
- Required discharge capacity – Based on heat input rate (BTU/hr) for thermal systems
- Discharge piping – Must be same diameter as valve outlet, pitched for drainage, and terminate safely
Compliance and certification are non-negotiable. We only specify relief valves certified to ASME, ANSI, or equivalent standards, with capacity ratings verified by third-party testing. [quickcreator]
Relief valves require annual testing by manually lifting the lever to verify free movement. Valves that don't open freely or continue seeping after test should be replaced immediately – this is safety-critical equipment. [quickcreator]
Debris, mineral deposits, and corrosion can prevent proper operation over time. In hard water areas, we recommend replacement every 3-5 years regardless of testing results, as internal deposits may prevent full-capacity discharge during actual emergencies. [quickcreator]
While not covered in the original article, butterfly valves are essential in municipal water systems and deserve mention. These use a rotating disc to control flow, offering compact installation and low cost in large sizes (4-120 inches). [wesdunvalve]
Butterfly valves provide faster operation than gate valves with lower cost than ball valves in large diameters. Municipal utilities use resilient-seated butterflies extensively for main line isolation, zone control, and pump station service. [wesdunvalve]
Pressure reducing valves (PRVs) automatically reduce high inlet pressure to stable, lower outlet pressure. These protect downstream fixtures and appliances from damage, reduce water waste from leaks, and extend system life. [quickcreator]
In municipal distribution, PRVs create pressure zones that step down elevation-driven pressure as water flows from elevated storage tanks down to lower elevations. Without PRVs, low-elevation users would experience damaging high pressures (100+ PSI) while hilltop users receive adequate pressure. [quickcreator]

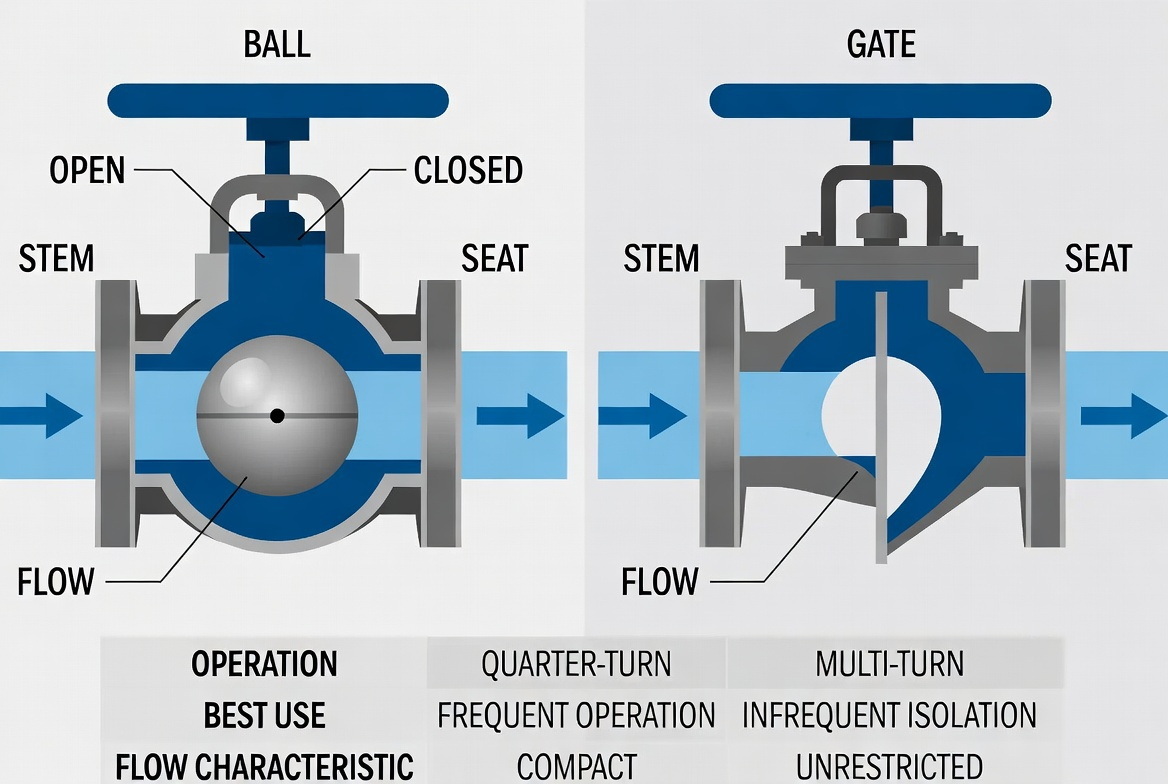

Choose ball valves when you need:
- Frequent operation (daily or more)
- Quick shut-off for emergencies
- Tight sealing to prevent leakage
- Compact installation space
- Multi-port flow routing
Choose gate valves when you need:
- Large diameter (12+ inches) at lower cost
- Minimal pressure drop when fully open
- Infrequent operation (monthly or less)
- Slurry or viscous fluid handling
Choose globe valves when you need:
- Precise flow control and throttling
- Automated control valve actuation
- Frequent adjustment of flow rate
Choose check valves when you need:
- Backflow prevention
- Pump protection from reverse flow
- Gravity drainage systems
- Code-mandated contamination protection

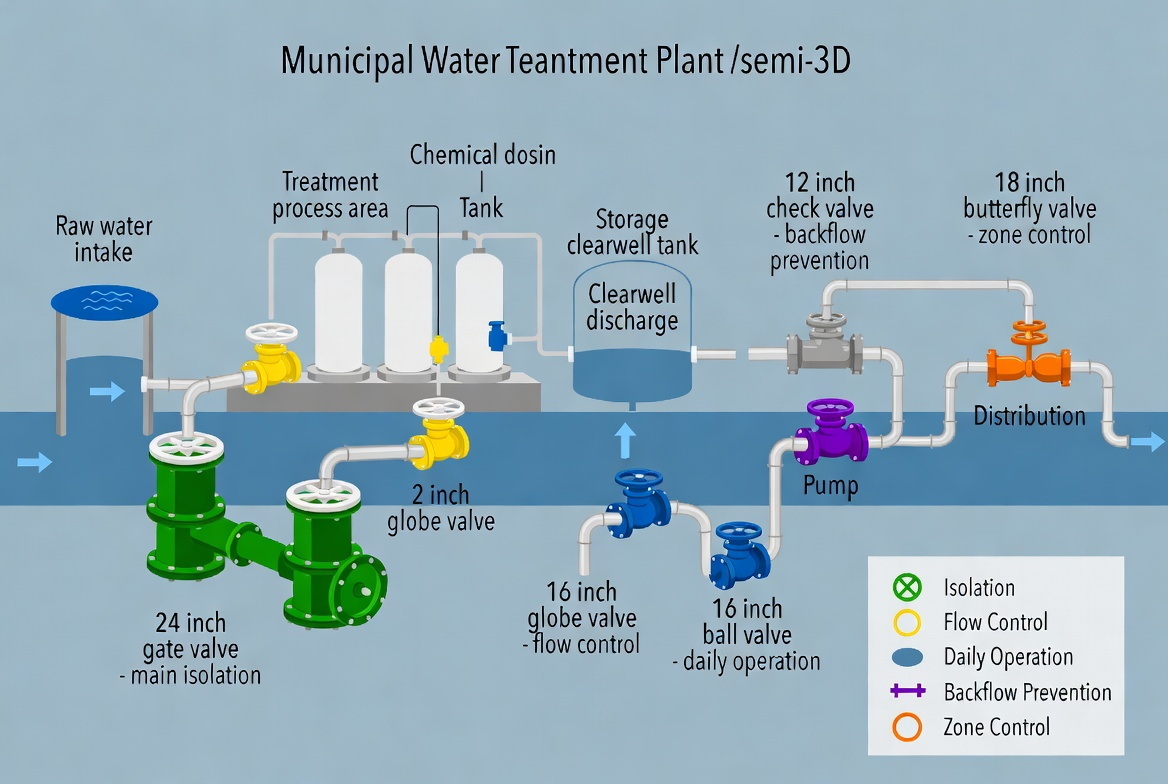

A 20 MGD (million gallon per day) water treatment plant we supplied in 2024 demonstrates strategic valve selection: [wodevalve]
- Raw water intake: 24-inch resilient-seated gate valves for main isolation (minimal pressure drop, infrequent operation)
- Chemical feed lines: 2-inch globe valves with pneumatic actuators for automated chlorine dosing (precise flow control)
- Clearwell discharge: 16-inch ball valves for daily flow switching between storage tanks (reliable, frequent operation)
- Pump discharge: 12-inch swing check valves with external counterweights for soft closure (backflow prevention, reduced water hammer)
- Distribution connection: 18-inch butterfly valves with position indicators for zone isolation (cost-effective, large diameter)
This mixed valve strategy balanced performance, cost, and maintenance requirements across diverse applications within a single facility.
Proper installation fundamentals:
- Flow direction arrows – Check valves and PRVs must be installed with flow arrows pointing downstream
- Adequate support – Large valves require independent support; never use valve weight to stress piping
- Access clearance – Leave space above valve for stem removal and maintenance
- Drainage provisions – Install drain valves at low points for system winterization
Preventive maintenance extends valve life:
- Annual exercise – Operate valves through full stroke to prevent seizing
- Leak inspection – Check packing glands, bonnet gaskets, and seat sealing annually
- Pressure testing – Verify relief valve operation and setpoint annually
- Replacement scheduling – Replace relief valves every 3-5 years; rebuild or replace other valves showing degraded performance
Valve selection is not just about controlling flow – it's about engineering reliability, safety, and longevity into critical water infrastructure. As manufacturers serving global water treatment facilities and municipal utilities, we've learned that proper specification and quality construction deliver measurable value through decades of trouble-free service. [quickcreator]
Whether you're designing a new municipal water system, upgrading aging infrastructure, or simply replacing a failed valve, understanding these fundamental differences enables better decisions that protect public health, reduce lifecycle costs, and ensure reliable water delivery.
Ready to specify the right valves for your project? Contact valve professionals who understand your specific application requirements – proper selection today prevents costly failures tomorrow.
Ball valves use a rotating sphere for quick quarter-turn operation and tight shut-off, making them ideal for frequent use and emergency closure. Gate valves use a sliding wedge that requires multiple turns but provides unrestricted flow and lower cost in large sizes, best suited for infrequent isolation service. [flowflex]
No – gate valves should only operate fully open or fully closed. Partial opening causes high-velocity erosion that damages the gate and seat within months, plus creates vibration and noise. Use globe valves instead for throttling and flow control applications. [homedepot]
Relief valve sizing depends on your water heater's BTU input rating, typically found on the rating plate. Most residential water heaters use 3/4-inch T&P valves rated for 150 PSI and 210°F. The valve discharge capacity (typically 75,000-150,000 BTU/hr for residential units) must exceed your heater's input rating. When in doubt, consult a licensed plumber – undersized relief valves create serious safety hazards. [quickcreator]
Check valves prevent backflow contamination that occurs when downstream pressure exceeds supply pressure, potentially allowing contaminated water to flow backward into the municipal water supply. Plumbing codes mandate backflow prevention devices (including check valves) to protect public health. Water meters larger than 25mm typically require dual check valves for redundant protection. [sydneywater.com]
Test your T&P relief valve annually by manually lifting the test lever to verify it opens and reseats properly. Replace immediately if it doesn't operate smoothly or continues leaking after testing. Even if testing succeeds, replace relief valves every 3-5 years as preventive maintenance, since internal mineral deposits and corrosion can prevent proper operation during actual emergencies. [quickcreator]
