As a valve engineer who has spent years supporting EPC contractors and distributors on gas and water projects, I've learned that choosing the right gas shut-off valve is about much more than catalog specs. The right decision protects people, assets, and uptime; the wrong one usually shows up first as a safety incident or an expensive shutdown. In this guide, I'll walk through the main types of gas shut-off valves, how they actually perform in real projects, and what to consider when you're specifying valves for residential, commercial, or industrial gas systems. [cpvmfg]
A gas shut-off valve is a safety and isolation device that controls the flow of combustible gases such as natural gas, LPG, LNG, or biogas in a piping system. Beyond day‑to‑day operation, these valves are your first line of defense in emergencies such as leaks, line ruptures, equipment failure, or seismic events. [cpvmfg]
From a system-design point of view, gas shut-off valves typically fall into three functional groups: [cpvmfg]
- Appliance or equipment shut-off valves – located at individual appliances such as furnaces, boilers, ovens, or burners. [cpvmfg]
- Main shut-off valves – installed on utility service lines, plant headers, and building inlets to isolate complete sections or properties. [cpvmfg]
- Automatic safety and control valves – seismic valves, excess flow valves, and solenoid or slam‑shut valves that react automatically to abnormal events. [cpvmfg]
In practice, most projects combine all three: a main isolation valve, local appliance valves, and at least one layer of automatic protection.
Different valve designs handle gas very differently under pressure, temperature, and cycling. Below is an engineer-level overview of the main types you'll encounter. [plumberstar]
From a field perspective, ball valves are the workhorse for modern gas shut-off applications. [reddit]
- A polished ball with a through bore rotates a quarter turn to either align with the flow (open) or block it (closed). [cpvmfg]
- Full-bore designs minimize pressure drop and allow pigging or high flow rates in larger lines. [plumberstar]
- Soft seats (typically PTFE-based) provide very tight shut-off, which is critical for gas leak prevention. [cpvmfg]
Industry feedback – including comments from experienced plumbers – consistently highlights full‑port gas‑rated ball valves as superior to older gas cocks, thanks to higher pressure ratings and better sealing. For many residential upgrades, the recommendation is to replace aging valves with properly certified ball valves at main and appliance points. [reddit]
Typical uses:
- House‑side main gas shut-off valve. [plumberstar]
- Appliance isolation (furnaces, water heaters, commercial burners). [plumberstar]
- Industrial gas skids where fast, 90° shut-off is mandatory. [cpvmfg]
Gate valves use a flat or wedge‑shaped gate that travels perpendicular to flow. [plumberstar]
- When fully open, a full‑port gate valve offers minimal pressure drop, making it suitable for high‑flow gas mains. [plumberstar]
- They are not designed for throttling; partly open operation accelerates seat erosion and can lead to leakage. [cpvmfg]
In gas networks, gate valves are more common on bulk transmission and distribution lines than on appliance branches. They are generally slower to operate than ball valves and are often paired with faster quarter‑turn valves for emergency response. [plumberstar]
Typical uses:
- Underground or above‑ground main gas supply lines. [plumberstar]
- District isolation valves in municipal or industrial gas networks. [cpvmfg]
Where you need controlled pressure drop rather than simple on/off, globe valves are still indispensable. [plumberstar]
- A movable disc works against a stationary seat, allowing fine modulation of flow and line pressure. [plumberstar]
- The tortuous flow path creates additional pressure loss, which is actually useful in many regulation applications. [plumberstar]
Globe valves are widely used in petroleum and gas industries where pressure or flow must be tuned to process requirements rather than simply opened or closed. Engineers often install a ball or gate valve for primary isolation, then a globe valve downstream for regulation. [cpvmfg]
Typical uses:
- Pressure control stations and burner trains. [plumberstar]
- Fine flow regulation in chemical and fuel gas systems. [cpvmfg]
For large‑diameter lines where space and weight are constrained, butterfly valves become very attractive. [plumberstar]
- A quarter‑turn disc rotates in the flow path, enabling quick operation. [cpvmfg]
- Wafer and lug patterns save space and simplify installation between flanges. [cpvmfg]
In high‑pressure gas pipelines, engineers frequently specify resilient‑seated or high‑performance butterfly valves to balance cost, footprint, and tight shut-off. They are not ideal where bubble‑tight closure at very low differential pressure is the only priority, but they perform extremely well in many industrial gas applications. [plumberstar]
Typical uses:
- Large building or plant header gas lines. [cpvmfg]
- High‑pressure gas transmission and distribution mains. [plumberstar]
Plug valves use a cylindrical or conical plug that rotates within the body. [plumberstar]
- Their relatively simple internal geometry provides high flow capacity with few potential leakage paths. [cpvmfg]
- They are particularly valued in petrochemical and high‑pressure systems handling unrefined products or aggressive media. [plumberstar]
Because of their reliability and material options, plug valves are common in demanding oil and gas applications where both pressure and temperature extremes are present. [cpvmfg]
Typical uses:
- High‑pressure gas and condensate service. [plumberstar]
- Petrochemical plants requiring long‑life isolation. [cpvmfg]
Beyond the general valve types above, modern gas systems rely on specialty valves that respond automatically to abnormal events. [xintaivalves]
In earthquake‑prone regions, seismic gas shut-off valves are often mandated by code. [xintaivalves]
- They use mechanical or electronic motion sensors to detect tremors above a set threshold. [xintaivalves]
- Once triggered, they slam shut and must be manually reset after inspection. [xintaivalves]
For utilities and commercial buildings built over fault lines, these valves are a non‑negotiable layer of protection against post‑quake fires and explosions. [xintaivalves]
Excess flow valves are designed to react to sudden, abnormally high flow – for example, when a buried line is severed during excavation. [xintaivalves]
- Under normal flow they remain open; a sharp increase in flow triggers closure. [xintaivalves]
- They are widely used in underground gas service lines serving residential or commercial properties. [xintaivalves]
Several major utilities now treat EFVs as standard practice on new service lines for both safety and regulatory compliance. [xintaivalves]
Solenoid valves and slam‑shut devices bring automation into gas safety. [xintaivalves]
- Solenoid valves use an electromagnetic coil to open or close the valve, often integrated with leak detection or process control systems. [xintaivalves]
- Many installations use normally closed (NC) designs, so any loss of power defaults the system to a safe closed position. [xintaivalves]
- Over‑pressure slam‑shut valves trip when downstream pressure exceeds a set point, protecting both equipment and downstream piping. [plumberstar]
These solutions are particularly common on industrial skids, boiler rooms, and burner management systems where automatic interlocks are required. [xintaivalves]

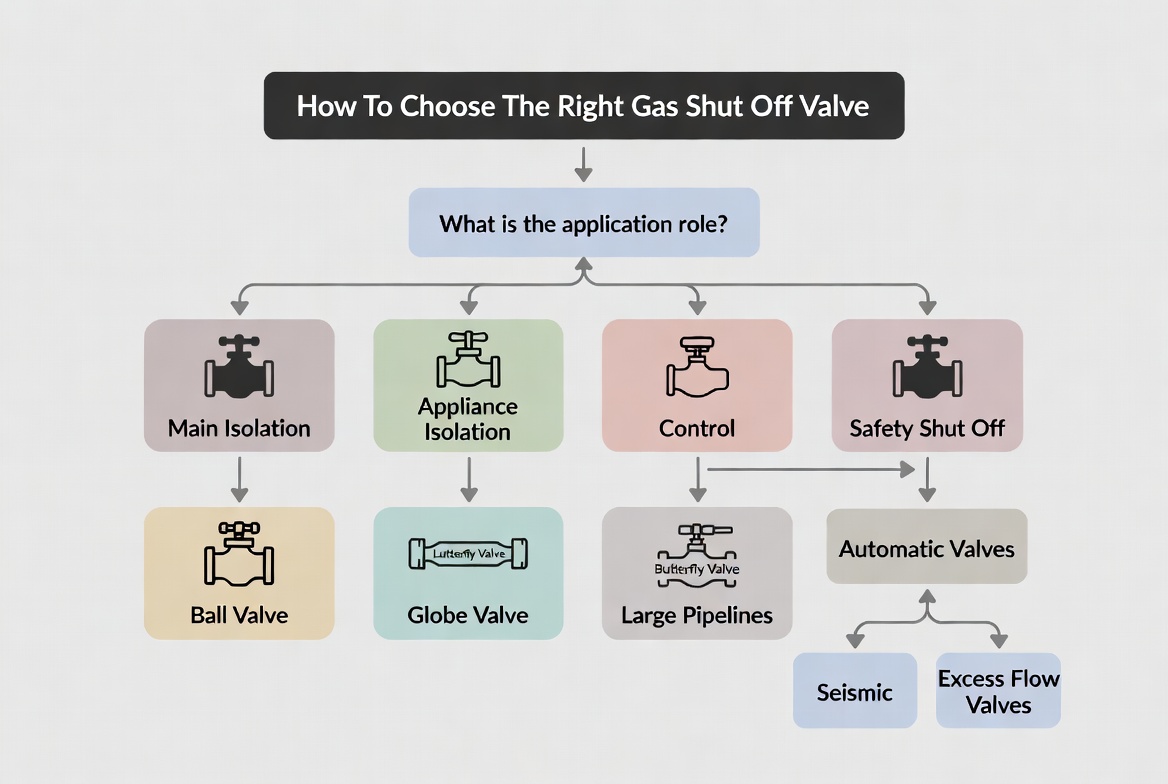

From a specifier's perspective, the real challenge is not "which design exists," but "which valve is right for this node in my system." [watts]
Start by clarifying what this valve must actually do: [xintaivalves]
- Main line isolation – prioritize full port, high Cv, robust actuation, and clear open/closed indication.
- Appliance isolation – prioritize compact size, simple, fast operation, and clear labeling.
- Pressure or flow control – consider globe or specialized control valves rather than simple on/off valves.
- Emergency or safety shut-off – integrate seismic, EFV, solenoid, or slam‑shut functions as required by codes.
Key parameters that should be defined before valve selection include: [watts]
- Gas type – natural gas, LPG, LNG, biogas, or mixed fuel gas.
- Pressure and temperature range – verify valve pressure class and temperature rating against worst‑case conditions.
- Flow rate and required Cv – oversizing can cause control issues; undersizing raises pressure drop and noise.
- Ambient conditions – outdoor exposure, humidity, corrosive atmospheres, and potential flooding.
Metallic valves such as brass, stainless steel, or carbon steel are typically preferred for flammable gas applications due to their higher temperature and pressure resistance compared with many plastics. [xintaivalves]
Material and operation mode determine both safety and lifecycle cost. [xintaivalves]
- Body and trim materials must be compatible with the gas, possible contaminants, and any cleaning agents. [cpvmfg]
- For corrosive environments, coated carbon steel or stainless constructions reduce long‑term risk. [plumberstar]
- Decide between manual, electric, pneumatic, or hydraulic actuation based on access, power availability, and control philosophy. [cpvmfg]
Where frequent maintenance or change‑out is expected, engineers often favor ball valves with three‑piece bodies so the center section can be serviced without cutting the line. [plumberstar]
Even the "perfect" valve fails early without proper inspection and maintenance. Good practice includes: [xintaivalves]
- Periodic visual checks for corrosion, leakage, or damaged operators.
- Lubrication where allowed by code and manufacturer guidelines. [cpvmfg]
- Functional testing of emergency valves (e.g., solenoid trip tests, seismic valve reset drills). [xintaivalves]
- Strict adherence to local gas codes about valve location, accessibility, and appliance proximity. [xintaivalves]
For residential and light commercial applications, many authorities recommend or require that homeowners only operate the house‑side main valve and leave the street‑side or utility‑owned valve to professionals. [plumberstar]

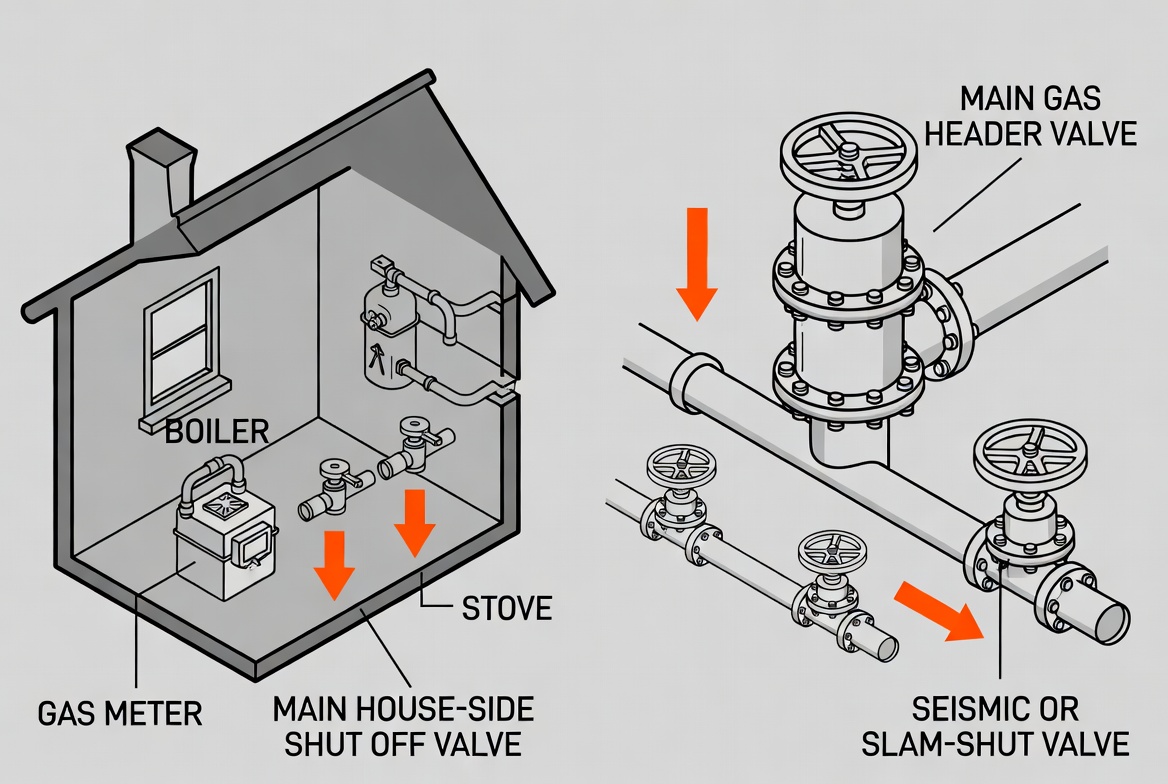

One of the most practical questions I hear from facility teams is: "Where exactly is my main gas shut-off?" [xintaivalves]
- In residential and small commercial buildings, the main valve is typically located just upstream of the gas meter, often outside the building envelope. [xintaivalves]
- Modern buildings usually have a secondary house‑side shut-off at the point where the gas pipe enters the structure. [xintaivalves]
- Each appliance (furnace, boiler, oven, dryer) should have a dedicated, clearly accessible shut-off valve located nearby, with exact distances often defined in local codes. [cpvmfg]
In industrial plants, gas shut-off valves are distributed across process lines, utility corridors, and equipment modules. Maintaining accurate P&IDs and on‑site markings is essential so maintenance teams can quickly find and operate the right valve during an incident. [xintaivalves]
From a safety standpoint, training people to use the valves correctly is just as important as selecting them. [plumberstar]
Best practices include:
1. Emergency planning
- Develop and drill an emergency response plan that clearly shows who can shut off which valves. [cpvmfg]
- Post emergency contact numbers and valve locations in visible spots. [xintaivalves]
2. Recognizing warning signs
- If you smell gas, hear hissing, or suspect a leak, evacuate immediately and call emergency services and your gas supplier from a safe location. [plumberstar]
- Only operate shut-off valves if you can do so without putting yourself in danger. [xintaivalves]
3. Operating manual shut-offs
- For lever‑type ball or butterfly valves, a quarter turn usually moves from fully open to fully closed. [reddit]
- Never force a valve that is stuck; this is a strong indicator of corrosion, internal damage, or mechanical failure. [cpvmfg]
4. After an incident
- Do not re‑open gas valves until qualified personnel have inspected the line and confirmed that leaks are resolved. [plumberstar]
- For seismic, slam‑shut, or solenoid valves, follow manufacturer reset procedures and local regulatory requirements. [xintaivalves]
Manufacturers focused on water treatment and municipal pipeline solutions often supply valves that end up in combined utility corridors where gas, water, and sometimes district heating lines run side by side. [wodevalve]
In such environments, engineers typically:
- Specify metallic ball or butterfly valves for gas isolation, coordinated with water service valves to maintain clear operational separation. [wodevalve]
- Combine manual main shut-off valves with automatic EFVs or slam‑shut valves on service branches feeding critical facilities such as hospitals or treatment plants. [watts]
- Require long‑life, corrosion‑resistant coatings and sealing systems because many of these valves operate in buried or partially flooded vaults. [wodevalve]
Proven track records in municipal and water treatment projects significantly increase confidence when distributors, EPC contractors, and international valve brands select partners for gas‑related scopes in integrated infrastructure corridors. [quickcreator]
| Valve type | Operation style | Main strength | Key limitation | Typical use case |
|---|---|---|---|---|
| Ball valve | Quarter-turn | Very tight shut-off, fast action (cpvmfg) | Not ideal for precision throttling (cpvmfg) | Main and appliance isolation |
| Gate valve | Multi-turn | Full-bore, low pressure drop (cpvmfg) | Poor throttling, slower to operate (cpvmfg) | Bulk line isolation |
| Globe valve | Multi-turn | Fine pressure and flow control (cpvmfg) | Higher pressure loss, bulkier (cpvmfg) | Pressure regulation |
| Butterfly valve | Quarter-turn | Compact for large diameters (cpvmfg) | Less ideal for ultra-tight shut-off in some services (cpvmfg) | Large pipeline isolation and control |
| Plug valve | Quarter-turn | Rugged in harsh service (cpvmfg) | Higher operating torque in some designs | High-pressure and petrochemical gas |
| Seismic valve | Automatic | Shuts off gas during earthquakes (xintaivalves) | Requires reset and periodic testing (xintaivalves) | Buildings in seismic zones |
| Excess flow | Automatic | Trips on line ruptures (xintaivalves) | Must be sized carefully to avoid nuisance trips | Underground service lines |
| Solenoid / slam-shut | Automatic | Integrates with safety systems (cpvmfg) | Needs power and control logic (xintaivalves) | Burner trains and automated plants |
In most modern standards, properly certified ball valves are preferred because they provide fast quarter‑turn operation, full‑bore flow, and superior sealing compared with many legacy valves. However, all valves must still meet local code requirements and be installed by qualified professionals. [reddit]
If your building is in an earthquake‑prone region, codes or insurance providers may require a seismic shut-off valve in addition to manual isolation. Manual valves rely on someone being present and able to operate them, while seismic valves act automatically when strong tremors are detected. [xintaivalves]
In many modern homes, the house‑side shut-off is located where the gas pipe enters the building, often near a basement wall or utility room, and typically uses a ball or gate valve with a clear handle. The utility‑owned street‑side valve is usually closer to the meter and should only be operated by the gas company or emergency responders. [cpvmfg]
Brass, carbon steel, and stainless steel are common choices because they withstand the temperatures and pressures of combustible gas service better than many plastics. Final selection should consider gas composition, possible contaminants, ambient environment, and any relevant standards in your region. [plumberstar]
Inspection intervals depend on local regulations and risk level, but many operators perform periodic visual inspections and functional tests as part of scheduled maintenance. Automatic devices like seismic or slam‑shut valves may have specific test and reset procedures defined by the manufacturer and applicable codes. [cpvmfg]
