Understanding the basic parts of a valve is not just "textbook knowledge" for me—it's something I live every day on the factory floor at Tianjin Wode Valve Co., Ltd., especially when we design and test ball valves for water treatment and municipal pipeline systems. In this guide, I'll walk you through valve components from an engineer's perspective and show how the right design decisions translate into safety, reliability, and lifecycle cost savings for distributors, EPC contractors, and global valve brands. [blog.saleslayer]
From a distance, a valve looks simple—a device that opens or closes the flow. But when you manage water treatment plants or municipal distribution networks, you quickly learn that small details in valve design determine whether you deal with decades of quiet operation or recurring leaks and unplanned shutdowns. [hyspeco]
As a manufacturer supplying global distributors, EPC contractors, and international valve brands, we see the same pattern repeatedly:
- Projects that specify the right valve components and materials enjoy lower leakage rates, longer service intervals, and predictable lifecycle costs. [blog.saleslayer]
- Projects that treat valves as a commodity often face seat failures, stem leakage, and premature corrosion—especially in untreated or slightly corrosive water. [nswvalve]
That is why understanding the basic parts of a valve is not academic; it's a practical way to reduce risk and total cost of ownership.
Most industrial valves—whether gate, globe, butterfly, or ball—can be understood around three fundamental components: body, bonnet, and trim. This structure also applies to ball valves, even though the "bonnet" is often integrated as a top cap in compact designs. [nswvalve]
The valve body is the main outer shell and pressure-retaining component of the valve. It: [nswvalve]
- Houses all internal parts (ball, seat, stem, packing). [nswvalve]
- Connects to the pipeline via flanged, threaded, welded, or grooved ends.
- Must withstand system pressure, temperature, and environmental conditions without cracking or deforming. [nswvalve]
For water treatment and municipal networks, typical body materials include:
- Ductile iron / cast iron – widely used for large-diameter municipal valves, often with internal linings or coatings for corrosion resistance. [maotoogas]
- Carbon steel – used where higher pressure ratings are required, sometimes with internal epoxy or rubber lining. [nswvalve]
- Stainless steel – selected for aggressive or chlorinated media, desalination plants, and critical water quality applications. [nswvalve]
- PVC and other non-metals – used in low-pressure, chemical-dosed water lines where corrosion resistance is key. [maotoogas]
The valve bonnet is the cover or cap that closes the body and provides access to internal parts for maintenance. In many ball valves, this function is fulfilled by a top cap or body cover that holds the stem and seals. [nswvalve]
Common bonnet connection designs include:
- Bolted bonnet – most common in industrial valves; allows disassembly and inspection.
- Welded bonnet – used where leak-tightness is critical and maintenance access is less frequent.
- Pressure seal bonnet – used in high-pressure, high-temperature applications (more typical in power or process industries).
Recent engineering focus has been on bonnet and top-cap designs that reduce fugitive emissions—very small leaks that are not visible but accumulate over time, especially in gas service. Even in water and municipal applications, better sealing around the bonnet region reduces water loss and maintenance interventions.
Valve trim is the collective name for the internal parts that actually control and seal the fluid flow. In conventional terminology this includes: [nswvalve]
- Disc or closure element (ball, gate, plug, etc.).
- Seat (sealing surface).
- Stem.
- Stem packing and related internal parts.
For ball valves, the trim components are especially critical because shutoff performance (leakage class), torque, and cycle life all depend on how well the ball, seat, and stem system is engineered. [hyspeco]
Although there are many valve types, ball valves are a leading choice for water treatment and municipal distribution systems thanks to their quick quarter-turn operation, tight shutoff, and compact footprint. [hyspeco]

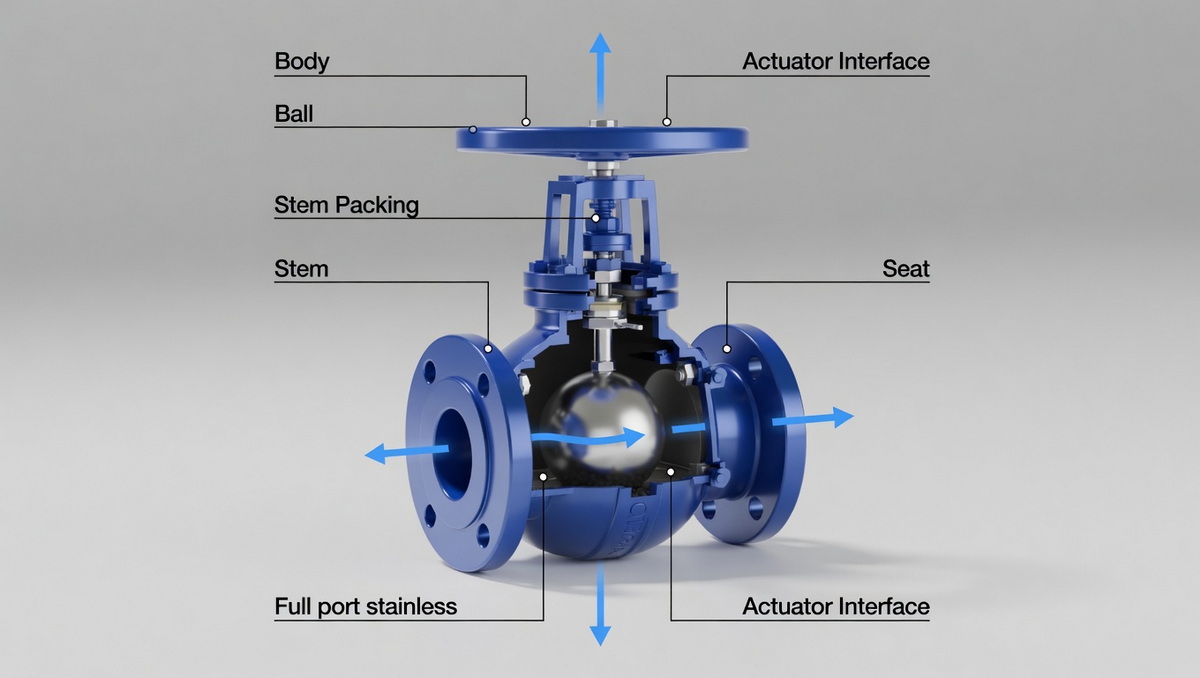

At Tianjin Wode Valve, our engineering and testing focus is heavily centered on the following ball valve components:
- Valve body
- Ball (disc)
- Seat
- Stem
- Stem packing and seals
- Optional actuator interface and accessories
The ball is the closure element—a spherical disc with a through-bore that rotates 90 degrees to open or close flow. [nswvalve]

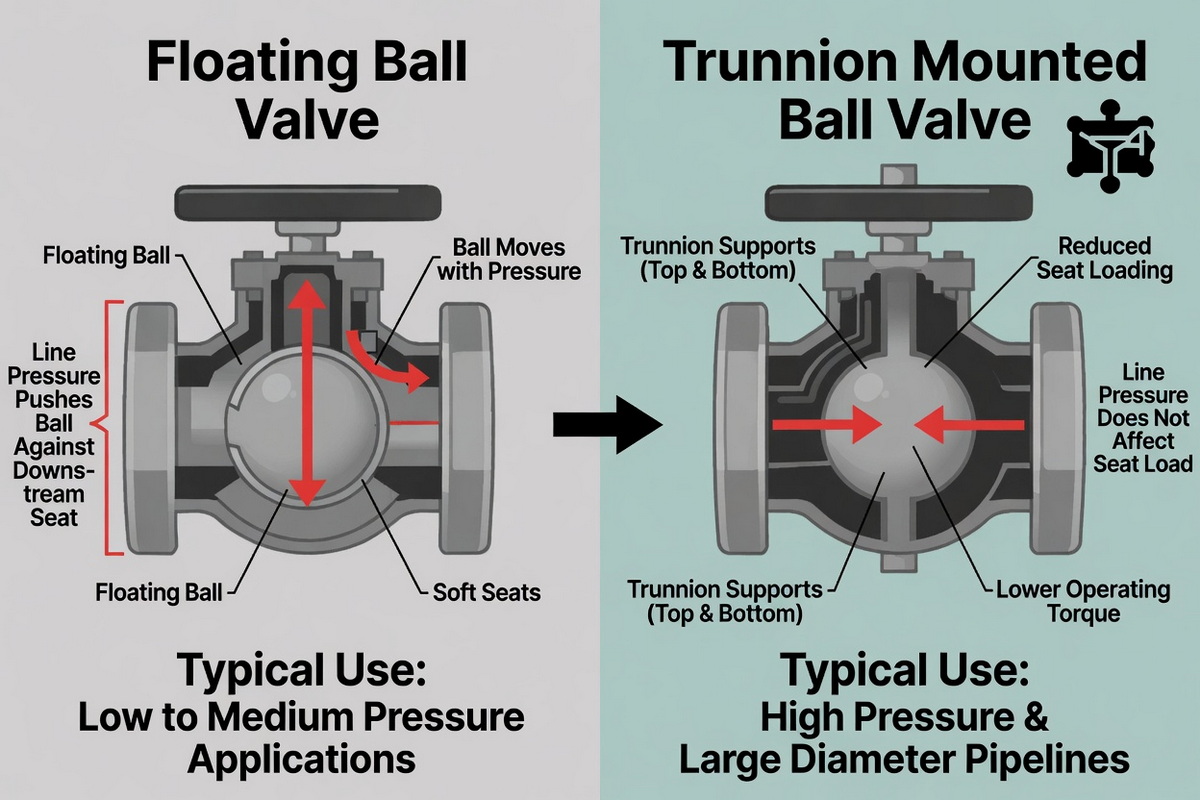

Two main ball designs are used:
- Floating ball
- The ball is supported by the seats and slightly "floats" downstream under pressure. [nswvalve]
- Suitable for low to medium pressure water systems and line sizes typically up to DN200–DN300, depending on design. [nswvalve]
- Offers cost-effective tight shutoff for municipal distribution lines and plant utility water.
- Trunnion-mounted ball
- The ball is supported by trunnions (upper and lower journals), reducing seat load and operating torque. [nature]
- Preferred for high-pressure, large-diameter mains, or where frequent cycling and automation are required. [nature]
The bore can be:
- Full port – internal diameter matches the pipeline; minimizes pressure drop and allows pigging. [nswvalve]
- Reduced port – smaller flow area; acceptable where a modest pressure drop is allowed and cost/weight savings are important. [nswvalve]
For critical water treatment steps (e.g., filtration, backwash, chemical dosing), we often recommend full port floating ball valves to minimize pressure loss while keeping torque and cost manageable.
The valve seat provides the sealing surface between ball and body, ensuring shutoff when the valve is closed. [nswvalve]

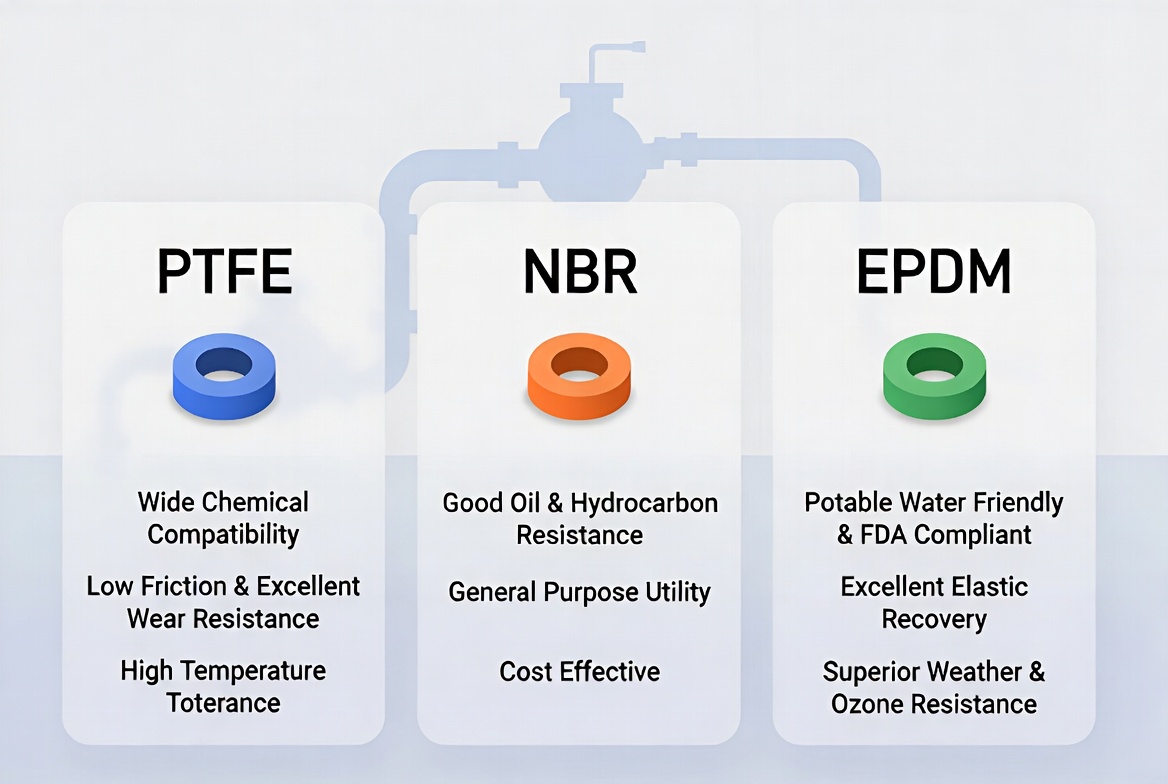

Common seat material options include: [nswvalve]
- Soft seats (PTFE, NBR, EPDM)
- Ideal for water and many municipal fluids.
- Offer bubble-tight sealing with low operating torque. [nswvalve]
- EPDM is often chosen for potable water due to good compatibility and aging behavior.
- Hard seats (stainless steel, Stellite, tungsten carbide)
- Used where media carry abrasive particles or where high velocity could erode soft seats. [nswvalve]
- More common in slurry or hydrocarbon service than in clean water treatment.
From field experience, seat failure in municipal ball valves is often linked to:
- Incorrect material relative to chlorination level or water chemistry.
- Poor machining or surface finish on the ball or seat.
- Inadequate support in the body leading to deformation under pressure.
Specifying certified seat materials for drinking water and verifying surface roughness and concentricity in production drastically reduces early-life leakage.
The stem connects the actuator or handle to the ball and transmits torque during operation. It must: [nswvalve]
- Deliver torque without permanent deformation or fracture.
- Maintain alignment of the ball for consistent sealing.
- Work in harmony with packing and seals to avoid stem leakage.
In ball valves, stem designs are typically:
- Blow-out proof – the stem is inserted from inside the body so internal pressure cannot eject it. [nswvalve]
- Designed with a square or keyed top to connect to handles or actuators reliably.
Stem material must balance strength, corrosion resistance, and cost—often carbon steel with protective plating, stainless steel, or duplex grades in aggressive environments. [maotoogas]
Stem packing (or packing gland) seals the annular space around the stem to prevent fluid escape along the stem path.
Typical materials include:
- Graphite packing – high-temperature, chemically resistant; more common in steam or process valves.
- PTFE or PTFE-blend packing – low friction, suitable for many water and chemical services.
In ball valves for water and municipal applications, stem sealing often combines:
- O-rings (e.g., EPDM) for primary tightness.
- PTFE rings or packing for low friction and backup sealing.
In our own testing, small improvements such as optimized packing chamber geometry, finely controlled gland compression, and surface-finished stems have a measurable impact on leak rate and operating torque stability over thousands of cycles. [blog.saleslayer]
Even though we specialize in ball valves, understanding other disc geometries helps end users choose the right valve type for each part of the system.
Common disc types include:
- Butterfly disc – a circular plate rotating around a central stem; excellent for large-diameter, low-pressure applications but more sensitive to turbulence and backflow.
- Gate disc – flat or wedge-shaped plate moving linearly; good for minimal pressure drop when fully open, but not ideal when dealing with solids.
- Plug disc – cylindrical or tapered plug with a bored hole; offers fine control and appears in some historical and modern designs.
- Globe disc – moves perpendicular to flow, interacting with a seat to allow throttling.
For on/off isolation in water treatment and distribution, ball valves and butterfly valves are usually the primary candidates; ball valves offer superior tight shutoff and simpler maintenance in many small to mid-size line sizes. [hyspeco]
When we support distributors and EPC teams, we often walk through a simple but powerful selection framework for ball valves in water-related projects. [maotoogas]
- Raw water, treated water, potable water, wastewater, or sludge.
- Presence of chlorine, dissolved gases, or corrosive ions.
This drives body and seat material selection (e.g., stainless vs ductile iron, EPDM vs PTFE seats). [maotoogas]
- Maximum operating pressure and transient surges.
- Temperature range (e.g., cold climates vs ambient).
- Line size and whether full-bore flow is required to minimize pressure loss. [hyspeco]
These parameters influence ball type (floating vs trunnion), port size, wall thickness, and actuator torque.
- Manual lever or gear for infrequent operation.
- Electric or pneumatic actuator for automation and remote control.
When automating, ensure compatibility with ISO 5211 mounting pads and verify torque safety margins across the valve's full operating envelope. [nswvalve]
- Is on-site maintenance possible, or is replacement easier?
- Are spare parts (seats, seals, packing) standard and readily available?
Projects that specify standardized trim and seal kits across multiple valve sizes simplify maintenance and reduce total inventory costs. [valveandmeter]
From the feedback we receive from operators and maintenance teams, a few simple practices dramatically extend the life of ball valves in water treatment and municipal networks. [hyspeco]
Recommended steps:
1. Commissioning flush
- Flush pipelines thoroughly before operating new valves to prevent debris from scratching balls and seats.
2. Scheduled actuation
- Avoid leaving valves untouched for years; periodic cycling helps prevent sticking and uneven wear.
3. Visual stem inspection
- Inspect around the stem for signs of moisture or corrosion; early detection prevents serious leaks.
4. Torque monitoring on actuated valves
- A sudden increase in required torque can signal seat degradation, debris accumulation, or misalignment.
5. Seal and packing replacement program
- In critical nodes (e.g., plant inlets, main headers), plan preventive replacement of seats and packing based on cycle count or years in service.
One of the key pillars of Google's E‑E‑A‑T framework is experience—and in industrial valves, that experience comes from designing, casting, machining, assembling, and testing valves day after day for real projects. [marketveep]
As a ball valve manufacturer focused on water treatment and municipal pipelines, we add value in several ways:
- Application engineering support – helping you convert process data (pressure, flow, medium, temperature) into concrete valve specifications.
- Material and design optimization – matching body, seat, ball, and stem materials to water chemistry and project budgets. [maotoogas]
- Quality controls – pressure testing, leak testing, and dimensional checks that ensure each valve meets specified standards before it reaches your site. [nswvalve]
- Co-branding and OEM services – allowing global valve brands and distributors to bring reliable product lines to market under their own labels.
In other words, understanding valve parts is important—but partnering with a manufacturer that engineers those parts for your exact conditions is what ultimately protects your project.
If you are:
- A distributor building a more reliable water and municipal product line.
- An EPC contractor designing a new water treatment plant or pipeline project.
- An international valve brand seeking a stable OEM partner for ball valves.
…then understanding the basic parts of a valve is just the first step.
Call to action:
Share your line size range, pressure class, water quality, and automation requirements with our engineering team, and we'll recommend a ball valve configuration and bill of materials tailored to your project—down to body material, ball type, seat composition, and stem sealing system. [blog.saleslayer]
Most industrial valves share three core parts: the body (pressure shell), bonnet (cover for access and sealing), and trim (internal components such as disc/ball, seat, stem, and packing that control the flow). [nswvalve]
A ball valve consists of a body, ball (disc), seats, stem, stem packing/seals, and a handle or actuator interface; together, these components provide quick, quarter-turn shutoff and reliable sealing. [nswvalve]
Use floating ball valves for low to medium pressure and small to medium pipe sizes, and trunnion-mounted ball valves when dealing with high pressure, large diameters, or frequent automated cycling. [nature]
For clean and treated water, soft seats such as PTFE, NBR, or EPDM typically provide excellent, bubble-tight sealing; EPDM is commonly used in potable water due to its good compatibility and elastic recovery. [maotoogas]
Flush the pipeline before commissioning, cycle valves periodically, monitor stem areas for early leakage, track actuator torque trends, and apply a preventive replacement plan for seats and packing in critical locations. [hyspeco]
