As a ball valve manufacturer who has spent years working with water treatment plants, district cooling networks, and municipal pipeline EPCs, I've learned that the "right" valve handle is not a cosmetic detail – it's a safety, operability, and lifecycle cost decision. [quickcreator]
In this guide, I'll walk through lever handles and handwheels from a practical, project‑driven perspective, so distributors, EPC contractors, and plant engineers can specify the right operating mechanism for every line size, pressure class, and installation environment. [redwhitevalvecorp]
Before choosing a handle, it's essential to understand how the valve itself moves. [blog.saleslayer]
- Linear motion valves move the closure element up/down or in/out of the flow path (typical of gate, globe, and diaphragm valves). They are often combined with handwheels, especially in larger sizes. [wsv-valve]
- Rotary motion valves (ball, butterfly, plug) rotate a disc or ball to open or close the flow. For quarter‑turn valves like ball valves, lever handles are the simplest and clearest operating method. [youtube]
In practice, there are exceptions – small rotary valves may use lever handles, while large linear valves can be combined with gear‑operated handwheels for torque reduction. [redwhitevalvecorp]
On our water treatment and municipal projects, lever handles are the default choice for small to medium‑sized ball valves, especially on distribution lines, branch lines, and isolation points that require rapid shut‑off. [flowvalve.en.made-in-china]
A lever is mounted directly to the valve stem, which in turn is connected to the ball (or disc in the case of butterfly valves). [blog.saleslayer]
A simple 90‑degree rotation fully opens or closes the valve, making status highly visible and operation intuitive even for non‑specialist staff. [youtube]
Typical applications:
- Potable water and process water isolation lines
- Skid‑mounted treatment units and package plants
- Compact valve manifolds where vertical space is limited
> For Tianjin Wode ball valves designed for water treatment and municipal use, we typically configure quarter‑turn lever handles up to a defined DN/pressure threshold, then transition to gear or actuator options as torque requirements increase. (Insert your own product‑specific note here.)

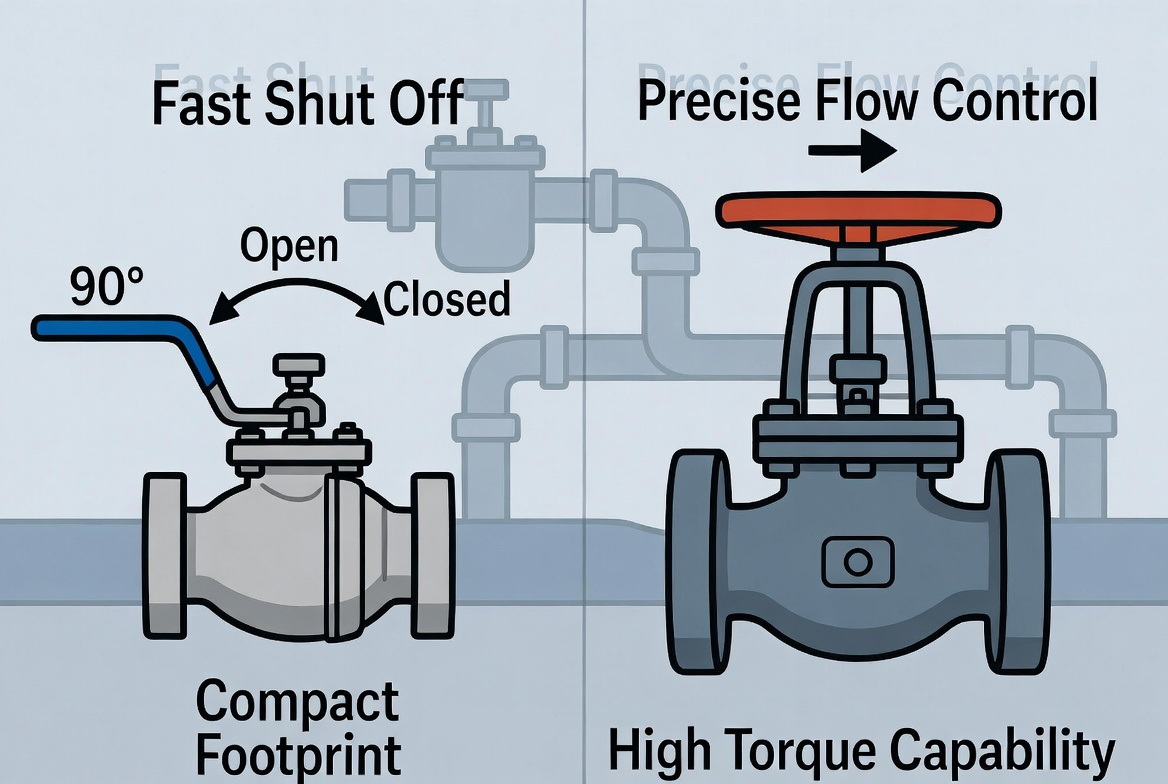

Lever handles offer clear pros for everyday operation: [redwhitevalvecorp]
- Fast, intuitive operation: A simple 90‑degree turn, with open/closed position easy to see at a glance.
- Excellent for emergency shut‑off: Ideal near equipment, chemical dosing points, and zones where operators need instant isolation.
- Compact vertical footprint: Because the handle swings horizontally, lever‑operated ball valves fit well under platforms or low ceilings.
In water treatment plants, these benefits translate into shorter response times in leak or over‑flow scenarios and simplified operator training, especially where shift teams rotate frequently. [blog.saleslayer]
However, a lever is not always the right answer: [wsv-valve]
- High torque on larger sizes: For larger diameter ball valves under higher pressure, the manual torque required can exceed comfortable manual limits.
- Limited fine throttling: Lever‑operated ball valves are structurally capable of some throttling, but they are not ideal where very fine flow control is needed, such as chemical dosing or small bypass lines.
- Horizontal clearance required: The handle must have room to swing the full 90 degrees – a real constraint in dense pipe racks or valve galleries.
In my experience, once you move beyond a certain size/pressure combination, it's more practical to specify gear‑operated or actuated ball valves instead of forcing a lever solution. [quickcreator]
Where lever handles excel at speed, handwheels excel at control and mechanical advantage. [wsv-valve]
They are most commonly seen on gate, globe, diaphragm, and large butterfly valves, especially in higher pressure or larger diameter lines. [wsv-valve]
A handwheel is attached to a spindle or stem, often via a threaded mechanism or gearbox. [redwhitevalvecorp]
Turning the wheel translates into multiple rotations of the stem, raising or lowering the closure element gradually. This allows for fine‑grained positioning and much higher torque transfer with less operator effort. [blog.saleslayer]
For plant operators, this means:
- Better throttling control
- Reduced effort on large valves
- Longer reaction time (no sudden jumps in flow)
Handwheels bring several important benefits to industrial water and municipal systems: [redwhitevalvecorp]
- Precise flow adjustment: Ideal where you need to modulate flow – for example, balancing flows between treatment trains or controlling bypass lines.
- High torque capability: Gear‑operated handwheels can safely operate large valves or higher pressure lines without over‑stressing the operator.
- Clear positional feedback: Stroke indicators or stem position provide visual confirmation of open, closed, or intermediate positions.
In pump stations or filter galleries, engineers often specify handwheel‑operated gate or butterfly valves on large mains where speed is less important than control and torque. [wsv-valve]
There are trade‑offs: [blog.saleslayer]
- Slower operation: Multi‑turn operation is deliberate by design, which can be a disadvantage in emergency isolation scenarios.
- Vertical and radial space requirements: Rising stems and large wheels need clearance both above and around the valve – a problem in cramped underground chambers or crowded pipe racks.
- Potential maintenance issues: If not maintained, packing or stem seals may leak, and gearboxes can degrade over time, especially in corrosive or flooded environments.
In buried chambers or tight utility corridors, I've seen more than one project switch from handwheel to non‑rising stem or actuator solutions when as‑built conditions made manual access unrealistic. [redwhitevalvecorp]

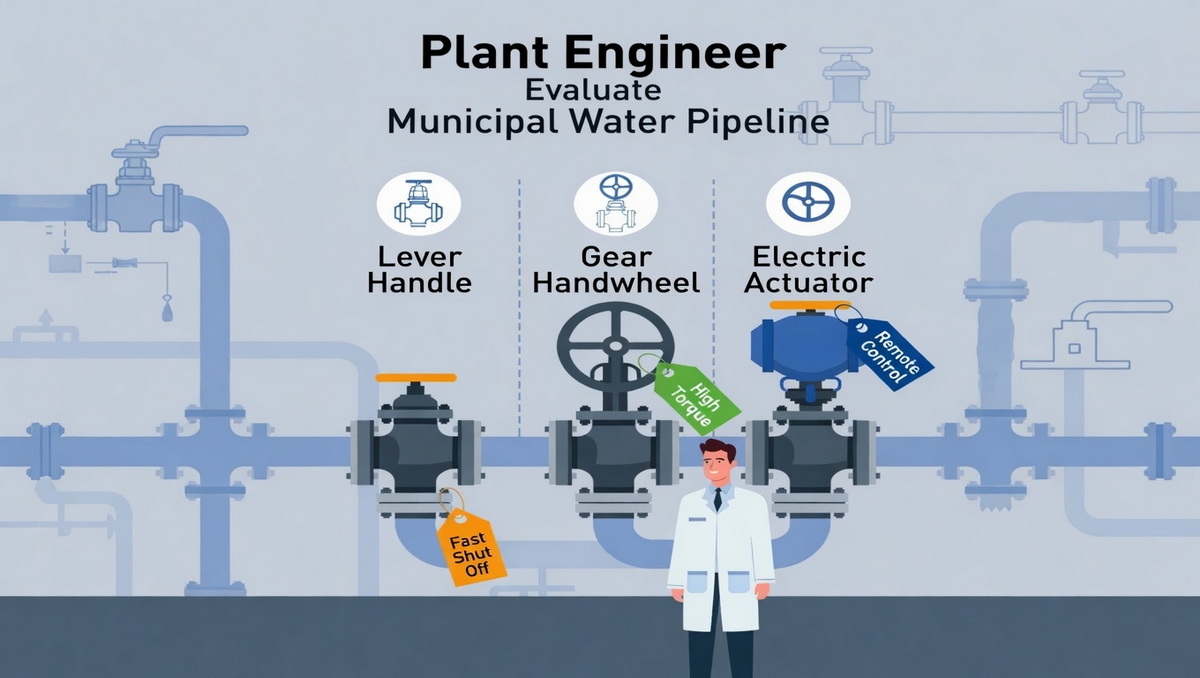

Many newer water treatment plants and smart city pipeline projects are moving to actuated valves for critical nodes, with no manual handle at all. [blog.saleslayer]
- Electric actuators are common for remotely monitored trunk lines and treatment plant header valves. [redwhitevalvecorp]
- Pneumatic actuators are frequent in process areas where air supply is already available. [blog.saleslayer]
- Hydraulic actuators see use where very high forces are needed or in safety‑critical installations. [redwhitevalvecorp]
For ball valves above a certain size or where SCADA integration and remote control are mandatory, specifying actuated valves from the start avoids retrofits and improves safety. [quickcreator]
In our own ball valve portfolio for water treatment, we often pair larger bore valves with electric or pneumatic actuators, while still providing local manual override where standards or operator preference require it. (Customize this sentence with your product details.)
Beyond the basic lever vs handwheel decision, there are important design variations that affect usability: [blog.saleslayer]
Manual butterfly valves in smaller sizes frequently use lever handles with notched position plates. [blog.saleslayer]
These allow operators to lock the disc at defined angles, combining fast operation with basic throttling capability. [redwhitevalvecorp]
On small valves – particularly needle valves, PVC ball valves, and compact service valves – you'll often see T‑handles, which provide a comfortable grip in tight spaces. [blog.saleslayer]
We see these frequently in instrument connections, sampling lines, and small utility branches. [redwhitevalvecorp]
When torque exceeds what a plain handwheel can comfortably deliver, gearboxes are introduced between the wheel and stem: [wsv-valve]
- They multiply torque, allowing manual control of large‑diameter or high‑pressure valves.
- They reduce operator fatigue and improve safety by avoiding sudden movements.
In tight vertical spaces, non‑rising stem designs keep the handwheel in a fixed position while the internal stem moves. [redwhitevalvecorp]
These are particularly useful in underground chambers and plant rooms with low headroom. [wsv-valve]
Understanding typical failure modes helps you specify handles that align with real‑world maintenance constraints. [blog.saleslayer]
- Lever‑operated ball valves (linear shut‑off behavior) tend to maintain a tight seal longer, especially in low‑pressure applications and where throttling is minimal. [blog.saleslayer]
- Rotary multi‑turn valves like gate and globe can be more prone to leakage when fully shut, particularly after years of operation or debris accumulation, even though they can be leak‑tight when fully open. [wsv-valve]
In many water and municipal applications with on/off duty and low throttling requirements, the combination of ball valve + lever handle is often the most robust, low‑maintenance choice. [quickcreator]
| Scenario / Requirement | Prefer Lever Handle Ball Valve | Prefer Handwheel / Gear‑Operated Valve |
|---|---|---|
| Need for very fast shut‑off (emergency isolation) | Yes – 90‑degree turn, instant status blog.saleslayer | No – multi‑turn operation blog.saleslayer |
| Large diameter, high‑pressure main line | Only with gear/actuator; levers alone often impractical blog.saleslayer | Yes – gate or butterfly with gear‑operated handwheel blog.saleslayer |
| Fine throttling or flow balancing | Limited; not ideal for precise control blog.saleslayer | Yes – globe/diaphragm with handwheel blog.saleslayer |
| Tight vertical space, good horizontal clearance | Yes – lever needs little height blog.saleslayer | Non‑rising stem possible but wheel still needs space blog.saleslayer |
| Tight horizontal space, reasonable vertical clearance | No – swing path may be blocked blog.saleslayer | Yes – handwheel often better blog.saleslayer |
| Low‑pressure, low‑throttling water lines | Ideal – lever ball valves highly reliable blog.saleslayer | Possible, but usually more than you need blog.saleslayer |
In a recent pump station retrofit for a municipal water network, the engineering team initially specified handwheel‑operated gate valves on several DN200 distribution lines. After reviewing torque, operator routes, and emergency response procedures, they switched those positions to lever‑operated ball valves up to a defined pressure limit, retaining handwheel‑operated valves only on the largest trunk mains. [quickcreator]
This change resulted in:
- Faster isolation during pump trips and power failures
- Reduced operator training time
- Lower long‑term maintenance for seats and stems in frequently operated lines
At the same time, critical trunk lines remained handwheel/gear‑operated to keep torque manageable and allow gradual ramp‑up of flows. [wsv-valve]
When you're deciding between a lever handle and a handwheel (or actuator), walk through this simple checklist:
1. Define the primary function.
- Is the valve mainly for on/off isolation or continuous throttling? [wsv-valve]
2. Check size and pressure.
- As diameter and pressure increase, manual torque rises – beyond a certain point, gear‑operated or actuated becomes safer than a bare lever. [redwhitevalvecorp]
3. Assess space constraints.
- Is there enough horizontal space for lever swing? Enough vertical and radial space for a wheel and stem? [blog.saleslayer]
4. Review operation frequency and staffing.
- Frequently operated valves in busy plants favor simple, intuitive levers for small sizes; rarely operated critical valves may justify handwheel + gearbox or actuator. [redwhitevalvecorp]
5. Map to your control philosophy.
- If SCADA integration, remote monitoring, or interlocks are required, consider actuated valves instead of purely manual handles. [quickcreator]
As a ball valve manufacturer focused on water treatment and municipal pipeline applications, we typically see our valves used in three broad operating modes:
- Manual lever‑operated isolation on small and medium bore lines (branch lines, equipment connections, drain and vent lines). [blog.saleslayer]
- Gear‑operated ball valves where diameter and pressure demand torque reduction but full automation is not required. [redwhitevalvecorp]
- Actuated ball valves in critical nodes (e.g., plant headers, interconnections, remote district lines) where integration with monitoring and control systems is essential. [quickcreator]
By working with distributors and EPC teams early, we help align handle type, actuator specification, and valve design with the actual operating realities of each project – from compact treatment skids to large municipal trunk networks. [gorilla]
Beyond the valve itself, handle layout and UX in the plant or pipeline corridor make a big difference for safety and maintainability. [bcm]
Consider these best practices:
- Align handle orientation with flow direction where possible, so operators intuitively understand open/closed states. [blog.saleslayer]
- Avoid overlapping lever swing paths in dense manifolds – allow full 90‑degree movement without obstruction. [blog.saleslayer]
- Use consistent handle colors and tags to denote media (e.g., raw water vs treated water) and function (isolation vs drain). [quickcreator]
- Ensure safe access: handles should be reachable without climbing over pipes or standing on unstable surfaces. [bcm]
For new builds and major retrofits, we often review 3D models or P&IDs with EPC partners to flag potential interference or accessibility issues before valves are installed. [quickcreator]
There are clear signals that your project is outgrowing purely manual handles: [quickcreator]
- High‑consequence lines where delayed isolation could cause flooding, contamination, or extended service disruption
- Valves located in hazardous or hard‑to‑reach areas (deep pits, traffic corridors, confined spaces)
- Networks where remote monitoring and centralized control are becoming standard
In these cases, we typically recommend evaluating electric or pneumatic actuators on ball valves, with a clear manual override strategy and coordination with your SCADA and safety systems. [redwhitevalvecorp]
If you are planning or upgrading a water treatment plant, wastewater facility, or municipal pipeline, choosing between lever, handwheel, and actuation should be part of your early design decisions—not a last‑minute hardware choice. [quickcreator]
At Tianjin Wode Valve Co., Ltd., we support global distributors, EPC contractors, and international valve brands with:
- Application‑specific guidance on lever vs handwheel vs actuator for ball valves
- Recommendations based on line size, pressure, medium, and installation constraints
- Custom configurations for water treatment and municipal projects worldwide
Call to action:
If you'd like expert input on valve handle selection for your next project, contact our engineering team with your line sizes, media, and design pressures, and we'll help you choose the most reliable, safe, and cost‑effective ball valve configuration for your application. [windmillstrategy]
Both can be safe when correctly applied. Lever handles are safer for fast on/off isolation on smaller lines, while handwheels or actuators are safer on large, high‑torque valves where manual lever operation would be strenuous or unreliable. [wsv-valve]
They can perform limited throttling, but for precise or continuous flow control, globe or diaphragm valves with handwheels (or actuated control valves) are usually better choices to avoid seat damage and unstable control. [wsv-valve]
Once valve size, pressure, or medium viscosity pushes manual torque above comfortable limits, it's time to move to gear‑operated handwheels or actuators, especially on trunk mains and high‑pressure headers. [redwhitevalvecorp]
If horizontal space is limited, lever swing may be blocked, making handwheels or non‑rising stem designs more suitable. If vertical space is limited, lever‑operated ball valves or non‑rising stem valves often fit better than rising‑stem handwheel valves. [wsv-valve]
For remote or high‑consequence nodes, actuated ball or butterfly valves (electric or pneumatic) integrated with SCADA are typically preferred over purely manual handles, often with a local manual override for backup. [quickcreator]
