In modern water treatment plants and municipal pipeline networks, the actuator you put on a ball valve often has more impact on reliability and safety than the valve body itself. From my daily work with global distributors and EPC contractors in water infrastructure projects, I see the same pattern: projects fail not because the valve leaks on day one, but because the actuator is undersized, mis‑specified, or impossible to maintain after commissioning. [quickcreator]
Selecting the right valve actuator for ball valves is therefore not a catalog exercise; it is an engineering decision that affects uptime, operator safety, energy consumption, and lifecycle cost. In this guide, I will walk through actuator types, key selection criteria, and practical lessons learned from real projects in water and municipal applications. [matvalve]
Every actuator you mount on a ball valve must reliably perform several non‑negotiable functions. [globalspec]
- Move the closure element (ball) with enough torque to overcome pressure, friction, and any build‑up or scaling in the line. [globalspec]
- Hold the valve securely in position against process forces so it does not drift under differential pressure. [globalspec]
- Seat the valve properly to achieve the specified shut‑off class for your application. [globalspec]
- Follow a defined fail position (fail‑open, fail‑closed, or fail‑last) when power, air, or signal is lost. [globalspec]
- Deliver the required angle of rotation, typically 90° for quarter‑turn ball valves. [globalspec]
- Operate at a cycle speed that matches process and safety requirements, from emergency shut‑down to slow, controlled stroking. [globalspec]
In practice, when a plant operator complains that a valve is "not working," the root cause is often that one of these actuator functions was never properly specified or validated in the design stage. [globalspec]

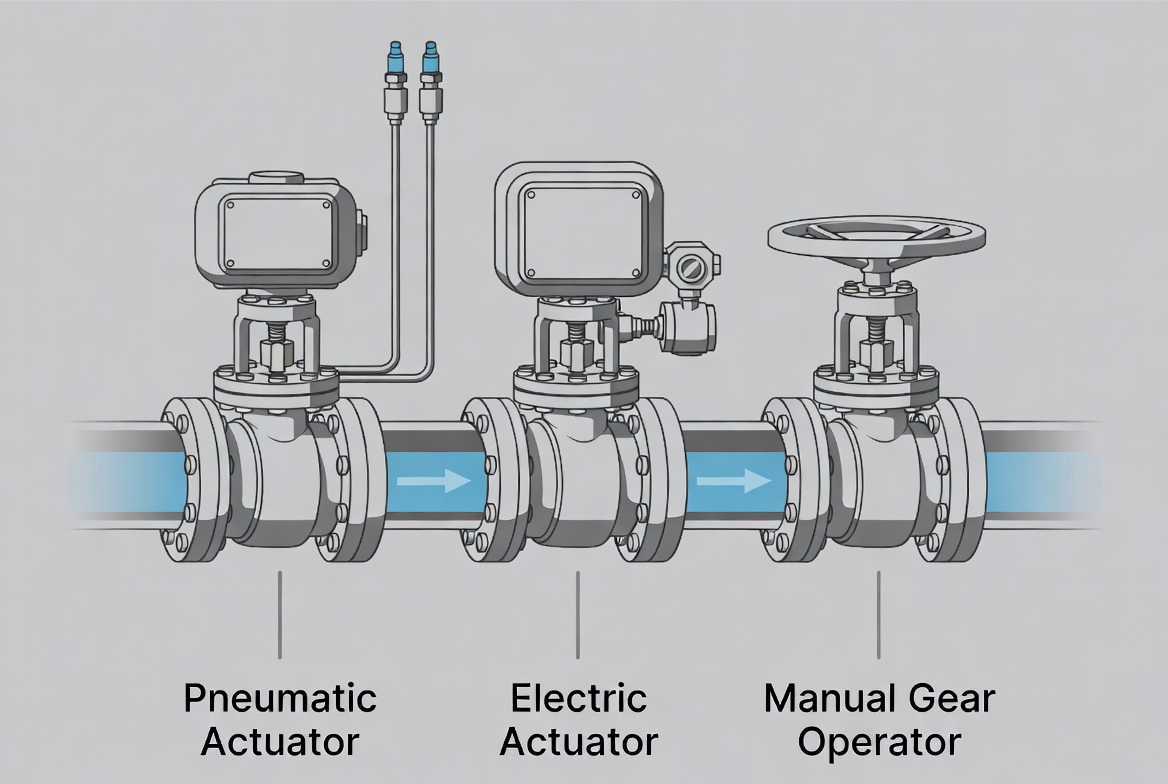

Although there are many specialized mechanisms, most ball valve projects come down to a choice between pneumatic and electric actuators, with hydraulic and manual gear/lever solutions filling specific niches. [matvalve]
Pneumatic actuators use compressed air to generate the torque needed to rotate the ball. [matvalve]
Key characteristics: [matvalve]
- Typical supply: 40–120 psi clean, dry compressed air.
- Available in spring‑return (fail‑safe) and double‑acting designs.
- Well‑suited to hazardous (explosive) environments because the actuator itself is effectively explosion‑proof. [matvalve]
Advantages for water and municipal: [matvalve]
- Fast response for emergency shut‑off.
- Simple, robust construction with low maintenance needs.
- Easy to implement mechanical fail‑close or fail‑open functions with springs.
Limitations:
- Requires a reliable air system; poor air quality quickly causes failures.
- Air leaks and over‑sizing can waste energy.
Electric actuators use an electric motor (AC or DC) with gear reduction to provide quarter‑turn motion. [matvalve]
Key characteristics: [matvalve]
- Typical supply: 110 VAC is common, with other AC/DC options available.
- Ideal where compressed air is not available or is cost‑prohibitive. [matvalve]
- Often integrated with smart controls, position feedback, and network protocols.
Advantages for water and municipal: [globalspec]
- Excellent for remote or distributed assets with electrical infrastructure but no plant air.
- Precise control, easier integration into SCADA or PLC systems.
- Good for modulating services (flow control) on ball valves.
Limitations:
- In hazardous areas, you must specify explosion‑proof enclosures (for example NEMA VII). [matvalve]
- Sensitive to high ambient temperatures if not properly cooled or derated.
Hydraulic actuators are less common in municipal water but appear in high‑pressure or critical energy applications. They use pressurized oil to generate very high torque in a compact package. [globalspec]
When they make sense:
- Very large‑diameter ball valves under high pressure.
- Where extremely fast, powerful operation is required, and hydraulic infrastructure already exists. [globalspec]
Even in highly automated plants, some ball valves will still use manual gearboxes, handwheels, or levers. [globalspec]
- Used for low‑criticality or infrequently operated valves.
- Often combined with declutchable gearboxes so maintenance teams can manually override an actuator in the field. [globalspec]
From discussions with EPC partners and valve distributors, most debates center on pneumatic vs electric actuators on ball valves. The table below summarizes key practical trade‑offs for water and municipal pipeline projects. [matvalve]
| Factor | Pneumatic Actuator | Electric Actuator |
|---|---|---|
| Power source | Compressed air, typically 40–120 psi matvalve | 110 VAC or other AC/DC supply matvalve |
| Hazardous areas | Naturally explosion‑proof, preferred in classified zones matvalve | Requires explosion‑proof enclosure (e.g., NEMA VII) matvalve |
| Fail‑safe behavior | Simple spring‑return to fail‑open/close matvalve | Achieved via backup power or special design |
| Speed of operation | Very fast closing possible | Typically slower, but controllable |
| Control and feedback | Often needs external positioners | Integrated electronics and communication easily matvalve |
| Maintenance | Air quality and seals need monitoring | Electrical and gear components require periodic checks |
| Typical use | ESD, safety, high‑cycle service | Remote, modulating, and smart automation service |
For a buried municipal water pipeline block valve with limited power availability but a well‑designed air system, I routinely recommend a pneumatic spring‑return actuator set to fail‑closed for safety. For a treatment plant's filtration control where precise flow modulation and remote diagnostics are essential, an electric actuator with position feedback is often a better fit. [matvalve]
Ball valves are quarter‑turn devices, so you need a quarter‑turn actuator with the correct output drive interface. Always confirm whether any gearbox is required to match the torque curve and operating time you need. [matvalve]
Checklist:
- Quarter‑turn actuator compatible with ISO mounting pads.
- Correct stem connection (square, keyed, or splined).
- Required rotation angle (usually 90°, occasionally with travel stops). [globalspec]
Under‑sizing torque is one of the most common and costly mistakes in actuator selection. Proper torque sizing should consider: [globalspec]
- Valve manufacturer's torque data (break torque, run torque, and reseat torque) under design pressure. [globalspec]
- Medium characteristics: clean water vs sludge, slurry, or wastewater with solids.
- Operating frequency and potential for build‑up or scale over time.
A typical good practice is to apply a safety factor on the calculated torque, adjusted for medium and service severity. For example, on a clean‑water ball valve, a 20–30% margin may be sufficient, while for raw wastewater it may be significantly higher. [globalspec]
Environment should never be an afterthought; it directly impacts actuator materials, sealing, and enclosures. [matvalve]
Key environmental parameters include:
- Ambient temperature range (for example from winter minimum to summer peak). [matvalve]
- Humidity, condensation, or risk of flooding in pits and chambers.
- Corrosive atmospheres, salt spray (coastal cities), or chemical vapors.
- Hazardous area classification (ATEX, Class I Div 1/2, etc.).
Pneumatic actuators, with appropriate seals, can operate at elevated temperatures up to around 120°F in many designs, while electric actuators can be specified for low‑temperature environments down to approximately ‑40°F with proper preparation. [matvalve]
In early design meetings, one of my first questions to project teams is: "What utilities will be available at the valve location on day one?"
- If compressed air at stable pressure and quality is available across the plant, pneumatic actuators are often the most robust and economical. [matvalve]
- If electrical infrastructure is strong but there is no air system, electric actuators usually win. [matvalve]
- For isolated or buried installations, you may need hybrid solutions with solar power, local air reservoirs, or manual backup.
Modern treatment plants increasingly use centralized SCADA or distributed control systems. This means your actuator is part of a digital network, not just a mechanical device. [matvalve]
Consider:
- Required control mode: on‑off, modulating, or emergency shut‑down.
- Feedback signals: analog, digital, or fieldbus (Modbus, Profibus, etc.).
- Diagnostic data: cycle counts, torque trends, and alarm history for predictive maintenance.
Choosing an actuator line with well‑documented communication options and clear integration guides reduces commissioning time and long‑term troubleshooting costs. [netwaveinteractive]

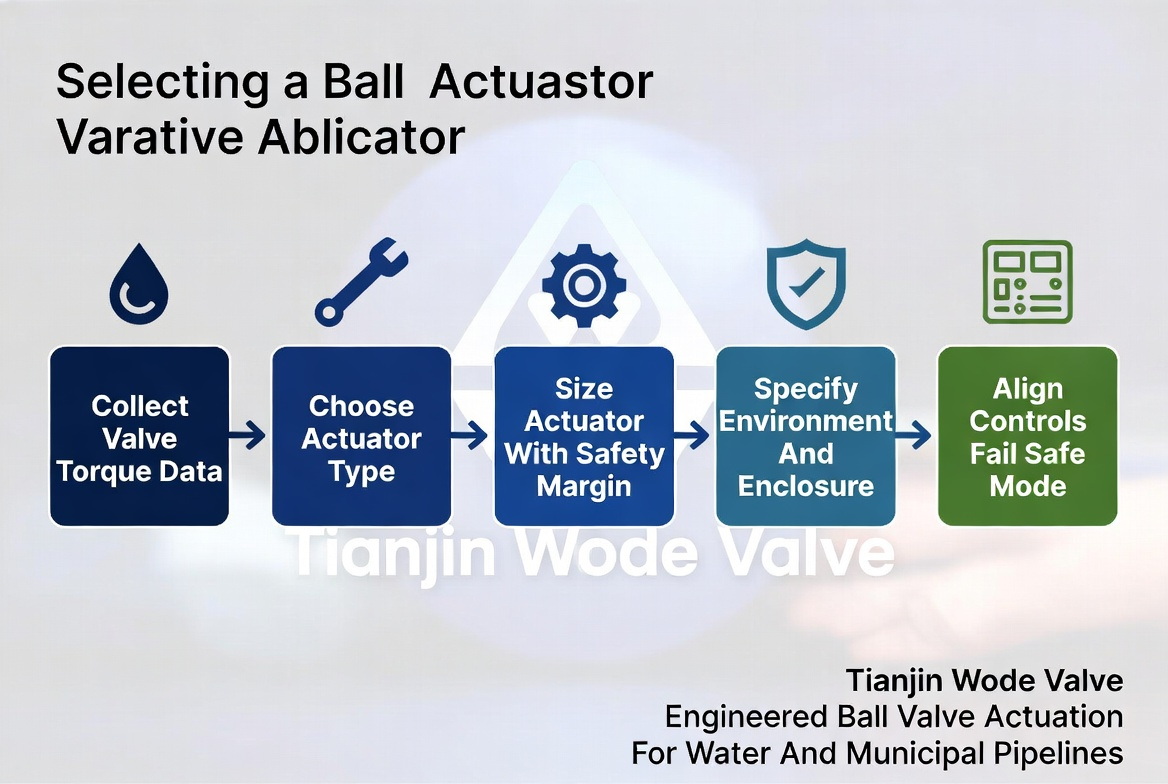

Based on multiple water treatment and municipal pipeline projects, this is the practical six‑step process I recommend to engineers and buyers.
1. Define the application clearly
- Medium (clean water, wastewater, chemical dosing).
- Pressure range, temperature, and required shut‑off class. [datianvalve]
2. Gather valve torque data from the manufacturer
- Break, run, and reseat torques at design conditions. [globalspec]
- Any derating factors for media or temperature.
3. Choose the actuator type
- Pneumatic for ESD and high‑cycle safety functions with plant air. [matvalve]
- Electric for smart, modulating, or remote applications.
- Hydraulic or hybrid where extreme torque is needed. [globalspec]
4. Size the actuator with safety margin
- Use manufacturer sizing charts or selection software. [globalspec]
- Apply appropriate safety margins and account for potential build‑up.
5. Specify environmental and enclosure requirements
- IP or NEMA rating, corrosion protection, heater/thermostat options.
- Explosion‑proof or non‑sparking design if needed. [matvalve]
6. Align controls, feedback, and fail‑safe mode with plant philosophy
- Define fail‑open/closed behavior explicitly.
- Confirm compatibility with SCADA/PLC hardware and protocols. [matvalve]
When these steps are followed systematically, problems with actuators in the first year of operation drop sharply in my experience.
On a recent municipal project, a series of large‑diameter ball valves were installed on a ring main supplying drinking water to a metropolitan district. The original specification called simply for "electric actuators, 110 VAC, IP67."
During detailed design review, several risks emerged: frequent power outages in some districts, flood‑prone underground chambers, and a requirement for automatic shut‑off during line bursts. By re‑evaluating the actuator strategy, the project team implemented:
- Pneumatic spring‑return actuators for the critical block valves in flood‑prone areas, fed from centralized air stations and designed to fail‑closed on loss of air or power.
- Electric actuators with local backup power for above‑ground valves where modulating control and detailed diagnostics were needed.
This hybrid approach reduced risk of uncontrolled water loss during mains failures and simplified long‑term maintenance, while staying within budget constraints.
As a dedicated ball valve manufacturer serving global distributors, EPC contractors, and international valve brands, Tianjin Wode Valve Co., Ltd. focuses on more than just casting and machining. In water treatment and municipal pipeline projects, our engineering team routinely works with customers to: [wodevalve]
- Recommend appropriate actuator types and torque ranges based on real operating conditions.
- Validate sizing with application data rather than theoretical assumptions.
- Configure mounting kits, ISO pads, and stem connections for smooth integration.
- Provide documentation and test reports that help your project satisfy regulatory and audit requirements. [quickcreator]
This collaborative approach helps buyers avoid over‑simplified "off‑the‑shelf" selections that may look cheaper initially but create operational risks later.
The most common actuator types are pneumatic quarter‑turn actuators for safety and isolation, and electric quarter‑turn actuators where precise control and remote diagnostics are required. [globalspec]
You should compare the actuator's rated torque to the valve manufacturer's break, run, and reseat torque values, then add an appropriate safety factor based on the medium and service conditions. If you do not have complete torque data, request it from the valve manufacturer before finalizing actuator selection. [globalspec]
Choose spring‑return when you need the valve to move to a safe position (open or closed) automatically if power or air is lost, such as in emergency shut‑down or line‑break scenarios. Double‑acting actuators are suitable when fail‑safe positioning is not critical and you want a more compact or energy‑efficient solution. [matvalve]
Yes, electric actuators can be used in hazardous areas if they are supplied with appropriate explosion‑proof enclosures and certified for the relevant classification. However, in many explosive atmospheres, pneumatic actuators are preferred because they are inherently non‑sparking and easier to justify from a risk perspective. [matvalve]
At a minimum, request actuator data sheets, valve torque curves, mounting arrangement drawings, wiring diagrams, and any applicable certification or compliance documentation (ISO, API, local standards). For critical valves, factory acceptance test (FAT) reports and functional test records are also recommended. [quickcreator]
