In many pipeline systems, especially in water treatment plants and pump stations, water hammer is a common and potentially damaging phenomenon.
Sudden pressure surges caused by rapid flow changes can lead to serious problems such as pipe vibration, valve damage, and even pipeline failure.
Selecting the right type of check valve is one of the most effective ways to minimize water hammer risks.Among the available designs, dual plate check valves are widely recognized for their fast response and reduced impact during flow reversal.
Water hammer occurs when a fluid in motion is forced to stop or change direction suddenly.
This usually happens when:
A pump stops suddenly
A valve closes too quickly
Flow reverses rapidly in the pipeline
When the moving water column stops abruptly, it creates a pressure surge that travels through the pipeline, sometimes reaching several times the normal operating pressure.
Consequences of water hammer may include:
Pipe joint damage
Valve seat failure
Excessive vibration
Noise and structural stress
Therefore, preventing reverse flow quickly and smoothly is critical.
Different check valve types respond differently when flow direction changes.
Traditional designs such as swing check valves rely on a large disc that must travel a longer distance before closing.
This slower response allows reverse flow to build up momentum before the valve shuts, which can intensify the water hammer effect.
In contrast, dual plate check valves are specifically designed to close faster and reduce impact forces.

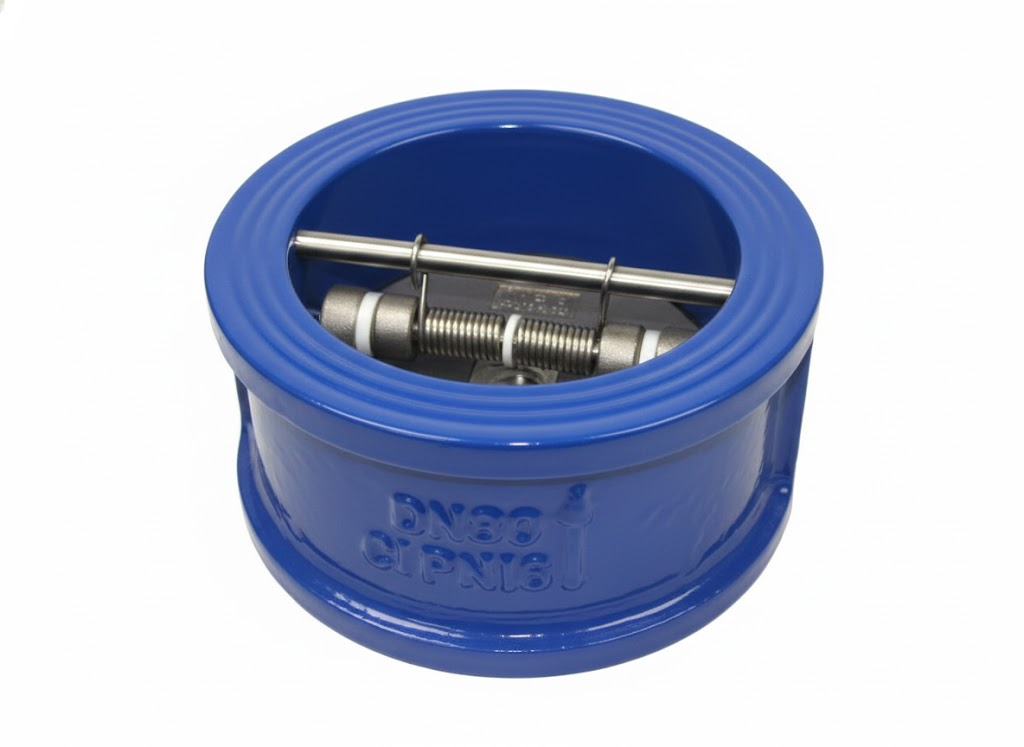

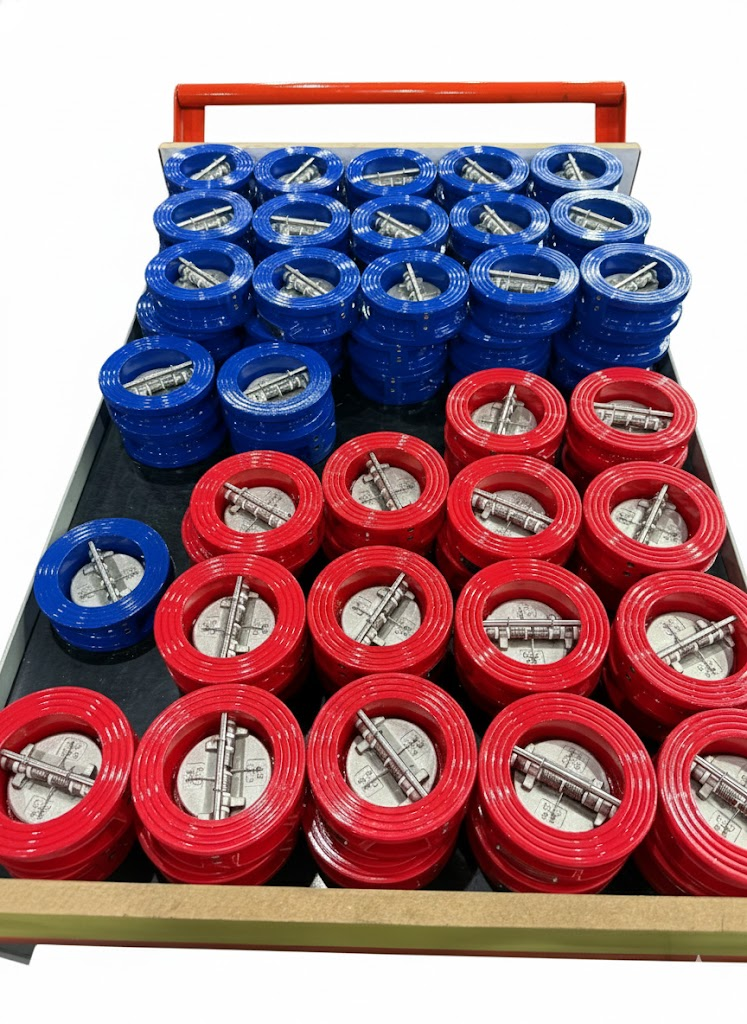

A dual plate check valve typically includes:
Two spring-loaded plates (discs)
A central hinge pin
A compact wafer-style body
Torsion springs that assist closing
The two plates open when forward flow pushes them outward.When flow velocity decreases or reverses, the springs immediately start closing the plates.
Because the plates are smaller and lighter than those in swing check valves, they require much less travel distance to close.
Several design features contribute to improved water hammer protection.
The plates rotate only a small angle when opening and closing.
This means the valve can react faster to flow reversal, reducing the amount of reverse flow that occurs before closure.
Torsion springs apply closing force even before reverse flow begins.
This preloading effect ensures that the valve begins closing immediately when flow slows down.
As a result, the closing action becomes smoother and more controlled.
Compared with a single large swing disc, dual plates have much lower inertia.
Lower inertia allows the valve to close faster and reduces the impact force when the plates contact the seat.
The wafer body design minimizes internal flow resistance while maintaining structural stability.
This compact structure is particularly suitable for large pipeline systems where space and weight are considerations.
Dual plate check valves are widely used in systems where water hammer risks must be minimized.
Common applications include:
Pump discharge pipelines
Municipal water supply systems
Wastewater treatment plants
Cooling water systems
Industrial process pipelines
In these installations, quick response to flow reversal is essential for protecting pumps and piping infrastructure.
To achieve the best performance, several factors should be considered when selecting a dual plate check valve.
Spring torque must be properly matched to the flow conditions.If the spring is too weak, the valve may close too slowly.
For corrosive or seawater environments, stainless steel discs such as 316 or duplex materials may be preferred.
Although dual plate check valves can be installed horizontally or vertically, the installation direction should always follow the flow arrow marked on the valve body.
Correct installation ensures proper plate movement and reliable sealing.
Water hammer can cause significant damage to pipeline systems if not properly controlled.
By using dual plate check valves with spring-assisted closing mechanisms, engineers can significantly reduce reverse flow and minimize pressure surges.
Their compact structure, fast response, and reliable sealing performance make them one of the most effective solutions for modern water and industrial pipeline systems.
In practical engineering applications, the effectiveness of a dual plate check valve depends not only on the basic design but also on manufacturing precision, spring calibration, and proper material selection.
For this reason, selecting a manufacturer with solid OEM experience and strict quality control processes is critical for long-term reliability.
