Custom ball valve assemblies are not just "special order" products. For water treatment plants, municipal pipelines, and international EPC projects, they are often the difference between a system that merely works and one that is reliable, maintainable, and cost-efficient over the long term. As a manufacturer focused on ball valves for water treatment and municipal applications, Tianjin Wode Valve Co., Ltd. understands that buyers need more than a valve body and actuator—they need a complete solution built around pressure class, media, installation space, automation, compliance, and lifecycle performance.
Standard valves can solve standard problems. But municipal infrastructure and water treatment systems rarely stay standard for long. Pipe routing, limited installation space, corrosive media, automation requirements, and regional compliance rules often demand a tailored assembly instead of an off-the-shelf product. Assured Automation notes that special-order and custom assemblies are used for unique applications and that this type of project support is backed by more than 20 years of experience. [quickcreator]
A custom ball valve assembly helps engineers and procurement teams reduce risk in three ways:
- It improves fit. The valve is configured for the exact process and mechanical requirements.
- It improves function. Actuation, accessories, and end connections can be matched to system needs.
- It improves reliability. Proper specification reduces leakage risk, installation errors, and unplanned downtime.
For buyers in water treatment and municipal networks, this is especially important because system interruptions can affect service continuity, public safety, and maintenance budgets.

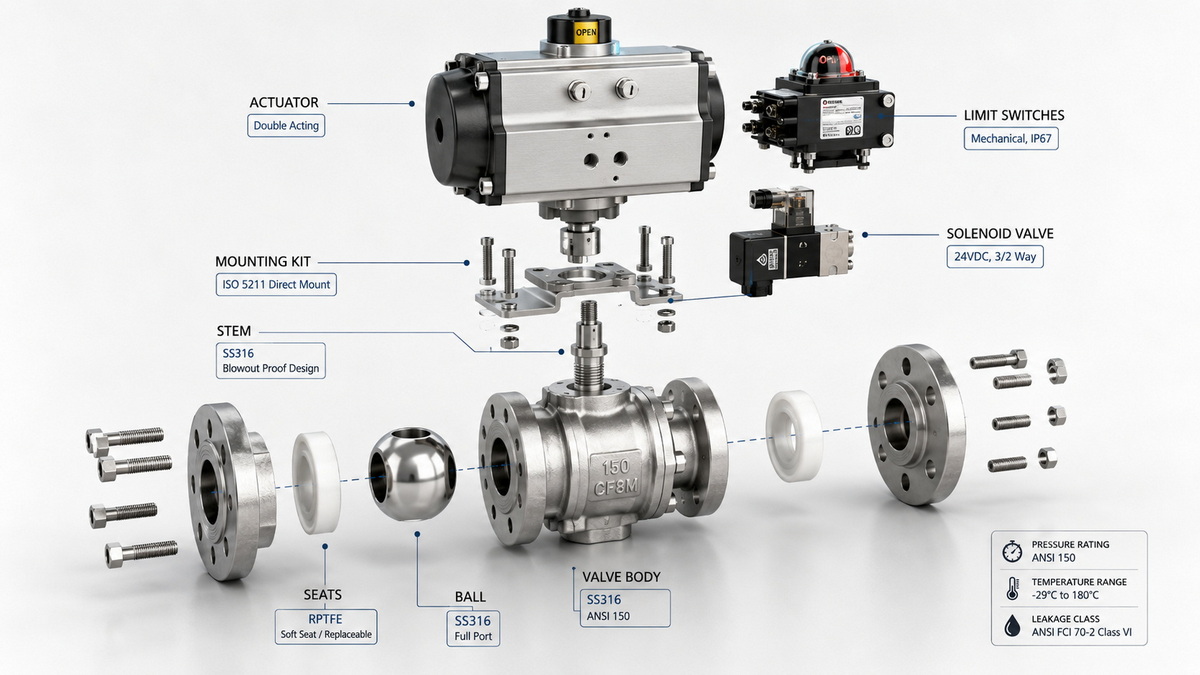

A custom ball valve assembly is more than the valve itself. It typically combines the valve, actuator, mounting kit, accessories, and sometimes engineered end connections or special materials. Assured Automation's product pages show that complete assemblies may include accessories such as limit switches, solenoid valves, positioners, and manual override devices. [assuredautomation]
A well-designed assembly may include:
- Valve body and trim, selected by pressure, temperature, and media.
- Ball and seat materials, matched to sealing and wear requirements.
- Actuation package, manual, pneumatic, or electric.
- Instrumentation accessories, such as limit switches or position feedback.
- Connection style, including flanged, threaded, clamp-end, or hybrid configurations.
- Documentation, such as datasheets, test records, and certifications.
For project teams, this integrated approach reduces the number of vendors involved and shortens the path from specification to installation.
Choosing the right custom ball valve assembly starts with understanding the service conditions. Ball valves are widely used because they provide quick quarter-turn operation, tight shutoff, and low pressure drop. They are also suitable for many clean liquid services, including water distribution and treatment systems. [youtube]
Water treatment systems may handle raw water, treated water, wastewater, chemicals, or sludge-adjacent service. Each media type affects seat selection, corrosion resistance, and sealing strategy. Soft-seated designs are usually preferred for clean water and isolation service, while harder service conditions may require more durable sealing materials. [yuming-valves]
Pressure class, allowable working pressure, and temperature range must all be aligned with the system design. If the assembly will be installed in a pumping station, treatment train, or transmission line, the actuator and valve must be rated accordingly.
Municipal and EPC projects often demand precise connection compatibility. Flanged ends simplify large-line installation, while hybrid assemblies may be needed where two systems or standards meet.
If the valve must be remotely operated or integrated into a control system, actuator selection becomes critical. Assured Automation highlights the availability of electric and pneumatic actuators along with accessories for complete assemblies. [quickcreator]
A custom assembly should not only fit the line. It should also fit the maintenance strategy. If operators cannot access the actuator, packing, or accessories easily, lifecycle costs rise fast.
Different applications call for different assembly formats. The best custom configuration depends on whether the valve is for isolation, diversion, mixing, or automated shutoff.
| Configuration | Typical Use | Value to the Project |
|---|---|---|
| 2-way ball valve assembly | On/off isolation | Simple, compact, cost-effective |
| 3-way ball valve assembly | Diversion or mixing | Reduces the need for multiple valves |
| Flanged assembly | Municipal mains, treatment plants | Easier installation in larger pipelines |
| Clamp-end sanitary assembly | Clean processing and specialty services | Fast maintenance and hygienic integration |
| Actuated assembly | Remote or automated control | Better operational control and consistency |
Assured Automation also describes a 3-way ball valve arrangement that can replace a tee plus two valves, saving space and reducing installation and maintenance time. That same design logic is highly relevant in compact municipal skid packages and packaged water-treatment systems. [assuredautomation]
The strongest custom valve supplier is not the one with the longest catalog. It is the one that helps engineers solve the real problem. Assured Automation emphasizes project support, expert guidance, CAD files, and datasheets for complete assemblies. That is a useful benchmark because buyers increasingly expect technical content before they issue an RFQ. [quickcreator]
For manufacturers like Tianjin Wode Valve Co., Ltd., this creates an opportunity to deliver more value through:
- Application engineering support
- Configuration guidance
- Material selection advice
- Actuation and accessory matching
- Testing and quality documentation
- Fast response to project submittals
This is especially important for global distributors and EPC contractors, who often need repeatable documentation for approvals, submittals, and field coordination.

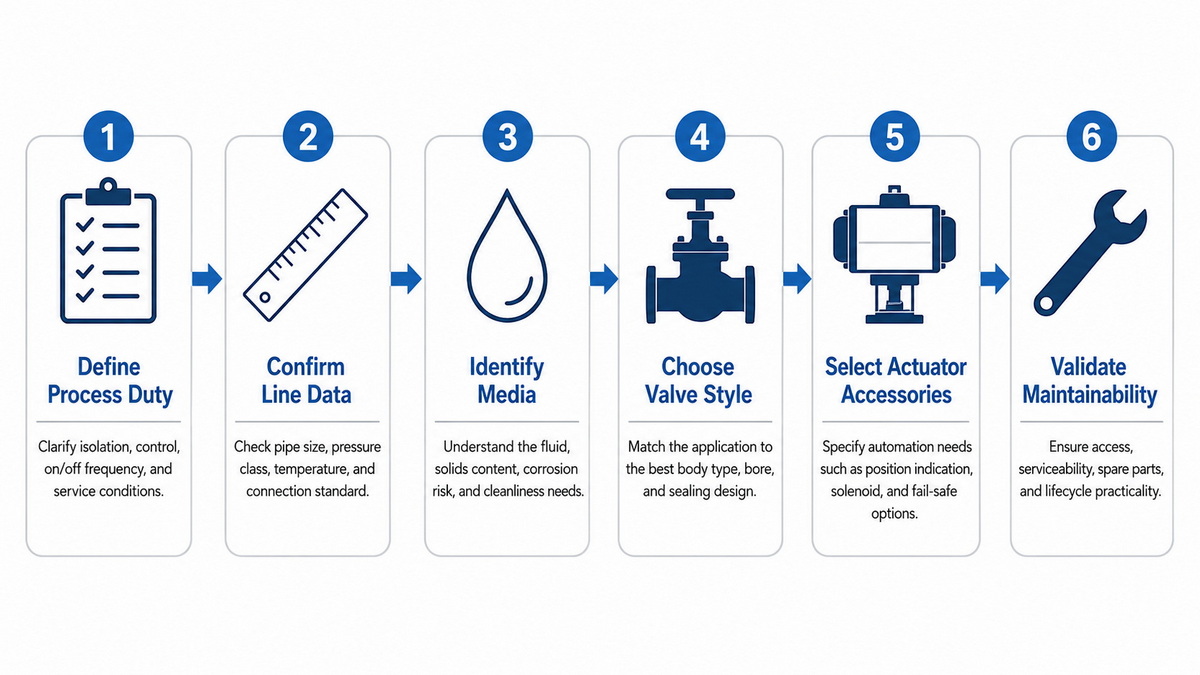

To reduce mistakes, specifiers should use a disciplined workflow. Ball valve selection guides consistently emphasize matching the valve to media, service conditions, and operating mode. [aimsindustrial.com]
1. Define the process duty. Isolation, diversion, mixing, emergency shutoff, or modulating duty.
2. Confirm line data. Pipe size, pressure class, temperature range, and connection standard.
3. Identify the media. Clean water, treated water, wastewater, chemicals, or mixed service.
4. Choose the valve style. Floating, trunnion, 2-way, 3-way, full port, or reduced port.
5. Select actuator and accessories. Manual, pneumatic, electric, feedback devices, solenoids, and overrides.
6. Validate maintainability. Ensure the assembly can be installed, inspected, and serviced without unnecessary downtime.
This sequence makes the buying process easier and improves the quality of the final assembly.
The market expectation has changed. Buyers now expect technical content, configurators, datasheets, CAD files, and application notes as part of the purchasing experience. In practice, that means your content should not stop at "we make custom valves." It should explain how custom assemblies reduce risk in project delivery, why specific materials are chosen, and what information buyers need to specify the right solution. [quickcreator]
For municipal and water-treatment buyers, three trends stand out:
- More automation. Remote operation and monitoring are increasingly standard.
- More documentation. Submittal packages must be complete and easy to approve.
- More space constraints. Compact assemblies reduce footprint in skids and stations.
This is where a supplier with engineering depth can stand apart from generic valve sellers.
Tianjin Wode Valve Co., Ltd. is positioned to serve global distributors, EPC contractors, and international valve brands that need dependable custom ball valve solutions for water treatment and municipal pipeline applications. A strong supplier in this space should combine manufacturing capability with application insight, fast communication, and project-friendly documentation.
For buyers, the real question is not "Can you make a custom ball valve?" The real question is "Can you build the right assembly for this exact project, document it properly, and support it after delivery?" That is the standard modern industrial buyers expect.
If your project requires a custom ball valve assembly, submit your line data, media details, pressure class, connection standard, and actuation requirements. Our engineering team can help configure a solution that is practical, compliant, and optimized for long-term service in water treatment and municipal pipeline systems.
A custom ball valve assembly is a valve package built to match specific application needs, often including the valve, actuator, mounting hardware, and accessories. [assuredautomation]
They are used because water treatment systems often require specific materials, connection styles, automation, and space-saving layouts that standard products may not match well. [piping-world]
Common accessories include limit switches, solenoid valves, positioners, and manual override devices. [assuredautomation]
A 3-way ball valve can handle diverting or mixing duties and may replace a tee plus two valves, saving space and reducing maintenance time. [assuredautomation]
Start with the media, pipe size, pressure class, temperature range, end connection, actuation method, and maintenance requirements. [aimsindustrial.com]
