In valve manufacturing, inspection and testing are not final steps; they are core quality controls that protect performance, safety, and long-term reliability. For butterfly valves, check valves, gate valves, ball valves, strainers, and expansion joints used in water treatment and municipal pipelines, a disciplined inspection process helps reduce leakage risk, shorten commissioning problems, and improve buyer confidence.
Valve failures are rarely caused by one single issue. In most cases, they come from a combination of material defects, dimensional deviation, poor assembly, incorrect surface treatment, or insufficient pressure testing. That is why a strong inspection program is essential for manufacturers supplying distributors, EPC contractors, and international valve brands.
A well-structured inspection system helps manufacturers:
- Catch defects before shipment.
- Verify that the valve matches the drawing and specification.
- Confirm sealing performance under test conditions.
- Reduce warranty claims and site failures.
- Build trust with global customers who expect traceable quality.
For water treatment and municipal applications, this matters even more. These systems often run continuously, and even a small defect can lead to leakage, pressure loss, or expensive downtime.
A professional inspection program usually covers the full manufacturing cycle. The most effective approach is to inspect before assembly, during assembly, and after final testing.
The first checkpoint is raw material control. Inspectors should confirm the material grade, heat number, and traceability of every pressure-retaining part. This is especially important for bodies, bonnets, discs, stems, seats, bolts, and any special alloy components.
Key checks include:
- Material grade confirmation against the purchase order and drawing.
- Mill certificate review.
- Heat number traceability.
- Positive material identification when required.
- Surface condition and casting quality.
If the material is wrong, no later test can fully compensate for it.
Dimensional accuracy determines whether a valve will fit and function correctly in the pipeline. Even a high-quality valve can become a field problem if face-to-face dimensions, flange holes, or end connections do not match the project specification.
Typical dimensional checks include:
- Face-to-face and end-to-end dimensions.
- Flange drilling and bolt-circle accuracy.
- Stem height and operating interface dimensions.
- Body wall thickness.
- Disc, wedge, or ball geometry.
- Overall alignment and concentricity.
For municipal projects, dimensional precision also affects installation speed and replacement compatibility.

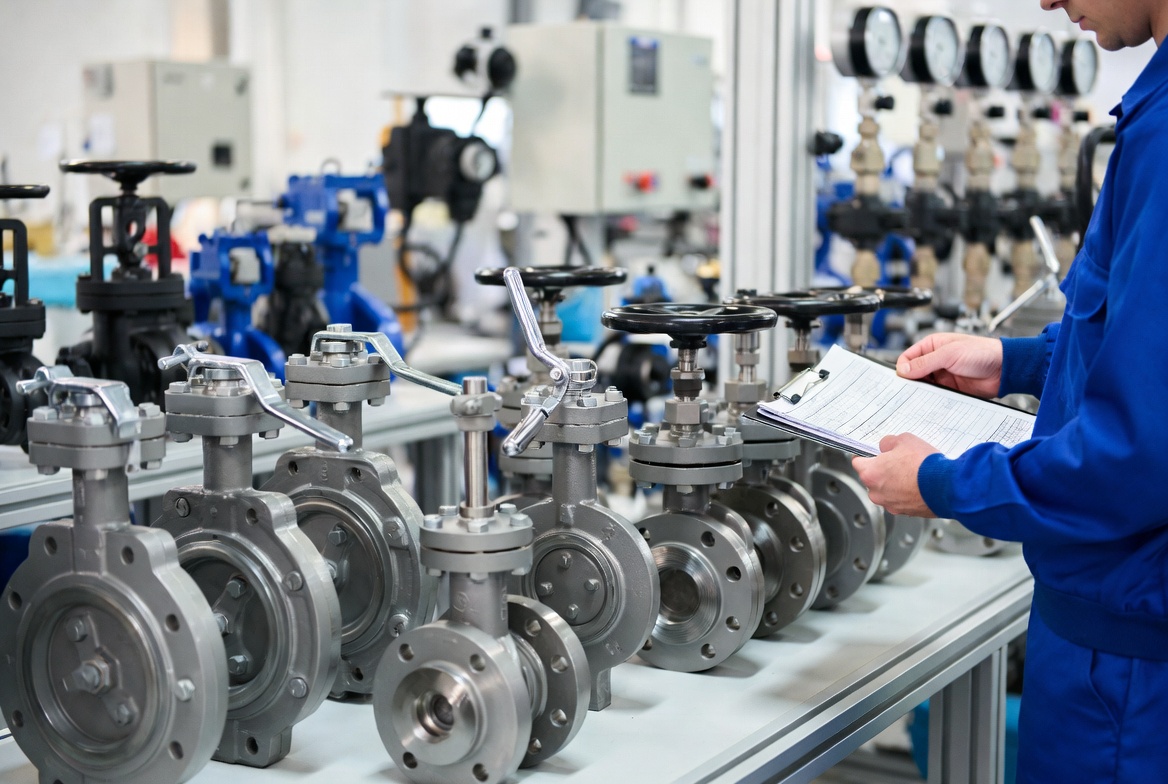

Visual inspection is often underestimated, but it remains one of the most valuable quality checks. A trained inspector can identify obvious defects early, including casting porosity, cracks, sand inclusion, coating defects, welding issues, or assembly mistakes.
Visual inspection should confirm:
- No visible cracks, dents, or deformation.
- Clean machining surfaces.
- Correct coating coverage and thickness.
- Proper marking and identification.
- No sharp edges or burrs that may damage seals.
- Correct orientation of parts and accessories.
This step supports both quality and customer-facing presentation.
After parts pass material and dimensional checks, the next focus is assembly. At this stage, the valve should be checked for correct part placement, torque control, lubrication, and internal clearance.
Important assembly points include:
- Correct installation of seals, O-rings, gaskets, and fasteners.
- Proper stem and seat alignment.
- Correct torque on critical joints.
- No contamination inside the valve body.
- Smooth movement of rotating or sliding components.
- Correct installation of accessories, gear operators, or actuators.
A clean and controlled assembly process directly improves test results and service life.
Inspection confirms quality; testing proves function. In valve manufacturing, the most important tests are usually pressure-related and operational.

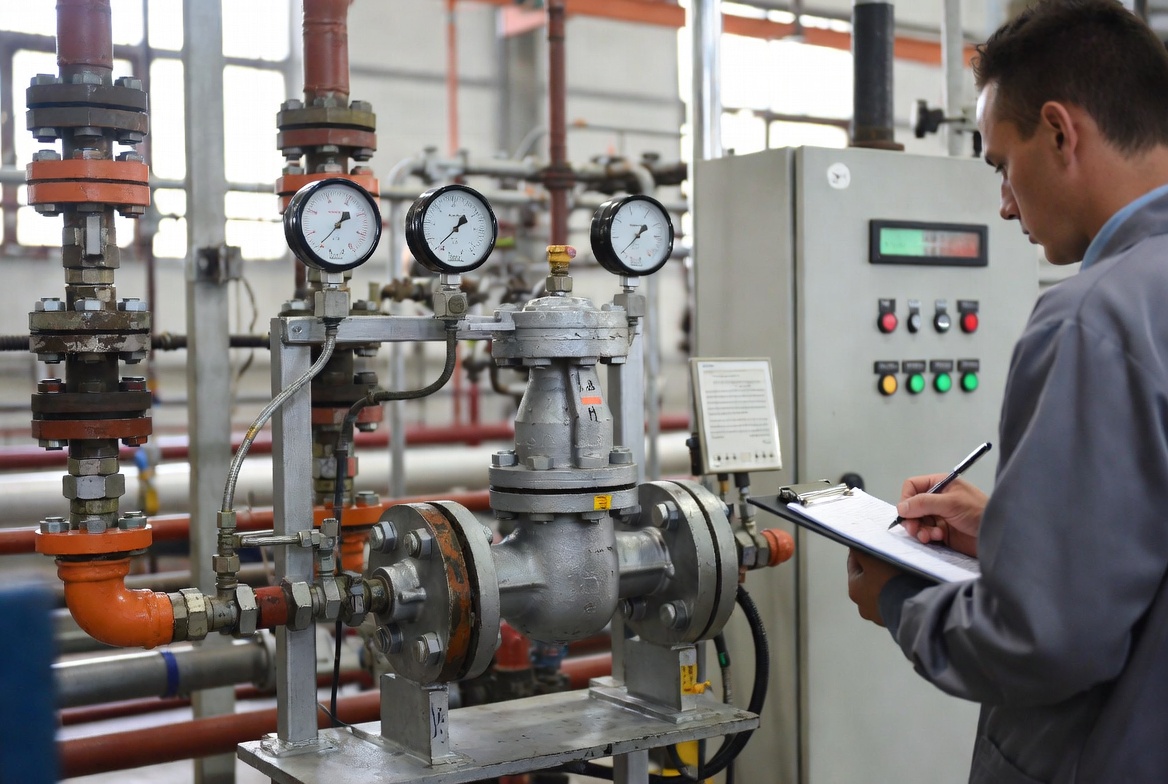

Pressure testing verifies whether the valve can withstand the specified pressure without unacceptable leakage or structural failure. Depending on the valve type and project requirement, manufacturers may perform shell tests, seat leakage tests, backseat tests, and pneumatic tests.
A strong pressure testing program should confirm:
- The body can handle the required shell pressure.
- The seat provides tight shutoff.
- The packing area does not leak.
- The valve meets the required standard or specification.
- The test medium and duration are controlled and recorded.
For water system valves, hydrostatic testing is common because it is practical and effective for confirming sealing performance.
Functional testing checks whether the valve actually operates as intended. This matters especially for check valves, gate valves, ball valves, and actuated products.
Functional checks may include:
- Open and close movement.
- Torque or operating force.
- Disc return behavior in check valves.
- Directional flow performance.
- Travel stop accuracy.
- Actuator response and fail position.
For automatic or actuated valves, functional testing is just as important as pressure testing.
For valves used in municipal and water applications, coating quality is part of corrosion protection. Surface preparation, coating thickness, adhesion, and curing all affect long-term durability.
Inspectors should review:
- Surface cleanliness before coating.
- Coating uniformity.
- Dry film thickness.
- Holiday or pinhole defects when applicable.
- Appearance after curing and handling.
A durable coating is not cosmetic; it protects the valve in transport, storage, and service.
To make inspection practical, manufacturers should follow a clear workflow instead of treating quality control as a single end-of-line event.
1. Verify incoming materials.
2. Inspect critical machining dimensions.
3. Check subassemblies before final assembly.
4. Perform visual inspection after assembly.
5. Conduct pressure and functional tests.
6. Review coating and marking.
7. Verify documents, traceability, and packaging.
8. Release only after final quality approval.
This sequence creates a clear quality gate at every important stage.
Buyers and engineering teams should know the most common failure points in valve manufacturing. These issues are often preventable if inspection is strong.
| Defect type | Why it matters | Typical risk |
|---|---|---|
| Material mismatch | Affects strength and corrosion resistance | Premature failure |
| Dimensional error | Prevents proper installation | Fit-up problems |
| Seat damage | Reduces sealing performance | Leakage |
| Surface porosity or cracks | Weakens pressure boundary | Structural risk |
| Poor coating | Lowers corrosion protection | Shorter service life |
| Incorrect assembly | Affects operation | Functional failure |
This table is useful for procurement teams and EPC reviewers during supplier evaluation.
From an industry perspective, a reliable manufacturer does more than pass a pressure test. The best suppliers maintain consistent inspection records, traceable materials, stable processes, and clear communication with customers.
Look for these signs of strength:
- Written inspection and test procedures.
- Calibrated gauges and test equipment.
- Traceability from raw material to finished valve.
- Clear inspection records and certificates.
- Technical support for project-specific requirements.
- Experience in water treatment and municipal service.
For international buyers, these factors often matter as much as the product itself.
In my experience, many valve problems are not "design failures" but process failures. A good design can still fail if a supplier overlooks a casting defect, skips a dimensional hold point, or accepts weak packing during final assembly.
That is why the most competitive manufacturers are usually the ones that combine:
- Strong engineering discipline.
- Stable factory procedures.
- Practical testing methods.
- Customer-focused documentation.
- Continuous improvement based on field feedback.
This is especially important for valves used in public infrastructure, where reliability has direct operational and social impact.
Manufacturers do not need more complexity; they need a better system. The fastest gains usually come from standardization.
Practical improvements include:
- Create checklists for each valve type.
- Define critical-to-quality dimensions.
- Use calibrated equipment with clear intervals.
- Record inspection data digitally when possible.
- Train inspectors on common defect patterns.
- Link customer complaints back to factory root-cause analysis.
These steps improve consistency and reduce rework without slowing production too much.
For distributors, EPC contractors, and valve brand owners, inspection and testing are not just factory routine. They are evidence that the manufacturer can deliver consistent, project-ready products.
If you are sourcing butterfly valves, check valves, gate valves, ball valves, strainers, or expansion joints for water treatment or municipal piping, the right supplier should be able to explain:
- How materials are traced.
- Which tests are performed.
- What acceptance criteria are used.
- How nonconforming products are handled.
- How documentation is prepared for shipment.
That transparency is often the difference between an average supplier and a dependable long-term partner.
Material verification and dimensional inspection are usually the most critical first steps because they confirm the valve is built from the correct components and can fit the system correctly.
Pressure testing proves that the valve body and seat can perform under specified conditions without unacceptable leakage or failure.
Yes. Visual inspection often catches cracks, coating defects, assembly mistakes, and surface problems before they become expensive failures.
Buyers should ask about material traceability, test procedures, calibration records, inspection reports, and how nonconforming products are handled.
Functional testing is especially important for check valves, actuated valves, and any valve where movement, travel, or fail position affects performance.
