If you are comparing double acting vs spring return actuators, the right choice depends on safety, air supply reliability, torque demand, and operating cost. In water treatment valveand municipal pipeline systems, this decision directly affects uptime, maintenance, and fail-safe behavior. [wodevalve]
A pneumatic actuator is not just an accessory. It determines how reliably a valve opens, closes, and protects the system under normal and abnormal conditions. In municipal water supply, wastewater treatment, and infrastructure projects, actuator choice can influence emergency response, energy consumption, and long-term operating stability. [wodevalve]
For procurement teams and engineers, the question is rarely "Which actuator is better?" The real question is which actuator is better for this application. That is where double acting and spring return designs diverge most clearly. [hearkenflow]
A double acting actuator uses compressed air for both opening and closing. Because it does not rely on a return spring, it can deliver strong and consistent torque in both directions. [engineerlive]
This design is often preferred when:
- The valve must cycle frequently.
- High output torque is required.
- Stable bidirectional control is more important than fail-safe return.
- Air supply is available and reliable.
In practice, double acting actuators are valued for their power efficiency in high-duty operations. They are commonly used where fast actuation and strong torque output are more important than automatic return on air loss. [engineerlive]

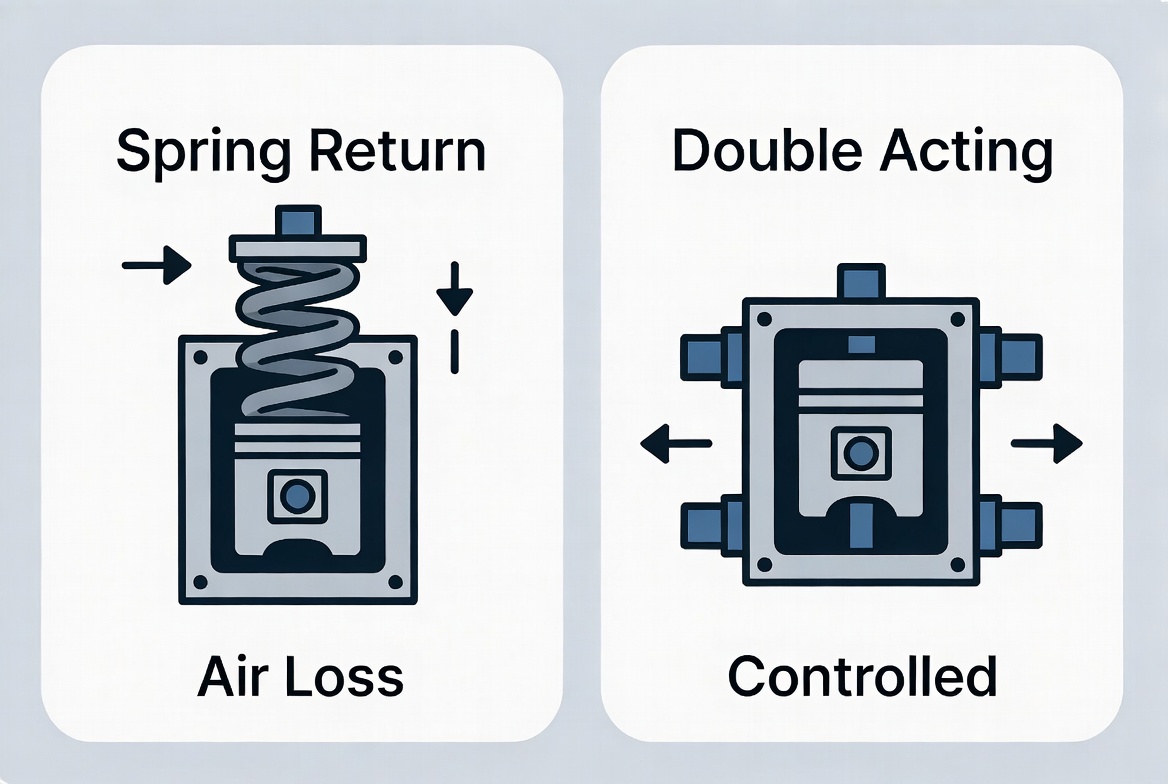

A spring return actuator uses compressed air in one direction and a spring in the other. When air is removed, the spring drives the actuator back to its default position, which is why this type is often chosen for fail-safe service. [chinaheimayi]
This design is often preferred when:
- The process must move to a safe position if air supply fails.
- The valve should fail open or fail closed by design.
- Safety and emergency response are top priorities.
- The system needs predictable default behavior during shutdown or power loss.
In many safety-focused installations, the spring return design provides clear operational confidence because the actuator automatically returns to a preset position without external power or air. [chinaheimayi]

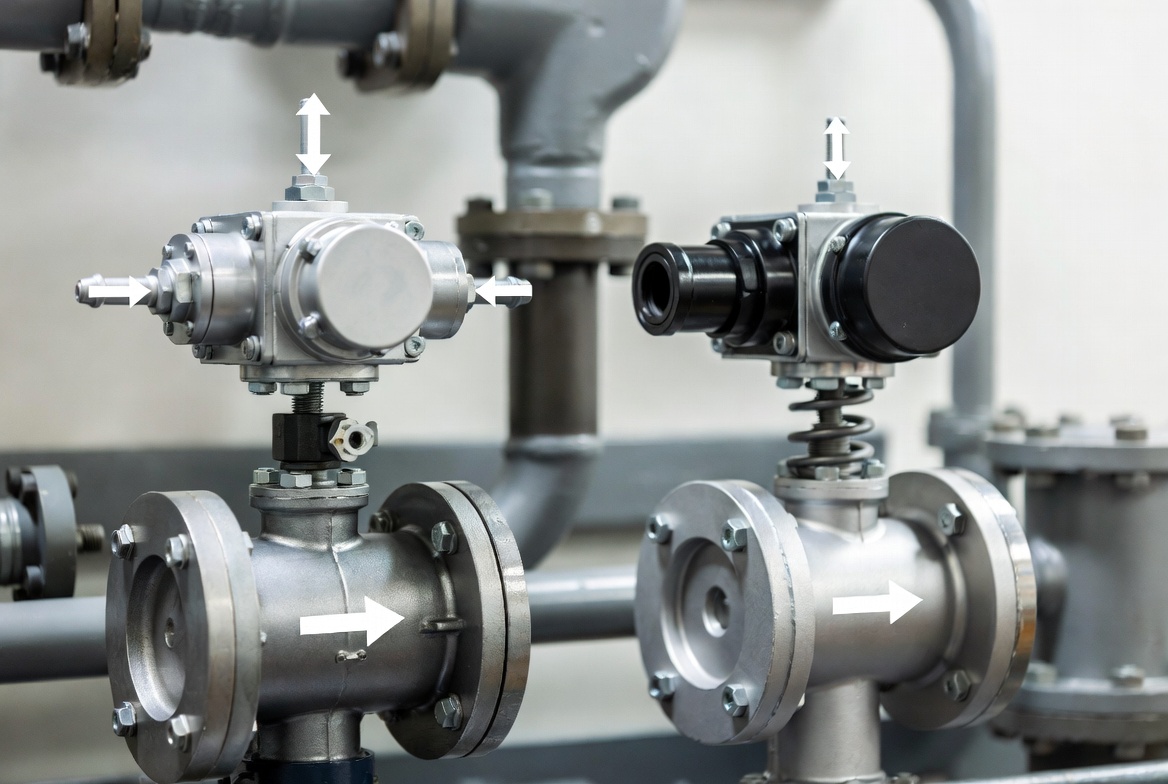

| Factor | Double Acting Actuator | Spring Return Actuator |
|---|---|---|
| Air usage | Air required for both directions hearkenflow | Air used for one direction only; spring returns the valve hearkenflow |
| Fail-safe behavior | No inherent fail-safe return hearkenflow | Built-in fail-safe return chinaheimayi |
| Torque output | Strong and consistent in both directions engineerlive | Torque is affected by spring design and return phase hearkenflow |
| Energy efficiency | Often efficient in continuous cycling | May consume less air in some applications, but spring adds mechanical load |
| Maintenance complexity | Generally simpler mechanically | More components due to spring assembly |
| Best use cases | High-cycle, high-torque, industrial control | Safety-critical and fail-safe applications |
The best actuator depends on process priorities. A good selection process usually starts with five questions:
1. What happens if the air supply fails?
2. How much torque does the valve need at start-up and travel?
3. How often will the valve cycle?
4. Is fail-safe return required by the process or standard?
5. What is the total cost of ownership, not just purchase price?
If the valve must stay in a defined position unless actively moved, a double acting actuator is often the better option. If the valve must automatically return to a safe state, a spring return actuator is usually the correct choice. [assuredautomation]

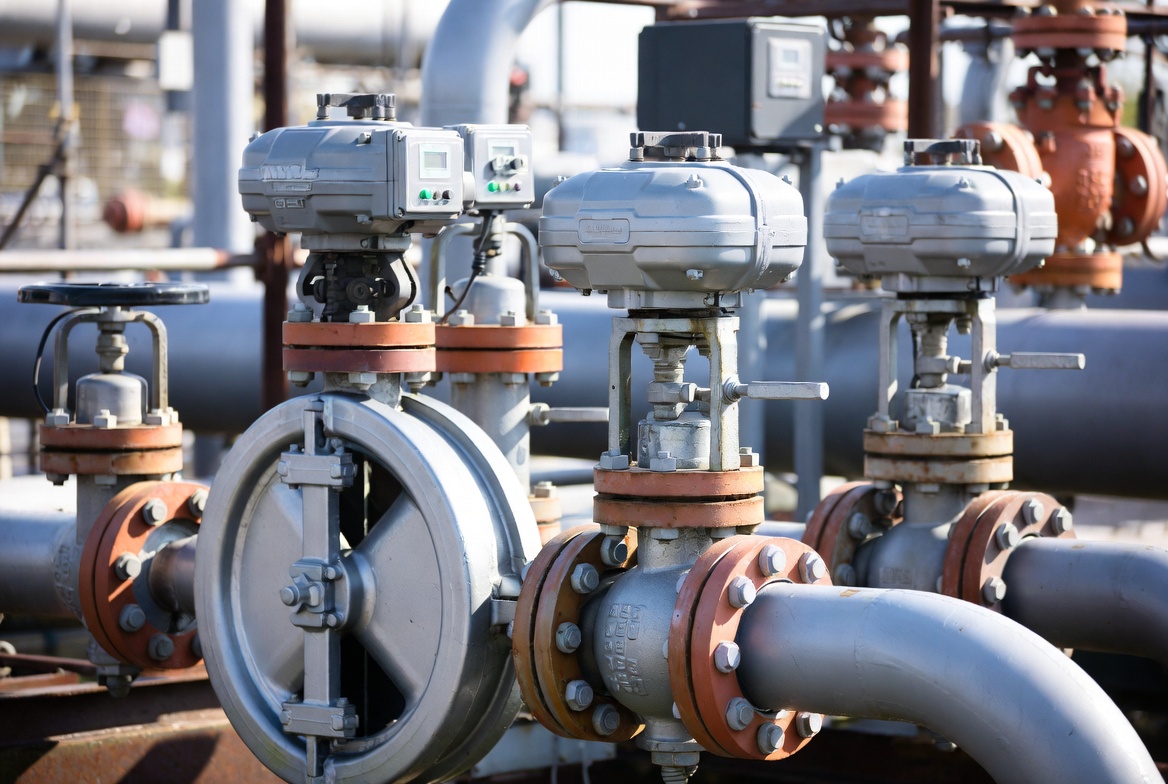

For water treatment plants, actuator selection often depends on whether the valve is part of a process line, isolation line, or emergency shutdown line. In municipal pipelines, reliability, corrosion resistance, and service continuity often matter as much as torque itself. [wodevalve]
Typical application patterns include:
- Double acting actuators for frequent cycling, stable process control, and larger valves with consistent air supply.
- Spring return actuators for fail-safe isolation, emergency shutoff, and critical protection points.
At WODE Valve, these decisions matter especially for butterfly valves, check valves, gate valves, ball valves, strainers, and expansion joints used in water and wastewater infrastructure. When the valve package is designed for long service life, the actuator must match the system's reliability goals. [wodevalve]
Many buyers focus only on torque and forget the practical details that affect performance. That mistake can lead to oversizing, unstable operation, or unnecessary maintenance.
Important hidden factors include:
- Available air pressure and air quality.
- Cycle frequency and duty cycle.
- Ambient temperature and corrosion exposure.
- Fail position requirements.
- Space constraints around the valve assembly.
- Lifecycle cost, including compressed air consumption and downtime risk.
For project teams, this is where technical selection becomes commercial strategy. A slightly more expensive actuator can reduce risk, service visits, and disruption over the life of the system.
From an engineering and procurement perspective, the most reliable actuator is the one that aligns with the system's operating philosophy. In other words, control-first systems often favor double acting designs, while safety-first systems often favor spring return designs. [assuredautomation]
In municipal and water infrastructure projects, the right actuator is rarely selected in isolation. It should be reviewed together with valve type, seat material, media characteristics, pressure rating, and automation logic. That is especially important for EPC contractors and distributors who need consistent performance across multiple project sites. [wodevalve]
Use this simple workflow during specification or procurement:
1. Confirm the valve type, size, and torque requirement.
2. Define the fail position, if any.
3. Verify air supply capacity and pressure stability.
4. Check duty cycle and expected switching frequency.
5. Match actuator type to project safety requirements.
6. Review total installed cost, not just unit price.
This method reduces sourcing errors and helps ensure the actuator fits the real operating environment rather than only the datasheet.
For global distributors and EPC buyers, actuator choice affects not only function but also customer satisfaction. A correctly selected actuator reduces commissioning problems and supports better long-term performance in water treatment and municipal systems. [wodevalve]
For OEM and private-label projects, this topic also matters for branding. A high-quality valve is only as dependable as the automation package around it. That is why actuator selection should be treated as part of the complete valve solution, not as a separate afterthought.
If you are sourcing butterfly valves, check valves, gate valves, ball valves, strainers, or expansion joints for water treatment or municipal pipelines, choose a valve partner that understands actuator selection as part of the full system. WODE Valve supports OEM, private label, distributor, and EPC projects with reliable valve solutions designed for demanding infrastructure applications. [wodevalve]
Double acting actuators use air for both opening and closing, while spring return actuators use air in one direction and a spring to return the valve to its default position. [hearkenflow]
Spring return actuators are generally safer in fail-safe applications because they automatically move to a preset position when air supply is lost. [chinaheimayi]
Double acting actuators are usually better for frequent cycling because they provide powered movement in both directions and do not rely on a return spring. [engineerlive]
No. They are best when fail-safe behavior is required, but they are not always ideal for every process because spring design can affect torque and packaging. [hearkenflow]
Start with the fail position, valve torque, air supply reliability, and cycle frequency. For emergency isolation, spring return is often preferred; for stable process control, double acting is often suitable. [assuredautomation]
