Selecting the right pneumatic actuator for water treatment and municipal pipeline valves is one of the most critical engineering decisions you will make. The two most common actuator types, double‑acting and spring‑return (single‑acting), may look similar externally, but their fail‑safe behavior, torque profile, and control logic can dramatically affect plant safety, reliability, and operating costs.
At the most basic level, the key distinction lies in how energy is applied to move the valve.
- Spring‑return (single‑acting) actuators use compressed air in one direction and internal springs in the other.
- Double‑acting actuators rely on pressurized air on both sides of the piston or operating mechanism to move the valve open or closed.
This fundamental difference determines how each actuator behaves during normal operation and, more importantly, during a loss of air or power.

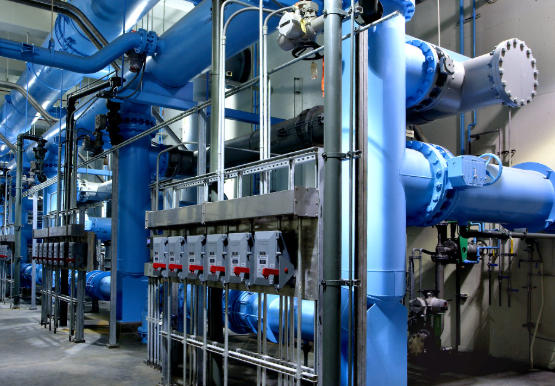

In a spring‑return pneumatic actuator, air pressure moves the piston or lever in one direction, for example to open the valve, while springs inside the cylinder automatically return the valve to a predefined safe position when the air supply or control signal is lost. The safe position can be configured as fail‑open or fail‑closed depending on process requirements.
Key characteristics include:
- Fail‑safe operation without external power in the return direction.
- Single air connection, simplifying piping and control.
- Automatic reset to the safe position during air or power loss.
These features make spring‑return actuators especially suitable for emergency‑shutdown valves, backflow prevention, and other safety‑critical functions in water treatment plants and municipal networks.
A double‑acting actuator uses compressed air on both sides of the piston or scotch‑yoke mechanism. One air signal drives the valve toward the open position, and another signal drives it toward the closed position. When air is lost, the valve normally remains in its last position rather than moving automatically to a safe state.
Key characteristics include:
- No internal springs to define a fail‑safe position.
- Air connections to both sides of the actuator.
- Ability to maintain last position when air is lost, depending on system design.
This behavior is well suited to non‑critical process control where holding position is acceptable during short interruptions.

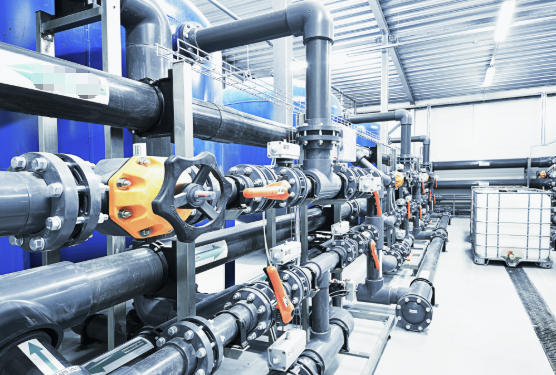

For water treatment and municipal infrastructure, safety and fail‑safe behavior often weigh more heavily than initial purchase price or compactness. The actuator's reaction to failures must align with the plant's overall safety strategy.
Spring‑return actuators are typically the preferred option when the valve must move to a clearly defined safe position during a failure. Typical applications include:
- Emergency shut‑off valves on raw‑water intake lines.
- Isolation valves in chemical dosing systems.
- Backflow prevention valves in potable‑water networks.
- Safety‑related valves in sludge handling or gas lines.
In these cases, the actuator acts as a final protective layer. When air or power fails, the spring drives the valve to the chosen fail‑open or fail‑closed position without relying on electronic controls. For this reason, spring‑return actuators are widely used in safety instrumented functions and in circuits that must comply with rigorous safety standards.
A critical engineering step is defining the correct fail position for each valve. For example, a fail‑closed intake valve may protect downstream equipment, while a fail‑open line may be needed to prevent overpressure upstream. The actuator configuration must match this logic.
Double‑acting actuators are often chosen where the primary requirement is reliable control and stable positioning rather than automatic fail‑safe motion. Typical examples include:
- Flow‑control valves in filtration, backwash, and aeration systems.
- Control valves in booster pumping stations.
- Valves in non‑hazardous parts of the process where short‑term position holding is acceptable.
Because a double‑acting actuator can deliver balanced torque in both directions, it can be advantageous on valves with high and relatively symmetrical torque demands. As long as the compressed‑air system is well designed and reliable, these actuators provide smooth, repeatable movements and can be integrated easily with advanced positioners and feedback devices.
Both actuator types can deliver significant torque, but their torque curves and loading behavior differ and should be understood during selection.
Spring‑return actuators are designed so that the air‑driven stroke must overcome both the valve torque and the opposing spring force. This means their sizing often focuses on ensuring sufficient torque in the powered direction to defeat the spring and the valve's own resistance.
Double‑acting actuators distribute torque across both directions. Air drives the valve in both opening and closing strokes, and there is no internal spring load. This allows more uniform or higher torque in each direction when the actuator is correctly sized.
For water‑treatment butterfly and ball valves with high seat loads, the double‑acting configuration may provide smoother operation and reduced wear if the air supply is clean, dry, and stable.
Actuator speed and positioning accuracy are also important. Many modern pneumatic actuators, both spring‑return and double‑acting, can be fitted with:
- Adjustable speed controls.
- Positioners for precise throttling.
- Limit switches and position feedback devices.
In practice, double‑acting actuators are frequently favored where precise control of flow is necessary, such as modulating control valves in aeration or chemical dosing systems. Spring‑return designs are more commonly used in on‑off or safety‑related applications where absolute positioning accuracy is less critical than predictable fail‑safe behavior.

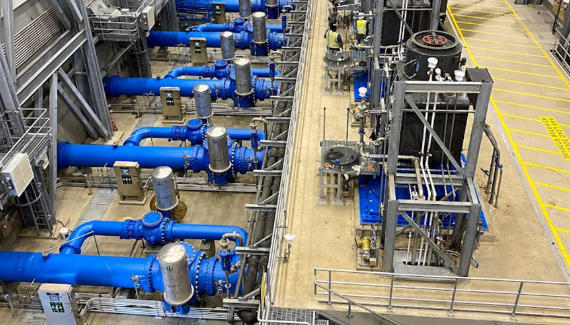

Concrete use cases help clarify how the choice between double‑acting and spring‑return actuators plays out in real projects.
In a municipal wastewater treatment plant, spring‑return actuators are commonly selected for:
- Primary influent emergency shut‑off valves that must close automatically if a critical fault occurs.
- Sludge transfer line valves where a sudden failure must not allow uncontrolled discharge.
- Biogas isolation valves on digesters, where safe closure during an emergency is essential.
In the same plant, double‑acting actuators may be used on:
- Aeration control valves in biological treatment, where tight, continuous modulation is required.
- Filter backwash valves that are part of timed sequences, where holding the last position during short disturbances is acceptable.
- Clarifier skimmer or sludge‑draw valves, where process stability is more important than automatic fail‑safe motion.
The combination of both actuator types, selected according to the risk and control requirements of each line, often gives the best balance between safety, performance, and cost.
In potable‑water networks, spring‑return actuators are useful on key isolation and non‑return valves. When an abnormal pressure condition or power failure occurs, the actuator can move the valve to the safe position to protect water quality and distribution stability.
In fire‑protection systems, spring‑return actuators on fire‑main control valves and pump isolation valves help ensure that, in a fault condition, water is directed correctly to critical lines or safely isolated from sections that may be damaged.
Double‑acting actuators, in contrast, are more suitable for non‑critical balancing, distribution, and industrial utility services where fire or contamination risk is lower.
The purchase price of an actuator is only one part of its overall cost. Energy consumption, maintenance needs, and service life all influence the total cost of ownership.
Spring‑return actuators typically require compressed air only for the powered stroke. The spring provides the return action without needing further air input. This can be advantageous in low‑cycle applications and in plants where compressed‑air generation costs are significant.
Double‑acting actuators must be supplied with air for both opening and closing strokes. In high‑cycle applications or where a large number of actuators are installed, this extra air consumption can translate into higher energy use and operating cost.
When comparing options for a project, it is valuable to estimate the expected cycling frequency and air requirement per cycle, then compare the resulting energy consumption over the expected life of the installation.
Spring‑return actuators have a relatively simple mechanism, but the internal springs are subject to fatigue over time. Regular inspections should check for spring wear, corrosion, and seal condition. With proper maintenance, these actuators can provide long, reliable service in safety‑critical roles.
Double‑acting actuators do not contain large power springs, but they depend more heavily on the quality of the air supply and the control valves. Both sides of the actuator must be checked for leaks, seal wear, and proper response. When sized and installed correctly, double‑acting actuators can deliver excellent reliability, especially in clean, controlled environments.
In many safety‑critical, low‑cycle applications, the simpler spring‑return design often provides a favorable balance between reliability and total cost. In process‑control and high‑cycle situations, the double‑acting alternative may be more appropriate.
Actuation technology continues to evolve, and new developments affect how both spring‑return and double‑acting actuators are specified.
Modern actuator packages can incorporate:
- Electronic positioners for accurate throttling control.
- Valve diagnostics for monitoring cycle counts, torque peaks, and travel time.
- Digital communication interfaces to connect with plant control systems.
These features enhance reliability and make it easier to plan maintenance. They are particularly beneficial on double‑acting actuators used for continuous control, although spring‑return actuators can also be equipped with smart accessories where additional feedback is required.
Many actuator designs now follow a modular approach. A single body can be configured as either spring‑return or double‑acting simply by adding or removing spring cartridges and adjusting end‑caps. This is especially helpful when:
- Retrofitting existing valves in older plants.
- Standardizing actuator models across different projects.
- Allowing future changes in fail‑safe strategy without replacing the entire actuator.
For utilities and EPC contractors, such flexibility reduces inventory complexity and makes long‑term upgrades easier.
The following step‑by‑step checklist summarizes the key questions to answer when deciding between a double‑acting and spring‑return actuator.
1. Is the function safety‑critical
- If yes, start by considering a spring‑return actuator so the valve can move automatically to a safe position during failure.
- If no, double‑acting solutions can be evaluated based on control and cost.
2. What is the required fail position
- If the valve must close on failure, consider fail‑closed spring‑return.
- If the valve must open on failure, consider fail‑open spring‑return.
- If the valve should stay in its last position, a double‑acting actuator may be more suitable.
3. What is the torque profile of the valve
- If torque demand is high in one direction, spring‑return can be appropriate.
- If torque demand is balanced and high in both directions, double‑acting provides more uniform torque capability.
4. How reliable is the air and power supply
- If the air supply is unstable or prone to interruption, spring‑return enhances safety.
- If the air and power systems are robust and redundant, double‑acting can be used more widely.
5. What are the lifecycle cost and maintenance targets
- For low‑cycle, safety‑critical duty with limited maintenance resources, spring‑return often provides a better long‑term balance.
- For high‑cycle control duty with a strong maintenance program, double‑acting can offer better performance.
| Criteria | Spring‑Return Actuator (Single‑Acting) | Double‑Acting Actuator |
|---|---|---|
| Fail‑safe behavior | Yes, moves to a defined safe position | No, typically remains in last position |
| Air connections | One side | Both sides |
| Energy use per cycle | Lower, air for one direction only | Higher, air for both directions |
| Best suited for | Emergency shut‑off, safety‑critical valves | Process control, modulating duties |
| Torque profile | Optimized in powered direction against spring | Balanced in both opening and closing directions |
| Control precision | Good for on‑off | Excellent when combined with positioners |
Choosing between a double‑acting and spring‑return actuator is not just a technical detail, it directly affects the safety, reliability, and long‑term performance of your water treatment or municipal pipeline system. If you are planning a new project or upgrading an existing network, our engineering team can help you define the correct fail‑safe strategy, calculate torque requirements, and select the optimal actuator configuration for each valve.
Contact Tianjin Wode Valve Co., Ltd. today to discuss your valve and actuator requirements, request a tailored sizing sheet, or schedule a project‑based technical consultation. Our specialists will work with your design and operations teams to deliver reliable, application‑specific solutions for water treatment and municipal pipeline applications.
Contact us to get more information!
The main difference lies in how the actuator moves the valve. A spring‑return actuator uses compressed air in one direction and an internal spring to return the valve to a predefined fail position, while a double‑acting actuator uses compressed air to move the valve in both directions and normally holds its last position if air is lost.
You should choose a spring‑return actuator when the valve performs a safety‑critical function. Typical situations include emergency shut‑off, backflow prevention, and chemical dosing isolation, where the valve must automatically move to a safe position if the air supply or control signal fails.
A double‑acting actuator is appropriate when precise control and stable positioning are more important than automatic fail‑safe motion. Typical applications include flow‑control valves in filtration or aeration systems and non‑critical isolation valves in process sections where short‑term position holding is acceptable.
In many cases, spring‑return actuators are more energy‑efficient because they require air only for one stroke. Double‑acting actuators consume air in both opening and closing strokes, which can increase energy use, especially in high‑cycle duty or in large installations.
Smart accessories such as positioners, limit switches, and digital communication modules can be used with both actuator types. They improve monitoring and control, but they do not replace the need to choose the correct fail‑safe strategy. For safety‑critical valves, spring‑return is still often preferred, even when advanced electronics are present.
