In the complex world of industrial piping, selecting the right valve is paramount to system integrity, efficiency, and safety. For project managers, engineers, and procurement specialists—especially those navigating the demands of water treatment and municipal infrastructure—the choice between a lug butterfly valve and a wafer butterfly valve is often a pivotal decision.
At Tianjin Wode Valve Co., Ltd., we have spent years manufacturing high-quality flow control solutions for global distributors and EPC contractors. We understand that while these valves may look similar at first glance, their structural design, installation requirements, and performance characteristics are distinct. This guide breaks down the essential differences to help you make informed, cost-effective decisions for your next project.
To understand the difference, we must first define the structural essence of each valve type.

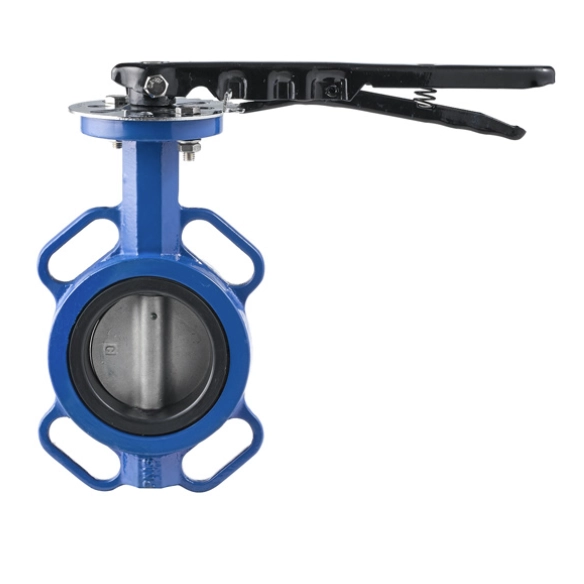

A wafer butterfly valve is designed to be the most compact and economical option [worldsvalve] [weldonvalves]. It fits between two pipe flanges, and the entire assembly is secured by long bolts that pass through the pipe flanges and effectively "sandwich" the valve body in between [unionvalve] [eng-tips].
- Key Characteristic: It does not have its own flanges or bolt holes [unionvalve].

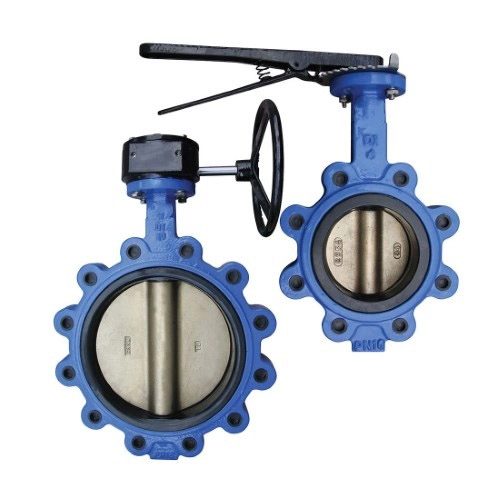

A lug butterfly valve features threaded inserts (lugs) around the perimeter of the valve body [powrix]. This allows the valve to be bolted to the flanges on either side independently, utilizing two separate sets of bolts [zfavalves] [powrix].
- Key Characteristic: It offers greater structural independence during maintenance [tangovalve] [sanitaryfittings].
For EPC contractors, knowing the operational trade-offs is crucial. The following table summarizes the technical differences:
| Feature | Wafer Butterfly Valve | Lug Butterfly Valve |
|---|---|---|
| Installation | Sandwich between flanges zfavalves | Bolted to each flange powrix |
| Cost | More economical worldsvalve weldonvalves | Higher (more material) tyvchina |
| End-of-Line | Not suitable redwhitevalvecorp | Suitable (with blind flange) redwhitevalvecorp |
| Maintenance | Requires system shutdown vincervalve | Enables sectional isolation tyvchina |
| Pressure Rating | Standard/Moderate weldonvalves | Higher/Demanding china-gowin |
In municipal water treatment plants, uptime is critical. A significant advantage of the lug butterfly valve is its ability to allow for dead-end service and sectional isolation [redwhitevalvecorp] [china-gowin]. If you need to perform maintenance on one side of the piping, you can disconnect it without shutting down the entire system. Conversely, removing a wafer valve requires the entire section of the pipeline to be depressurized and dismantled, which can lead to extended, costly operational downtime [vincervalve].
Lug butterfly valves are generally engineered to be more robust [china-gowin]. The thicker body design and mechanical support from the bolts allow them to handle higher pressures and more rigorous industrial demands compared to the lighter, space-saving wafer design [covnav] [china-gowin].
While lug valves offer superior flexibility, they are not always the necessary choice. For low-pressure, space-constrained, or budget-sensitive applications, the wafer butterfly valve remains the industry gold standard for cost-efficiency [weldonvalves] [jscepai].
To maximize the longevity of your valve investment, consider these expert recommendations:
* Proper Actuation: Both lug and wafer designs from Tianjin Wode Valve Co., Ltd. are fully compatible with pneumatic or electric actuators [redwhitevalvecorp]. Ensure the actuator torque matches your specific application requirements to prevent premature seat wear.
* The "Blind Flange" Rule: If you are using a lug valve for dead-end service, always use a blind flange on the downstream side to ensure absolute safety and meet standard piping codes [redwhitevalvecorp].
* Material Selection: In water treatment, ensure that the disc and seat materials (e.g., EPDM, NBR) are compatible with the specific chemical composition of the water to prevent corrosion or degradation.
Choosing between a lug butterfly valve and a wafer butterfly valve should never be a guess. It is a tactical decision based on your pipeline's pressure requirements, maintenance strategy, and budget. If your project prioritizes system longevity and ease of maintenance, the lug type is a superior investment. If your focus is on a lightweight, cost-effective solution for standard flow control, the wafer type is unmatched.
At Tianjin Wode Valve Co., Ltd., we provide expert guidance to ensure you select the valve that optimizes your system's performance. Contact our team today for a custom valve solution tailored to your municipal or water treatment project requirements.
Q1: Can I use a wafer butterfly valve at the end of a pipeline?
A: No. Wafer-style valves are not designed to support the mechanical stress of a dead-end service. Using them in this configuration poses a significant risk of seal failure or valve damage [redwhitevalvecorp].
Q2: Which valve is easier to install?
A: Generally, wafer butterfly valves are considered easier and faster to install because they are lighter and require less bolt alignment than the lugged versions [jonloovalves].
Q3: Are lug butterfly valves always more expensive?
A: Yes, they are typically 15–20% more expensive than wafer valves because they require more material, more complex machining, and more robust construction to accommodate the threaded lugs [tyvchina].
Q4: Which valve is better for high-pressure systems?
A: The lug butterfly valve is better suited for high-pressure applications due to its stronger, bolt-secured design, which provides more reliable sealing under demanding conditions [china-gowin].
Q5: Can I upgrade from a wafer to a lug valve later?
A: Usually, no. Because the lug valve has a different body thickness and installation footprint, it is not a direct "drop-in" replacement for a wafer valve without modifications to the piping system [zfavalves].
