As a leading valve manufacturer serving global water treatment and municipal pipeline projects, Tianjin Wode Valve Co., Ltd. provides high performance swing check valves engineered for modern water and wastewater infrastructure. This guide explains how 12 inch swing check valves work, what to look for in critical applications, and how our solutions help EPC contractors, distributors, and OEM brands deliver safer, more reliable systems.

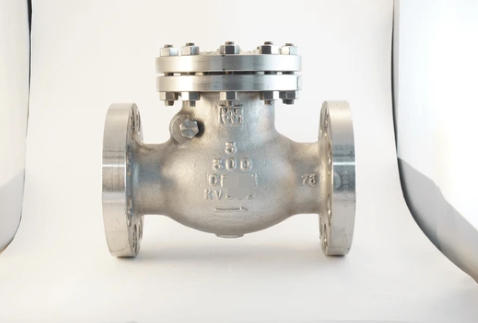

A 12 inch swing check valve is a full bore, one way valve that automatically prevents reverse flow in large diameter pipelines, typically DN300 water and wastewater lines. The internal disc swings away from the seat when flow moves in the forward direction and closes when flow reverses, protecting pumps, pipelines, and equipment from backflow and pressure surges.
Key functions in municipal and industrial systems include:
- Preventing reverse flow and back siphonage.
- Reducing water hammer during pump shutdown.
- Protecting pumps, meters, and sensitive downstream equipment.
- Supporting stable operation in high demand networks.
In modern municipal water and wastewater networks, a 12 inch swing check valve is a critical safety component. Large diameter systems carry high volumes of water, where uncontrolled reverse flow can cause severe mechanical damage and unplanned downtime.
Typical applications include:
- Municipal water treatment plants and booster pump stations.
- Wastewater lift stations and sewage pumping systems.
- Industrial process water, cooling water, and reuse systems.
- Raw water intake lines and distribution mains.
Without proper check valves, operators may face:
- Violent water hammer and pipeline vibration.
- Premature pump failure and seal damage.
- Pressure transients that compromise pipe joints and fittings.
- Increased maintenance costs and service interruptions.
Modern 12 inch swing check valves are engineered to deliver high strength, durability, and tight shutoff in demanding water and wastewater environments.
High quality swing check valves in this size range commonly feature:
- Ductile iron body and cover for superior strength and impact resistance compared to gray iron.
- Ductile iron clapper arm and disc holder to handle shock loads and frequent cycling.
- A full port flow path that minimizes pressure loss in large diameter lines.
This construction helps the valve withstand the high stress and shock loads associated with pump starts, stops, and transient pressures.
To ensure long term tight shutoff and performance in water and wastewater service, many 12 inch swing check valves incorporate:
- A replaceable stainless steel seat ring that provides corrosion resistance and a positive sealing surface.
- A resilient, one piece cut seat seal that creates a self cleaning wiping effect as the disc moves.
- Bubble tight sealing across a wide pressure range, even in systems with solids.
These features help maintain efficiency, reduce leakage, and improve overall network reliability.
When you specify a 12 inch swing check valve, compliance with key standards is essential for public projects and funded infrastructure.
Many high quality swing check valves are designed to comply with ANSI AWWA C508, the reference standard for swing check valves used in waterworks service. This standard covers materials, design, pressure ratings, testing, and coating requirements suitable for municipal applications.
For project owners and design engineers, AWWA compliance provides:
- Clear assurance of performance and test requirements.
- Easier approval by utilities and regulators.
- Reduced technical risk in design and execution.
For projects in the United States, American Iron and Steel and Build America, Buy America regulations require the use of domestically sourced iron, steel, and manufactured products on many federally funded infrastructure projects. A 12 inch swing check valve that is AIS and BABA compliant is manufactured using U.S. sourced materials and components, supporting local supply chains and regulatory requirements.
Tianjin Wode Valve Co., Ltd. understands these compliance needs and can co engineer and manufacture valves tailored for private and international projects where such regulations do not apply, while referencing design and performance best practices from compliant models.
A major advantage of modern 12 inch swing check valves is their flexible installation options.
Advanced designs support:
- Standard horizontal installation in pump discharge and transmission lines.
- Vertical installation with flow upward in compact stations or constrained pipe galleries.
This flexibility allows designers to optimize layout in tight mechanical rooms and retrofit projects.
Some 12 inch swing check valves feature a convertible shaft, dual keyed lever arm, and symmetrical cylinder mount, which allow external control components to be reconfigured in the field. This makes it easier to:
- Add or adjust external counterweights and dampers.
- Optimize opening and closing characteristics after commissioning.
- Adapt the valve to changing operating conditions without replacing the body.
For water utilities and industrial operators, ease of maintenance directly affects lifecycle cost and system uptime.
Well engineered 12 inch swing check valves provide a valve cover access port so technicians can service internal components from the top. All major internal parts are accessible and field replaceable without removing the valve from the pipeline.
Key benefits include:
- Faster inspection and repair during planned shutdowns.
- Reduced need for heavy lifting and line disassembly.
- Lower long term maintenance and operating costs.
To extend service life in water and wastewater conditions, high quality swing check valves typically use:
- NSF ANSI 61 powder epoxy coating on interior and exterior surfaces, including internal ductile iron components.
- Stainless steel seat rings and hardware where appropriate.
These measures enhance corrosion resistance, support drinking water approvals, and help preserve smooth internal surfaces that minimize head loss.
Water hammer, or hydraulic shock, occurs when a rapid change in flow velocity generates a pressure surge in the pipeline. In pump stations, this often happens during pump shutdown or power failure.
A properly engineered 12 inch swing check valve helps reduce water hammer by:
- Controlling disc closing speed through geometry, weight, and optional damping devices.
- Minimizing backflow volume before closure.
- Working together with surge control components and pump control logic.
Practical design tips for engineers include:
1. Place the swing check valve close to the pump discharge to minimize column separation.
2. Evaluate whether a lever and weight or hydraulic dashpot is required for your system's transient conditions.
3. Coordinate valve selection with transient analysis to ensure acceptable pressure ranges.
When selecting a 12 inch swing check valve for municipal or industrial projects, focus on the specifications that directly affect safety, performance, and compliance.
| Specification factor | What to check in a 12” swing check valve | Why it matters in water and wastewater systems |
|---|---|---|
| Nominal size and end connection | 12 inch, flanged ends to matching pipeline standard | Ensures compatibility and correct face to face dimensions |
| Pressure rating | Working pressure per project specification | Aligns with maximum operating and surge pressures |
| Body material | Ductile iron or higher grade alloy | Provides strength for high stress loads |
| Seat design | Stainless steel seat ring, resilient seal | Enables tight shutoff and easy replacement |
| Coating and approvals | NSF ANSI 61 epoxy, potable water approval | Suitable for drinking water applications |
| Installation orientation | Horizontal and vertical, flow up supported | Adds layout flexibility in pump stations |
| Maintenance access | Top entry cover, field replaceable internals | Reduces downtime and lifecycle cost |
To illustrate the benefits clearly, it is useful to see how a 12 inch swing check valve is typically used in common project scenarios.
In a city booster station, multiple pumps feed a 12 inch distribution main. A swing check valve is installed on each pump discharge to:
- Prevent backflow through stopped pumps when others are running.
- Reduce water hammer and vibration during pump changeover.
- Protect pump impellers and seals from reverse rotation.
In a sewage lift station, 12 inch swing check valves handle liquids with solids and gases. Key requirements include:
- Reliable sealing in the presence of suspended solids.
- Robust construction to manage frequent starts and stops.
- Easy top entry maintenance in confined spaces.
To help EPC contractors, designers, and distributors make confident decisions, the following selection workflow can be used for 12 inch swing check valves in water and wastewater projects.
1. Define service conditions
- Medium, such as potable water, raw water, wastewater, or industrial effluent.
- Operating temperature range.
- Normal and maximum operating pressures.
2. Confirm size and connection standard
- Pipeline size, 12 inch or DN300.
- Flange drilling standard, such as AWWA, EN, or project specific.
3. Check compliance and approvals
- Relevant waterworks standards such as AWWA C508.
- Potable water approvals where required.
- Local content and regulatory rules for public projects.
4. Evaluate materials and coatings
- Ductile iron body and cover for strength.
- Stainless steel seat ring and corrosion resistant internals.
- Approved coating system for the intended service.
5. Review installation and control options
- Confirm horizontal and or vertical, flow up, installation compatibility.
- Decide if lever and weight or hydraulic dashpot is needed to mitigate water hammer.
6. Plan for maintenance and lifecycle cost
- Verify top entry access for internal components.
- Check availability of spare parts and service support over the project life.
This structured process helps ensure that the selected 12 inch swing check valve is technically suitable and cost effective over its entire service life.
Tianjin Wode Valve Co., Ltd. is a professional valve manufacturer headquartered in China, specializing in high performance valves for water treatment and municipal pipeline applications, including 12 inch swing check valves tailored to international standards.
We work closely with:
- Global distributors seeking reliable OEM and ODM valve partners.
- EPC contractors delivering water and wastewater projects worldwide.
- International valve brands requiring private label manufacturing.
Our engineering team can support:
- Custom material and coating configurations for local standards and project specifications.
- Project documentation, inspection, and test reports.
- Optimized designs based on best practices from established models and water industry standards.
If you are planning or executing a water treatment plant, wastewater lift station, or municipal pipeline upgrade, selecting the right 12 inch swing check valve is critical to long term system reliability and safety. Tianjin Wode Valve Co., Ltd. offers engineered valve solutions, technical support, and flexible manufacturing capacity to match the requirements of distributors, EPC contractors, and international valve brands.
Contact our team today to discuss your 12 inch swing check valve specifications, request detailed datasheets and drawings, or schedule an engineering consultation for your upcoming project.
Contact us to get more information!
The main purpose of a 12 inch swing check valve in a pump station is to prevent reverse flow through the pump, reduce water hammer during pump shutdown, and protect pumps and pipelines from damaging pressure surges.
Many modern 12 inch swing check valve designs support vertical installation with flow upward, as well as standard horizontal installation, but it is important to confirm orientation with the manufacturer's datasheet.
You can confirm compliance by checking the technical documentation and nameplate to verify that the valve is designed and tested in accordance with ANSI AWWA C508 or the relevant waterworks standard specified for your project.
A stainless steel seat ring offers improved corrosion resistance and maintains a stable sealing surface, which is essential for reliable shutoff in corrosive or solids laden wastewater environments.
Inspection frequency depends on operating conditions, but many operators schedule checks during planned shutdowns to inspect internal components via the top access cover and replace parts as needed to maintain performance.
