In the demanding world of industrial piping and water treatment, preventing backflow is not just a matter of operational efficiency—it is a critical safety requirement. As professionals at Tianjin Wode Valve Co., Ltd., we frequently encounter questions from EPC contractors and global partners about the best solutions for flow control. Among the various technologies available, the dual plate check valve stands out as a top-tier choice for its reliability, compact design, and exceptional performance in minimizing water hammer.
This comprehensive guide breaks down what a dual plate check valve is, its internal structure, and its precise working principle, offering you the technical insights needed to make informed decisions for your infrastructure projects.

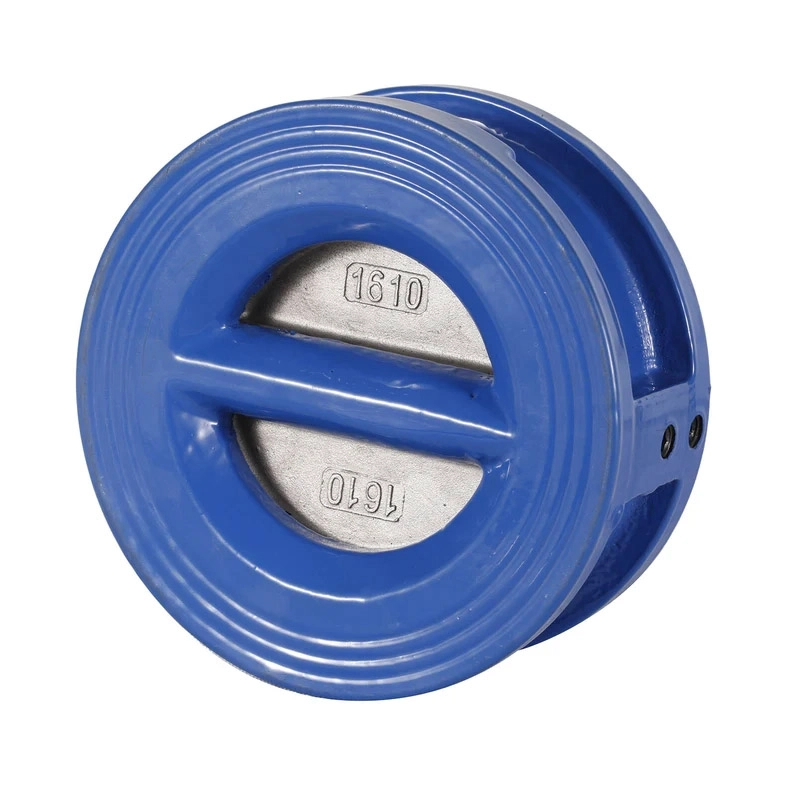

A dual plate check valve (also commonly referred to as a dual-disc or double-door check valve) is a mechanical, self-acting, non-return valve designed to allow fluid to flow in one direction while automatically blocking any reverse flow [weldonvalves]. Unlike traditional swing check valves that rely on a single, heavy disc, this design employs two spring-loaded semicircular plates that hinge on a central pin [weldonvalves] [facebook].
These valves are widely adopted in water treatment plants, municipal piping systems, and large-scale industrial installations because they provide a superior balance between cost, space efficiency, and hydraulic performance [weebly] [tianyuvalves].

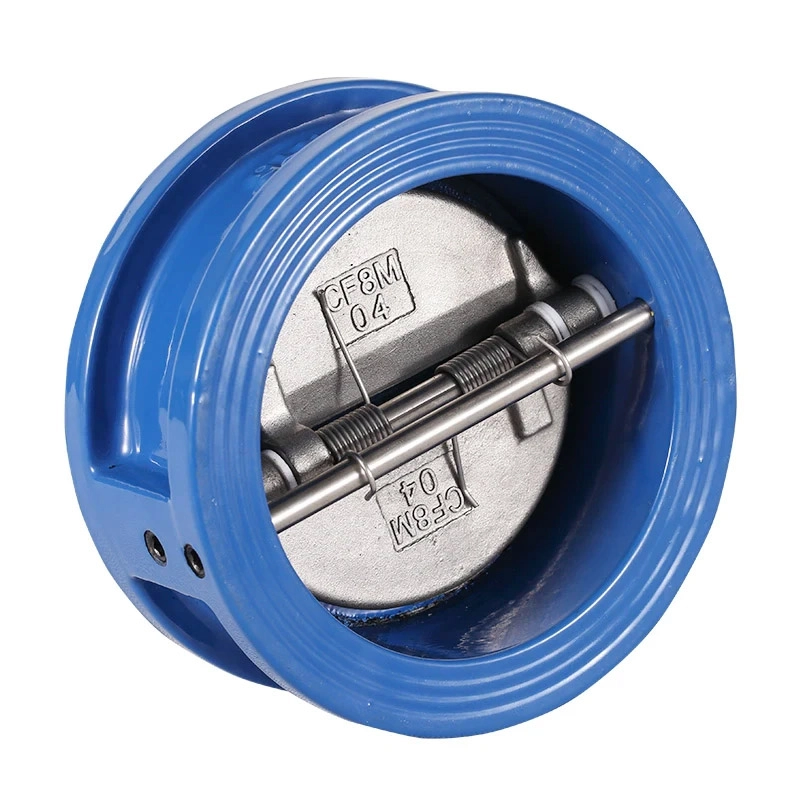

The efficiency of a dual plate check valve is derived from its streamlined, modular design. Understanding its components is essential for both installation and maintenance.
| Component | Function |
|---|---|
| Valve Body | The outer housing, typically wafer-style, designed for compact installation between flanges youtube valmatic. |
| Dual Plates | Two semicircular discs that open and close to regulate flow jscepai. |
| Hinge Pin | The central axis upon which the two plates rotate afhydro. |
| Springs | High-tension springs that provide the force for rapid closing valmatic facebook. |
| Stop Pin | Limits the opening angle of the plates to prevent structural over-travel afhydro. |
The operation of a dual plate check valve is intuitive and relies on differential pressure, making it an ideal "fail-safe" for pump stations [desuperheating].
1. Forward Flow: As fluid pressure builds in the intended direction, the force overcomes the resistance of the internal springs. This causes the two plates to rotate around the hinge pin and open, allowing a smooth, unobstructed flow with minimal pressure drop [desuperheating] [scribd].
2. Flow Cessation/Reversal: When the forward flow slows or stops, the springs—which are pre-loaded during the opening phase—immediately force the plates back to the closed position [afhydro] [facebook].
3. Preventing Water Hammer: Because the plates have a shorter travel distance compared to a large swing check valve disc, they close rapidly—often before the fluid has a chance to reverse direction significantly [afhydro]. This rapid, non-slam closure is the primary mechanism for mitigating water hammer, protecting your pumps and pipework from damaging pressure surges [bossealvalves] [youtube].
For EPC contractors and project managers, choosing the right valve is about long-term reliability. Our experience highlights why dual plate check valves are preferred:
Minimized Water Hammer: By reducing the time between flow cessation and valve closure, these valves significantly lower the risk of destructive surge pressure [bossealvalves].
Space-Saving Design: The "wafer" style is lightweight and compact, allowing for installation in tight spaces where conventional valves might not fit [youtube].
Energy Efficiency: Their low-pressure drop characteristic ensures that pumps work less, reducing overall system energy consumption over the long term [weebly] [scribd].
Installation Flexibility: Unlike some valves that require strictly horizontal mounting, many dual plate check valve designs can be installed in horizontal or vertical pipelines (flow up), provided they are properly oriented according to manufacturer guidelines [valve-delco] [wsv-valve].
Even the highest quality valve will underperform if installed incorrectly. Follow these expert tips from Tianjin Wode Valve Co., Ltd. to ensure longevity:
1. Mind the Distance: For optimal laminar flow, install the check valve at least 10 pipe diameters downstream from pumps and 5 pipe diameters from elbows or tees [valvemagazine]. This minimizes turbulence, which can cause premature wear on the hinge pin and discs [valvemagazine].
2. Pre-Installation Inspection: Always verify that the pipeline is clean and free of debris, as foreign matter is a leading cause of premature seat failure or "stuck" plates [athenavalve] [theleeco].
3. Routine Maintenance: Periodically inspect the hinge pin, springs, and seat surfaces for signs of erosion or fatigue [valveman]. If you notice excessive noise or vibration during pump cycles, this is often a sign that the valve is struggling with turbulent flow or requires internal part inspection [afhydro] [valvemagazine].
The dual plate check valve represents a perfect synergy of simple, mechanical ingenuity and high-performance engineering. By understanding its structure and working principle, you can ensure your water treatment and municipal pipeline systems remain safe, efficient, and reliable for years to come.
