A 3-way ball valve can transform a complex pool–spa or water feature project into a clean, compact, and energy‑efficient system when it is selected and applied correctly by experienced engineers and installers. Drawing on my work with water treatment and municipal pipeline projects, I will show how the same engineering logic that underpins industrial 3-way ball valve design can be leveraged to build safer, simpler, and more profitable pool and spa systems. [waterandwastewater1.weebly]
From an engineer's perspective, the core advantage of a 3-way ball valve is that it replaces a tee plus two 2-way valves with a single, compact flow control point. Instead of adding more pumps, complex wiring, and a maze of pipework, a properly selected 3-way valve lets you divert flow between pool and spa, or between pool and a water feature, with one motion or one signal. [covnav]

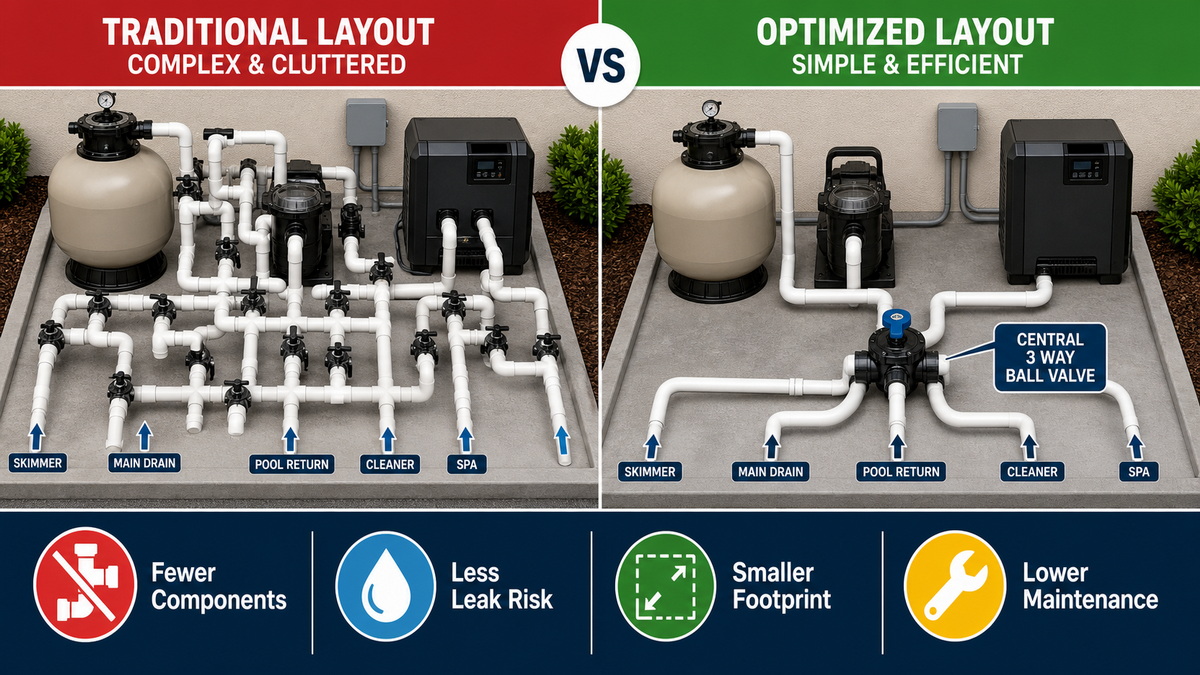

In many residential and light commercial pools, installers still default to multiple 2-way PVC ball valves on separate supply and return lines, which increases leak points, takes up pad space, and complicates service. By contrast, a full‑port PVC 3-way ball valve keeps pressure losses low, supports higher flow, and simplifies troubleshooting for technicians who service the system years later. [tameson]
In a conventional layout, you often see:
- Separate 2-way ball valves on pool skimmer and main drain lines
- Additional 2-way valves on spa suction and return
- Extra pumps and pipe loops for waterfalls or jets
- More wiring for each pump and actuator
This architecture works, but it:
- Consumes more installation time and material
- Creates more potential leak points and maintenance tasks
- Makes future upgrades or troubleshooting confusing for owners and service teams
Over a 10‑year lifecycle, the added energy consumption, replacement valves, and labor can easily offset any small upfront savings from using multiple basic valves.

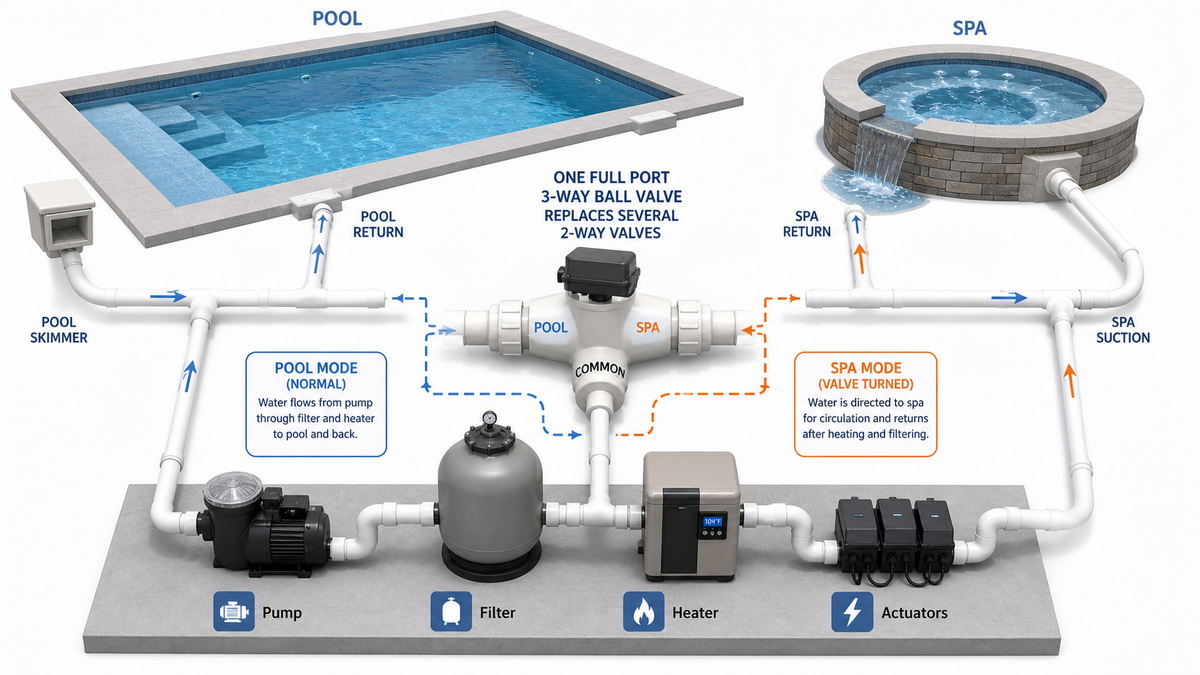

Assured Automation's PTP Series 3-way PVC ball valve shows how a single full‑port body can handle both pool and spa/water feature modes. Under normal operation, the system draws from pool suction lines (skimmers, main drains) and returns to pool inlets through one flow path of the 3-way valve.
When you activate the spa or water feature:
1. The 3-way valve rotates (manually or via electric actuator).
2. Suction and return are diverted from pool to spa or feature lines.
3. The same pump and primary filtration loop now serve the spa or waterfall.
You can still include a smaller manual 2-way "spa make‑up" valve to bleed a controlled flow into the spa while the pool is in full operation, fine‑tuning comfort and aesthetics. This design dramatically reduces redundant components while maintaining reliability for both modes.

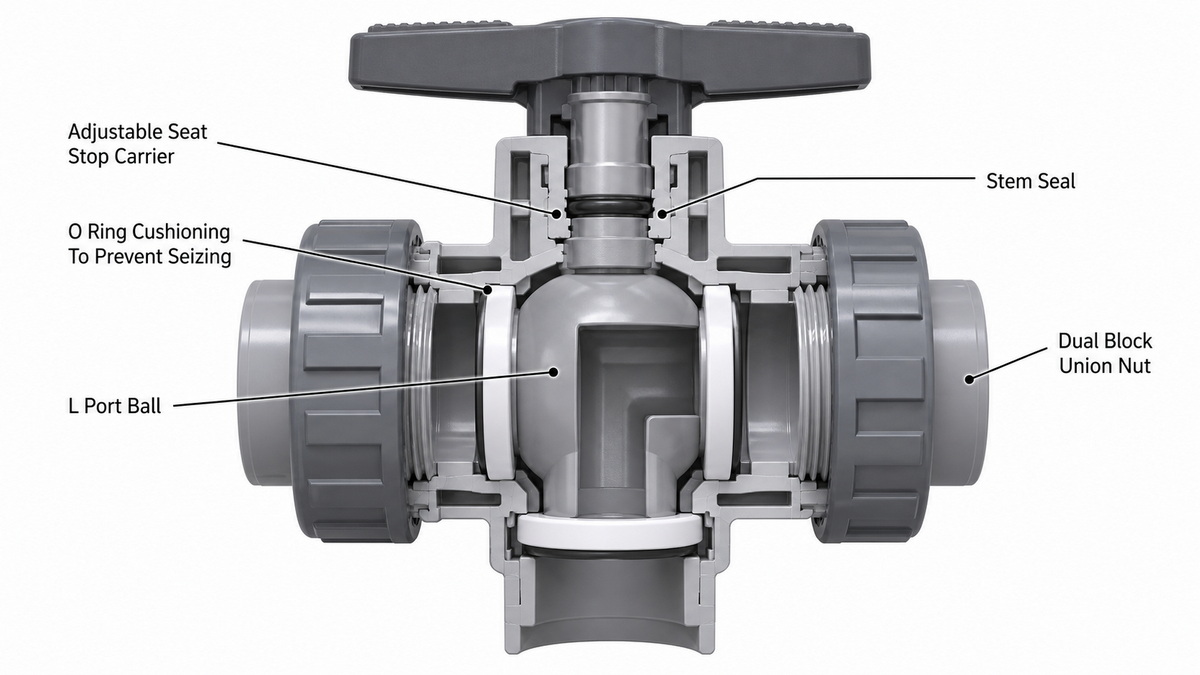

From a specification and commissioning standpoint, not all 3-way ball valves are equal. The following features in the PTP design directly address common field issues installers and OEMs see. [tameson]
A seat stop carrier with in‑line micro‑adjustment allows technicians to fine‑tune ball seating after installation. This is crucial in PVC systems where thermal expansion, minor misalignment, or vibration can otherwise cause weeping leaks or higher operating torque. [wesdunvalve]
The integrated o‑ring cushioning reduces wear between ball and seats and helps prevent seizing after long periods of inactivity—an issue residential pool owners often face when valves sit untouched for months. [wesdunvalve]
The PTP's DUAL BLOCK® locking union nuts are designed to stay locked even under high vibration or thermal cycling. In practical terms, that means:
- Fewer callbacks due to union nuts backing off over time
- Less risk of sudden leaks on pump startup
- Easier maintenance when disassembling for internal inspection
For contractors working on high‑end pools or resort spas, these details directly translate into fewer warranty claims and a more professional, long‑lasting installation.
An integral mounting flange and bracket simplify direct mounting of electric or pneumatic actuators. The PTP Series supports multiple electric motor options (12 VDC, 24 VAC/DC, 120 VAC), giving designers flexibility to align with local power standards and control architectures.
Combined with a locking handle for manual override, this makes the valve suitable for:
- Basic residential systems with manual operation
- Fully automated premium installations tied into building management or pool automation platforms
As a manufacturer focused on water treatment and municipal pipeline applications, we see every day how 3-way ball valves perform in demanding, continuous‑duty systems. These insights are directly transferable to pool and spa projects that demand long‑term reliability rather than short‑term cost savings. [wodevalve]
In large water and wastewater plants, 3-way ball valves are used to:
- Switch flow between different filtration or disinfection stages
- Mix treated and untreated streams under tightly controlled conditions
- Provide bypass routes during maintenance while keeping systems online
These environments run at higher pressures, face more aggressive media, and often operate 24/7. When a valve design proves robust there, it is more than capable of handling chlorinated pool water, spa chemistry, and typical residential or commercial duty cycles. [waterandwastewater1.weebly]
Before choosing any valve, clarify what you really expect it to do. For pool and spa applications, a 3-way ball valve can handle: [chicago.swagelok]
- Flow diversion – One inlet to two outlets (pool or spa/feature) [covnav]
- Flow mixing – Two inlets into one outlet (less common in pools but useful in process water or water treatment) [waterandwastewater1.weebly]
- On/off isolation – Replacing a tee plus two isolation valves in a compact form
Misapplications usually happen when a 3-way ball valve is expected to throttle precisely or perform beyond its intended range; for critical throttling, specific control valves may still be required. [chicago.swagelok]
For outdoor pool pads, PVC body with suitable elastomer seats and seals is typically the best balance of corrosion resistance, weight, and cost. When specifying materials, consider: [tameson]
- Water chemistry (chlorine, salt, pH, temperature)
- Ambient temperature swings and UV exposure
- Fluid pressure and velocity through the valve
In more aggressive or high‑temperature water treatment or industrial projects, stainless steel housings and higher‑grade seat materials may be justified. [stvvalves]
Although many residential systems simply match valve size to existing pipe OD, professionals should consider:
- Required flow rate for pool circulation and spa jets
- Acceptable pressure drop through the valve
- Pump curve and available head
A full‑port design maintains internal diameter and minimizes flow restriction, which is especially important when using a single pump to serve both pool and spa modes. [tameson]

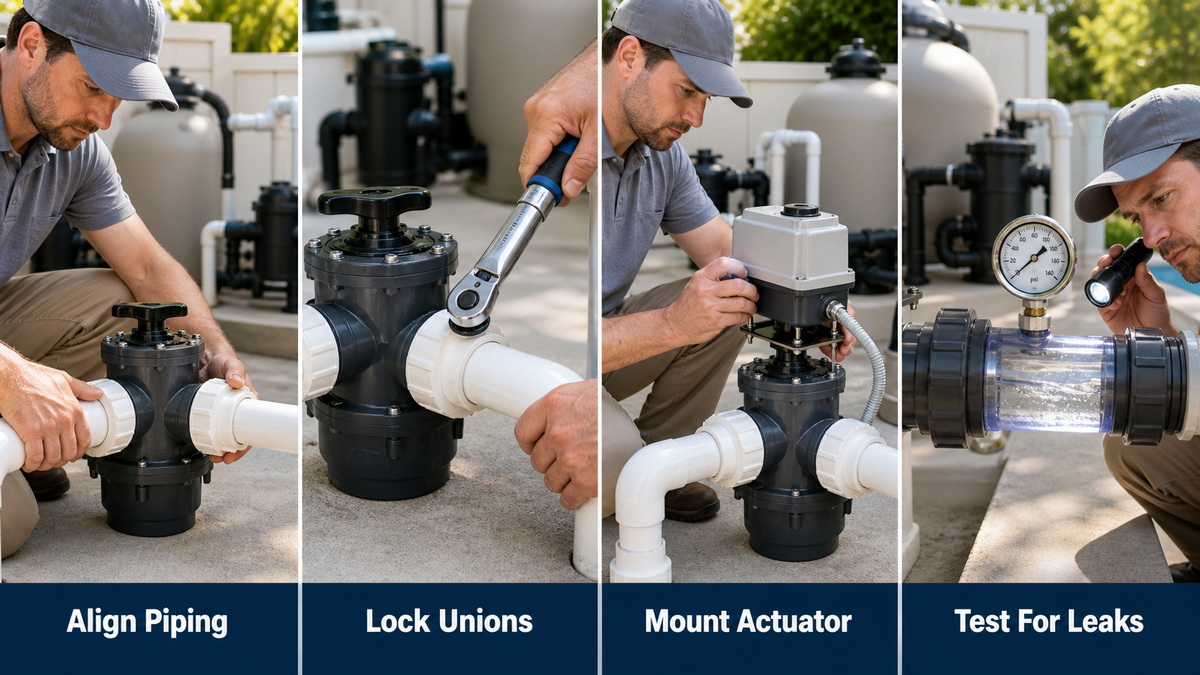

Even the best 3-way ball valve fails early if installed or maintained poorly. Experience from industrial and municipal systems offers a clear checklist for pool and spa contractors. [powermag]
- Align piping carefully to avoid stressing the valve body and union connections. [wesdunvalve]
- Follow torque guidelines on union nuts and mounting bolts rather than tightening "by feel" to prevent cracking or distortion. [wesdunvalve]
- Use appropriate support brackets so the valve and actuator are not bearing the full pipe weight. [wesdunvalve]
- Confirm correct flow orientation and port configuration (L‑port or T‑port) before gluing or threading connections. [covnav]
- Perform visual inspections every 6–12 months to check for leaks, corrosion, and sluggish operation. [powermag]
- Exercise (open/close) valves periodically to prevent seat sticking and buildup in the ball cavity. [wesdunvalve]
- Clean exterior surfaces to remove dust, debris, and chemical deposits, and schedule deeper internal cleaning annually for heavy‑use systems. [wesdunvalve]
- Lubricate stems and moving parts using manufacturer‑approved lubricants when specified, avoiding products that can damage PVC or elastomers. [powermag]
In practice, these steps can extend ball valve service life by 50% or more, reducing downtime and total cost of ownership across large portfolios of installed systems. [powermag]
From my experience collaborating with distributors and EPC contractors, 3-way ball valves deliver the clearest ROI in the following use cases. [wodevalve]
- New in‑ground pool–spa combos where designers want to minimize footprint on the equipment pad.
- Retrofits where an existing pool is being upgraded with a spa, waterfall, or decorative feature without adding a second pump.
- Compact equipment rooms in hotels, resorts, and wellness centers where every centimeter of space matters.
- Water treatment side-streams that need flexible diverting or mixing without the complexity of multiple valves and tee fittings. [waterandwastewater1.weebly]
In each scenario, the reduction in valves, fittings, and wiring translates into faster installation, fewer leak paths, and a cleaner layout that is easier for future technicians to understand.
Even seasoned professionals occasionally fall into predictable traps when working with 3-way ball valves in wet environments. Based on field feedback and maintenance reports, these are the issues I see most frequently. [chicago.swagelok]
- Using the wrong port configuration (T‑port vs L‑port) and discovering after startup that flow cannot be directed as planned. [covnav]
- Expecting precise throttling from a ball valve where a dedicated control valve would be more appropriate. [chicago.swagelok]
- Skipping actuator alignment and calibration, leading to partial openings and unnecessary seat wear.
- Ignoring water chemistry changes (e.g., switching to saltwater systems) without re‑evaluating seat and seal materials. [tameson]
- Failing to standardize maintenance routines, which allows minor leaks or torque increases to evolve into major failures. [powermag]
By addressing these points at design and commissioning stages, contractors protect both their reputation and the long‑term operation of client systems.
While PVC 3-way valves like the PTP Series are ideal for typical pools and light commercial spas, there are scenarios where industrial‑grade valves—such as those used in municipal water treatment or high‑pressure process loops—are more appropriate. [stvvalves]
You should consider metal‑bodied, trunnion‑mounted, or high‑pressure designs if:
- System pressure approaches the upper limits of standard PVC valve ratings
- Water temperature regularly exceeds typical pool/spa ranges
- The valve is part of a broader industrial water treatment or process system with stricter reliability requirements
Trunnion‑mounted ball valves, for example, anchor the ball and reduce operating torque under high pressure, which minimizes seat wear and supports pressures up to around 10,000 psi. These designs are overkill for most pools but indispensable in demanding industrial service. [stvvalves]
As a global manufacturer supplying distributors, EPC contractors, and international valve brands, Tianjin Wode Valve brings water treatment and municipal pipeline experience directly into recreational water projects. Our portfolio covers ball valves, butterfly valves, check valves, and gate valves, allowing us to support complete system designs instead of isolated components. [wodevalve]
For partners targeting pool, spa, and decorative water markets, that means:
- Access to 3-way ball valve configurations optimized for diverting, mixing, and isolation in chlorinated or treated water
- Material and seat selection guided by data from municipal and industrial installations
- Application engineering support to ensure correct sizing, layout, and actuation strategies
This combination of product depth and application expertise helps our partners differentiate on performance, not just price.
If you design, sell, or install pool, spa, or water treatment systems, a well‑specified 3-way ball valve is one of the fastest ways to improve both performance and profitability.
- Distributors: Build standard kits that pair full‑port 3-way PVC valves with the most common actuator voltages and union configurations for your market.
- Contractors: Standardize on a proven 3-way valve platform and integrate simple maintenance and exercise routines into service contracts.
- Design engineers and EPC firms: Use 3-way valves to simplify piping layouts, reduce space requirements, and standardize actuation strategies across projects.
If you are planning a new project or exploring optimized valve packages for your supply chain, contact Tianjin Wode Valve to review your flow diagrams, material requirements, and long‑term maintenance goals so we can recommend a 3-way ball valve solution tailored to your application. [wodevalve]
A 3-way ball valve replaces a tee and two separate 2-way valves, reducing component count, leak points, and space on the equipment pad while enabling simple diversion between pool and spa or water features. [waterandwastewater1.weebly]
They can provide basic flow control, but they are primarily designed for on/off and diverting or mixing service; for precise throttling, dedicated control valves are recommended. [chicago.swagelok]
Visual inspections every 6–12 months, with periodic operation and annual internal cleaning in heavy‑use systems, are typically sufficient to maintain smooth performance and prevent leaks. [powermag]
Yes, provided the PVC body and seal materials are compatible with the specific salt concentration and water chemistry; material selection should always be confirmed against the application's temperature, pressure, and chemical profile. [tameson]
Look for full‑port design, adjustable seat carriers, robust sealing with o‑ring cushioning, secure union systems (such as locking union nuts), reliable actuation options, and a proven track record in water treatment or municipal service. [waterandwastewater1.weebly]
