Across global water treatment plants and city pipeline networks, engineers are under pressure to deliver stable flow control, low leakage, and predictable lifecycle costs. Yet many projects still default to globe valves simply because "we always used them," even when a V port ball valve could achieve the same control performance with a smaller size and tighter shutoff. This guide explains, from an industry practitioner's point of view, when to choose a V port ball valve vs a globe valve, and how ball valve specialists like Tianjin Wode Valve Co., Ltd. can help you optimize control and OPEX in real projects. [steelstrong]
In water and wastewater projects, the most relevant search intent and engineering conversations usually revolve around a few recurring topics: [yekevalve]
- V port ball valve vs globe valve selection for control loops
- Control valve choice in water treatment and municipal pipelines
- How to achieve bubble tight shutoff while still enabling throttling control
- CAPEX vs OPEX when selecting control valves for long-term operation
When you understand these decision drivers, you can move beyond the traditional "globe by default" mindset and choose valves that fit your process, maintenance strategy, and budget. [cncontrolvalve]

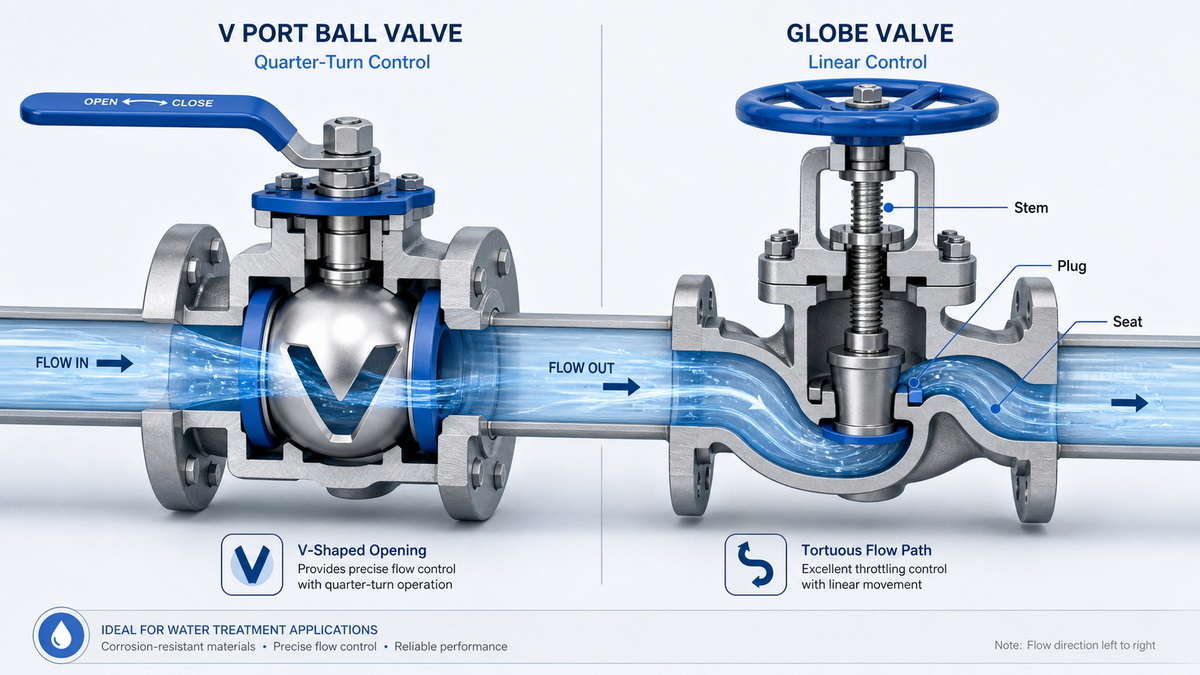

V port ball valves are rotary control valves: the ball turns typically 90 degrees from fully closed to fully open, with a V-shaped opening that characterizes the flow curve. Globe valves are linear control valves: a plug moves up and down relative to the seat, creating a more tortuous flow path but very predictable throttling characteristics. [casting-china]
In practice this means:
- V port ball valves provide high flow capacity (high Cv) with compact face-to-face dimensions and short actuation strokes. [cncontrolvalve]
- Globe valves provide precise, near-linear flow control and are the long‑time standard where tight process accuracy is critical. [casting-china]
For engineers, this is not just theory; it drives actuator sizing, skid layout, and even how much room you have in a crowded pipe gallery. [cncontrolvalve]

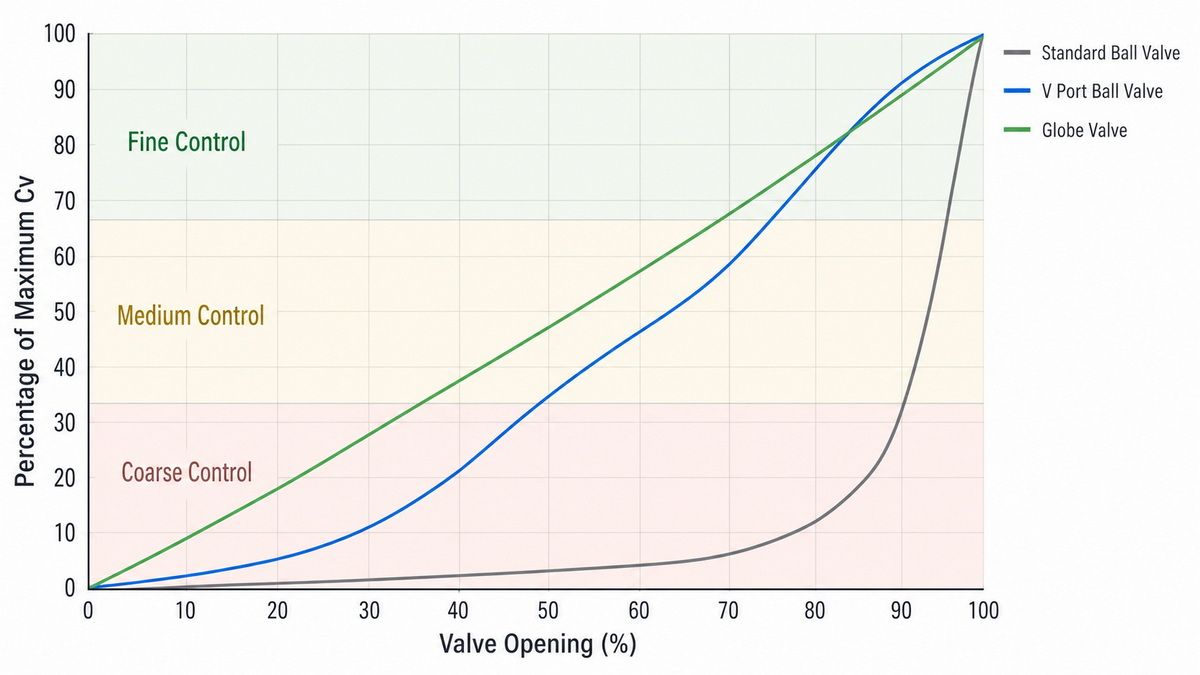

Both V port ball valves and globe valves rely on a control signal (0–10 VDC, 4–20 mA, or 3–15 psi) sent to a positioner, which then modulates the actuator and valve opening. A key point is how that signal translates into actual flow change:
- Globe valves tend to produce a more linear relationship between % stroke and % of maximum Cv.
- Standard ball valves have a poor throttling curve, which is why traditional wisdom says "do not throttle with ball valves." [bestflowvalve]
- V port ball valves solve this by machining the ball with a V profile (15°, 30°, 60° etc.), which smooths the flow curve and makes rotary valves usable for coarse-to-medium control. [janhenvalve]
In water treatment, this often means a V port ball valve can meet control requirements for flow control on filters, chemical dosing headers, and backwash lines without the cost and complexity of a globe valve in every loop. [steelstrong]
| Aspect | V Port Ball Valve | Globe Valve |
|---|---|---|
| Motion type | Rotary quarter-turn cncontrolvalve | Linear rising stem casting-china |
| Typical function | 2-way control, on/off + throttling | 2-way control, 3-way mixing/diverting |
| Shutoff performance | Bubble tight, positive shutoff via floating ball cncontrolvalve | Not typically zero-leakage; limited by trim design cncontrolvalve |
| Control capability | Coarse to medium precision (characterized V-port) janhenvalve | Fine, precise control, near linear flow curve casting-china |
| Flow capacity (Cv) | Higher Cv for same nominal size cncontrolvalve | Lower Cv due to tortuous path bestflowvalve |
| Cavitation risk | Higher vena contracta, more cavitation-prone cncontrolvalve | Better for cavitation control with proper trim cncontrolvalve |
| Temperature capability | Good, but limited by soft seats unless metal-seated steelstrong | Often preferred for high-temperature service cncontrolvalve |
| Cycling duty | Best for infrequent or moderate adjustments ar.haiyingvalve | Excellent for high-cycle, continuously modulating duty ar.haiyingvalve |
| Maintenance | Seat wear higher due to constant contact; simple ball/seat change cncontrolvalve | Longer seat life; top-entry bonnet simplifies trim replacement |
| Cost | Typically 35–50% less than globe for similar service cncontrolvalve | Higher initial cost but strong control performance |
From a water-industry engineer's viewpoint, the V port ball valve is often the smarter choice in these scenarios: [yekevalve]
- Need for tight isolation plus control
Where the same valve must throttle and also isolate with minimal leakage (e.g., filter inlet/outlet, treated water headers), bubble‑tight shutoff from a floating ball design is a real advantage. [cncontrolvalve]
- High flow at limited space
Pump rooms and underground valve chambers rarely have spare space. A V port ball valve provides higher Cv in a smaller envelope than a globe valve, which can allow a smaller nominal size while still meeting flow requirements. [cncontrolvalve]
- Budget‑constrained municipal projects
When there is no compelling cavitation or ultra‑high-accuracy requirement, an engineered V port ball valve is usually more cost‑effective both in valve cost and actuator size. [ar.haiyingvalve]
- Wastewater and sludge lines
Globe internals can clog in dirty or fibrous flows. A well-designed ball valve with appropriate trim clearances and materials is easier to flush and less prone to blockage. [steelstrong]
In my discussions with project managers, the pattern is consistent: where teams switch from "globe by habit" to "V port by design", they often report fewer leakage complaints and easier commissioning, especially on filter control and clear water distribution. [steelstrong]
Globe valves remain the gold standard in several demanding scenarios, and pretending otherwise is a disservice to users. [casting-china]
- High-precision control loops
In chemical dosing with small flow ranges, critical pressure control, or thermal oil circuits, a globe valve's linear flow characteristic supports tighter control bands. [casting-china]
- High-temperature service above ~350°F
The article from Assured Automation explicitly notes that globe valves are usually preferred for higher temperature media, subject to pressure and seat material limits.
- Severe cavitation conditions
Where large pressure drops across the valve cannot be avoided, globe valves with anti‑cavitation trim can protect both the valve and downstream piping. [cncontrolvalve]
- Very high cycling duty
If the valve must constantly modulate throughout its stroke range, a globe design avoids continuous sliding contact between ball and seats, reducing wear. [ar.haiyingvalve]
The practical takeaway is that EPCs and asset owners should standardize on V port ball valves as the default for water-related control unless there is a clear process reason to specify globes. [steelstrong]

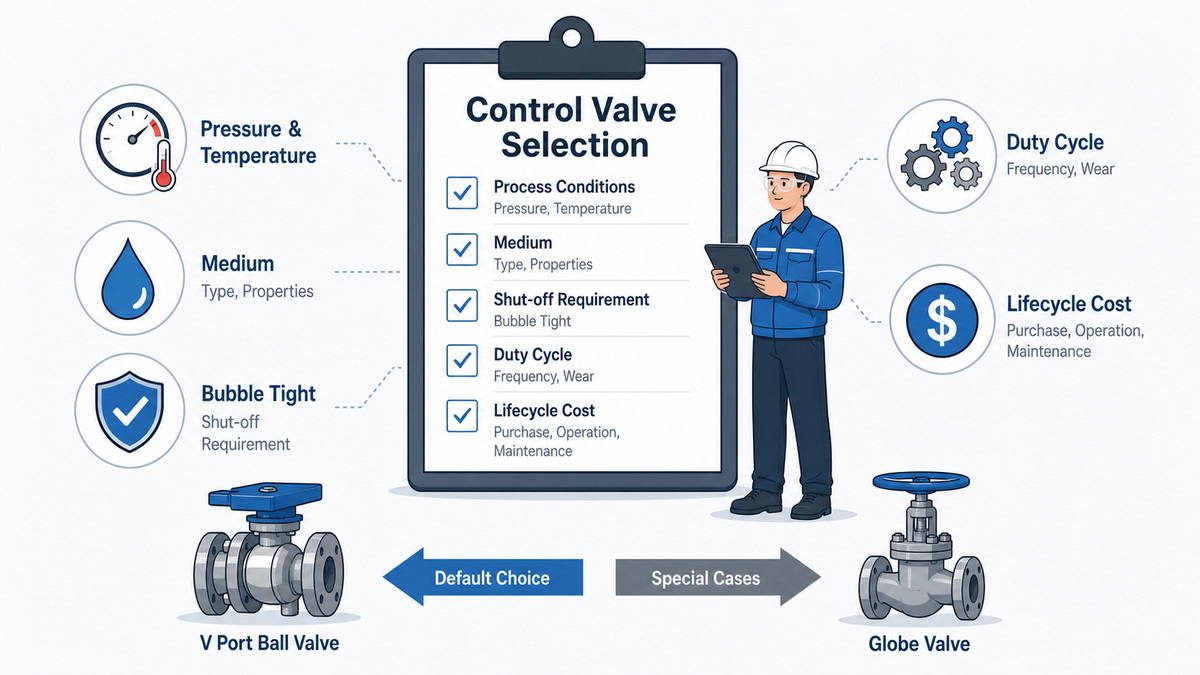

Before locking in a valve type, I advise project teams to document three simple points for each control point: [carewater]
1. What variable are you controlling? (Flow, level, pressure, temperature.)
2. What accuracy and response time does the control loop require?
3. Does the same valve also provide safety isolation or only throttling?
If accuracy requirements are moderate, and you need reliable shutoff, a V port ball valve is often the right starting point. [cncontrolvalve]
For water treatment and municipal pipelines the fluid is often water, wastewater, or sludge, but you still need to consider: [yekevalve]
- Corrosiveness (e.g., seawater, industrial wastewater)
- Presence of solids and debris
- Maximum and minimum operating temperatures
- Differential pressure across the valve in all operating modes
Where temperatures stay within typical elastomer/soft-seat ranges and solids are present, designers often prefer a metal‑seated or hard‑faced V port ball valve to extend seat life while maintaining shutoff integrity. [steelstrong]
Cavitation is not just a theoretical issue – it can destroy valve internals and downstream piping and cause noise that operators quickly complain about. For each control point: [cncontrolvalve]
- Calculate or estimate pressure drop across the valve at worst-case conditions.
- If drop is high and outlet pressure low, treat cavitation seriously.
- In severe cases, favor a globe valve with suitable trim over a V port ball valve. [cncontrolvalve]
For many water-treatment loops, if you distribute the pressure drop across several components, cavitation risk at the control valve can be kept within acceptable limits, allowing safe use of V port ball valves. [steelstrong]
Maintenance and lifecycle strategy strongly influence valve choice: [ntia]
- Plants with limited shutdown opportunities often appreciate globe valves' top-entry bonnet design, which allows technicians to replace trim without disturbing pipe alignment.
- Plants comfortable with modular valve replacement may prefer compact V port ball valves: removing and replacing the entire automated assembly can be faster than in-situ repair. [steelstrong]
From an asset-management perspective, standardizing on a robust V port ball valve design across similar lines simplifies spares inventory and training. [carewater]
As a dedicated ball valve manufacturer focused on water treatment and municipal pipeline applications, Tianjin Wode Valve Co., Ltd. contributes value in several ways that pure catalog vendors often cannot: [yekevalve]
- Application‑driven engineering support for distributors, EPC contractors, and international brands, helping select the right V port ball configuration and materials for each project.
- Capability to manufacture valves in corrosion‑resistant materials suitable for raw water, treated water, and aggressive wastewater environments. [steelstrong]
- Customization of port characterization, seat materials, and actuation packages to match control-loop requirements and local instrumentation standards. [carewater]
Because the company specializes in ball valves rather than trying to be everything to everyone, its engineering team can help project stakeholders move confidently from globe‑first legacy specs to optimized V port ball solutions where appropriate. [carewater]

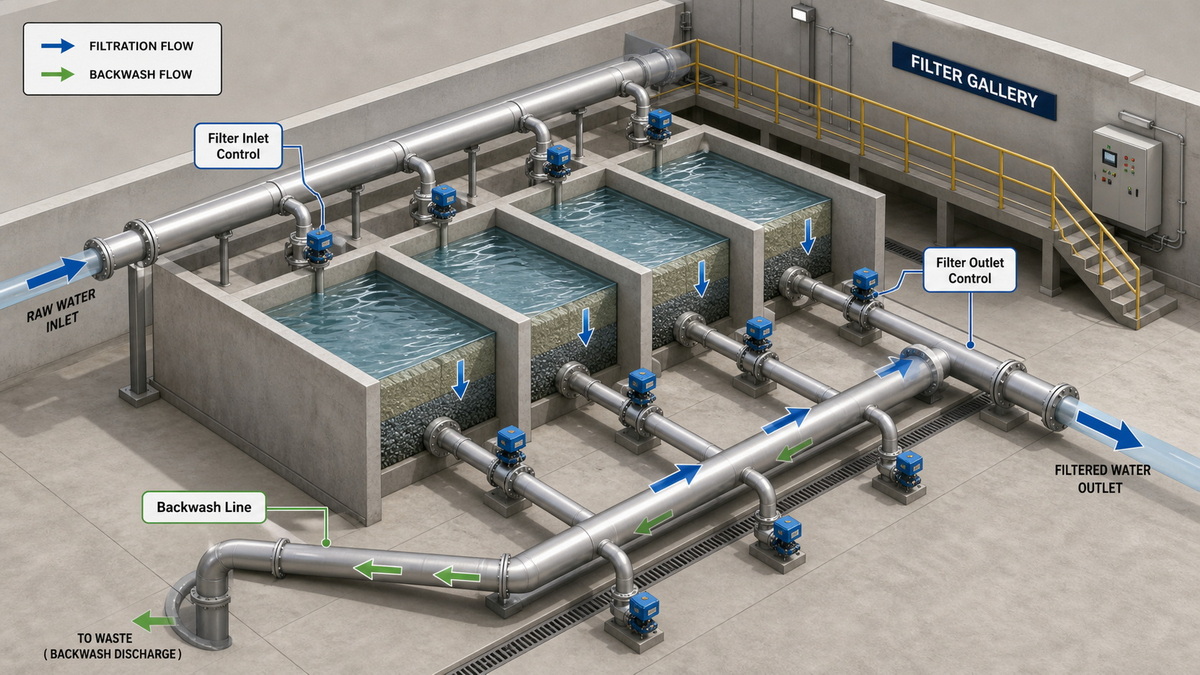

Consider a typical municipal water plant filter gallery where each filter has inlet, outlet, and backwash control valves: [yekevalve]
- Historically, many such plants used globe valves on inlet and outlet with separate isolation valves, increasing component count and maintenance.
- By switching to V port ball valves sized for required Cv, the plant can often combine throttling and shutoff, reduce piping complexity, and lower actuator sizes. [cncontrolvalve]
One project team I worked with reported that after replacing a set of aging globe valves with V port ball valves on a filter outlet line, they achieved: [steelstrong]
- Equivalent control stability once the control loop tuning was updated
- Improved isolation, which reduced downtime during filter maintenance
- A noticeable reduction in spare-part complexity, as common seat kits were used across multiple lines
This kind of incremental, well‑engineered upgrade is where a specialist ball valve manufacturer can be a genuine long‑term partner rather than just a one‑off supplier. [carewater]
To help vendors propose the right V port ball valve or globe valve, your control valve datasheets should clearly specify: [scribd]
- Line size, flange standard, and face-to-face requirements
- Normal, minimum, and maximum flow rates and pressures
- Required leakage class or bubble-tight shutoff
- Expected duty cycle (number of operations per hour/day)
- Medium composition, including solids, chlorides, and temperature ranges
The clearer the datasheet, the more accurately a manufacturer like Tianjin Wode Valve can advise whether a V port ball valve or globe valve is the better fit. [carewater]
Choosing between a V port ball valve and a globe valve is ultimately about aligning valve behavior with process needs, maintenance strategy, and budget, not about defending legacy preferences. If you are planning or retrofitting a water treatment plant or municipal pipeline, involve a specialized ball valve manufacturer early so that you can: [carewater]
- Validate whether V port ball valves can safely replace some or all globe valves
- Optimize valve sizing to reduce footprint and actuator costs
- Standardize materials and trims for long‑term reliability in your specific water or wastewater conditions [yekevalve]
Tianjin Wode Valve Co., Ltd. works with global distributors, EPC contractors and valve brands to engineer tailored ball valve solutions for exactly these kinds of applications. To discuss your next project, share your process conditions and control philosophy and request an application‑specific V port ball valve recommendation. [carewater]
A: No. V port ball valves are suitable for coarse to medium control where cavitation is manageable and ultra‑tight control accuracy is not mandatory. In severe cavitation or high‑temperature cases, a globe valve may still be the safer choice. [cncontrolvalve]
A: You need bubble‑tight shutoff when even small leakage would cause operational issues, safety concerns, or water-quality problems, such as in filter isolation or critical chemical dosing lines. Where small leakage is acceptable, a standard globe valve may suffice. [steelstrong]
A: Not necessarily. While ball valve seats may wear faster under high cycling due to constant contact, their modular design and straightforward seat replacement can offset this. Actual lifecycle cost depends on duty cycle, medium, and maintenance practices. [ar.haiyingvalve]
A: Often you will need to reassess actuator sizing and signal range, because V port ball valves have different torque requirements and flow curves compared to globes. A competent valve supplier should perform a sizing and actuation check before any swap. [carewater]
A: For industrial water and municipal applications, you should verify compliance with applicable design, testing and inspection standards (such as relevant ANSI/ASME or ISO standards) as defined by your project specification. Your datasheets and inspection reports should clearly reference those standards for traceability. [valveman]
