Actuated valves and automated valves are essentially the same concept in modern water treatment and municipal pipeline projects, but many engineers still confuse the terminology and, more importantly, underestimate how much a well‑specified actuated ball valve can improve safety, reliability, and lifecycle cost in the field. Drawing on my experience supporting global distributors and EPC contractors, this guide explains how actuated ball valves actually work in real plants, what to watch out for during specification, and how a specialist manufacturer like Tianjin Wode Valve Co., Ltd. can help you avoid costly mistakes in water and municipal pipeline systems. [process-valves.co]

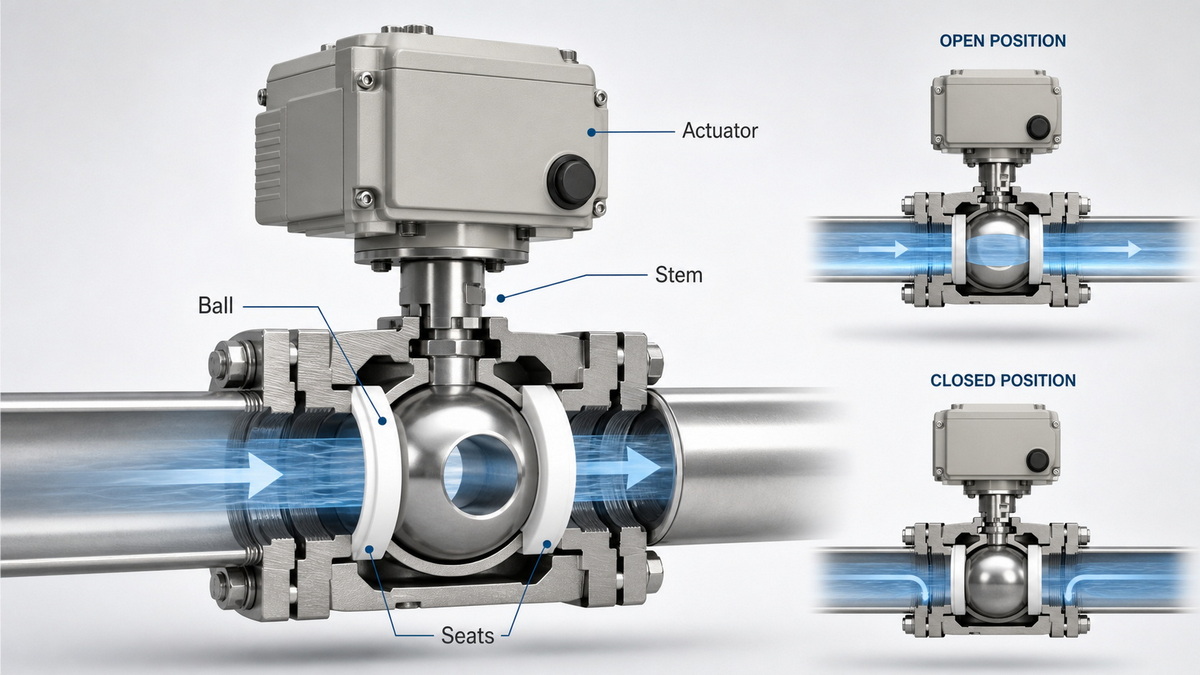

From a technical perspective, an actuated valve is a valve operated by an external device—typically an electric, pneumatic, or hydraulic actuator—rather than a hand lever or gear. When that same valve becomes part of a control loop (with signals, feedback, and sometimes remote monitoring), many engineers call it an automated valve, but mechanically it is still an actuated valve. [ascelibrary]IR.1943-4774.0001676)
- Electric actuators convert electrical energy into rotary motion, ideal for precise control and remote locations with stable power. [tianyuvalves]
- Pneumatic actuators use compressed air for fast, fail‑safe operation in wet or hazardous environments. [process-valves.co]
- Hydraulic actuators leverage pressurized fluid where very high torque is required, such as large‑diameter valves or high differential pressures. [tianyuvalves]
In practice, quarter‑turn valves (especially ball valves and butterfly valves) dominate actuated applications because they require a simple 90‑degree rotation and relatively predictable torque across the stroke. This is one reason actuated ball valves have seen such strong growth in water, wastewater, and urban pipeline systems over the last decade. [process-valves.co]
As someone who has walked through many water treatment plants and municipal booster stations, I have seen a clear shift from legacy gate and globe valves toward quarter‑turn actuated ball valves. Several factors drive this trend. [tianyuvalves]
- Compact footprint: Ball valves provide tight shutoff in a shorter face‑to‑face dimension and with lighter weight than comparable gate valves. [tianyuvalves]
- Fast actuation: A 90‑degree stroke allows rapid open/close cycles, which is critical in emergency isolation or surge control scenarios. [ascelibrary]IR.1943-4774.0001676)
- Standardized mounting: ISO‑pattern top‑works on modern ball valves make actuator sizing and replacement far easier than on older multi‑turn valves.
- Tight sealing: Soft‑seated ball valves deliver bubble‑tight shutoff, minimizing non‑revenue water and leakage in urban distribution networks. [process-valves.co]
In water treatment and distribution systems, these advantages translate directly into more stable process control, lower pumping energy, and reduced unplanned downtime—especially when valves are correctly specified and paired with the right actuator technology. [ascelibrary]IR.1943-4774.0001676)

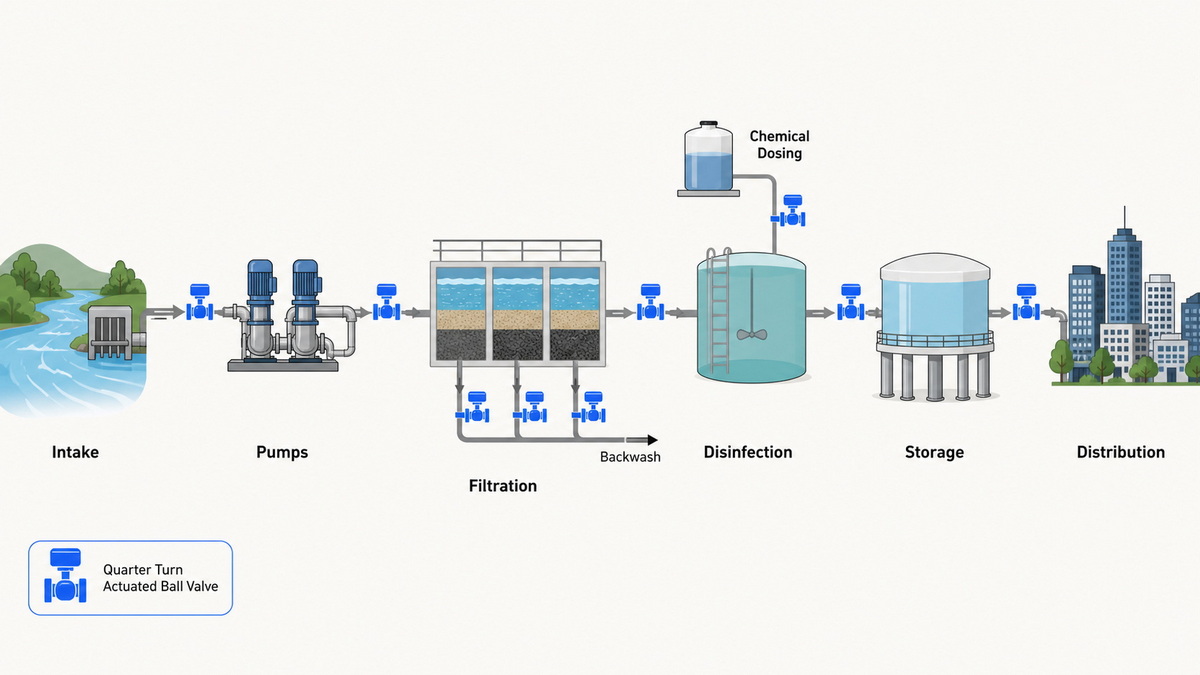

From intake to distribution, actuated ball valves play specific roles at each stage of the water cycle. Based on current industry practice, here are some of the most common use cases in water and wastewater projects. [process-valves.co]
At the intake structure and pre‑treatment lines, actuated ball valves are used for: [tianyuvalves]
- On/off isolation of pumps and strainers.
- Automated bypass lines for maintenance of coarse screens or filters.
- Emergency shutdown in case of contamination alarms or low‑level conditions.
In these areas, valves face raw water with suspended solids and sometimes corrosive components, so material selection (body, ball, seat, and stem) is critical to avoid premature wear. [tianyuvalves]
In filtration and disinfection, actuated ball valves support: [ascelibrary]IR.1943-4774.0001676)
- Backwash sequencing for filter beds.
- Flow control and on/off for sodium hypochlorite, PAC, or coagulant dosing lines.
- Inline sampling and bypass loops around critical equipment.
Where chemical dosing is involved, designers typically choose corrosion‑resistant alloys or lined valves, combined with soft seats that tolerate frequent cycling without losing shutoff performance. [process-valves.co]
On the wastewater side, actuated valves must manage abrasive slurries and gases. Typical roles include: [process-valves.co]
- Sludge transfer lines between thickening, digestion, and dewatering equipment.
- Aeration air lines and odor control scrubber circuits.
- Bypass arrangements during maintenance of clarifiers or biological reactors.
Here, the choice of seat materials and stem sealing directly affects service life; in sludge lines, users often prefer hardened surfaces or special coatings to resist abrasion and scaling. [tianyuvalves]

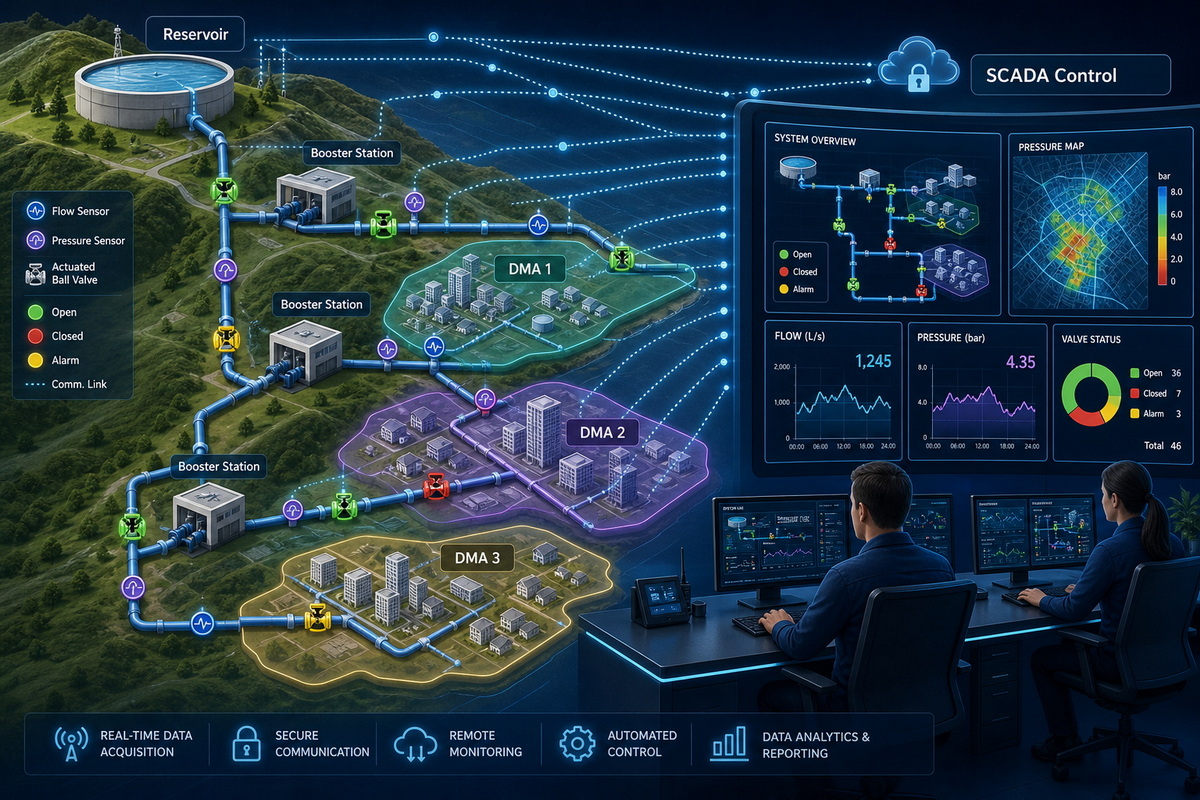

Once treated water moves into the municipal pipeline network, actuated valves help utilities maintain stable pressure and flow. [noritesolution]
- Pressure zone control and booster stations use actuated valves to regulate flow based on demand and tank levels. [ascelibrary]IR.1943-4774.0001676)
- District metering areas rely on remotely controlled valves to isolate leakage zones and manage non‑revenue water. [noritesolution]
- In high‑elevation or long‑distance mains, actuated valves often work together with air valves and check valves to prevent water hammer and column separation. [noritesolution]
For urban utilities under pressure to reduce leakage and energy usage, these automated nodes are central to smarter, more resilient pipeline operation. [noritesolution]

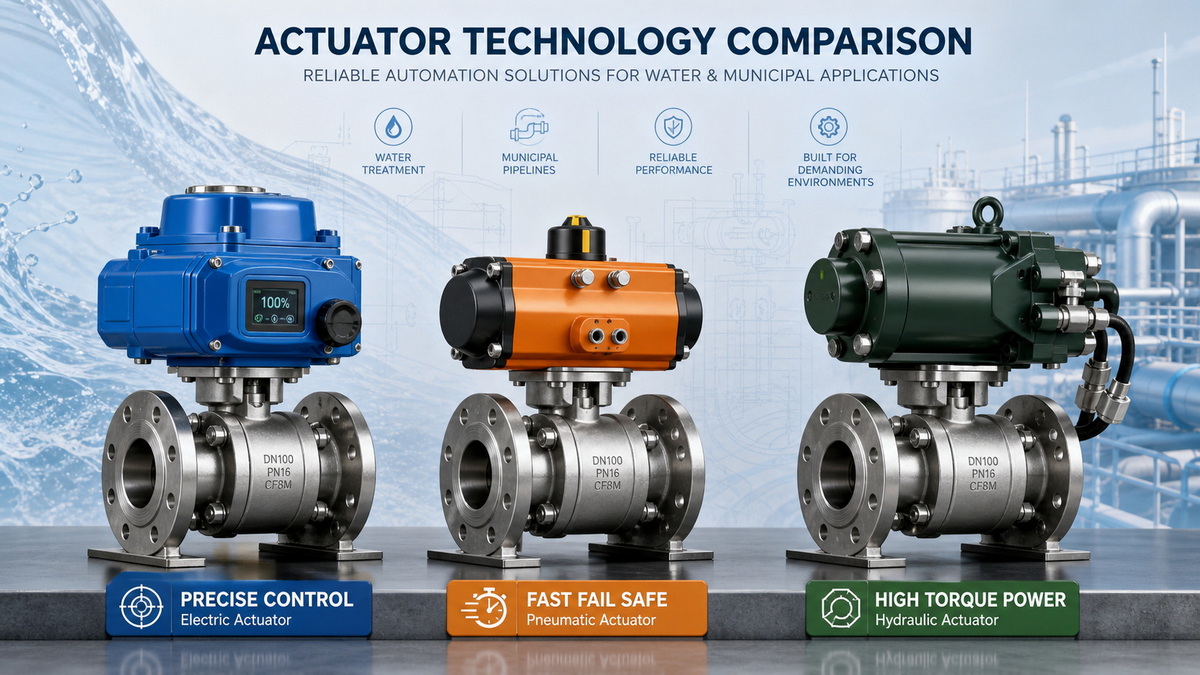

Choosing the actuator is often more critical than choosing the valve itself. From field experience and market data, most water and municipal projects rely on three categories. [process-valves.co]
Electric actuators are widely used where: [tianyuvalves]
- The site has reliable power and limited compressed air.
- Precise positioning or modulating control is required.
- Remote SCADA integration and feedback signals are a priority.
Modern electric actuators offer NEMA 4/4X or IP67/IP68 enclosures, integrated torque and position sensors, and local control stations, making them well suited to above‑ground valve chambers and treatment buildings. [tianyuvalves]
Pneumatic actuators remain the workhorse in many water and wastewater plants because they: [process-valves.co]
- Deliver very fast stroking times for emergency shutdown.
- Offer simple fail‑open or fail‑closed behavior using spring‑return designs.
- Perform reliably in moist or hazardous environments, with no risk of sparking.
In large water treatment facilities, a central compressed‑air system often powers dozens or hundreds of pneumatic actuators across filters, chemical dosing skids, and sludge handling lines. [process-valves.co]
Hydraulic actuators appear in heavy‑duty applications where high torque is needed within a compact package. Typical examples include: [ascelibrary]IR.1943-4774.0001676)
- Large‑diameter trunk mains or penstocks.
- High‑pressure pump discharge lines.
- Critical surge‑control and safety‑shutoff valves in hydropower and dam outlets.
Although less common in standard municipal distribution networks, hydraulic systems give designers fine control over stroking speed and position under very demanding conditions. [tianyuvalves]
From an engineering and lifecycle‑cost perspective, proper sizing and selection make the difference between a smooth‑running plant and constant maintenance headaches. Based on current industry practice, here is a step‑by‑step approach. [ascelibrary]IR.1943-4774.0001676)
Clarify:
1. Medium (raw water, treated water, wastewater, chemicals, sludge). [process-valves.co]
2. Minimum and maximum operating pressure and temperature. [tianyuvalves]
3. Required function (on/off isolation, throttling, emergency shutdown). [ascelibrary]IR.1943-4774.0001676)
4. Expected number of cycles per day and lifespan. [tianyuvalves]
This ensures that body materials, seat designs, and stem seals are matched to real site conditions rather than generic catalog ratings. [tianyuvalves]
Valve torque is not constant; it varies with differential pressure, medium, and frequency of operation. Best practice is to: [process-valves.co]
- Use manufacturer torque curves for the specific valve size, pressure, and medium.
- Add a suitable safety factor (often 25–50%) for aging, scaling, and friction changes.
- Confirm starting, running, and seating/unseating torque requirements.
Under‑sized actuators can stall or fail to close on critical events, while over‑sized units increase cost and may stress the stem or seat unnecessarily. [tianyuvalves]
Once torque and ambient conditions are defined, select the actuator type (electric, pneumatic, or hydraulic) and fail position. [process-valves.co]
- For safety valves on chemical dosing lines, fail‑closed is often required.
- For bypass lines or certain relief paths, fail‑open may be safer.
- In distribution networks, many utilities choose fail‑last or stay‑put designs combined with separate surge protection.
This decision should align with the overall process safety analysis (HAZOP) and the utility's operating philosophy. [ascelibrary]IR.1943-4774.0001676)
For an actuated ball valve to become a truly automated valve, it must be integrated with instrumentation and the control system. Key elements include: [ascelibrary]IR.1943-4774.0001676)
- Limit switches or position transmitters (4–20 mA, fieldbus).
- Solenoid valves, positioners, and regulators for pneumatic actuators.
- Local control stations with lockable selectors and clear indication.
- Manual overrides and handwheels for emergency operation.
In modern municipal networks, these devices feed into SCADA systems that monitor flow, pressure, and valve status in real time, enabling advanced control strategies and quicker incident response. [ascelibrary]IR.1943-4774.0001676)
Research on automated pipeline networks shows that integrating actuated control valves with model‑based control algorithms can significantly improve stability and efficiency. [ascelibrary]IR.1943-4774.0001676)
In one representative setup, discharge flows at downstream outlets are regulated by automatically adjusting control valves in response to flow demand and sensor measurements along the network. The upstream open‑channel supply is also controlled, meaning the hydraulic pressure at the source is dynamic; actuated valves must respond reliably to these changes to maintain targeted outlet flows and avoid oscillations. [ascelibrary]IR.1943-4774.0001676)
For EPC contractors and utilities, this highlights why valve response time, positioning accuracy, and feedback reliability matter as much as pressure rating or body material when selecting actuated ball valves for smart water networks. [ascelibrary]IR.1943-4774.0001676)
As a specialized industrial valve manufacturer with strong experience in water treatment and municipal applications, Tianjin Wode Valve Co., Ltd. focuses on delivering stable, OEM‑grade valve solutions for global distributors, EPC contractors, and international valve brands. [tjwdvalve]
Our product portfolio centers on butterfly valves, check valves, and resilient seated gate valves, along with complementary solutions tailored for water and wastewater projects. In practice, these products integrate seamlessly into actuated assemblies for: [wodevalve]
- Water treatment plants and desalination facilities. [wodevalve]
- Municipal transmission and distribution networks. [tjwdvalve]
- Industrial water reuse, cooling water, and fire‑fighting systems. [wodevalve]
By standardizing top‑works and focusing on sealing performance and long service life, we make actuator integration straightforward for OEM partners and engineering firms. [tjwdvalve]
To translate this knowledge into day‑to‑day project decisions, I recommend using a simple but rigorous checklist whenever you specify actuated ball valves for a new project. [process-valves.co]
1. Confirm process medium, pressure, temperature, and required shutoff class. [tianyuvalves]
2. Verify body, ball, and seat materials against fluid compatibility. [tianyuvalves]
3. Calculate valve torque with realistic safety margin. [process-valves.co]
4. Select actuator type (electric/pneumatic/hydraulic) based on site utilities and control philosophy. [process-valves.co]
5. Define fail position (open/closed/last) and stroking time requirements. [ascelibrary]IR.1943-4774.0001676)
6. Specify enclosure rating, corrosion protection, and ambient temperature range. [tianyuvalves]
7. Integrate feedback devices, local controls, and connectivity to SCADA or DCS. [ascelibrary]IR.1943-4774.0001676)
8. Plan for maintenance access, spare parts, and lifecycle support. [tianyuvalves]
Using such a structured approach reduces rework during detailed design and improves the overall reliability of the finished system. [ascelibrary]IR.1943-4774.0001676)
Below is a concise table you can adapt for your website to help users compare actuator options for ball valves in water and municipal projects. [process-valves.co]
| Actuator Type | Typical Use Case | Main Advantages | Key Considerations |
|---|---|---|---|
| Electric | Treatment plants, valve chambers | Precise control, easy SCADA integration, no air system needed (process-valves.co) | Requires reliable power, slower stroke, temperature limits |
| Pneumatic | Large plants, hazardous areas | Fast stroke, simple fail‑safe, robust in wet environments (process-valves.co) | Needs compressed air, extra components |
| Hydraulic | High‑torque, high‑pressure lines | Compact high torque, fine speed control | Higher complexity, fluid maintenance, mostly for special cases |
Integrating such a table directly in the product or knowledge page lets visitors perform quick, high‑value comparisons without leaving your site.
If you are a global distributor, EPC contractor, or international valve brand planning water treatment or municipal pipeline projects, working with a focused valve manufacturer can significantly reduce project risk and lifecycle costs. [wodevalve]
Tianjin Wode Valve Co., Ltd. offers: [tjwdvalve]
- Application‑oriented technical support for sizing and specifying actuated valves in water and municipal projects.
- Reliable, OEM‑grade valve bodies engineered for smooth actuator integration.
- Flexible cooperation models for private‑label, long‑term distribution, and project‑based supply.
No. In most water and municipal applications, "actuated valve" and "automated valve" describe the same concept: a valve operated by an actuator rather than manually, often integrated into a control system. [ascelibrary]IR.1943-4774.0001676)
Quarter‑turn ball valves are compact, easy to actuate, and provide tight shutoff with predictable torque, which simplifies actuator sizing and reduces lifecycle costs in water plants. [process-valves.co]
If you have stable power and need precise control, electric actuators are often preferred; in large plants with central compressed air and high ESD requirements, pneumatic actuators typically offer better speed and fail‑safe behavior. [process-valves.co]
The most common mistake is underestimating operating torque and not including enough safety margin for scaling, media changes, or pressure spikes, which can lead to stuck valves or actuator failure. [tianyuvalves]
A specialized manufacturer can provide application‑specific guidance, accurate torque data, standardized mounting interfaces, and consistent quality, simplifying engineering work and improving reliability in the finished installation. [tjwdvalve]
