Vented ball valves and standard ball valves may look similar from the outside, but they solve very different engineering problems and carry very different risks if you choose the wrong one. As someone who has worked with EPC contractors and water utilities on valve selection for years, I've seen both excellent designs and costly failures that came down to not understanding this difference. [valveman]

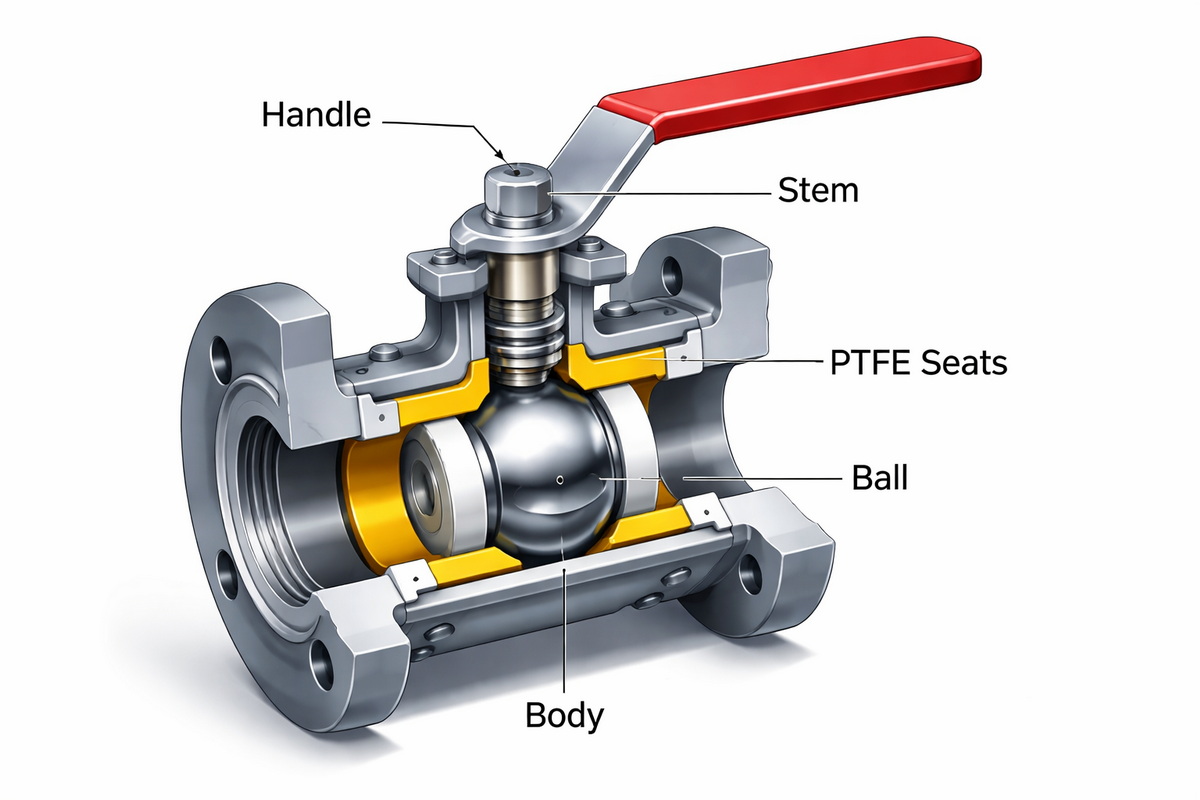

A standard ball valve is a quarter‑turn shut‑off device that uses a solid ball with a through‑bore to start or stop flow. [northerncal.swagelok]
- The ball has a straight hole (bore) through it; when aligned with the pipeline, flow passes freely. [northerncal.swagelok]
- Turning the stem 90 degrees rotates the ball so the bore is perpendicular to the pipeline, stopping flow. [chicago.swagelok]
- The ball seats tightly against soft seats (often PTFE), creating a bubble‑tight seal for most water and utility services. [wsv-valve]
For water treatment and municipal pipeline applications, standard ball valves are widely used for:
- Isolation of process lines and equipment
- On/off control in DN < 100 mm branch lines and sampling lines
- Bypass and drain lines where quick shut‑off is required [linkedin]
From an operational point of view, a standard ball valve is ideal when:
- The medium is water or a non‑volatile liquid
- Temperature changes are moderate
- Internal thermal expansion of trapped fluid will not cause dangerous overpressure

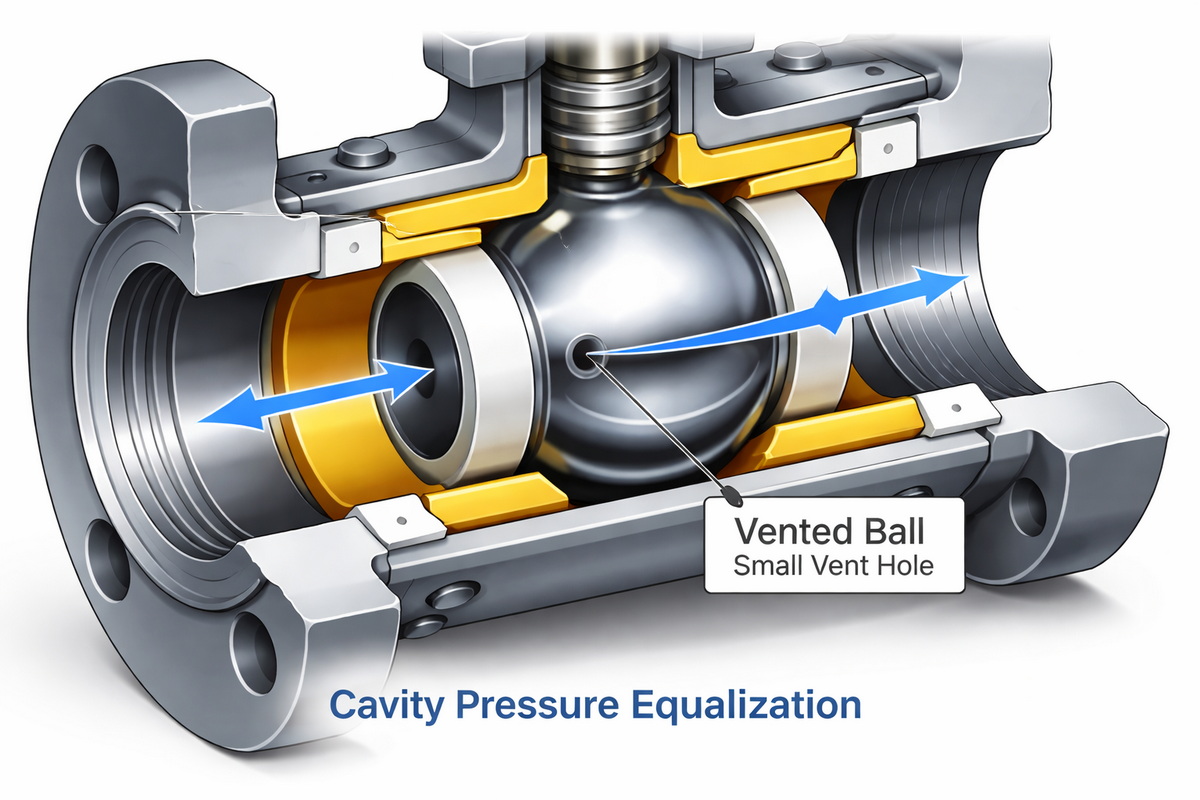

A vented ball valve (often called a vented ball or cryogenic ball valve) looks nearly identical to a standard ball valve from the outside, but its ball is machined with a small vent hole. [maxairtech]
- The vent hole is drilled on the upstream or downstream side of the ball, depending on design. [milwaukeevalve]
- When the valve is closed, this hole provides a controlled path for trapped cavity pressure to relieve back into the pipeline. [valveman]
- The process medium stays contained inside the system; it is not vented to atmosphere in most industrial designs. [maxairtech]
Industry practice uses vented balls extensively in:
- Cryogenic service (LNG, liquid nitrogen, liquid oxygen)
- Applications with large temperature swings, where liquid can vaporize and expand dramatically
- Systems where trapped fluid in the ball cavity could flash, out‑gas, or decompose and rupture the valve body [milwaukeevalve]
The essential idea: a vented ball valve sacrifices perfect cavity isolation to gain controlled pressure relief and protect the valve and pipeline from catastrophic over‑pressurization. [valveman]
- Cavity pressure behavior
- Standard ball valve: traps fluid between seats when closed, so any thermal expansion directly increases cavity pressure. [valveman]
- Vented ball valve: allows cavity pressure to equalize to upstream or downstream line via the vent hole, reducing torque and mechanical stress. [maxairtech]
- Safety in volatile service
- Standard ball valve: risk of body failure, leakage, or even explosion if cryogenic liquid warms and expands in the sealed cavity. [valveman]
- Vented ball valve: specifically designed to prevent this scenario by offering a safe escape path for trapped medium. [valveman]
- Tightness of isolation
- Standard ball valve: full isolation of both sides when closed, ideal where double‑block effect is desired within the valve itself. [northerncal.swagelok]
- Vented ball valve: cavity is not fully isolated; there is a designed communication path to one side of the line. [milwaukeevalve]
Here is a concise comparison from an engineering perspective:
| Aspect | Standard Ball Valve | Vented Ball Valve |
|---|---|---|
| Internal cavity | Fully sealed when closed (valveman) | Vented to one side of line (maxairtech) |
| Best for media | Water, non‑volatile liquids, general utilities (valveman) | Cryogenic liquids, volatile fluids, fast temperature swings (maxairtech) |
| Main purpose | Reliable on/off isolation with tight shut‑off (northerncal.swagelok) | Controlled pressure relief in the ball cavity (maxairtech) |
| Safety risk if misapplied | Overpressure in cavity in severe thermal cycling or cryogenic use (valveman) | Reduced risk of body rupture, but no fully sealed cavity (maxairtech) |
| Common industries | Water treatment, municipal pipelines, HVAC, general industry (linkedin) | LNG, cryogenic plants, gas distribution, specialized process systems (maxairtech) |
As a valve manufacturer focused on water treatment and municipal systems, we use standard ball valves for the majority of isolation points, and specify vented designs only where pressure equalization is a clear safety or performance requirement. [wodevalve]

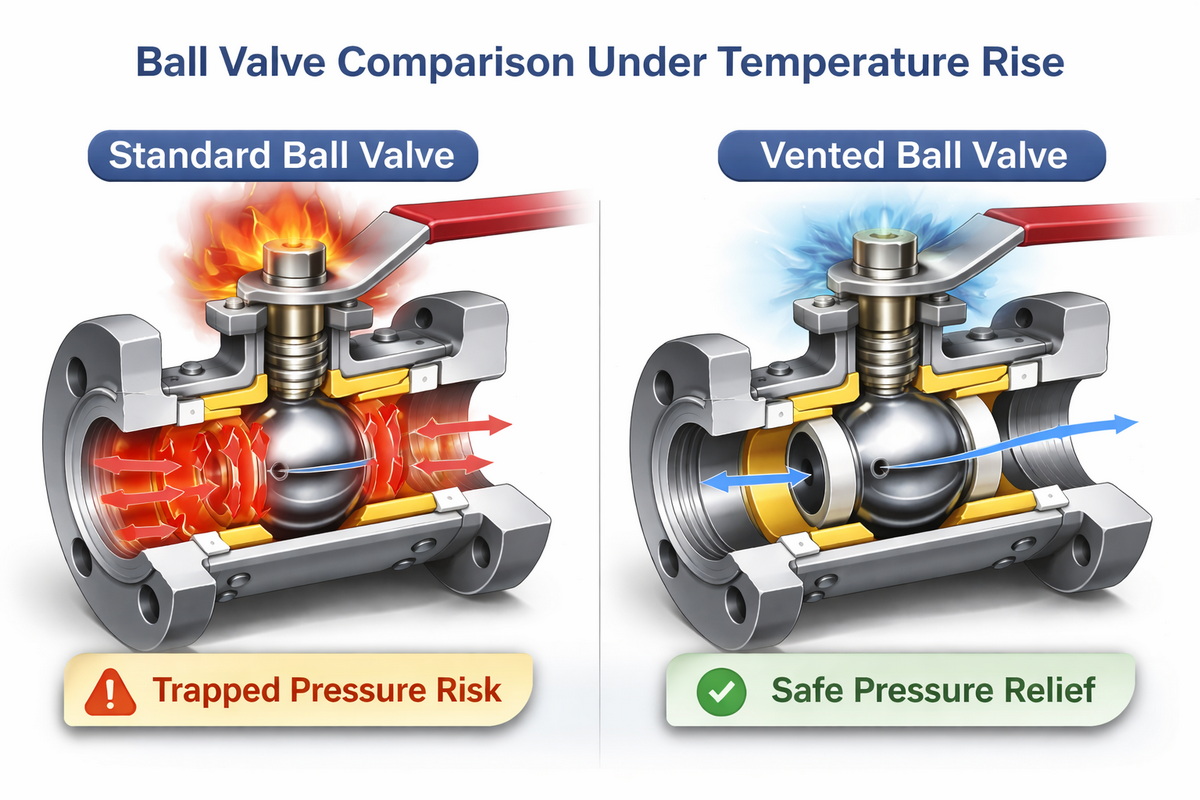

From an engineering standpoint, the ball cavity is a confined volume. When fluid is trapped there and heated, it follows a simple rule: constant volume plus rising temperature equals rising pressure.
- In cryogenic systems, small temperature increases can cause very large vapor expansion ratios.
- If the cavity is completely sealed, pressure can exceed design limits of seats, stem seals, or body walls. [maxairtech]
- A vented ball valve provides a designed weakness point—the vent path—so pressure equalizes safely. [milwaukeevalve]
This is not theoretical. Industry case reports and engineering notes show examples where inappropriate use of non‑vented ball valves in cryogenic service led to seat blowout or body cracking. The lesson is clear: in volatile or cryogenic service, the vent is a safety feature, not an accessory. [valveman]
As a practical checklist for designers and maintenance engineers:
1. Identify whether the medium is volatile (cryogenic liquids, liquefied gases) or non‑volatile (water, most oils).
2. Evaluate normal and upset temperature ranges.
3. Assess if any trapped volume in the valve can experience large temperature swings while isolated.
- If you are dealing with water, treated wastewater, or standard municipal services, a standard ball valve is usually the correct choice. [youtube]
- If you are handling cryogenic liquids or liquefied gases, a vented ball valve is often mandatory from a safety perspective. [maxairtech]
Ask a simple but powerful question: *What do I want this valve to do?* [chicago.swagelok]
- If the valve's primary role is quick, tight shut‑off in a stable water system, prioritize a robust standard ball valve with appropriate materials and sealing. [youtube]
- If the system risk assessment identifies cavity over‑pressure as a credible hazard, a vented ball becomes an engineered safeguard. [milwaukeevalve]
From our experience with EPC contractors on water treatment plants, we usually map valve types to functions early in the P&ID stage, so that vented designs appear only where they add real safety value and do not complicate routine isolation points. [bcstvalve]
Although vented ball valves are more common in cryogenic and gas service, water treatment and municipal projects still require disciplined ball valve selection to avoid premature failure and leakage.
Key criteria we advise our partners to consider:
- Nominal diameter and flow: Ball valves in DN < 100 mm lines give excellent flexibility and compact isolation. [linkedin]
- Housing material: Brass, bronze, stainless steel, and PVC are widely used; the choice depends on water quality, chlorination, and corrosion risk. [linkedin]
- Seat and seal materials: PTFE seats and EPDM or NBR seals are standard for many water applications; chemical dosing lines may require upgraded materials. [wodevalve]
- Port type: Full‑port valves minimize pressure drop in critical lines; reduced‑port valves offer cost savings in non‑critical services. [wodevalve]
- Actuation: Manual levers for local isolation; ISO‑5211 mounted electric or pneumatic actuators where remote control or automation is needed. [wsv-valve]

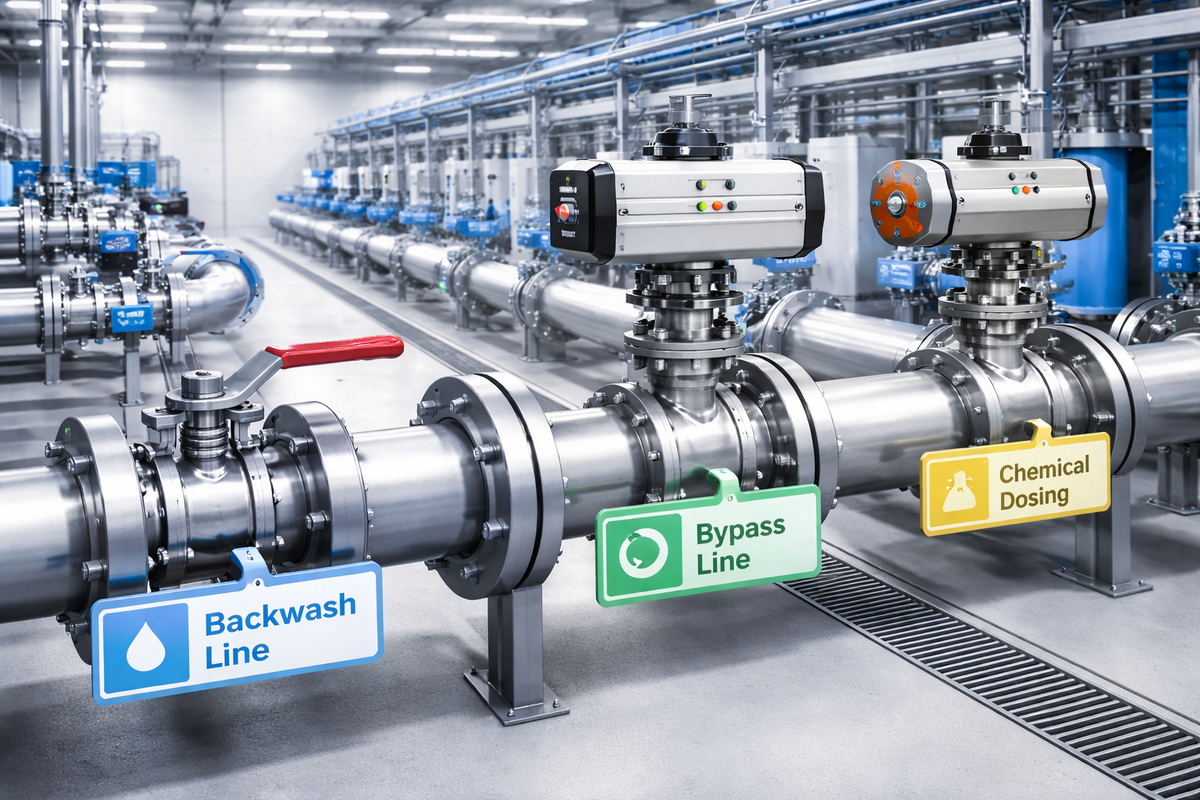

In practice, a typical municipal water project may use:
- Full‑bore stainless steel ball valves on high‑velocity backwash lines
- Cost‑effective carbon‑steel or brass ball valves on non‑critical bypass and utility lines
- Carefully selected anti‑corrosion materials in coastal or high‑chloride environments [bcstvalve]
From field feedback and failure investigations, several recurring mistakes stand out.
- Using a standard ball valve in cryogenic or volatile service
- The valve appears to work during commissioning, but after several temperature cycles, seals or body components may fail due to trapped pressure. [valveman]
- Assuming "vented" means vented to atmosphere
- Most industrial vented balls only vent cavity pressure back into the pipeline, not to open air; misinterpreting this can lead to incorrect safety assumptions. [maxairtech]
- Ignoring valve orientation for vented designs
- If the vented ball relies on a specific upstream or downstream direction, installing the valve backwards can defeat the vent function. [wsv-valve]
- Treating ball valves as throttling devices
- Both standard and vented ball valves are primarily on/off devices; prolonged throttling can damage seats and cause vibration or cavitation. [chicago.swagelok]
Design teams that treat vented and standard ball valves as interchangeable usually pay for it later in unexpected maintenance and unplanned shutdowns.

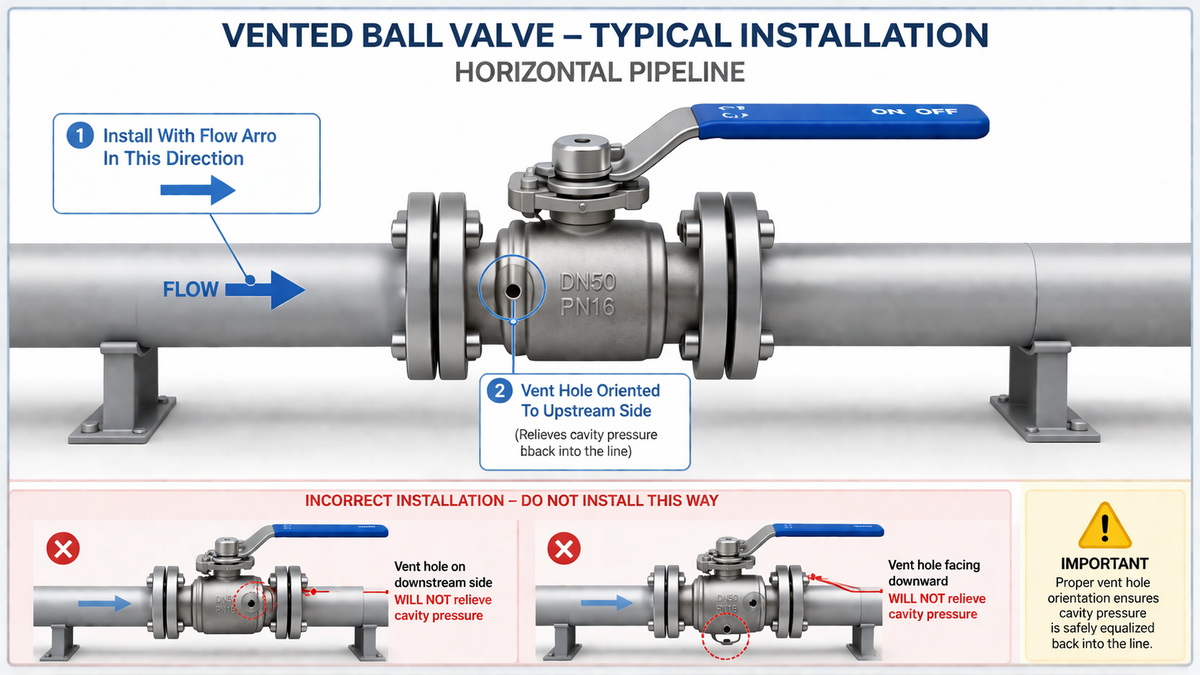

Whether you choose a vented or standard design, good installation practices are just as important as correct specification.
- Install the valve with proper flange gaskets and symmetrical bolt tightening to avoid stress and leakage. [wsv-valve]
- Follow any indicated flow direction, especially for vented installations, to ensure the cavity vents to the correct side. [wsv-valve]
- Mount gear‑operated or actuated ball valves upright on horizontal lines when possible, with the actuator above the pipeline for easier access and drainage. [wsv-valve]
- Include periodic inspection of stem packing and seat performance in your maintenance plan, particularly in lines with frequent cycling or abrasive solids. [bcstvalve]
For water treatment plants, we often recommend standardizing on a core ball valve family (materials, end connections, actuation interface) to simplify spare parts inventory and training for maintenance teams. [wodevalve]
Consider an LNG loading terminal where cryogenic product is transferred through insulated pipelines. When a section is isolated:
- Any trapped LNG in the ball cavity can warm, boil, and expand many times its liquid volume.
- In a standard ball valve, this rapid pressure rise loads the seats and body.
- A vented ball equalizes cavity pressure back to the line, preventing overstress. [milwaukeevalve]
This is why cryogenic standards and best‑practice guides repeatedly emphasize internally vented balls for LNG and other liquefied gases. While this scenario is far from a municipal water plant, it illustrates the same physical principles that should guide every engineer's choice between vented and standard designs. [valveman]
In water treatment and municipal pipelines, over‑engineering with vented designs can add complexity without adding real value.
You are usually better served with high‑quality standard ball valves when:
- The medium is potable water, raw water, or treated effluent.
- Operating temperatures remain near ambient with limited cycling.
- The primary requirement is reliable shut‑off and minimal pressure loss.
- Local standards focus on hygiene, corrosion resistance, and leakage class rather than cryogenic behavior. [youtube]
By focusing on robust materials, proven seat designs, and appropriate actuation, you achieve long‑term performance without complicating the system with unnecessary venting features. [bcstvalve]
Choosing between a vented ball valve and a standard ball valve is not just a catalog decision; it is a risk management decision that directly affects plant safety, uptime, and lifecycle cost. If you are designing or upgrading water treatment or municipal pipeline systems and need to balance performance, safety, and budget, our engineering team can help you review your P&IDs, media conditions, and operating philosophy to specify the right ball valve strategy for each line. [bcstvalve]
Contact our specialists today to:
- Review your current valve specifications
- Identify where standard ball valves are sufficient
- Pinpoint any services that would benefit from vented designs
- Optimize materials, port types, and actuation for long‑term reliability
No. A vented ball valve is safer in applications where cavity over‑pressure is a credible risk, such as cryogenic or volatile service. In typical water and municipal systems, a high‑quality standard ball valve is usually the more appropriate and simpler solution. [linkedin]
Technically yes, but it is rarely necessary. Vented balls are designed to manage pressure in trapped cavities, which is not a major issue in most water treatment or distribution systems. [linkedin]
If your medium is cryogenic, liquefied gas, or prone to rapid vaporization and you can have trapped volumes inside a closed valve, you likely need a vented ball. A process hazard analysis or consultation with your valve supplier is recommended. [maxairtech]
Ball valves can be used for occasional, rough throttling, but they are primarily designed as on/off isolation valves. Prolonged throttling can damage seats and cause poor control performance. [northerncal.swagelok]
Common choices include brass, bronze, stainless steel, and PVC for valve bodies, with PTFE seats and EPDM or NBR seals, depending on water chemistry and temperature. Your corrosion environment and disinfection method should guide final material selection. [wodevalve]
