By the end of this guide, you will be able to:
- Understand NPT (threaded), flanged, and socket weld connections in practical, non-academic terms. [info.trimteck]
- Match each connection type to real-world water treatment and municipal pipeline scenarios.
- Avoid common selection mistakes that lead to leaks, rework, and unnecessary shutdowns. [china-gowin]
- Align your choice with EPC project requirements, industry standards, and long-term maintenance strategies. [stvvalves]
Before we dive in, here are the primary topics this article covers, based on typical search queries from engineers and procurement teams: [hashmeta]
- Valve end connection types for ball valves
- NPT vs flanged vs socket weld
- Best valve connection for water treatment plant
- Valve end connections for municipal pipelines
- How to choose valve end connections (selection guide)
These phrases are woven naturally throughout the article to keep it reader-first and SEO-friendly, not keyword-stuffed. [kerkarmedia]

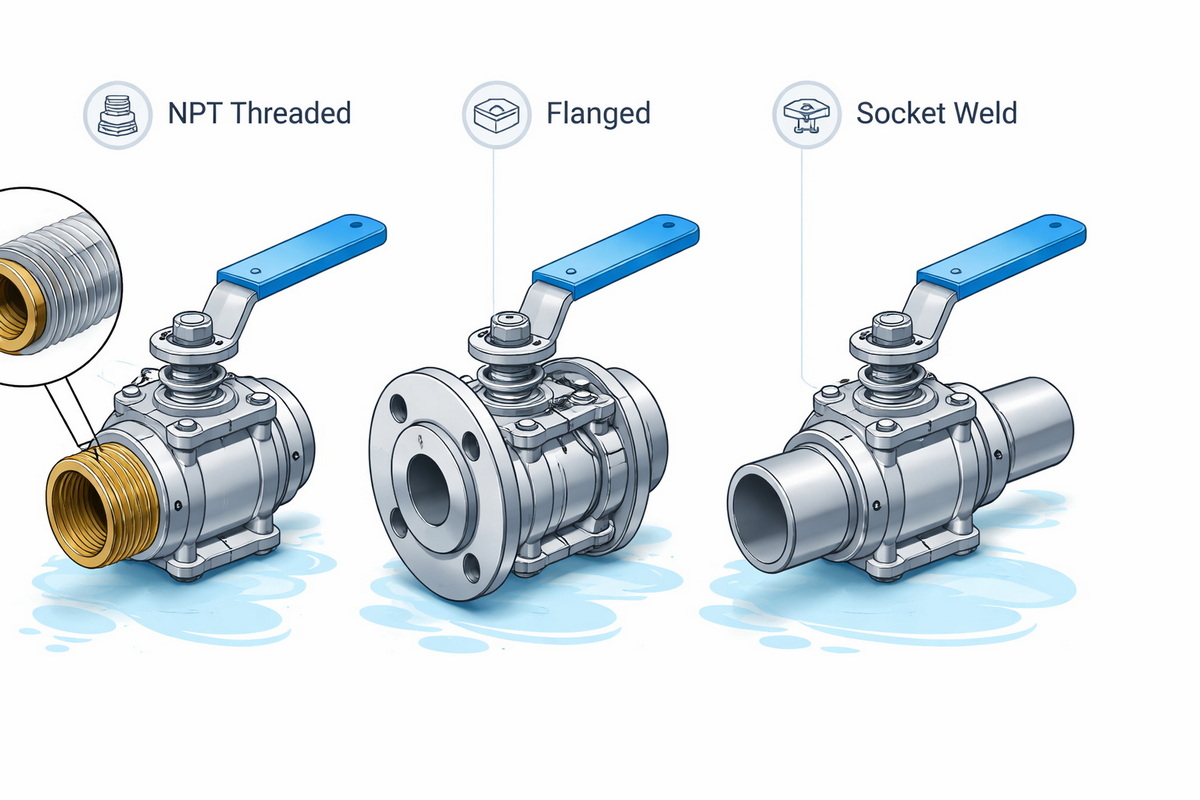

Engineers have many valve options, but in water and municipal piping, three end connection types dominate: [info.trimteck]
- NPT (threaded) connections
- Flanged connections
- Socket weld connections
Each has clear strengths, limitations, and ideal use cases. Choosing correctly means looking beyond price to the system's pressure, temperature, pipe size, and maintenance philosophy. [stvvalves]
NPT (National Pipe Thread Taper) is a U.S. standard for tapered pipe threads used on valves and pipe fittings. Unlike straight machine screw threads, NPT threads are tapered, which means the threads wedge tighter as the valve is screwed into the pipe, helping create a fluid-tight seal.
In water systems, you'll most often see NPT on:
- Small-diameter distribution lines
- Instrumentation and sampling lines
- Low to medium pressure utility water circuits
NPT remains popular because it is simple and cost-effective for the right applications: [china-gowin]
- Low initial cost – No flanges or welding equipment required.
- Fast installation – Simple tools, widely available fittings.
- Good seal for low/medium pressure – With proper thread engagement and sealant, NPT can provide reliable tightness in many water applications.
- Flexible for small sizes – Very convenient for small bore valves where flanges would be bulky and expensive.
From a municipal engineer's perspective, NPT is often the first choice for non-critical, small auxiliary lines where shutdown risk is low and access is easy.
However, NPT is far from universal, especially as pressure, line size, and criticality increase: [china-gowin]
- Higher leak risk if over- or under-tightened – Too little torque and you get leakage; too much and you can crack fittings or distort threads.
- Not ideal for frequent disassembly – Repeated removal and reinstallation damage threads and compromise sealing.
- Less suitable for high vibration or large sizes – As diameter grows, alignment and sealing become harder, and thread engagement alone may be insufficient.
- Sealant dependency – Performance relies on proper use of PTFE tape or thread sealant, which introduces human error.
Rule of thumb from the field: use NPT where size is small, pressure is moderate, and a leak is inconvenient but not catastrophic.
A flanged valve connects to the piping system via bolted flanges on both the valve and the pipe. A gasket is compressed between the faces as bolts are tightened, forming the primary pressure seal. [stvvalves]

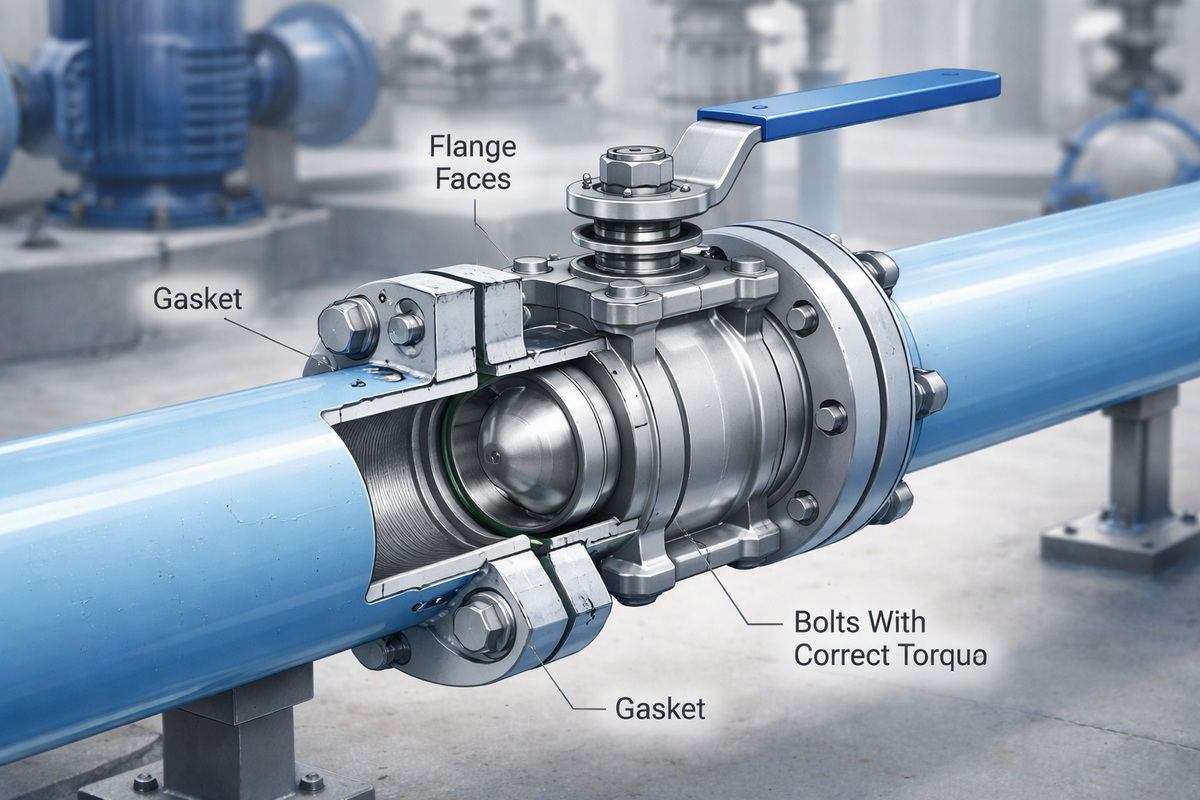

In water treatment and municipal networks, flanged ball valves are common in:
- Treatment plant headers and distribution manifolds
- Pump discharge lines
- Large bore main and branch lines
- Locations requiring regular maintenance or periodic valve replacement
Flanged ends are often the default choice for critical water and municipal services: [stvvalves]
- Excellent maintainability – You can unbolt and remove a 2-piece or 3-piece flanged ball valve without disturbing adjacent piping, minimizing shutdown scope.
- Strong, reliable seal when correctly installed – Proper bolt tightening and gasket selection provide robust sealing, even under pressure and temperature fluctuations.
- Standardized dimensions – Flanges align with industry standards (such as ASME classes), simplifying project design and global sourcing.
- Preferred for large diameters – Threaded connections become impractical and weak as size increases; flanges scale up much better.
For EPC contractors, flanged ball valves are a practical compromise between performance and flexibility across most water and wastewater systems. [china-gowin]
Flanges are not perfect, and field experience makes their limitations clear: [stvvalves]
- More space required – Bolting and flange thickness increase the face-to-face dimension and envelope.
- Potential for gasket or bolt-related leaks – Incorrect torque, uneven tightening, or poor gasket storage can lead to long-term weeping or leaks.
- Thermal distortion and shock – In certain cases, rapid temperature changes or misalignment can distort flanges and compromise sealing.
- Higher installed cost than simple threaded connections – Material, machining, gaskets, and bolting all add cost.
Still, in municipal and water treatment plants, flanged ends are often the safest default for critical isolation, especially in larger diameters where maintenance access is required.

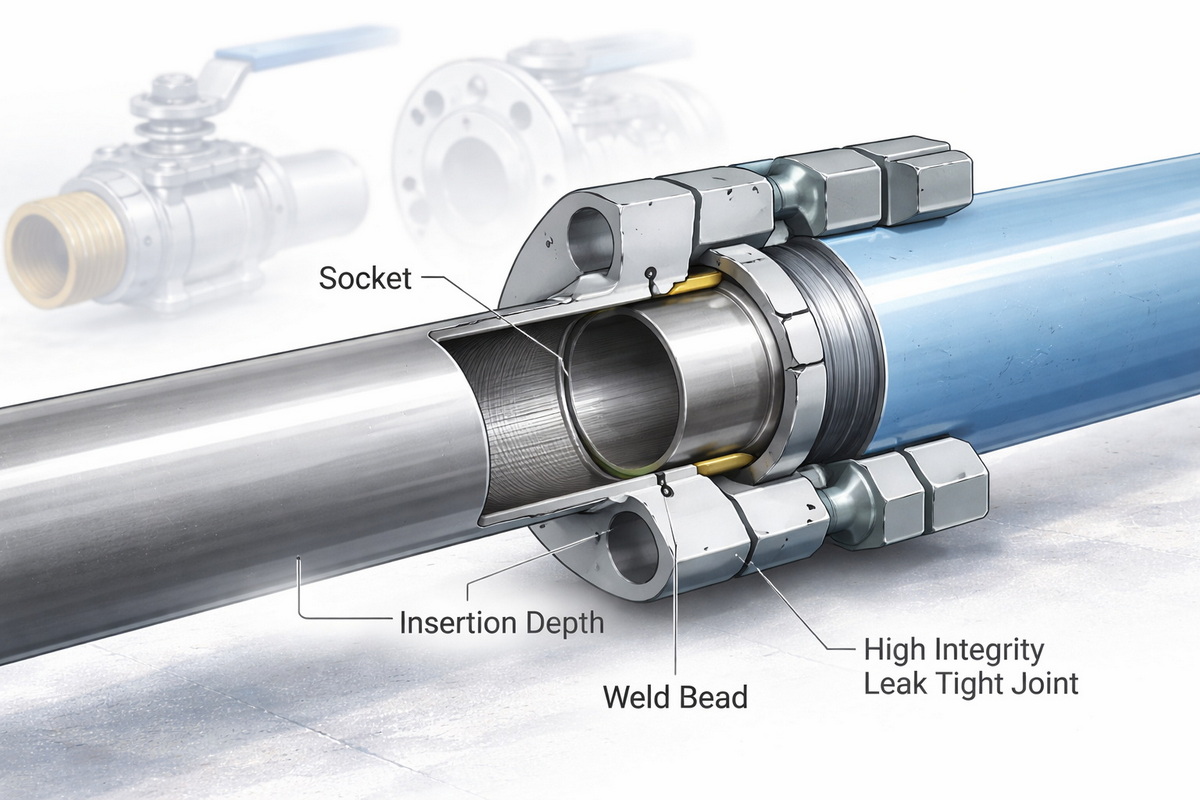

A socket weld end has a shallow recess (socket) in the valve body where the pipe is inserted; the joint is then welded around the outside. Socket welds are typically used on pipe sizes NPS 2 and smaller, especially where leakage must be minimized.
Socket weld ball valves are favored when system integrity matters more than ease of disassembly: [stvvalves]
- Very low leak probability – Welded joints remove many potential leak paths associated with gaskets and threads.
- Good for vibration and cyclic service – Welds tolerate vibration better than threaded joints and are less dependent on bolt preload.
- Compact overall envelope – No flanges means less weight and space.
- Cost-effective alternative to fully butt-welded systems for small bores.
In water treatment and municipal systems, socket weld is most common in high-pressure auxiliary lines, chemical dosing, or areas where any external leakage is unacceptable.
The biggest downside from a user's perspective is maintenance and flexibility: [china-gowin]
- Permanent or semi-permanent – Removing a socket weld valve usually means cutting the pipe, re-welding, and re-testing.
- Requires skilled welding – Quality and safety depend heavily on weld procedure and welder qualification.
- Potential for crevice corrosion – Expansion gaps created by welding can accumulate fluid and lead to localized corrosion if not managed.
- More complex and time-consuming installation than threaded connections.
In practice, socket weld is chosen when the design philosophy is: "We want this line sealed and stable for years, and we accept that replacement will be more involved."
Below is a practical comparison focused on water treatment and municipal pipeline applications: [china-gowin]
| Aspect | NPT (Threaded) | Flanged | Socket Weld |
|---|---|---|---|
| Typical size range | Small bore, usually ≤ 2" | From 2" upwards, including large mains | Typically ≤ 2" |
| Seal mechanism | Tapered threads + sealant | Gasket + bolt preload | Welded joint |
| Leak tightness | Good if installed correctly; dependent on sealant | Very good with correct gasket and bolting | Excellent; minimal leak paths |
| Installation speed | Fast, low skill requirement | Moderate; requires alignment and torqueing | Slow; requires welding and NDT in critical systems |
| Maintenance | Easy for small lines, but threads wear | Very good; valve removable without cutting pipe | Poor; requires cutting and re-welding |
| Best suited for | Non-critical, low to medium pressure, small lines | Critical lines, larger diameters, frequent maintenance | High integrity, small-bore, high-pressure or high-criticality applications |
| Common use in water & municipal | Instrumentation, sampling, small branch lines | Pump stations, distribution manifolds, isolation on mains | Chemical injection, high-pressure auxiliary lines |
From real project experience with EPC contractors and distributors, a three-step decision sequence works best: [venveo]

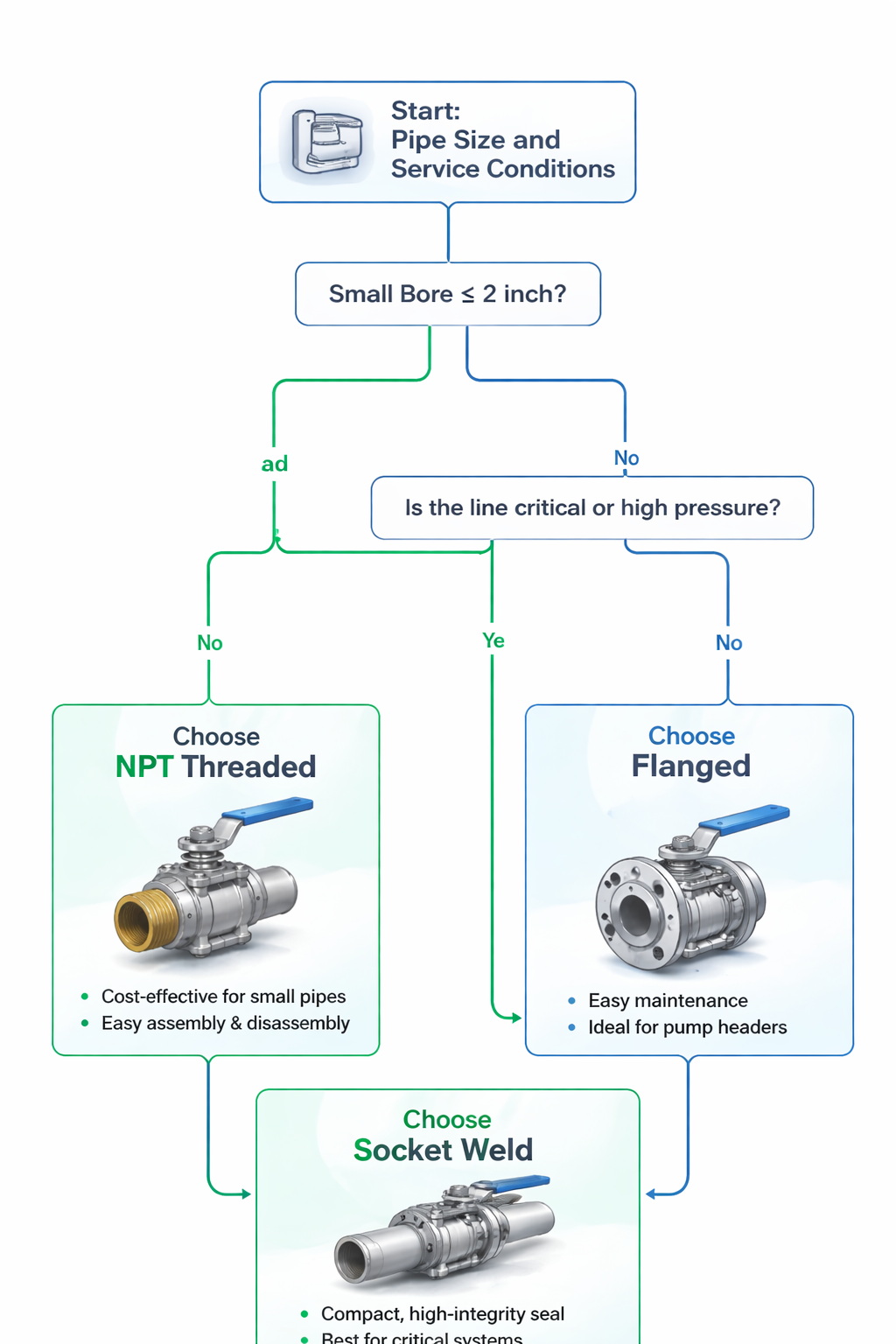

- Small bore (≤ 2") – All three options (NPT, socket weld, small flanges) are usually technically possible.
- Medium to large bore (> 2") – NPT becomes impractical; decision is typically between flanged and butt weld/socket weld. [china-gowin]
- For typical municipal water pressures and temperatures, flanged or NPT may be sufficient depending on size and risk tolerance.
- For higher pressure, aggressive chemicals, or where leakage would cause safety or environmental issues, socket weld (or butt weld) is often preferred. [stvvalves]
Ask a simple but powerful question: "How often will we realistically need to access or replace this valve?"
- If access and replacement are likely (e.g., pump isolation, filters, strainers): choose flanged.
- If access is rare and leak integrity is paramount: consider socket weld for small bore, or welded configurations where permitted.
- For minor utility lines where downtime impact is low: NPT may provide the most economical solution. [china-gowin]
Working closely with global distributors, EPCs, and international valve brands, we see patterns that can save you both time and budget: [hashmeta]
- Engineers often over-specify flanged valves on very small lines where NPT or socket weld would be fully adequate and more cost-effective.
- Under-specifying connection integrity on critical lines (e.g., chemical dosing or pump discharge) can lead to recurring leaks, reputational damage, and unplanned shutdowns.
- The most reliable projects are those where end connections are standardized by service type—e.g., all pump discharges flanged, all dosing lines socket weld, all non-critical drains NPT—so that maintenance is predictable and spares are easy to manage. [stvvalves]
For water treatment plants and municipal networks, our internal failure analysis shows that connection-related issues usually outnumber valve body failures, especially on older installations where tightening practices or sealants were inconsistent.
Beyond the basic pros and cons, experienced designers consider several secondary factors: [stvvalves]
- Industry and project standards – Local water authority specifications may dictate acceptable end connections for certain line classes.
- Installation environment – Confined spaces, buried valves, and chambers can make flange bolt access difficult and influence connection choice.
- Corrosion control strategy – In coastal or aggressive environments, the choice between flanged and welded systems interacts with coatings, cathodic protection, and pipe material selection.
- Budget versus lifecycle cost – While NPT may win on unit price, flanged or socket weld often reduce lifecycle cost when maintenance and failure risk are included.
A practical example:
For a municipal booster pump station, we typically recommend flanged ball valves on pump suction and discharge, socket weld or NPT for small instrument take-offs, and NPT for non-critical drains.
Here is an example-driven way to think about selection in typical water and municipal scenarios: [china-gowin]
- New water treatment plant, DN200 filter outlet header
- Priority: reliability, periodic maintenance, easy replacement
- Recommended: Flanged ball valves
- Chemical dosing line, DN25, high integrity required
- Priority: zero leakage, safety, and environmental protection
- Recommended: Socket weld ball valves (or butt weld where specified)
- Building service connection, DN25–DN50, low pressure
- Priority: speed and cost
- Recommended: NPT threaded ball valves
- District metering area isolation valve, DN150 buried pipeline
- Priority: long-term reliability, minimal intervention
- Recommended: Flanged ball valves with appropriate coating and isolation joints
Using this scenario-based mindset helps align engineering choices with owner expectations and actual operating conditions.
If you're planning or upgrading a water treatment plant or municipal pipeline, choosing the right end connection is not just a drawing detail—it is a risk control decision.
As a manufacturer specialized in ball valves for water treatment and municipal pipelines, Tianjin Wode Valve Co., Ltd. can help you:
- Review your P&IDs and line classes to standardize NPT, flanged, and socket weld usage.
- Select the optimal end connections for each service based on pressure, medium, and maintenance strategy.
- Supply project-ready ball valves tailored for global distributors, EPC contractors, and international valve brands.
If you'd like a connection-type recommendation tailored to your next project, share your line size, pressure, and service description, and we'll help you define a robust, maintainable specification.
A1: Yes, NPT threaded valves are widely used in potable water systems for small diameters and moderate pressures, provided compatible materials and approved sealants are used and installation is done correctly. [china-gowin]
A2: Avoid NPT on large diameters, high vibration services, or critical lines where any leakage is unacceptable, as threads and sealants are more vulnerable over time than flanged gaskets or welded joints. [china-gowin]
A3: Not necessarily; flanged valves are better for maintenance and replacement, while socket weld valves offer higher integrity with fewer leak paths in small-bore, high-criticality services. [stvvalves]
A4: For typical potable or treated water, non-asbestos fiber or elastomeric gaskets compatible with pressure and temperature are common; always match gasket selection to medium, temperature, and applicable standards. [info.trimteck]
A5: Yes, many successful projects standardize by service category—for example, flanged on main lines, socket weld on chemical dosing, and NPT on small auxiliary lines—to balance cost, integrity, and maintainability. [venveo]
