Selecting the appropriate check valve is a critical decision in the design and maintenance of water treatment and municipal piping systems. As professionals in the valve manufacturing industry at Tianjin Wode Valve Co., Ltd., we frequently encounter engineers and EPC contractors weighing the merits of Swing Check Valve vs Dual Plate Check Valve – Technical Comparison. Both valve types serve the fundamental purpose of preventing backflow, but their design, operational characteristics, and suitability for specific applications differ significantly.
To make an informed decision, one must first understand the fundamental operating mechanisms of each valve.

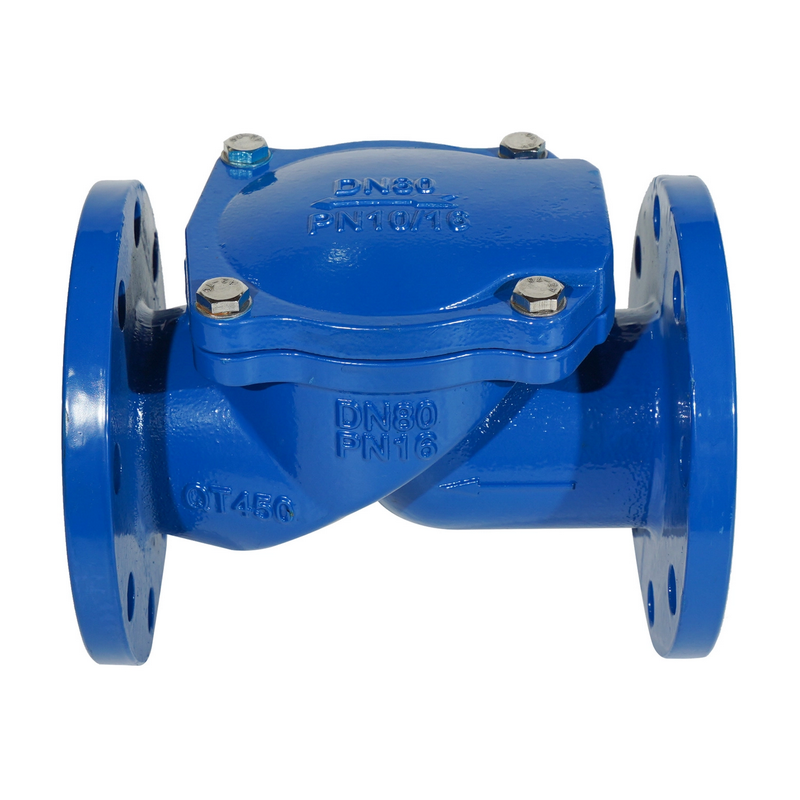

* Swing Check Valve: This design utilizes a single disc that pivots on a hinge [facebook]. When fluid flows in the desired direction, the pressure forces the disc to swing open, creating a relatively unobstructed path. When flow ceases or reverses, the disc swings back onto the seat under its own weight or gravity [disaivalve], [valve-delco].

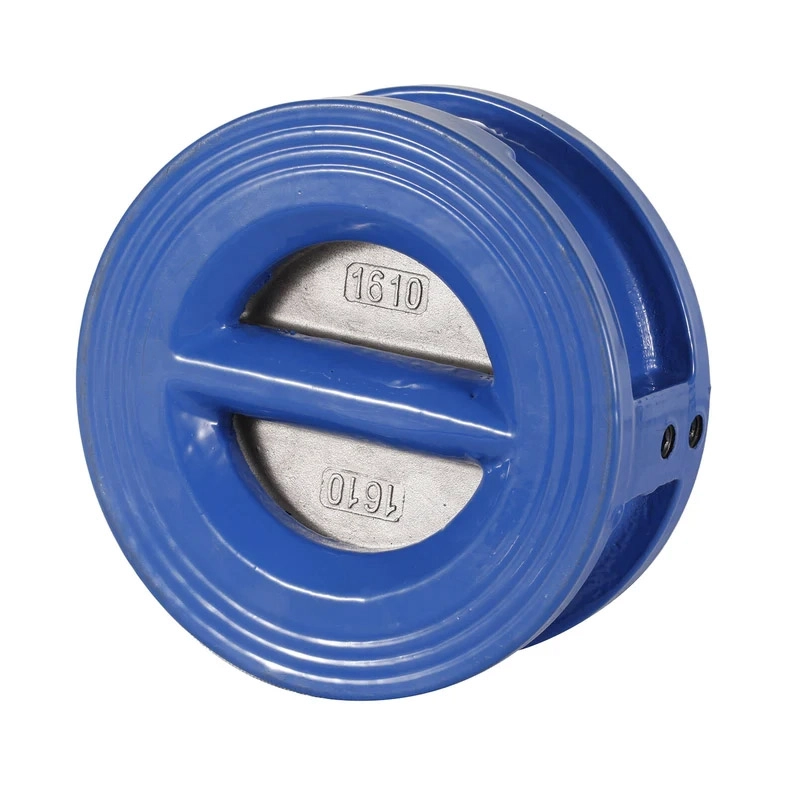

* Dual Plate Check Valve: Also known as a double-door or wafer check valve, this design features two spring-loaded plates hinged at the center . The springs assist in closing the plates quickly as flow velocity decreases, minimizing the time required to achieve a full seal [disaivalve], [zfavalves].
| Comparison Factor | Swing Check Valve | Dual Plate Check Valve |
|---|---|---|
| Closing Speed | Slow (Gravity dependent) tfwvalve | Fast (Spring-assisted) disaivalve, zfavalves |
| Water Hammer Risk | Higher disaivalve, researchgate | Significantly Lower disaivalve, zfavalves |
| Pressure Drop | Generally Higher jonloovalves, sciepub | Lower (More streamlined) tws-valve, craneengineering |
| Installation Space | Requires more space (Flanged) | Compact (Wafer type) zfavalves |
| Installation Orientation | Sensitive to orientation | Highly flexible zfavalves, craneengineering |
When deciding between these two options for municipal and water treatment projects, consider the following expert insights:
Water hammer is a primary concern in pump discharge lines. Swing check valves can experience severe slamming because the disc takes longer to close, allowing reverse flow to build up velocity before the seal is achieved [disaivalve]. Conversely, dual plate check valves are designed to be "non-slam." The spring mechanism ensures the plates close immediately as forward velocity drops, effectively neutralizing the impact of reverse flow [disaivalve], [disaivalve].
While a swing check valve may have a lower initial purchase price, the Total Cost of Ownership often favors the dual plate design [disaivalve]. The higher pressure drop inherent in swing checks increases energy consumption for pumps over the asset's lifespan [jonloovalves], [sciepub]. Factor in maintenance and the potential cost of system repairs caused by water hammer when making your selection.
In modern water treatment plants where space is at a premium, the compact, wafer-style design of dual plate check valves provides a clear advantage [zfavalves]. They fit easily between standard flanges, saving both space and installation time [craneengineering], [zfavalves].
To maximize the service life of your chosen check valve, consider these professional recommendations:
* Fluid Composition: If your application involves media with solids or high debris (e.g., raw sewage), a swing check valve might be preferred as it offers a less obstructed flow path compared to the hinged plates of a dual plate valve.
* Preventative Maintenance: Regardless of the type, ensure regular inspections. For swing check valves, check the hinge pin for wear [valve-delco]. For dual plate valves, inspect the integrity of the springs and the seating surfaces [athenavalve].
* Strategic Placement: Always install check valves at a manufacturer-recommended distance from pumps or elbows to prevent turbulence, which can cause premature wear on the internal components [pumpsandsystems].
The choice between a swing check valve and a dual plate check valve is dictated by the specific requirements of your system. For applications prioritizing non-slam operation, energy efficiency, and compact footprints, the dual plate check valve is generally the superior modern solution [disaivalve]. However, for specific conditions requiring minimal flow obstruction or budget-constrained projects with stable flow, the swing check valve remains a tried-and-true, reliable choice [valves-supplier], [thepipingtalk].
At Tianjin Wode Valve Co., Ltd., we provide expert guidance to help you select the precise valve solution for your water treatment or municipal infrastructure project. Contact us today to discuss your technical specifications and ensure the long-term integrity of your piping system.
1. Which valve is better for preventing water hammer?
The dual plate check valve is superior for preventing water hammer because its spring-assisted mechanism allows for rapid closure before reverse flow can gain momentum [disaivalve], [zfavalves].
2. Can I install a dual plate check valve in a vertical pipe?
Yes, dual plate check valves are generally suitable for both horizontal and vertical (upward flow) installations, provided the design and spring force are correctly specified [zfavalves], [craneengineering].
3. Why do swing check valves have a higher pressure drop?
The design of the swing check valve disc remaining in the flow path causes more resistance, leading to a higher pressure drop compared to the more efficient, streamlined dual plate design [jonloovalves], [sciepub].
4. Are swing check valves suitable for all water applications?
Swing check valves are excellent for clean water applications and scenarios where lower costs are preferred, but they may struggle in systems with frequent flow fluctuations [valves-supplier], [thepipingtalk].
5. What is the most important factor when choosing between these two valves?
The most important factor is the dynamic nature of your system—specifically the frequency of pump starts/stops and the risk of water hammer—followed by available space and media characteristics .
