As an engineer who lives every day in the world of ball valves, actuators, and real‑world water and municipal pipeline projects, I see a clear pattern: the systems that run reliably for 10+ years are rarely the ones with the most exotic technology, but the ones where simple, robust components have been thoughtfully specified and correctly integrated. The RM‑150 plug‑and‑play electric actuator from Assured Automation sits exactly in that sweet spot—combining practical design, external wiring, and rugged construction to transform ordinary quarter‑turn valves into dependable automated assets in the field. [wodevalve]
From a practical standpoint, the RM‑150 is a compact electric actuator designed to automate quarter‑turn valves—especially ball valves—from 1/4" to 1‑1/2". It delivers 150 in‑lbs of output torque, which is sufficient for a wide range of high‑pressure service conditions in industrial and commercial systems. [assuredautomation]

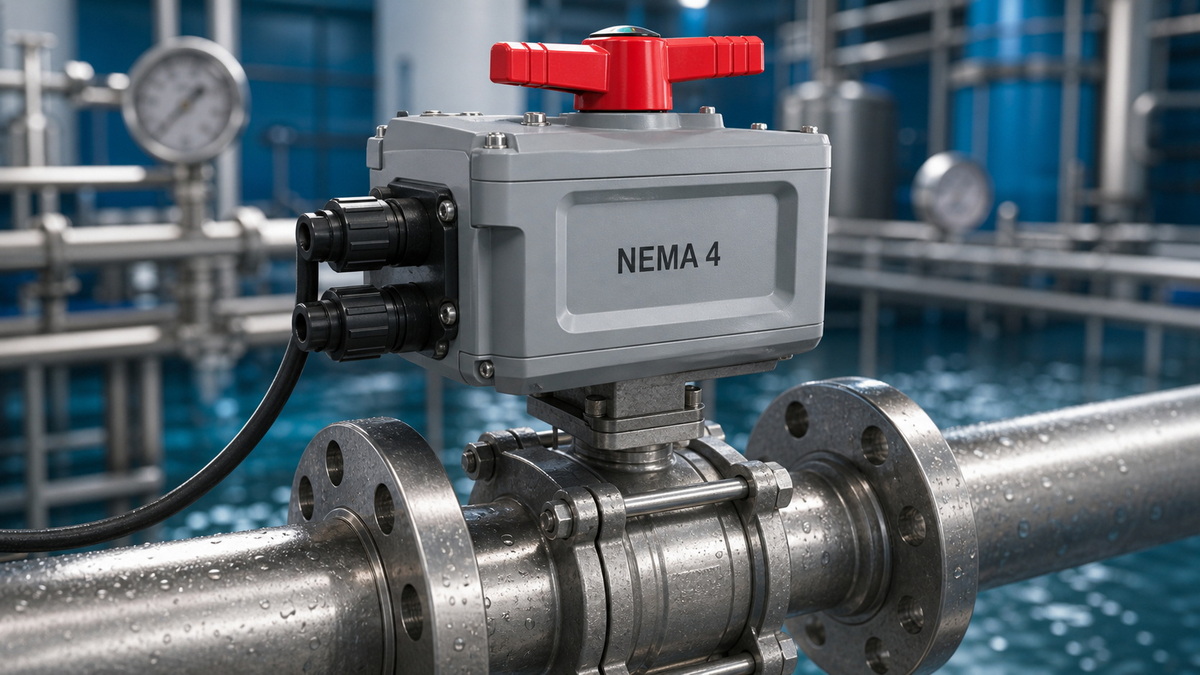

Instead of requiring technicians to open the housing and expose internal components, the RM‑150 uses external DIN wiring connectors, turning installation into a clean, plug‑and‑play experience that reduces labor time and contamination risks. This matters in dusty plants, corrosive environments, and time‑critical maintenance windows, where every extra minute with an enclosure open is a potential reliability problem. [assuredautomation]
What sets the RM‑150 apart is not just its headline torque rating, but a set of engineering details that directly impact lifecycle performance. For plant managers and project engineers, the most important features typically include: [scribd]
- External wiring connectors – Allow wiring without opening the housing, improving IP performance and lowering installation risk. [assuredautomation]
- Compact form factor – Simplifies mounting in tight skids, wall cavities, and retrofits where space is constrained. [assuredautomation]
- ISO 5211 direct mounting – Provides standardized mechanical interface between actuator and valve, reducing the need for custom brackets. [assuredautomation]
- Manual override – Connected directly to the output shaft, giving technicians mechanical control during commissioning, power loss, or emergency operation. [assuredautomation]
- Thermally protected motor – A permanent split‑capacitor (PSC) motor equipped with an automatic re‑setting thermal protector prevents damage from excessive cycling or high ambient temperature. [assuredautomation]
- NEMA‑4 weatherproof enclosure – Factory‑sealed, weather‑resistant housing that protects internals from dust and splashing water, suitable for many outdoor and wash‑down environments. [assuredautomation]
- Hardened steel gearing and self‑lubricating bearings – Permanently lubricated gear train and bearings reduce maintenance tasks to almost zero. [assuredautomation]
- Integrated position indication & limit switches – A clear position indicator on top and 2 SPDT limit switches enable reliable position feedback to PLCs and SCADA systems. [assuredautomation]
For engineers tasked with designing automated ball valve assemblies, this combination translates into fewer failure points, straightforward wiring, and predictable behavior under daily cycling. [assuredautomation]
Many actuator datasheets list materials and specifications, but from a system designer's perspective, these details are only valuable if we connect them to actual performance outcomes. [assuredautomation]
Materials Overview [assuredautomation]
- Mounting/shaft: zinc‑plated steel – offers good mechanical strength and corrosion resistance in typical industrial atmospheres.
- Cover: composite PVC – lightweight, electrically insulated, and resistant to many common process environments.
- Base: diecast zinc alloy with powder‑coated epoxy – robust housing with an extra protective finish against corrosion.
Core Specifications [assuredautomation]
- Temperature range: ‑4 to +150 °F, suitable for many water, HVAC, and light industrial media conditions.
- Enclosure: NEMA‑4 weatherproof, giving protection against water splashes and dust ingress.
- Electrical connection: external DIN connectors, simplifying field wiring and replacement.
- Duty cycle: AC units 25%, DC units 100%, which is critical for sizing the actuator according to expected cycle frequency.
- Lubrication: permanently lubricated gear train and bearings, eliminating routine re‑greasing.
In real projects, this translates into fewer unplanned shutdowns, predictable maintenance budgets, and the ability to standardize on a single actuator platform across many small‑bore ball valve points. [assuredautomation]
The RM‑150 is already used across a range of commercial, residential, and industrial scenarios, which gives engineers confidence that the technology is proven, not experimental. [assuredautomation]
In oil industry applications, the RM‑150's compact size and weatherproof design make it suitable for mobile skid systems that move between wells. These skids often require automated pumps and ball valves that can handle harsh outdoor conditions while remaining serviceable in the field. [assuredautomation]
In residential and light commercial buildings, its small footprint enables the construction of automatic water shut‑off systems that fit between wall studs. These systems use actuated ball valves to cut off water when a leak is detected, preventing damage from broken pipes, washing machine hoses, or water heaters. For facility managers and homeowners alike, this is a relatively low‑cost safeguard that can prevent thousands of dollars in water‑damage repairs. [assuredautomation]

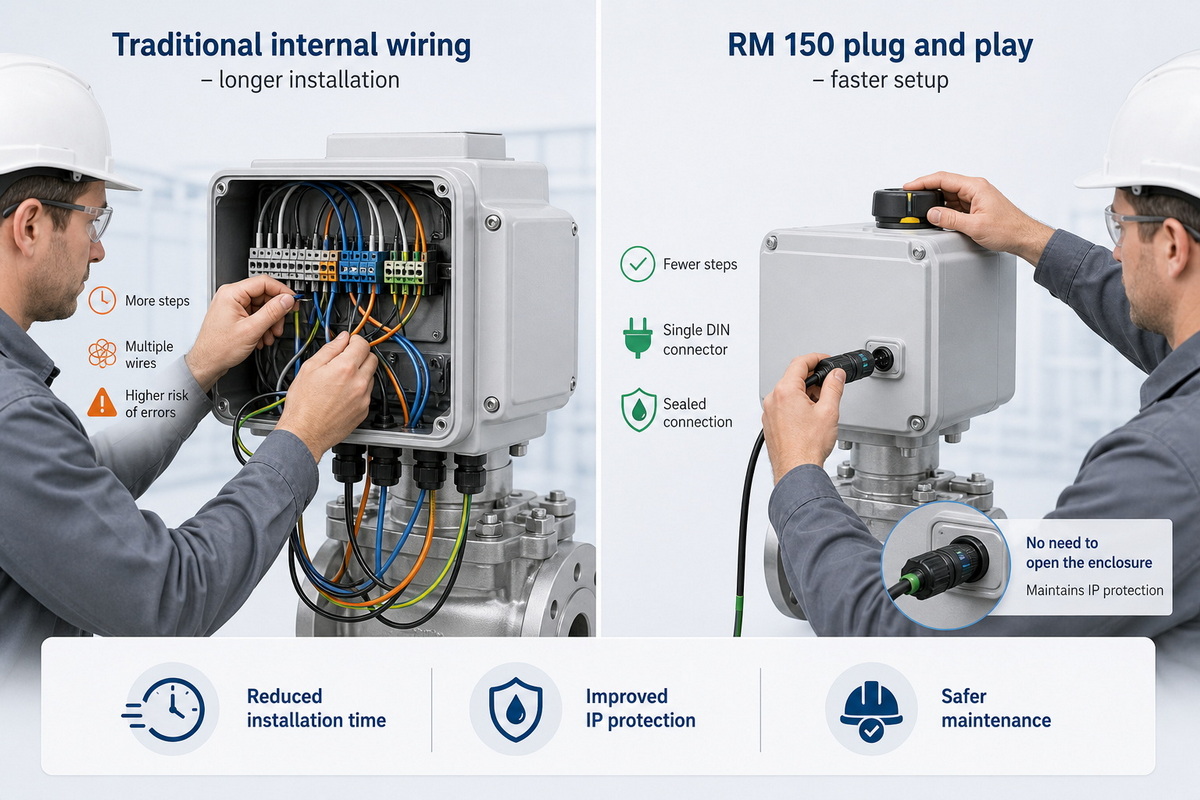

From my experience supporting automation projects, one of the most underestimated design choices in actuators is the wiring concept. Traditional electric actuators require technicians to remove the cover and wire directly to internal terminals, which introduces three consistent problems: exposure to dust and moisture, additional time on site, and a higher likelihood of wiring errors. [konstructdigital]
By using external DIN connectors and offering pre‑wired power cords, the RM‑150 significantly shortens installation time and reduces the need for electrical specialists on every valve point. For EPC contractors and panel builders who are rolling out dozens or hundreds of automated ball valves, this can compress project schedules and reduce labor cost per point. [konstructdigital]

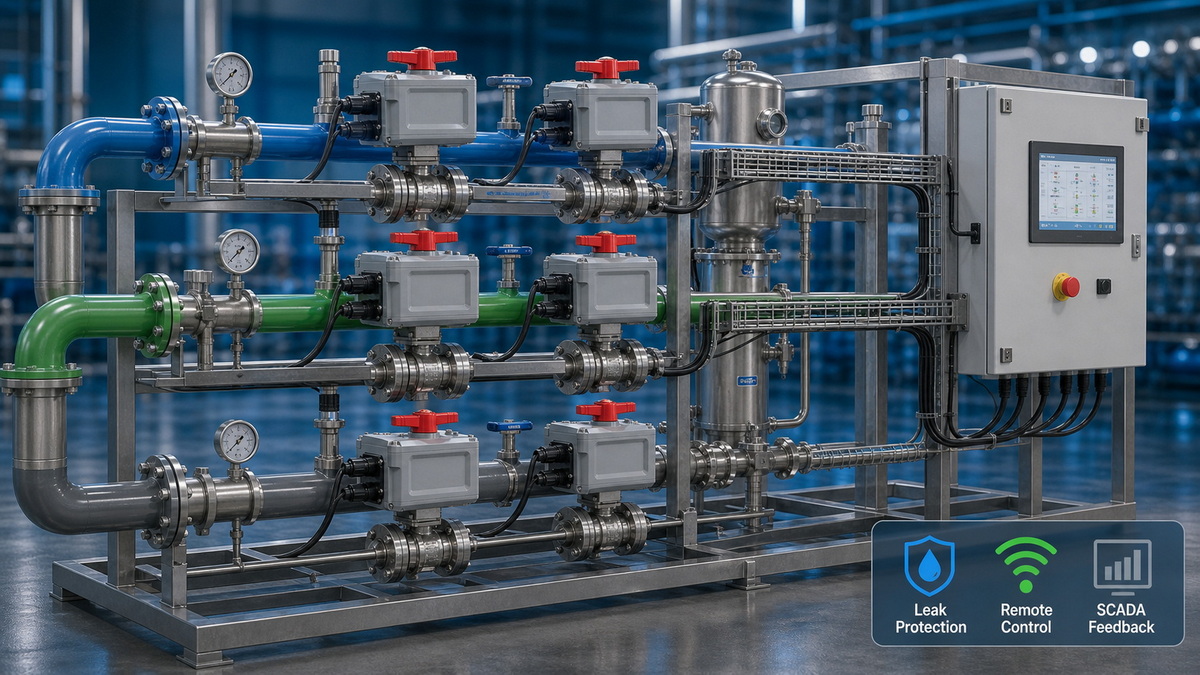

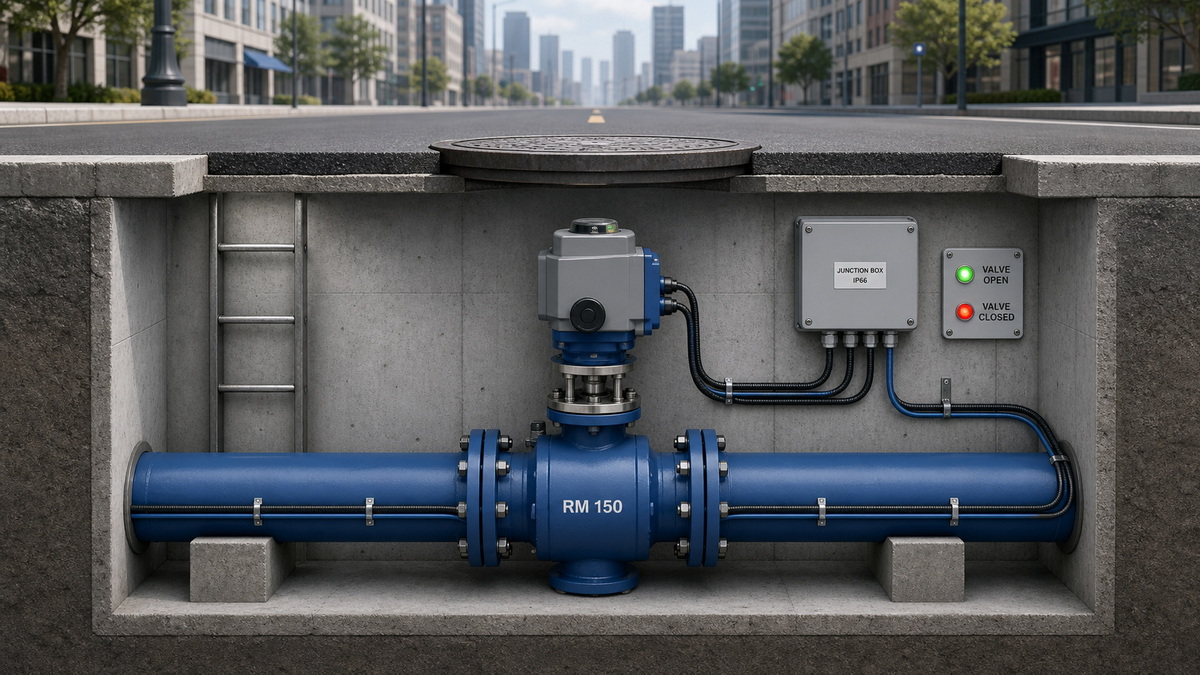

In municipal water treatment skids or distributed pipeline chambers—where access is cramped and environmental exposure is a constant risk—this plug‑and‑play concept directly improves uptime and long‑term reliability. [wodevalve]
When we look beyond technical datasheets and listen to user feedback, a clear pattern emerges about what engineers and contractors value in actuator and valve suppliers. Customers consistently highlight: [reviews.birdeye]
- Professional product quality and the feeling that components are "built right" for industrial use. [assuredautomation]
- Fast shipment and in‑stock availability, especially when a plant is down and a replacement is needed urgently. [reviews.birdeye]
- Helpful technical support, where sales engineers understand applications and can quickly recommend the right model. [assuredautomation]
- Simple, reliable ordering processes, with clear part numbers, online pricing, and downloadable dimensional data. [assuredautomation]
Comments such as "Assured Automation's professional quality product," "good product at a fair price," and "great products and fast shipment" are not just marketing quotes—they represent operational realities for maintenance and project teams who cannot afford repeated trial‑and‑error. [assuredautomation]
This echoes what we also see in global water and municipal projects: distributors and EPC contractors prefer manufacturers who combine robust ball valves, reliable actuators, and straightforward documentation into an integrated solution. [wodevalve]
In water treatment and municipal pipeline applications, correctly pairing actuators with the right ball valve is more important than the actuator alone. From real projects, three principles consistently lead to long‑life, low‑maintenance systems: [wodevalve]
1. Match torque and safety margin
Ensure the RM‑150's 150 in‑lbs output torque comfortably exceeds the maximum required valve torque under worst‑case differential pressure, aging seals, and possible scaling. [assuredautomation]
2. Select appropriate valve materials and seats
For water treatment, municipal pipelines, and corrosive service, engineers often prefer corrosion‑resistant bodies and seats, especially where chlorination or aggressive cleaning is present. The actuator's weatherproof NEMA‑4 enclosure complements ball valves designed for outdoor chambers, buried vaults, and plant‑level exposure. [wodevalve]
3. Design for diagnostics and feedback
The RM‑150's built‑in limit switches and visual position indicator support integration into SCADA and remote monitoring platforms. When combined with high‑quality ball valves, operators can verify open/close positions, track cycles, and detect abnormal behavior early. [wodevalve]
Tianjin Wode Valve, for example, specializes in valves for water treatment and municipal applications and supplies OEM valve solutions to global distributors and engineering contractors. When an actuator such as the RM‑150 is mounted on reliable ball valves designed for these networks, the result is a compact, robust automation package that fits seamlessly into long‑term infrastructure projects. [wodevalve]
To ensure that actuation projects succeed the first time, I recommend engineers follow a structured selection process when specifying electric actuators for ball valves: [konstructdigital]
1. Define the medium and environment
Identify whether you are dealing with potable water, wastewater, chemicals, or process fluids, and check temperature range against the actuator's limits (‑4 to +150 °F for the RM‑150). [assuredautomation]
2. Calculate required valve torque
Work with your valve supplier to determine maximum operating torque at design pressure, including safety factors for aging and fouling. [wodevalve]
3. Check actuator torque and duty cycle
Confirm that 150 in‑lbs output is adequate and that the duty cycle (25% for AC, 100% for DC) matches your expected cycle frequency. [assuredautomation]
4. Verify mounting interface
Use ISO 5211 mounting dimensions to ensure mechanical compatibility between the actuator and the selected ball valve. [scribd]
5. Plan wiring and control
Decide whether you will use external DIN connectors, pre‑wired cords, and how limit switch feedback will be integrated into your control system. [assuredautomation]
6. Consider maintenance strategy
Select actuators with permanently lubricated gear trains and clear position indication to reduce routine inspection tasks. [assuredautomation]
Following a simple checklist like this—combined with early involvement of both actuator and valve manufacturers—reduces redesigns and ensures the installed system supports your lifecycle cost targets. [konstructdigital]
| Parameter | RM‑150 Value / Feature |
|---|---|
| Output torque | 150 in‑lbs (typical) (assuredautomation) |
| Valve compatibility | 1/4″–1‑1/2″ quarter‑turn ball valves (assuredautomation) |
| Mounting interface | ISO 5211, direct mount (assuredautomation) |
| Enclosure rating | NEMA‑4, weatherproof (assuredautomation) |
| Temperature range | ‑4 to +150 °F (assuredautomation) |
| Electrical connection | External DIN connectors (assuredautomation) |
| Duty cycle | AC 25%, DC 100% (assuredautomation) |
| Key mechanical features | Hardened steel gears, self‑lubricating bearings (assuredautomation) |
| Operational convenience | Manual override, position indicator (assuredautomation) |
| Feedback and control | 2 SPDT limit switches for position feedback (assuredautomation) |
For distributors, EPC contractors, and international valve brands, the real opportunity lies in combining proven plug‑and‑play actuators like the RM‑150 with high‑quality ball valves tailored for water treatment and municipal networks. [wodevalve]
If you are planning a new plant, upgrading an existing pipeline, or building packaged water treatment skids, the most effective approach is to engage early with a ball‑valve‑focused manufacturer and an actuator specialist. Share your P&IDs, operating conditions, and control philosophy, then co‑engineer an automated valve package that aligns torque, materials, wiring strategy, and feedback with your long‑term reliability and maintenance targets. [konstructdigital]
The RM‑150 is designed for quarter‑turn valves and is particularly suited for ball valves from 1/4″ to 1‑1/2″ sizes in various process and utility services. [assuredautomation]
Yes, its NEMA‑4 weatherproof enclosure, compact design, and external wiring connectors make it appropriate for many outdoor or semi‑outdoor installations in water and municipal systems. [wodevalve]
The actuator uses permanently lubricated hardened steel gears and self‑lubricating bearings, so under normal conditions it requires minimal routine maintenance beyond standard visual inspection. [assuredautomation]
Yes, it is equipped with 2 SPDT limit switches for position feedback and a mechanical position indicator, allowing straightforward integration with SCADA and PLC controls. [assuredautomation]
You should verify required valve torque with sufficient safety margin, confirm compatibility with the ISO 5211 mounting interface, check duty cycle against expected cycling, and select valve materials suitable for your medium and environment. [wodevalve]
