In the critical infrastructure of municipal water systems and wastewater treatment, the reliability of flow control components is paramount. Among the diverse array of valves available, the Resilient Seated Gate Valve has emerged as a cornerstone solution for engineers, contractors, and asset managers worldwide. Engineered for longevity and bubble-tight sealing, these valves represent a vital investment in infrastructure efficiency and safety.
Unlike traditional metal-seated gate valves, where the metal wedge makes direct contact with a metal seat—often leading to leakage over time—the Resilient Seated Gate Valve achieves a superior seal by encapsulating the gate (or wedge) in high-grade rubber (typically EPDM or NBR) [wsd-valve] [eflowvalve]. This vulcanized rubber coating provides flexible deformation, ensuring a bubble-tight seal even after years of operation [eflowvalve].
The simplicity of the Resilient Seated Gate Valve design is its greatest strength. It comprises five primary components, each engineered for durability:
Valve Body: Typically constructed from ductile iron (ASTM A-536) for high strength and impact resistance [mcwanepi].
Bonnet: Provides the housing for the stem and ensures structural integrity at the pressure boundary [ntgdvalve].
Gate (Wedge): The heart of the valve, fully encapsulated in rubber to ensure a perfect seal [mcwanepi].

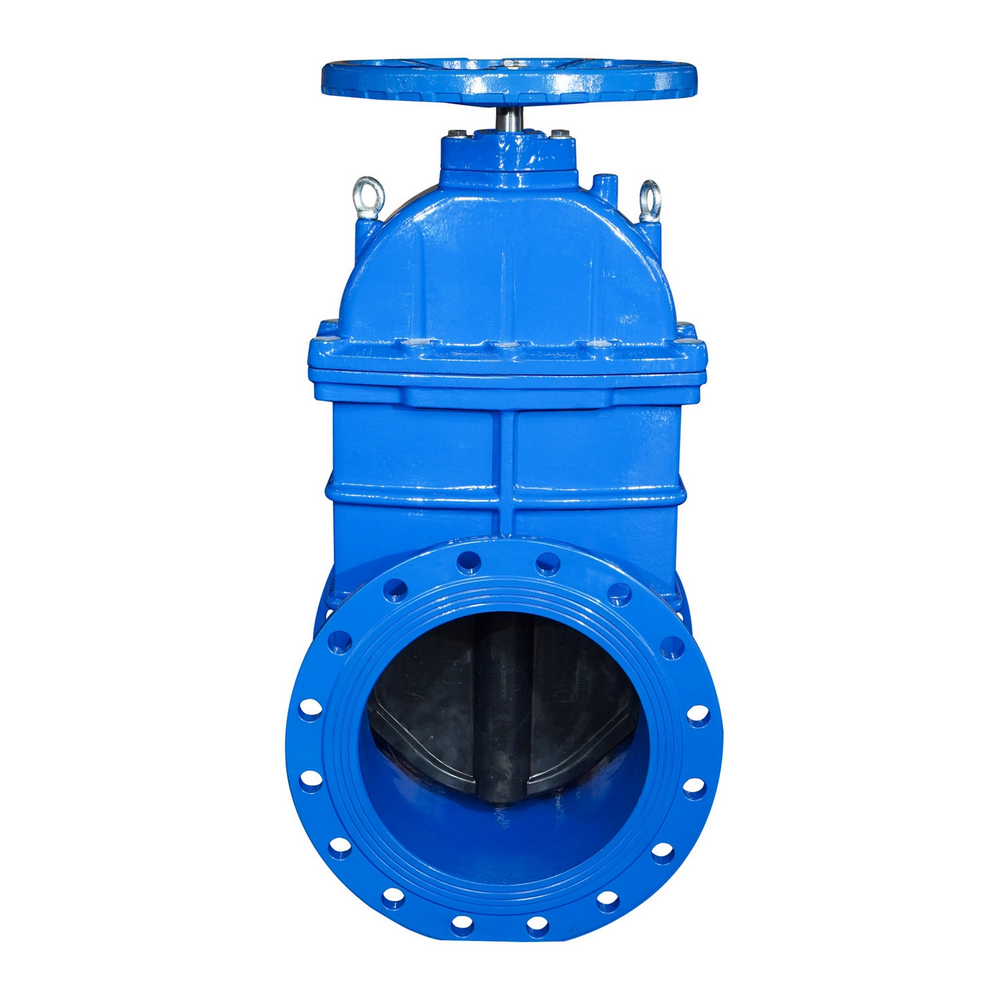

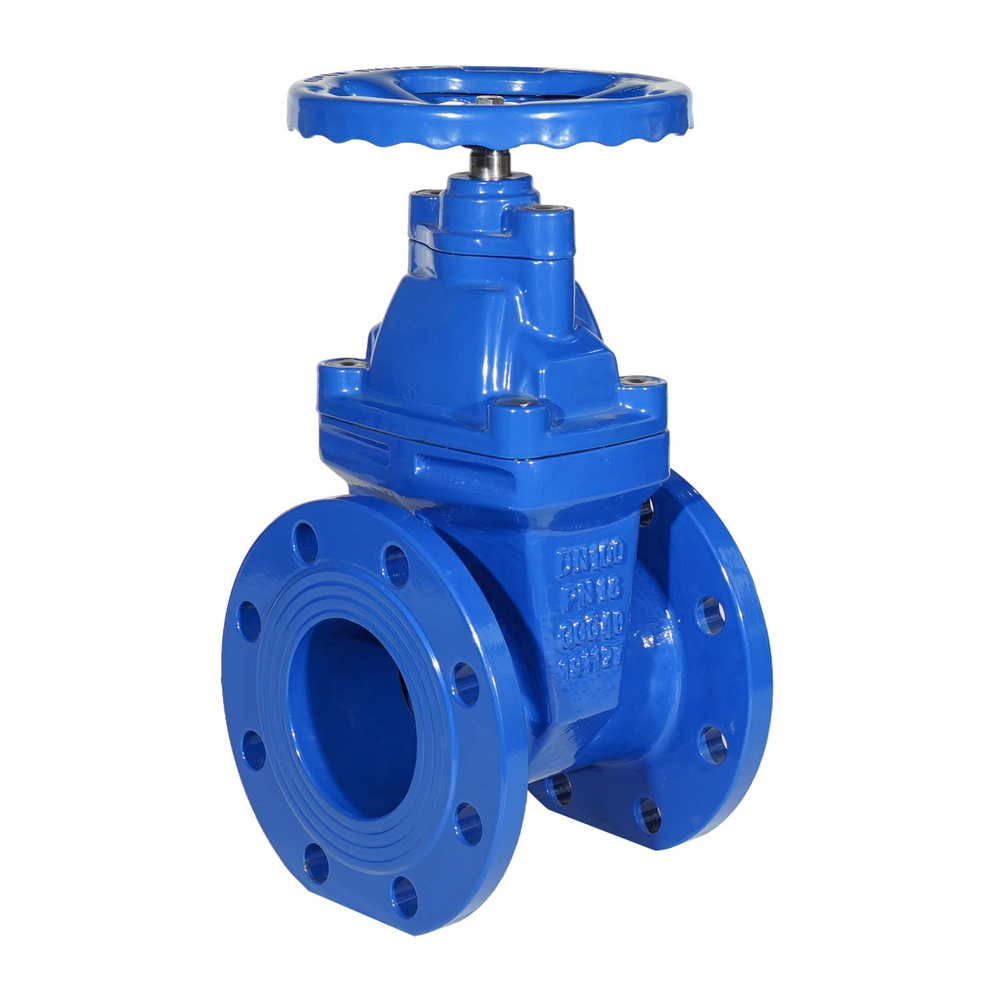

Stem: Available in non-rising (NRS) or rising (OS&Y) designs, often made from corrosion-resistant bronze or stainless steel (304/316 SS) [mcwanepi].
Seat: Designed as a cavity-free area, preventing the buildup of debris and ensuring smooth operation [weldonvalves].
| Component | Material | Key Function |
|---|---|---|
| Body/Bonnet | Ductile Iron mcwanepi | Structural integrity |
| Wedge Coating | EPDM / NBR Rubber mcwanepi wsd-valve | Bubble-tight sealing |
| Stem | Bronze / 304 SS / 316 SS mcwanepi | Operational movement |
The Resilient Seated Gate Valve is favored in sectors demanding long-term, low-maintenance performance [mcwanepi].
Municipal Water Distribution: Its ability to ensure leak-free operation makes it ideal for potable water networks [wsdvalves].
Wastewater Treatment: The cavity-free design prevents solids from interfering with closure, which is critical for sewage and wastewater applications [cigatevalve] [dutcotennant].
Irrigation Systems: Provides reliable, cost-effective flow isolation [wsdvalves].
From an engineering standpoint, choosing a Resilient Seated Gate Valve offers distinct advantages over alternative types, primarily due to its lower maintenance requirements and superior sealing capability [mcwanepi] [scribd]. However, it is essential to ensure that the operating pressure and temperature remain within the manufacturer's specified limits—typically up to 250 PSI and moderate temperature ranges (e.g., 33ºF-125ºF) [mcwanepi].
To maximize the lifespan of your infrastructure, adherence to proper installation and maintenance is mandatory.
1. Pre-Installation Inspection: Check for damage during shipment and verify material compatibility [valvesonline.com] [uspvh].
2. System Flushing: Before final commissioning, flush the pipeline to remove debris that could damage the rubber wedge [com].
3. Correct Orientation: Favor vertical installation (stem upright) to ensure optimal operation [muellercompany].
4. Annual Operation: Even in low-traffic systems, operate the valve at least once a year to prevent stem binding due to encrustation [mcwanepi].
At Tianjin Wode Valve Co., Ltd., we combine advanced manufacturing techniques with rigorous quality control to produce Resilient Seated Gate Valves that meet international standards. Our valves are designed for durability, providing EPC contractors and global brands with the reliability required for modern municipal infrastructure.
Ready to enhance your pipeline efficiency? Contact our technical team today to discuss your specific requirements and get a customized valve solution tailored to your project.
[1] Choosing Between Metal Seated and Resilient Seated Gate Valves, WSD Valves: [https://www.wsdvalves.com/choosing-between-metal-seated-and-resilient-seated-gate-valves-a-complete-buyers-guide/]
[2] Resilient Seated Gate Valve Technical Overview, McWane MPI: [https://mcwanepi.com/upl/downloads/catalog/products/mpi/documents/resilient-seated-gate-valve.pdf]
[4] Resilient Seated Gate Valve: Design and Construction, CIGateValve: [https://cigatevalve.com/technical-guides/resilient-seated-gate-valve/]
[6] Advantages and Disadvantages of Resilient Seated Gate Valves, Weldon Valves: [https://www.weldonvalves.com/news/advantages-and-disadvantages-of-resilient-seated-gate-valves.html]
[11] What Is a Resilient Seated Gate Valve?, Eflow Valve: [https://www.eflowvalve.com/newsdetail/resilient-seated-vs-metal-seated-gate-valve.html]
[17] 10 Considerations for Better Gate Valve Operation, Mueller Co.: [https://www.muellercompany.com/sites/muellercompany.com/files/uploads/media/bettergatevalveoperation.pdf]
1. What is a resilient seated gate valve? It is a valve where the gate is encapsulated in rubber to provide a tight, leak-free seal.
2. Where are these valves used? Primarily in municipal water, wastewater treatment, and irrigation systems.
3. How often should they be maintained? They require minimal maintenance, but should be operated at least annually to prevent stem binding.
4. Can they handle high pressure? They are designed for standard municipal working pressures (often up to 250 PSI); check specific model ratings.
5. Why choose resilient over metal seated? They provide better, bubble-tight sealing and are highly resistant to debris buildup.
